Focus Flex

UPC#: 810087370145
Advantage Points: 1650
Redemption Points: 33000
SKU
FOC710

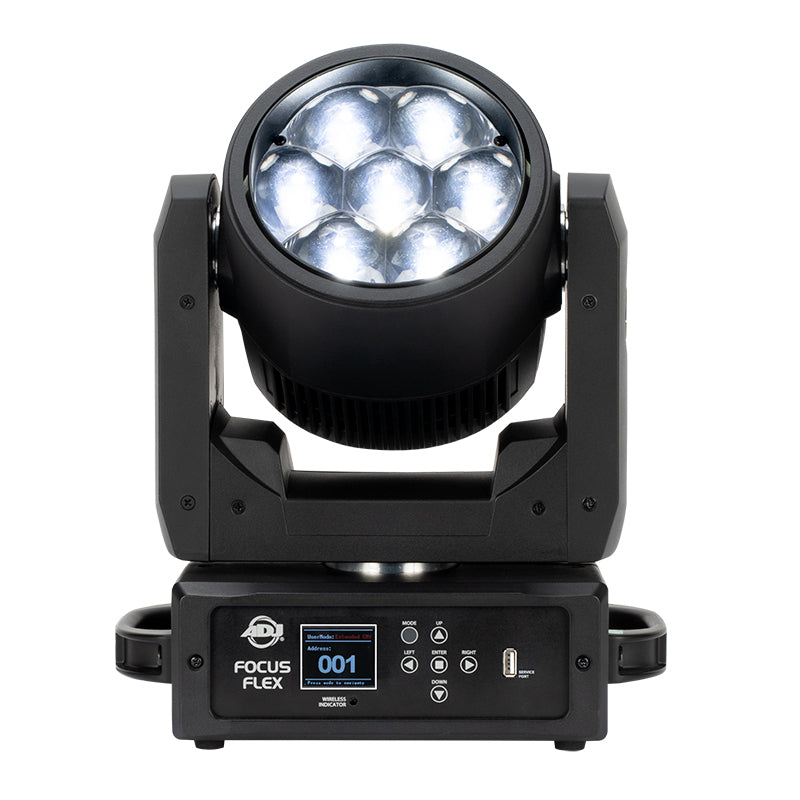

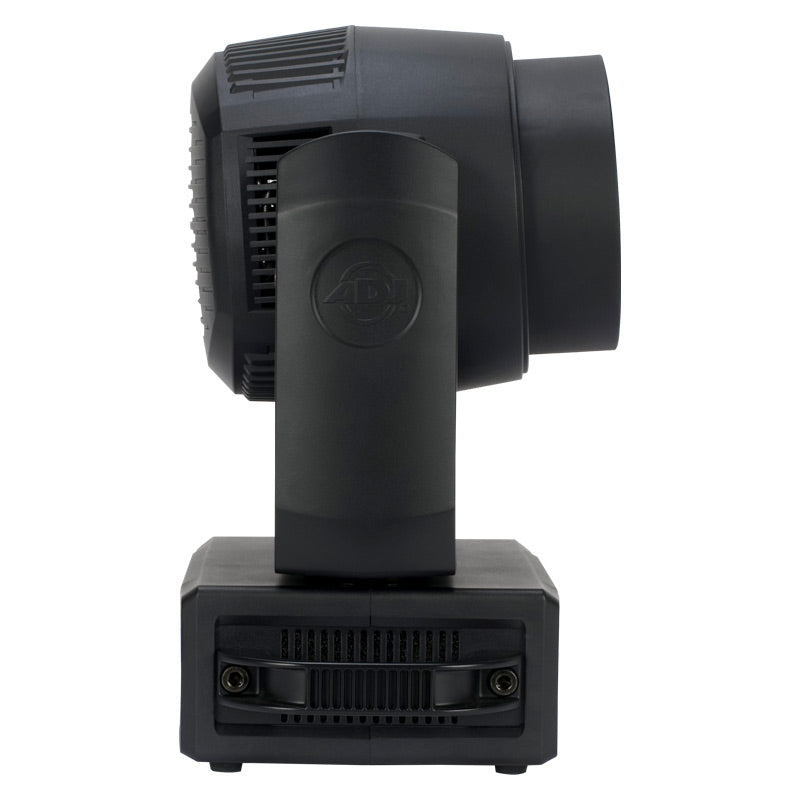

The Focus Flex offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable field angle of between 6 and 57-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Light Source:
• 7 x 40-Watt RGBW LEDs (50,000 hr.)
• CRI: 78.7
• 15,140 lux / 4 beam @ 16' (5m)
• 378 lux / 35° beam @ 16' (5m)
• Lumens: 3240 (Zoomed Out, Full On)

Features:
• Moving Head Pixel Wash with Pixel Effects
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 265
• Motorized Zoom
• Beam Angle: 4° ~ 35°
• Field Angle: 6°~57°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan Cooled
• Antenna for WiFLY EXR Wireless DMX

Colors:
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros

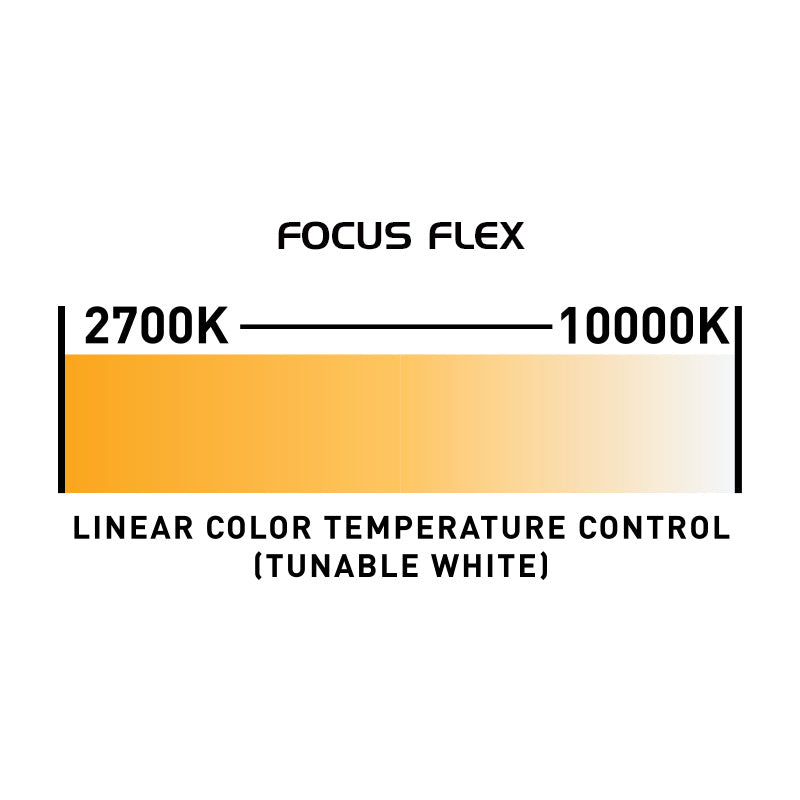

• 2700k ~ 10,000 Liner White Color Control
• Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K

Control:
• 7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• Built-In Effect Pixel Programs with Speed and Fade Control
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 265 degrees

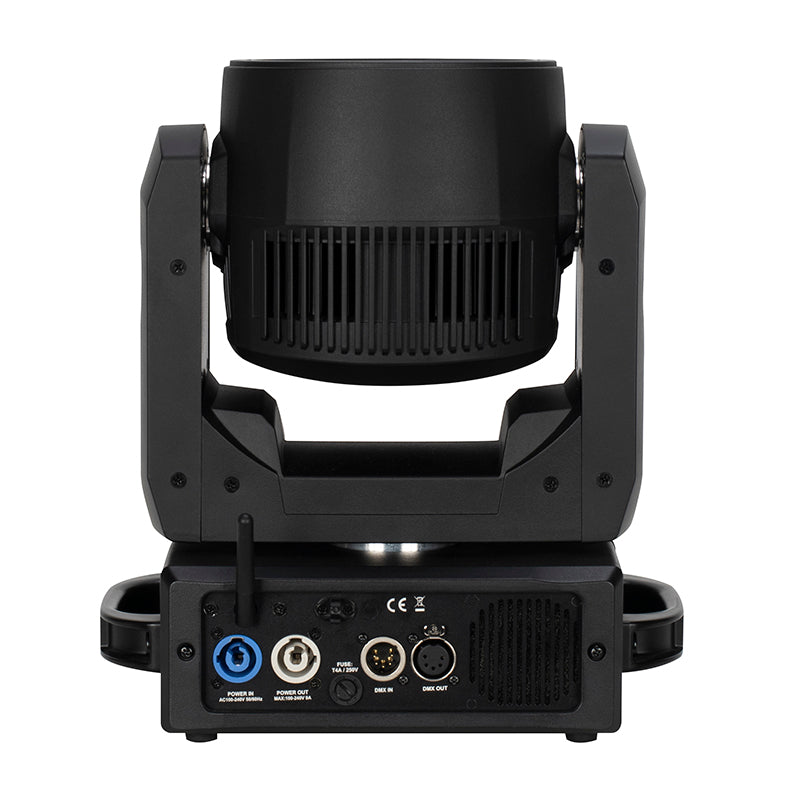

Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: Indoor Locking Power In/Out

Electrical:
• Multi-voltage operation: 90-240V, 47/63Hz
• Max power consumption: 340W @120v

Dimensions & Weight:
• Dimensions (LxWxH): 7.0"L x 11.5"W x 12.9" H (179x292x329mm)
• Weight: 15.5lbs (7kg)

What’s Included:
• Omega Brackets
• 1.83M locking power cable

Optional Road Cases:
• DRC MH: 2 Focus Flex fit in the DRC MH Road Case
• QRC MH: 4 Focus Flex fit in the QRC MH Road Case

Approvals / Rating:
cETL Approved / CE Certified
IP20

Specifications subject to change without notice

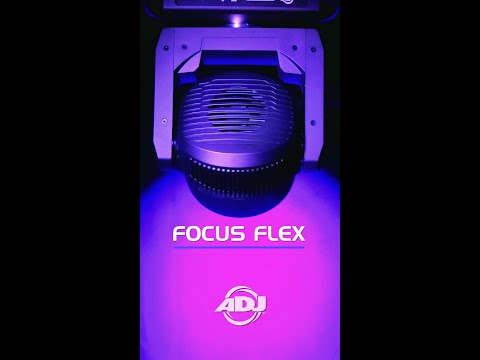

Videos

Downloads

The following downloads are available for this product:

Title Description
Focus Flex - DMX Traits DMX Traits Download
Focus Flex 2D CAD Drawing CAD Drawing Download
Focus Flex - Dimensional Drawing Dimensional Drawing Download
Focus FLex - Vectorworks Symbol V2022.vwx Vectorworks Download
Focus FLex - Vectorworks Symbol V2023.vwx Vectorworks Download
Focus Flex - User Manual Focus Flex - User Manual Download
Focus Flex Cut Sheet 2MB PDF File (Revised October 2022) Download
Focus Flex - 3D Cad Focus Flex - 3D Cad Download
Complete Photometric Data Photometric Data Files Download
Available now from ADJ USA

Compact, quick and punchy, the Focus Flex from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

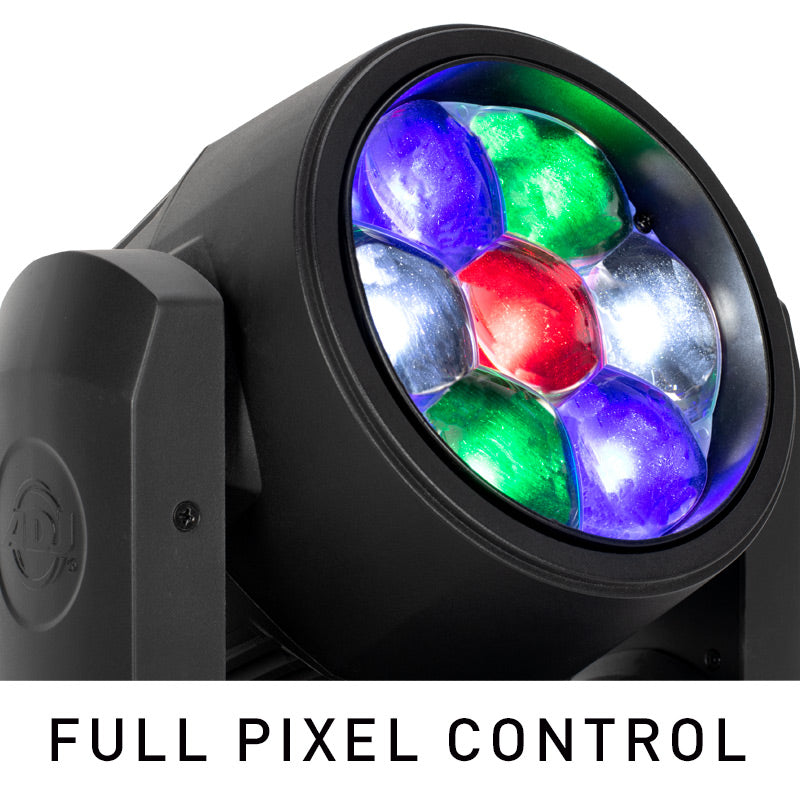

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. It also offers Virtual Foreground and Background Color Wheel control as well as white light output with variable color temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex are color calibrated to ensure uniform output of fixtures from different batches.

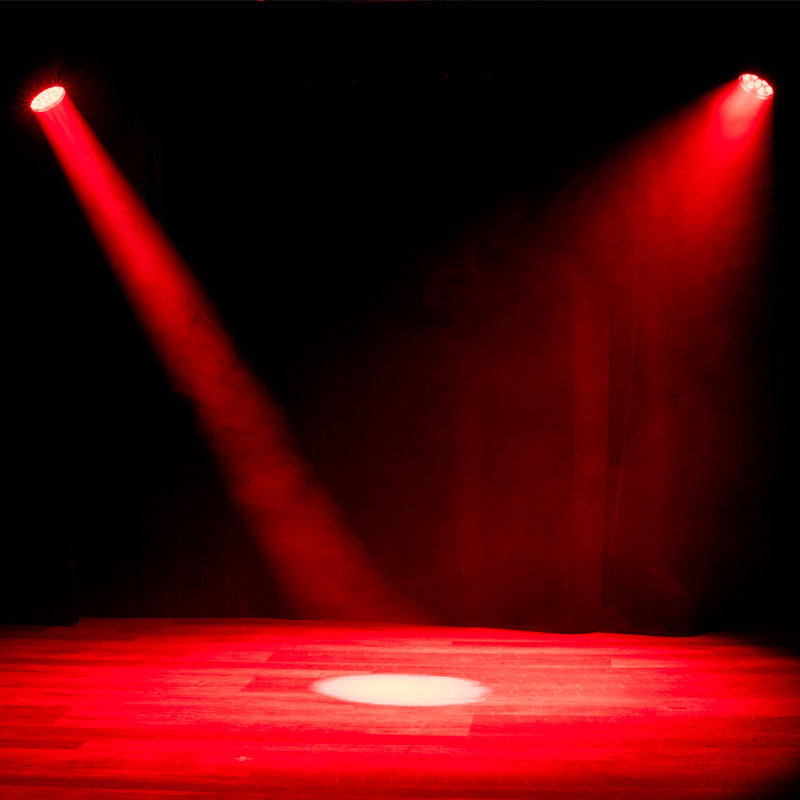

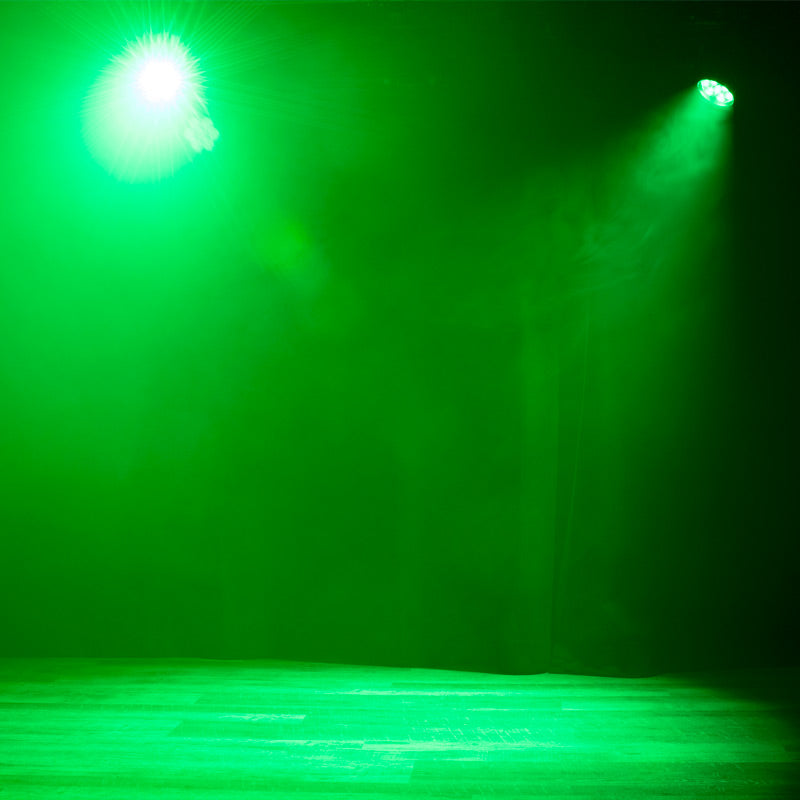

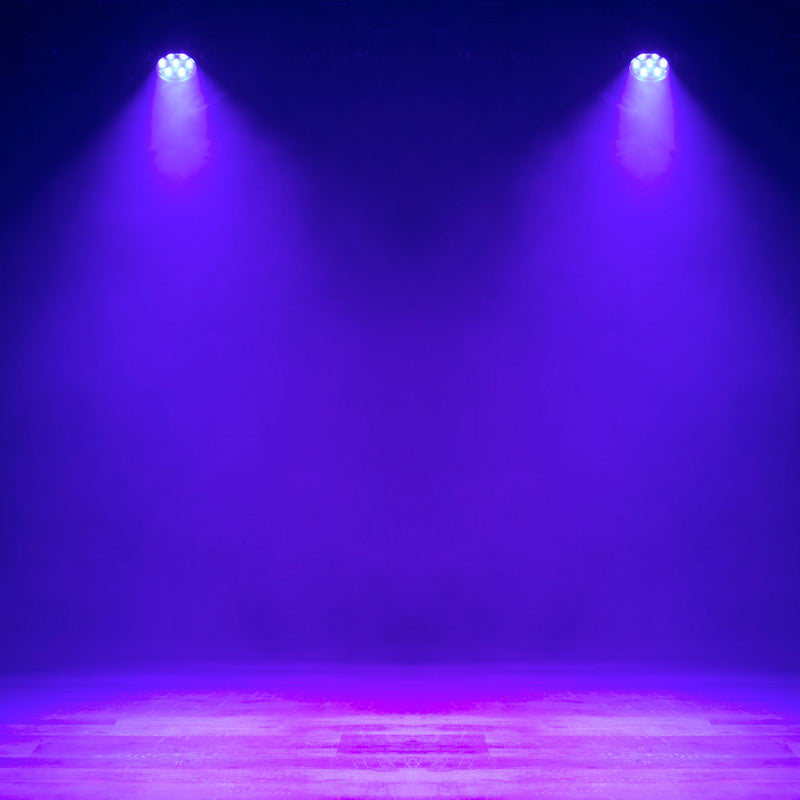

Motorized zoom allows the field angle of the Focus Flex to be altered remotely between a wide 57-degrees and narrow 6-degrees, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.

A flexible fixture, the Focus Flex offers a range of DMX mode options [7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels], appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a color LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.
