Flat Par QA12XS

(Discontinued)
SKU: FLA496 | UPC: 819730014511
Take your color mixing to the next level with the ADJ Flat Par QA12XS professional “low profile” LED fixture. It features twelve 5-Watt QUAD LEDs (4-in-1 RGBA) with smooth RGB color mixing as well as a true amber LED to get the hard to achieve orange and amber hues. Snoot included.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Take your color mixing to the next level with the ADJ Flat Par QA12XS professional “low profile” LED fixture. It features twelve 5-Watt QUAD LEDs (4-in-1 RGBA) with smooth RGB color mixing as well as a true amber LED to get the hard to achieve orange and amber hues.

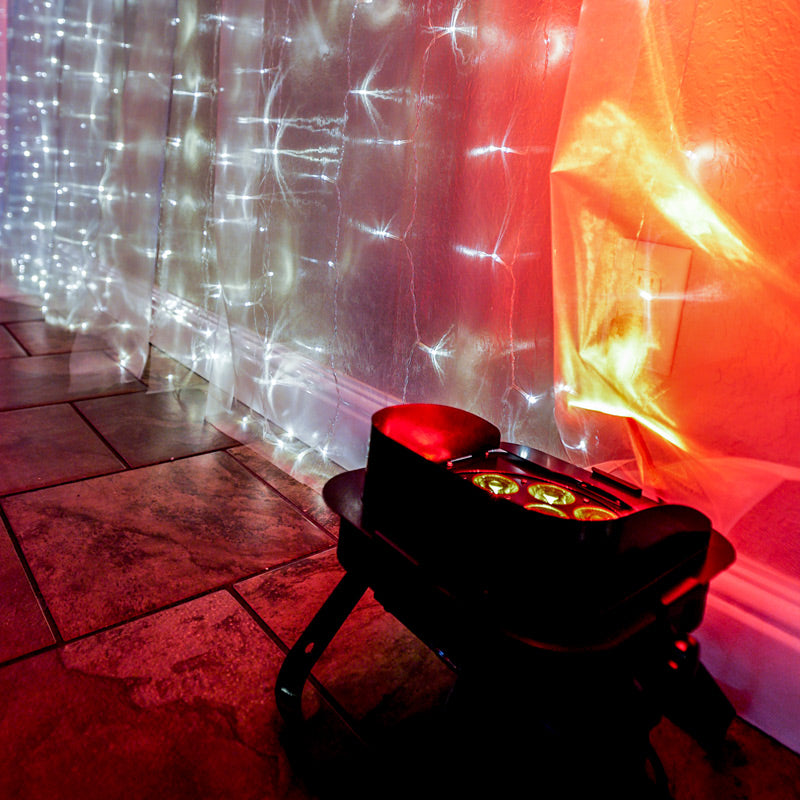

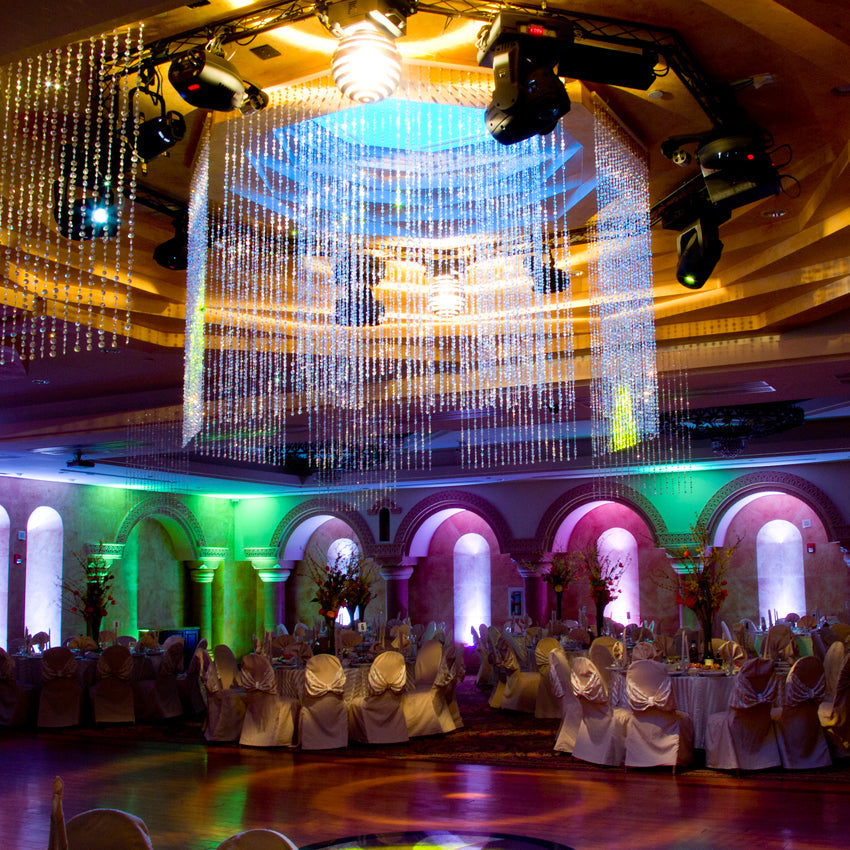

The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss or for uplighting. Snoot frame is included to help limit unwanted light exposure.

The Flat Par QA12XS has 8 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go “wireless” with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 15 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QA12XS LEDs are rated at 50,000 hours, and only draws 80-Watts of power per fixture.

Specifications

Specifications

• Ultra bright slim fixture with 12x 5-Watt QUAD LEDs (4-in-1 RGBA- Red, Green, Blue & Amber)
• Snoot Frame included helps limit unwanted light exposure

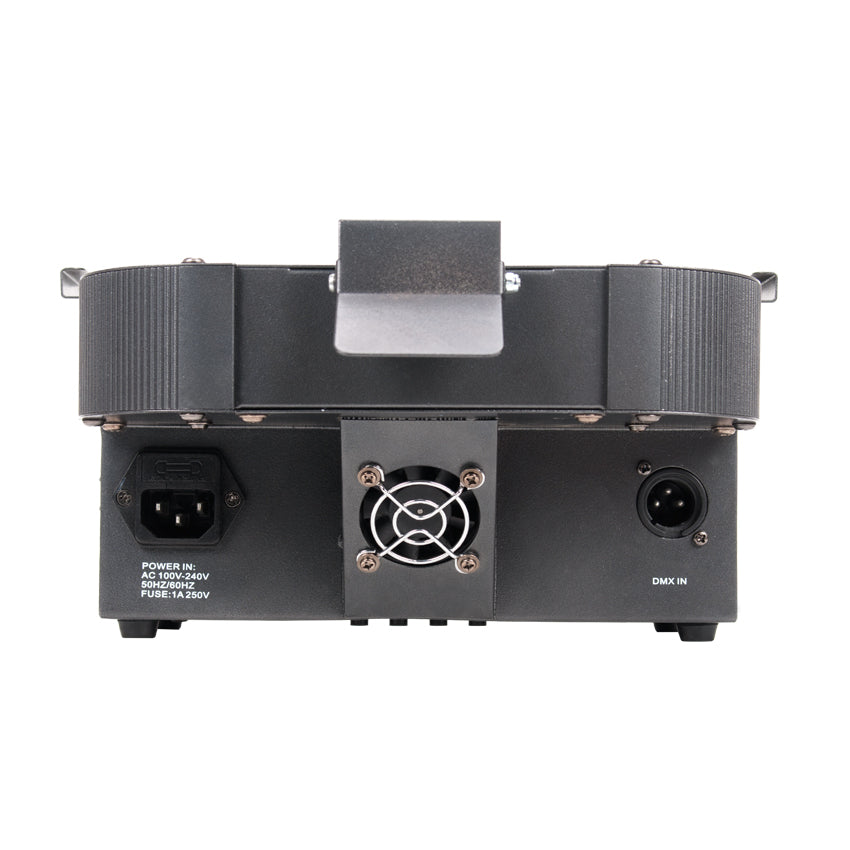

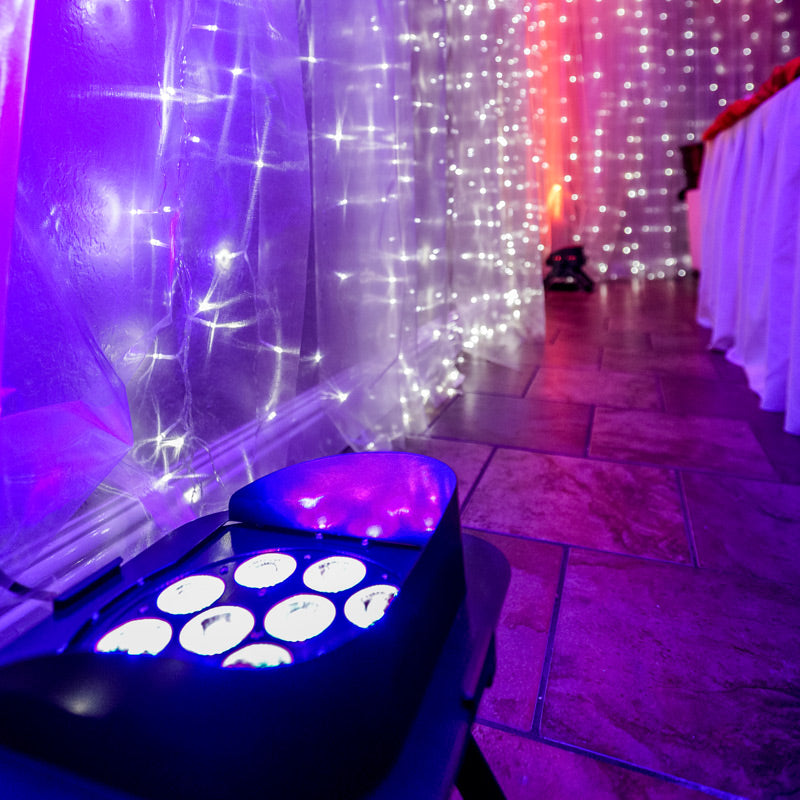

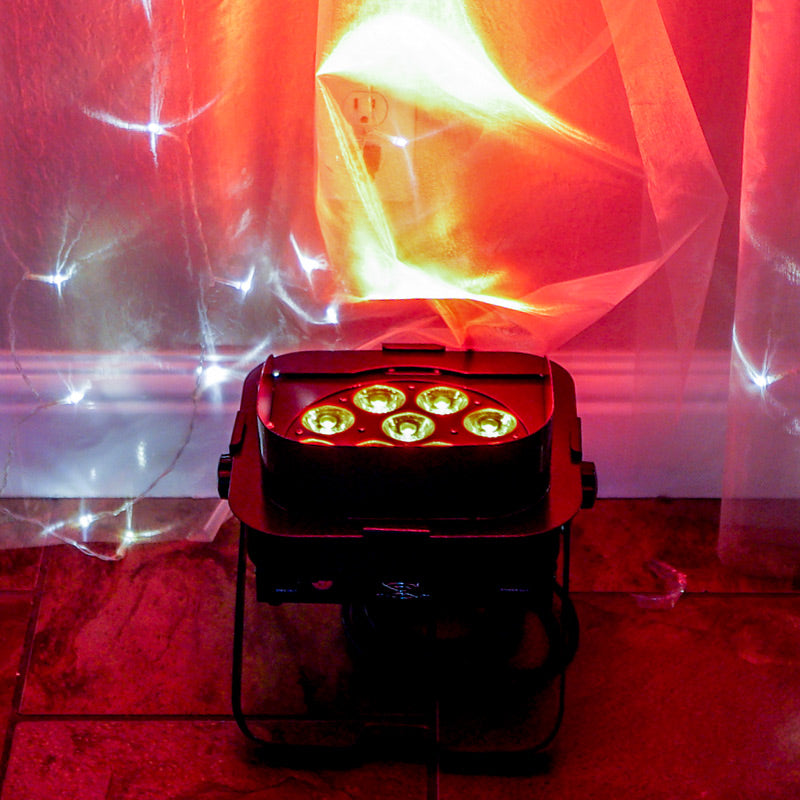

• Unique “sit flat” design – Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss
• Great for performance stages where traditional par cans emit a lot of heat onto performers
• Low profile case design
• Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)
• 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
• 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
• Smooth RGBA color mixing (fast or slow color change operation)
• QUAD LED (4-in-1) projects no RGB shadows
• 15 built-in Color Macros
• Color strobe effect
• Flicker Free
• Electronic Dimming: 0 - 100% ­
• Beam angle: 25-degree
• Linkable via 3-pin XLR cable (In/Out)

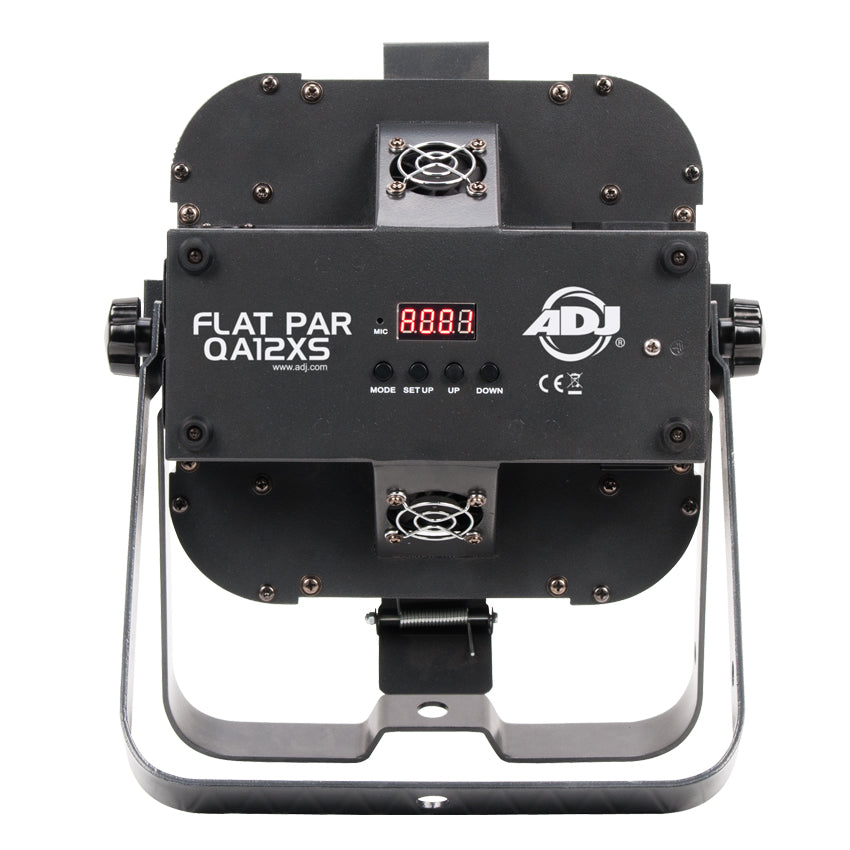

• 4-button LED DMX display on rear panel
• Dual bracket yoke allows fixture to be hung or set on the ground

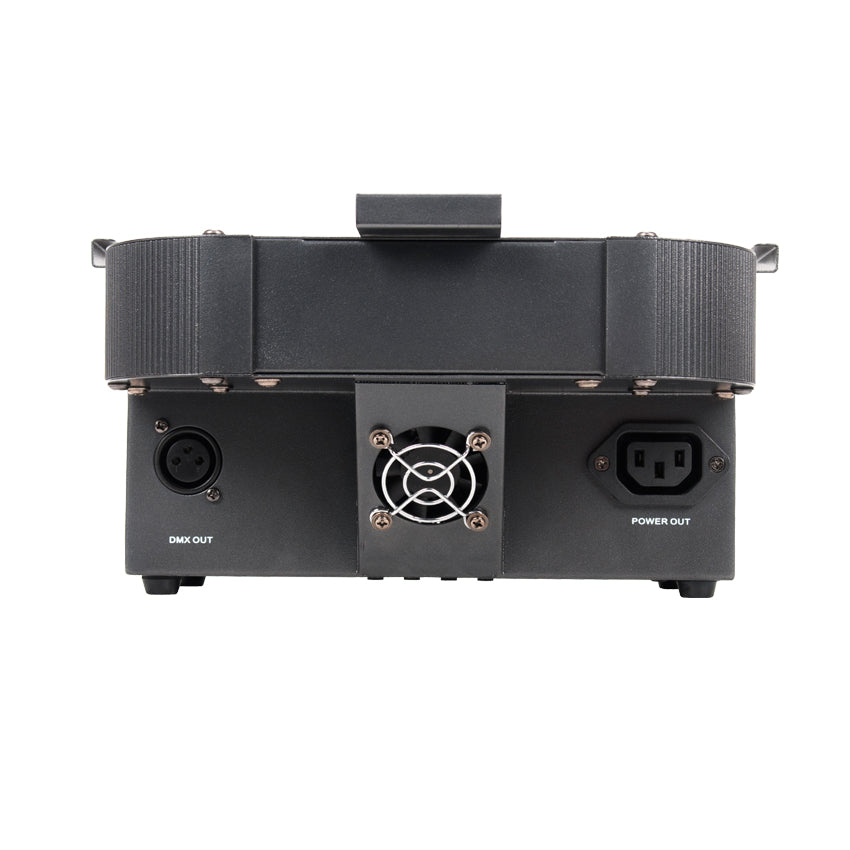

• IEC AC IN/OUT outlets on rear to daisy chain power (up to 7 units)
• Includes gel frame for optional diffusion filters
• Run all night – No duty cycle
• Light output: 4656 LUX @ 2M; 1178 LUX @ 4M (25-degree beam)
• Long Life LEDs (50,000 hrs.)
• Power Draw: 80W max
• Power Cable Length: 1.8m (IEC)
• Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
• Dimensions (LxWxH): 13”x11”x4.5” / 328x280x115mm
• Weight: 7 lbs. / 3.2 kg.

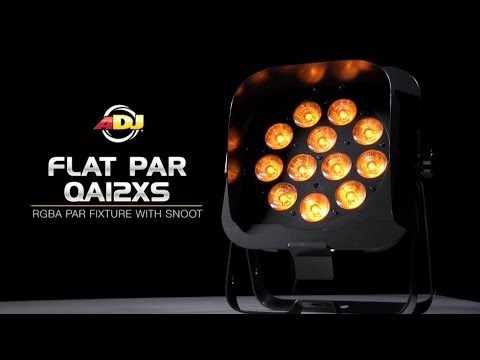

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Flat Par QA12XS User Manual Download
Flat Par QA12XS Photometrics Download
Flat Par QA12XS Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I currently run the virtual dj pro 7 now, was wondering if the mxr 19 will work with the current program that im using or will I have to install the disc that it comes with thanks Nick

IT will work with Virtual DJ PRO7.

Hi, I have just purchased this mixer/controller and am using it with a brand new laptop and newly purchased PCDJ DEX3 but i am unable to get the 20 user controlls working, also the switch over from hot cue to sample keys, also when in controller mode i can only use the cross fad and channel faders nothing else works, i have downloaded and installed your asio drivers and DEX3 does see the mixer, i have also changed input to none and output does auto recognize, any help would be appreciated. Regards Paul

Please contact ernies@americandj.com.

This looks like the only affordable mixer on the market that can accomplish my needs, being that it is both a midi controller and an audio interface. I have attempted to research information about the DSP D-Core sound card and I have not found much information. I would like to know, as it is pertinent to weather or not I make this purchase, is the sound card 24bit-96kHz? If it only supports up to 16bit and/or 48kHz, then sadly I won't be able to make the purchase since 24bit-96kHz has become a standard these days both for recording and live DJing

It is 24 bit.

Do you have Midi mapping (.tsi file) for Traktor 2 DJ software ?

Here’s a link to where you can download the mapping file. (19MXR must be in controller mode)

https://www.dropbox.com/sh/de4n018mq16pv1b/AADY_g1JO1nXmcXreWcHjXyha?dl=0



How loud are the fans on this fixture?

Not very loud
