Flash Kling Batten

SKU: FLA308 | UPC: 819730015259
The ADJ Flash Kling Batten is a panel for low resolution video transmitted through KlingNet or ArtNet protocol.
Advantage Points: 330

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


The ADJ Flash Kling Batten is a linear panel that provides an exciting and affordable way to bring low res video and moving graphics to a lightshow for nightclubs, stages and multi-media events. The Flash Kling Batten is compatible with KlingNet and ArtNet protocols. Recommended software solutions include LED Master, Arkaos Media Master Express or Arkaos Media Master Pro. The fixtures are connected via a RJ45 (Cat5) connection. Daisy chain up to 12 fixtures from the built-in IEC In/Out connects on the rear panel.



•  LED Pixel panel for, low resolution, video displays
• 160 x 0.164W SMD RGB 3-in1 LED’s (40x4 Matrix Configuration)
• Refresh Rate:1.2KHz
• 120-Degree Beam Angle
• KlingNet and ArtNet compatible. Recommended control solutions; Arkaos Media Master Express, Media Master Pro and LED Master software (sold separately).

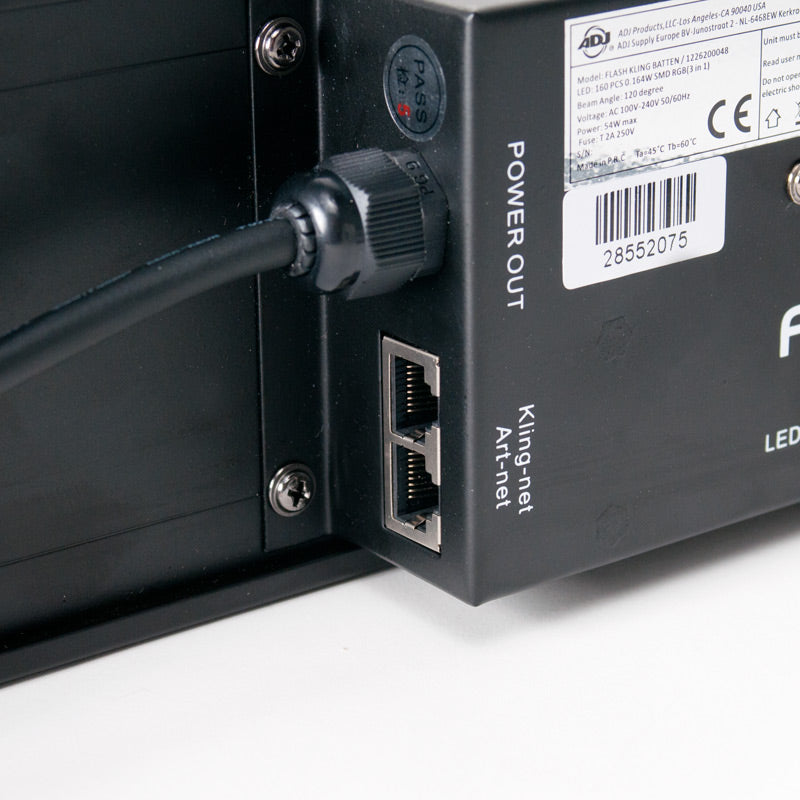

• RJ45 Connection
• With Wired Digital Communication Network

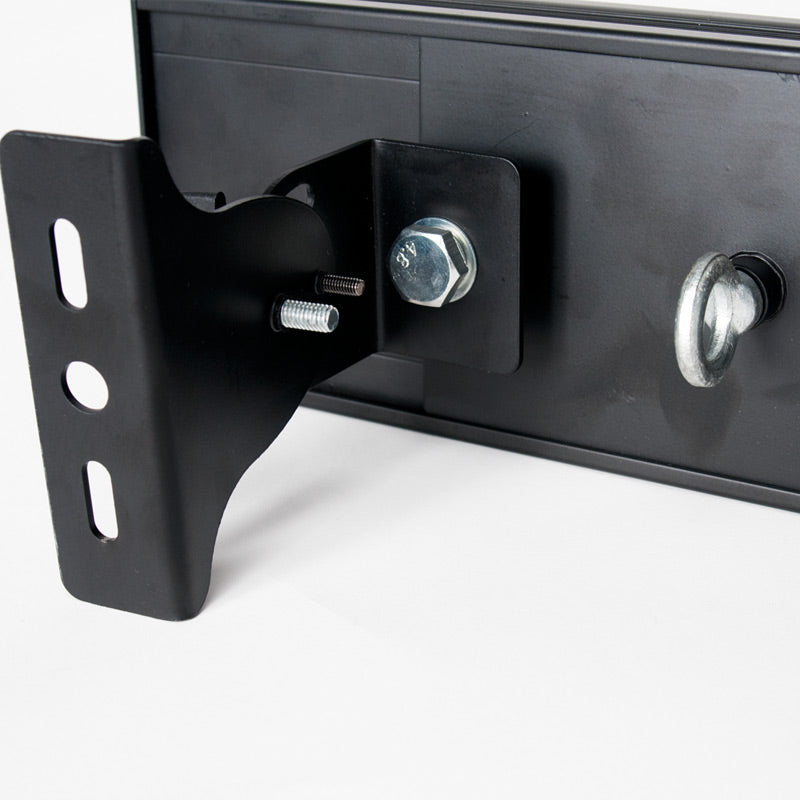

• Includes hanging brackets and safety loops
• Electronic Dimming 0-100% (via software)
• Light output: 36.2 LUX @ 2M; 13.5 LUX @ 4M (120-degree beam)
• Multi-voltage: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)
• Power Cord Daisy Chain up to 12 fixtures max.
• Power Consumption: 54W
• Dimensions (LxWxH): 39.25” x 4” x 5.5” / 1000 x 104 x 140mm
• Weight: 7.27 lbs. / 3.3 Kgs.






The following downloads are available for this product:

Title Description
Flash Kling Batten Cut Sheet Cut Sheet Download
Flash Kling Batten User Manual User Manual Download
Flash Kling Batten Photometrics Photometrics Download
