Element QAIP
UPC#: 818651020472
Advantage Points: 340
Redemption Points: 6800
SKU
ELE765

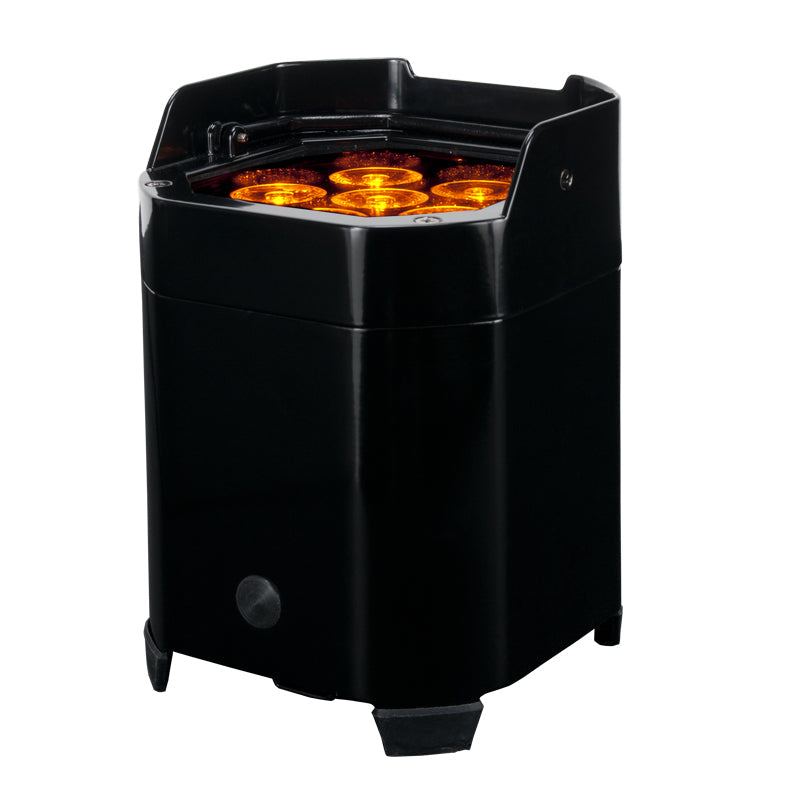

The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element QAIP features six 5W RGBA (4-IN-1) LEDs and is IP54 outdoor rated intended for indoor or outdoor use.
Optical:
• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• Life expectancy: rated at 50,000 hrs.
• LUX: 901 @ 2M; 213 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz
Connection:
• DMX: WiFLY EXR Wireless DMX
• With Wired Digital Communication Network
• IEC connection to power/charge fixture
Control:
• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 4, 5, 6, 9 or 10
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled
Features:
• IP54 Outdoor Rated

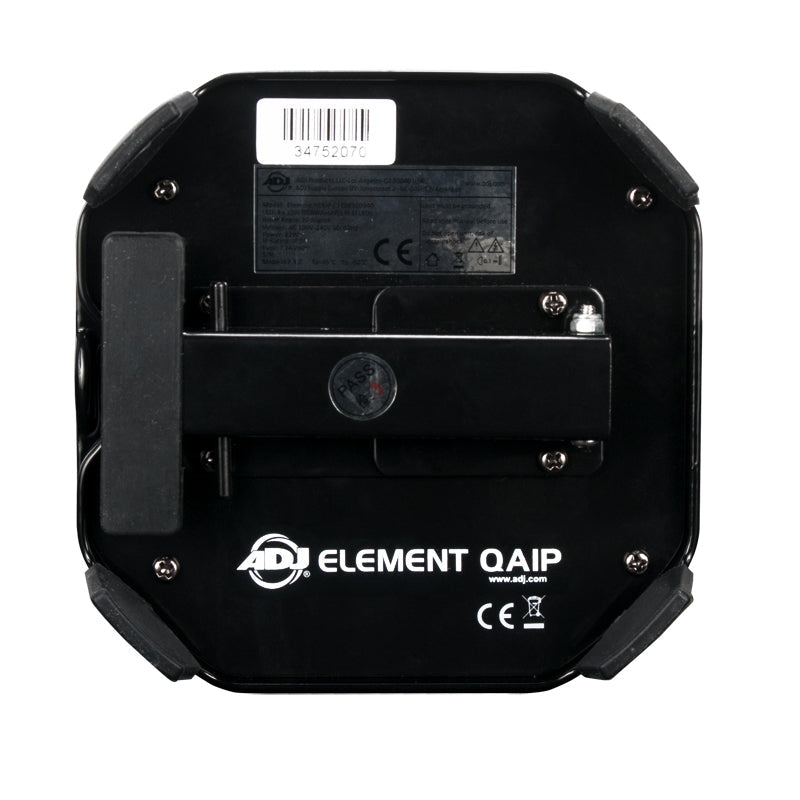

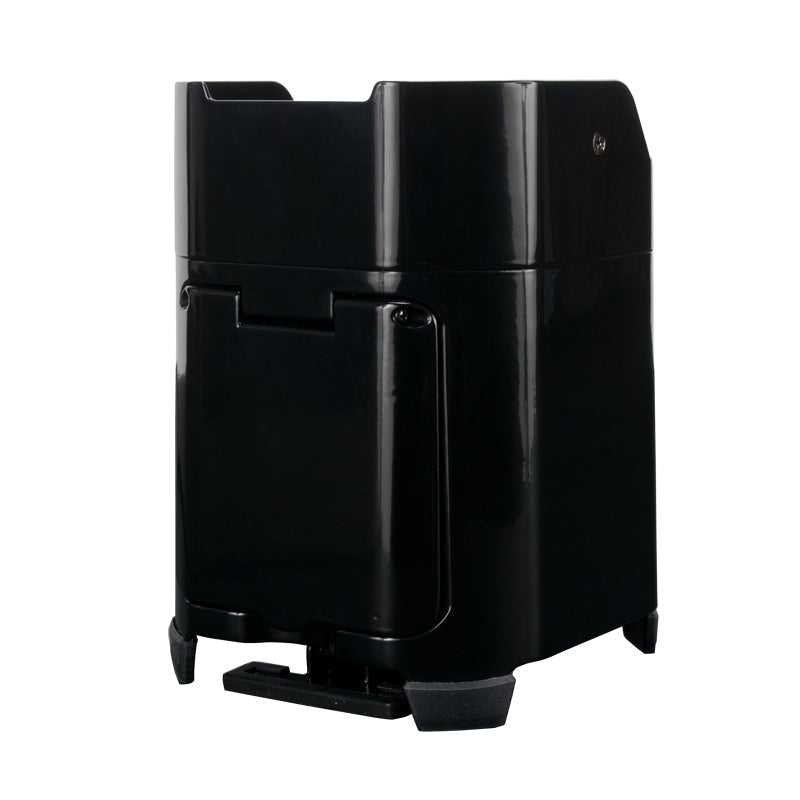

• Built-in kickstand to angle figure while it’s on the floor

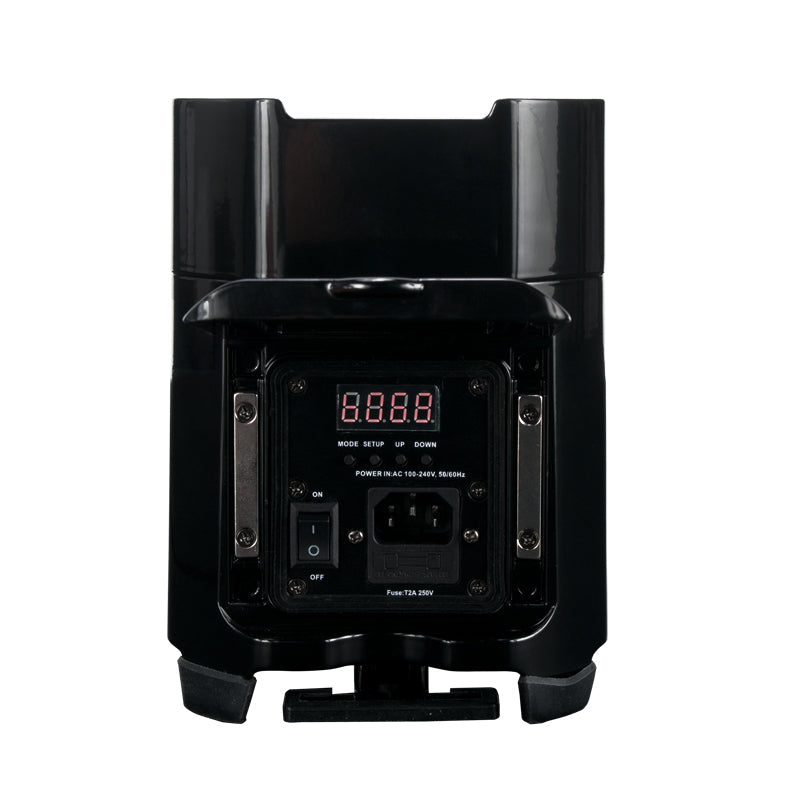

• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 64 built-in Color Macros
• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Saving Mode
Battery:
• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)
Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz
Dimensions / Weight:
• Dimensions (LxWxH): 5.67” x 5.67” x 7.66” / 144.06 x 144.06 x 194.5mm
• Weight: 6.5 lbs. / 2.9kg.
Certifications:
• ETL Approved
• CE Approved
• IP54 Outdoor rated

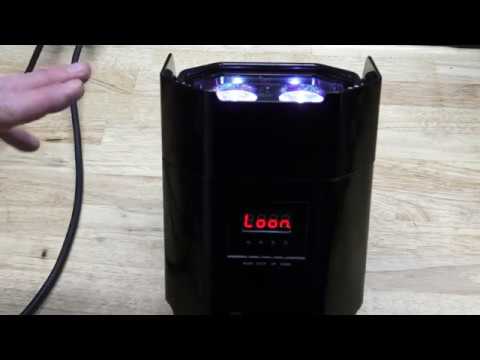

Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Element QAIP Photometric Test Reports | Photometric Test Reports | Download |
| Element QAIP Photometric IES Files | Photometric IES Files | Download |
| Element QAIP DMX Traits | DMX Traits | Download |
| Element QAIP User Manual | User Manual | Download |
| Element QAIP Dimensional Drawing | Dimensional Drawing | Download |
| Element QAIP 2D Cad Drawing | Cad Drawing | Download |

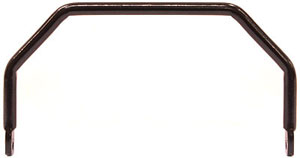

From the Element Par Series, the Element QAIP is an IP54 outdoor rated battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor or outdoor use. It’s powered by six 5W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!
Learn more about the Element Series from this product spotlight article: http://tinyurl.com/y7mdo69e
Read the press release here: http://tinyurl.com/y9mhvp9e
