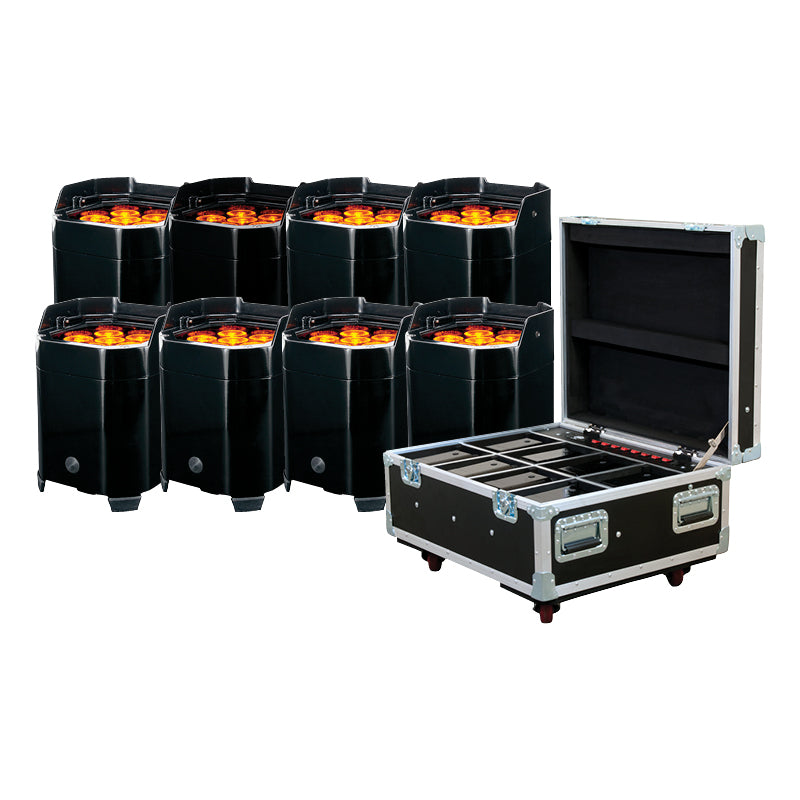

Element QA IP FC Pak

Element QAIP:

Optical:

• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)

• Life expectancy: rated at 50,000 hrs.

• LUX: 901 @ 2M; 213 @ 4M

• Beam angle: 20-degree

• PWM frequency:1000Hz

Connection:

• DMX: WiFLY EXR Wireless DMX

• With Wired Digital Communication Network

• IEC connection to power/charge fixture

Control:

• Control protocol: WiFLY EXR DMX

• 5 DMX Channel modes: 4, 5, 6, 9 or 10

• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

• IP54 Outdoor Rated

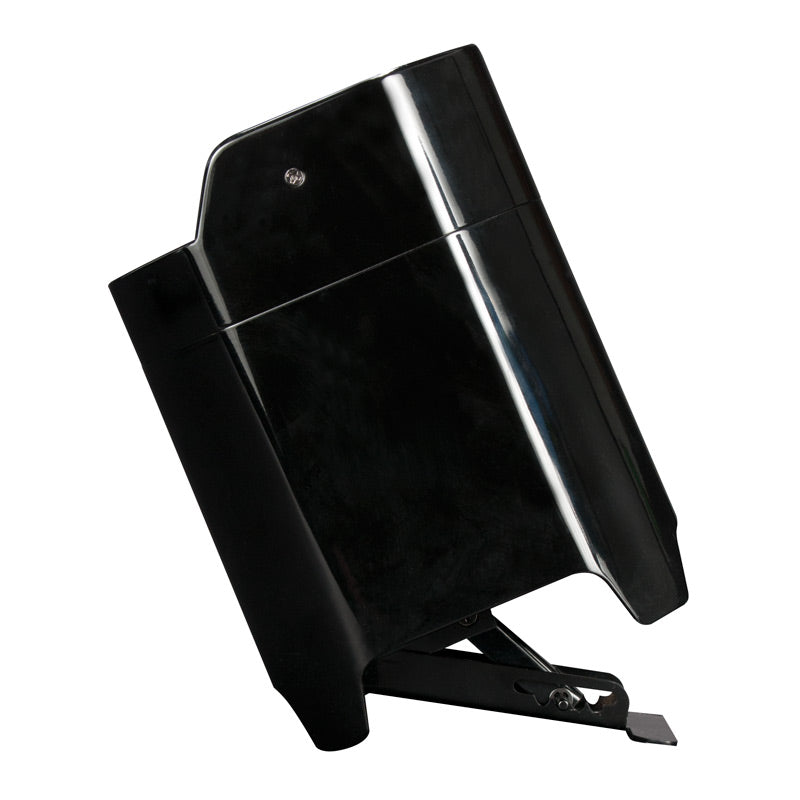

• Built-in kickstand to angle figure while it’s on the floor

• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver

• 64 built-in Color Macros

• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette -   Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.

• Battery Voltage: 11.1V

• Battery Capacity: 6.6AH

• Total Lithium Ion Cells: 9 pieces

• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• ETL Approved

• CE Approved

• IP54 Outdoor rated

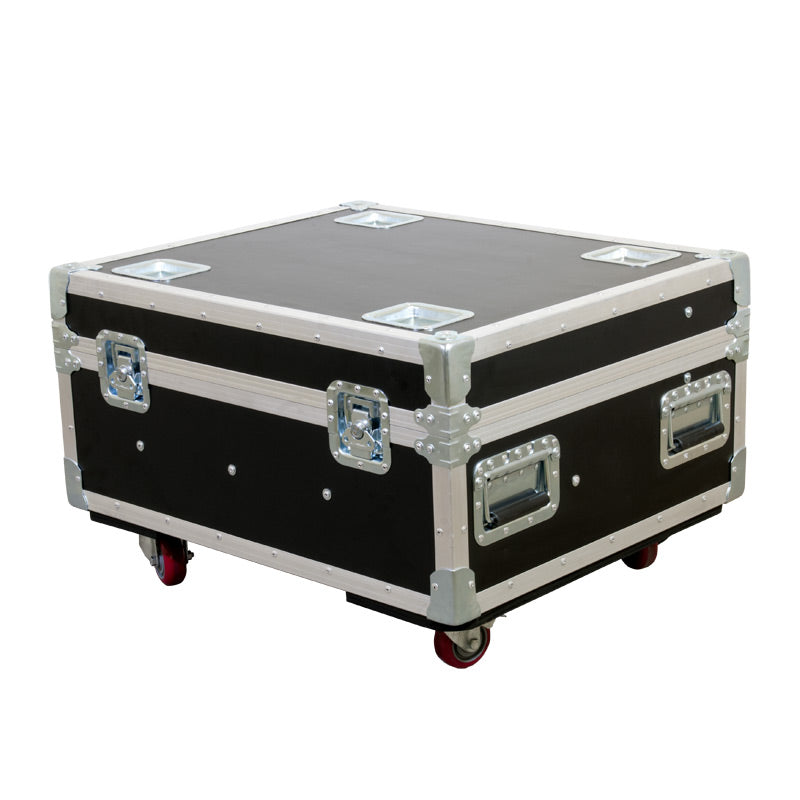

Element FC

FEATURES:

• Holds (8) ADJ Element Pars that may be charged while inside the case

• Includes ADJ PC-100 for charging. Case should be left open while charging

• Non-removable Foamed Lid

• Trap door in rear of case to run power cord to an outlet

SPECIFICATIONS:
• Tongue and Groove Sealing Extrusion

• 3/4-inch Plywood base plate

• 2-inch Thick Foam

• (4) 300 Pound Rated High Impact Blue Casters

• (2) High Impact Recessed Spring Latches

• (4) Spring Loaded Handles

• (8) High Impact Flat corners

• (4) Stacking Cups

SIZE / WEIGHT:

• Length: 28.5” (725mm)

• Width: 24” (610mm)

• Vertical Height: 18” (457mm)

• Weight: 57 lbs. (26 kg) EMPTY
