The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element QA features six 5W RGBA (4-IN-1) LEDs and is intended for indoor use.

UPC: 818651020489

SKU: ELE847

Element QA

$0.00

Video

Element QA

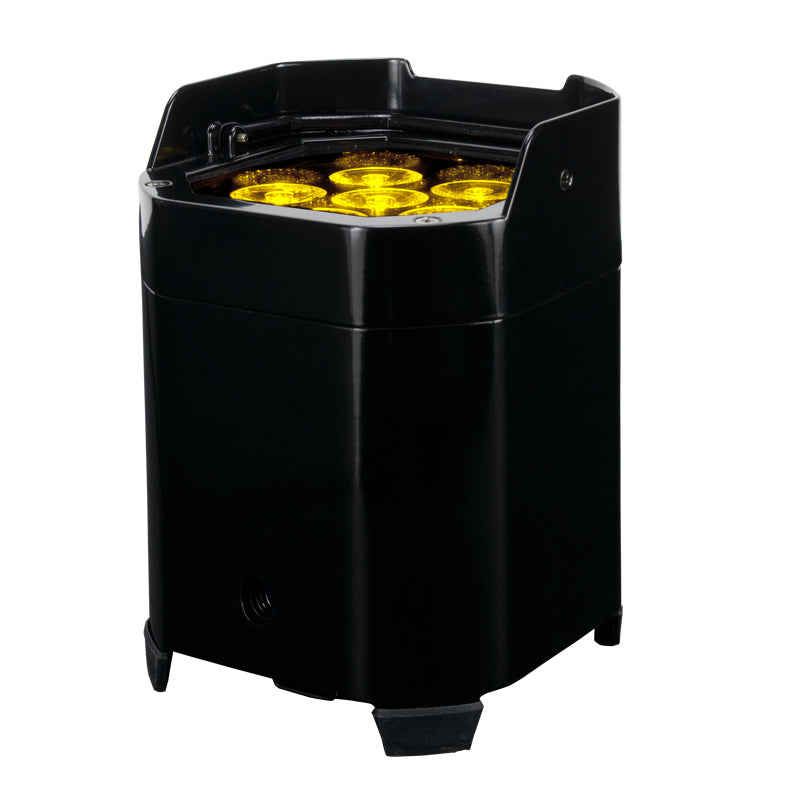

From the Element Par Series, the Element QA is a battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor use. It’s powered by six 5W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

Learn more about the Element Series from this product spotlight article: http://tinyurl.com/y7mdo69e

Read the press release here: http://tinyurl.com/y9mhvp9e

Specifications

Optical:

• 6 x 5-Watt RGBA LEDs (4-in-1 - Red, Green, Blue Amber)

• Life expectancy: rated at 50,000 hrs.

• LUX: 901 @ 2M; 213 @ 4M

• Beam angle: 20-degree

• PWM frequency:1000Hz

Connection:

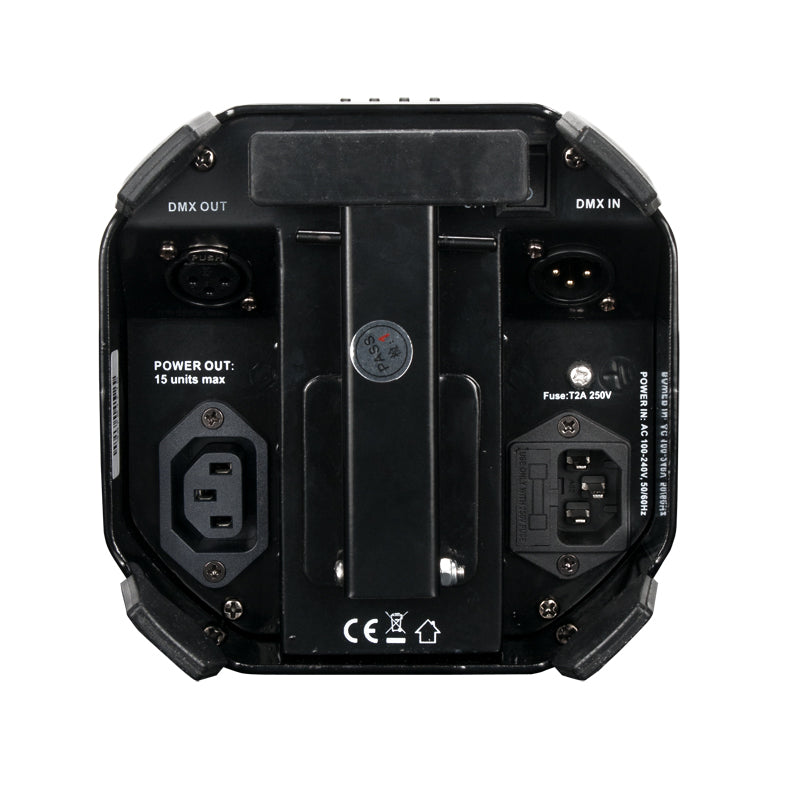

• DMX: 3-pin DMX In/Out

• With Wired Digital Communication Network

• IEC In/Out to power battery or daisy chain fixture

Control:

• Control protocol: WiFLY EXR DMX, 3-pin DMX

• 5 DMX Channel modes: 4, 5, 6, 9 or 10

• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

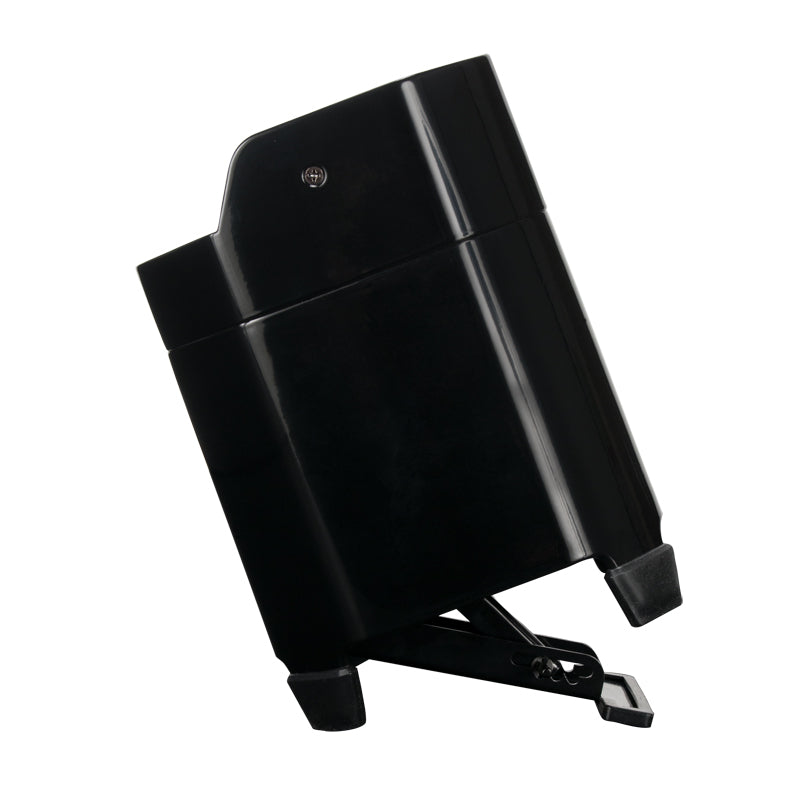

• Built-in kickstand to angle figure while it’s on the floor

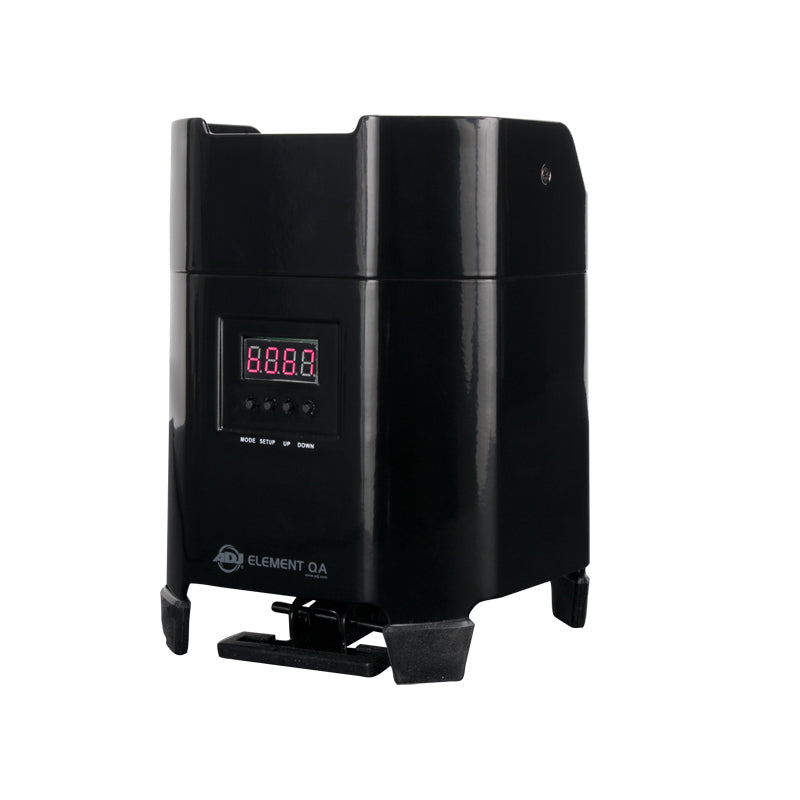

• 4-button DMX menu display on rear panel

• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver

• 64 built-in Color Macros

• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves

• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)

• Battery Weight: 0.42 kg.

• Battery Voltage: 11.1V

• Battery Capacity: 6.6AH

• Total Lithium Ion Cells: 9 pieces

• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)

• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.67” x 5.67” x 7.66” / 144.06 x 144.06 x 194.5mm

• Weight: 5 lbs. / 2.26kg.

Certifications:

• ETL Approved

• CE Approved

• IP20 Indoor rated
