ECO UV Bar Plus IR

SKU: ECO499 | UPC: 819730012265

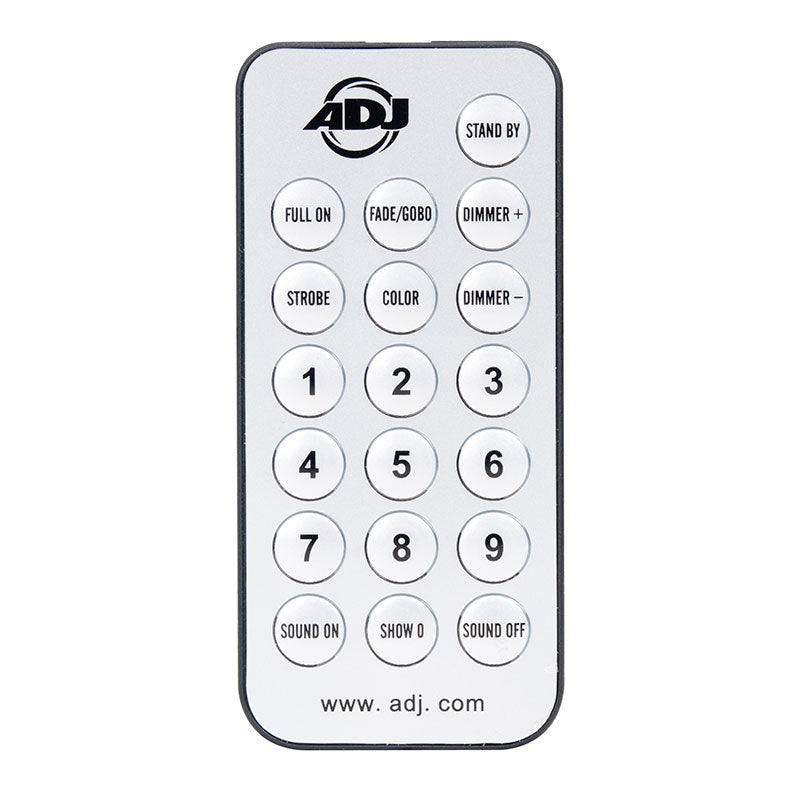

ADJ Black Lights add excitement to any light show or lighting installation. This ultraviolet LED fixture is great for performance stages, theatrical productions, special effects installations and mobile light show and it offers users more flexibility and control with included IR remote control.
Advantage Points: 150

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

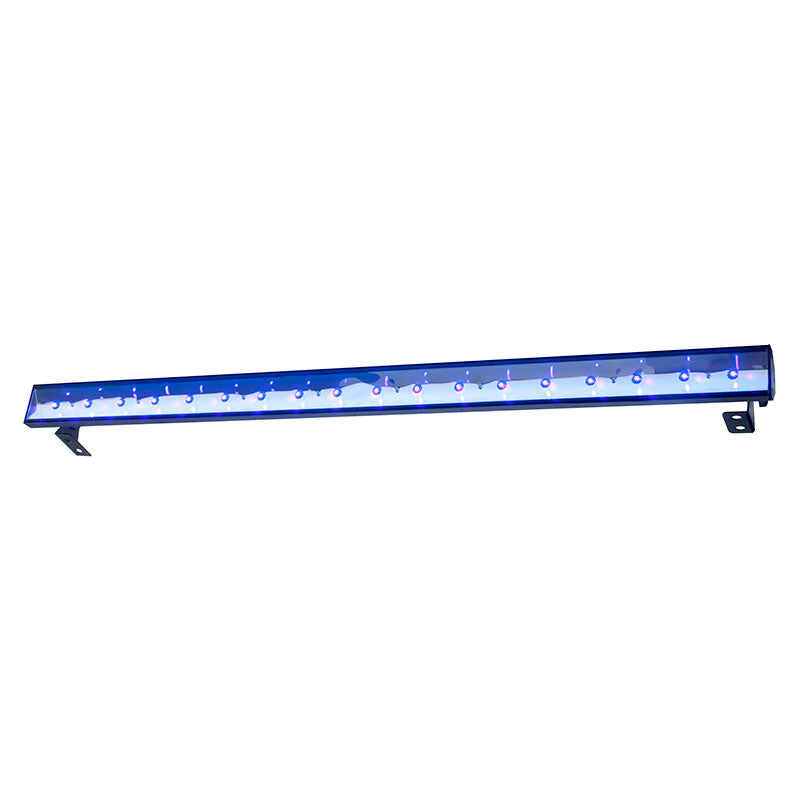

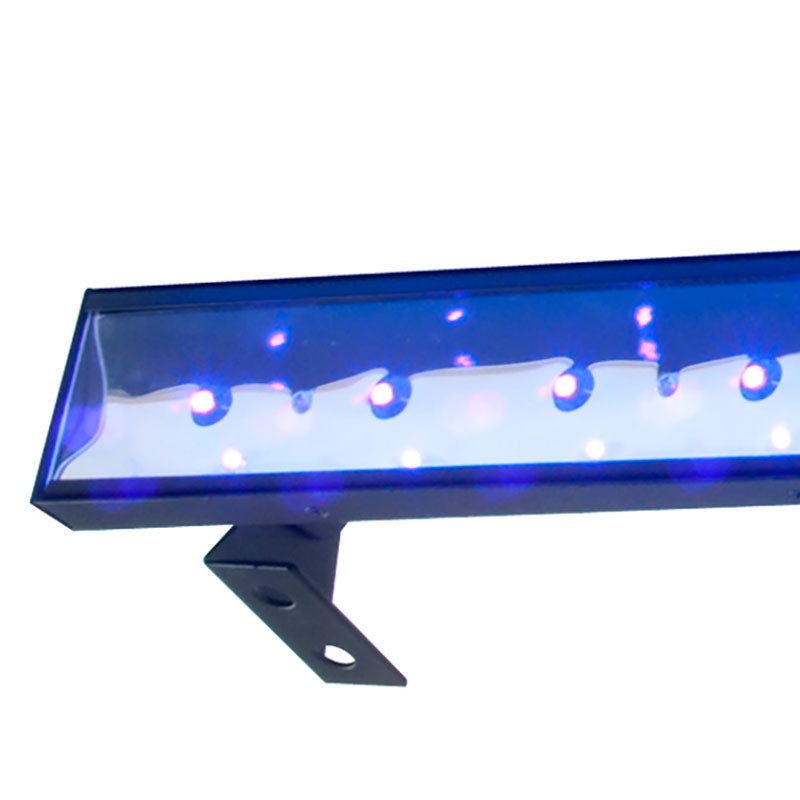

ADJ Black Lights add excitement to any light show or lighting installation. The redesigned ECO UV BAR PLUS IR offers the hassle-free use of LED.  This ultraviolet LED fixture is great for performance stages, theatrical productions, special effects installations and mobile light show.

This fixture requires very little maintenance because its LEDs are rated at 50,000 hours.

Specifications

Specifications

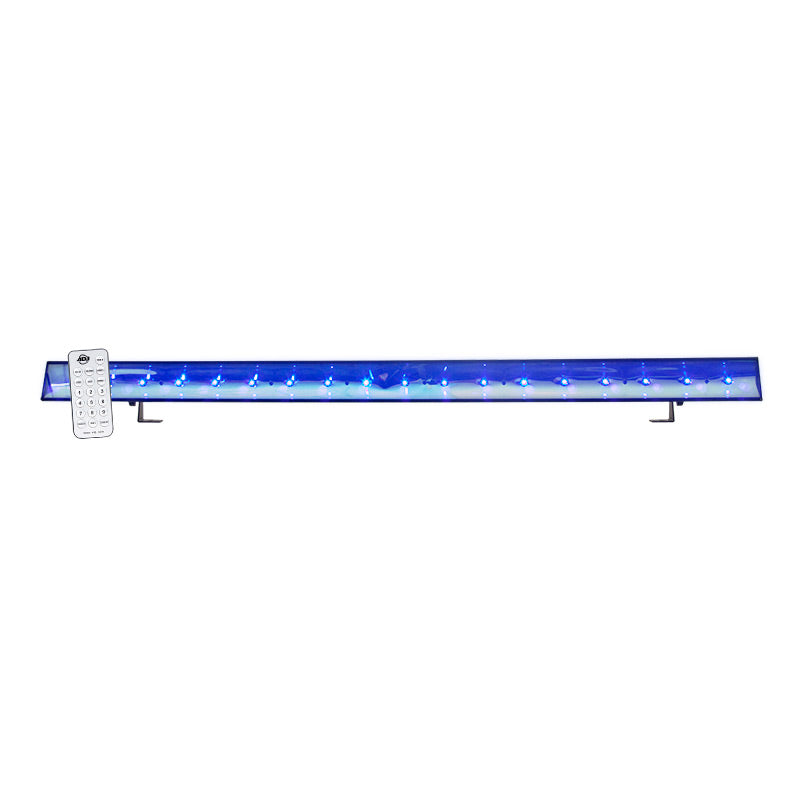

  • Bright, high output ultraviolet bar with 18x 3-Watt UV LEDs
  • Great for performance stages, theatrical productions and special effects installations

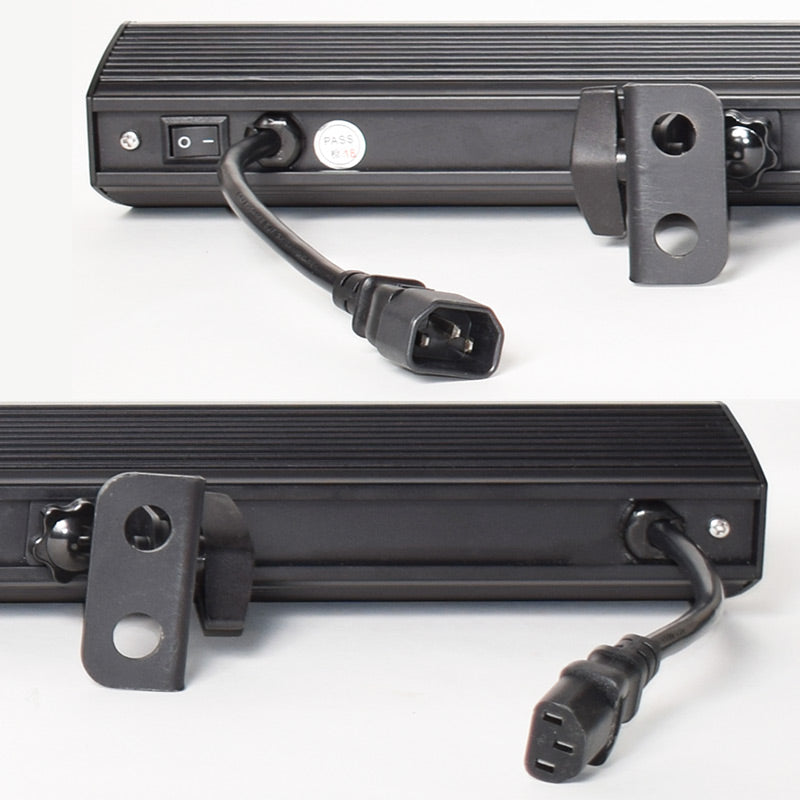

  • On/Off switch on rear panel
  • Beam Angle: 120-degree
  • LED Strobe effect

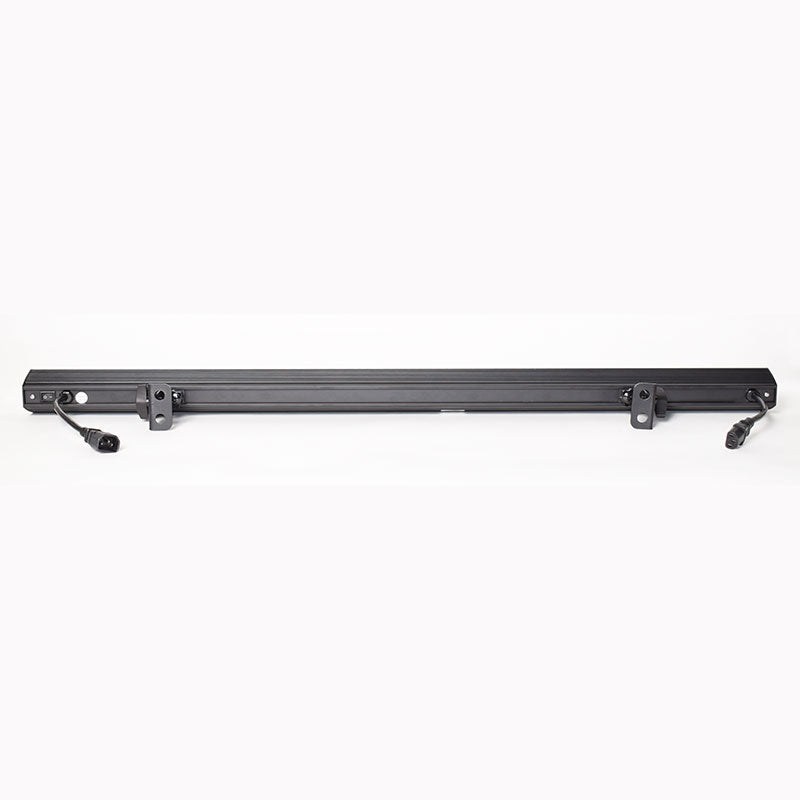

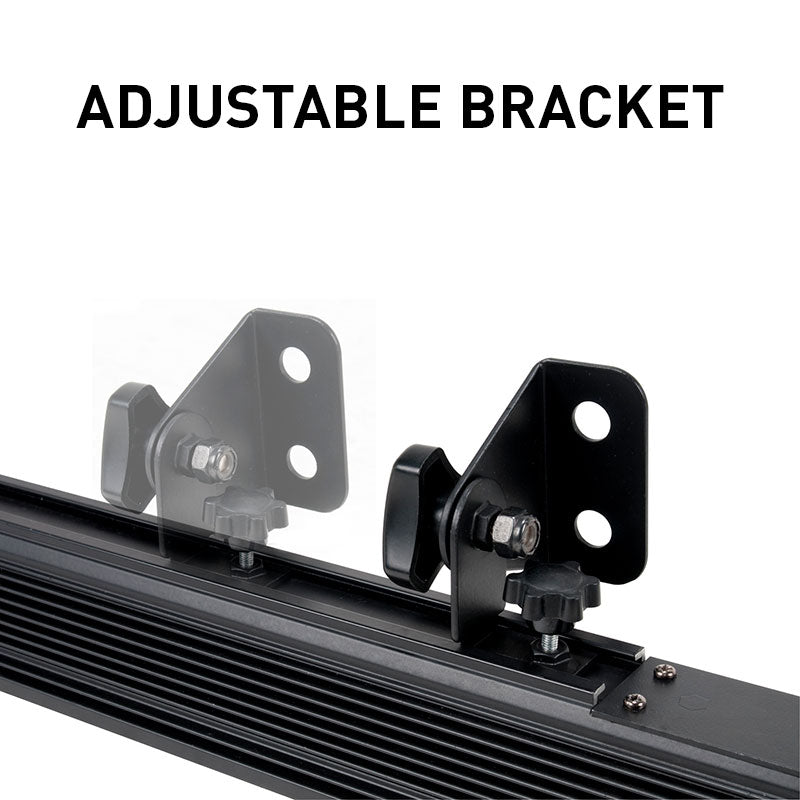

  • Includes mounting brackets for wall/ceiling mount or to set on the floor for wall washing
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Power Draw: 60W
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Light Source: 18x 3-Watt UV LEDs
  • Refresh Rate: 1KHz
  • Wavelength: 395-405nm
  • Dimensions (LxWxH): 39.5” x 2.5” x 4.5” / 1000 x 60 x 110.5mm
  • Weight: 6 lbs. / 2.4 kgs
  • ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Eco UV Bar Plus IR User Manual Download
Eco UV Bar Plus IR User Manual Rev. 9/16 Download
Eco UV Bar Plus IR Dimensional Drawing Download
Eco UV Bar Plus IR Photometric Test Reports Photometric Test Reports Download
Eco UV Bar Plus IR Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Why does my adj eco uv bar plus ir flash once when I turn it on then stay off? It won't ever hold light, it just flashes and shuts off

I am sending this over to service for a response.

My uv bar plus ir will flash once when I turn it on then stay off? It will not hold light, it just flashes and goes black

Sounds like you have it in the black out mode on the IR remote. It remembers it's last state. With your remote hit the blackout button.

I have a Eco uv bar plus it I turn it on it blinks and goes off , I do not have a remote to c if it it in the black out mode. So my question is, will other remotes for other devices make this happen

Hello Kevin. You need the original remote. Below is a link for purchase.

http://parts.adj.com/ProductsList.aspx?ProductLine=0015&ProductDesc=ECO499
