Design Series Video Panels - DS4 4.8mm Square Video Panel

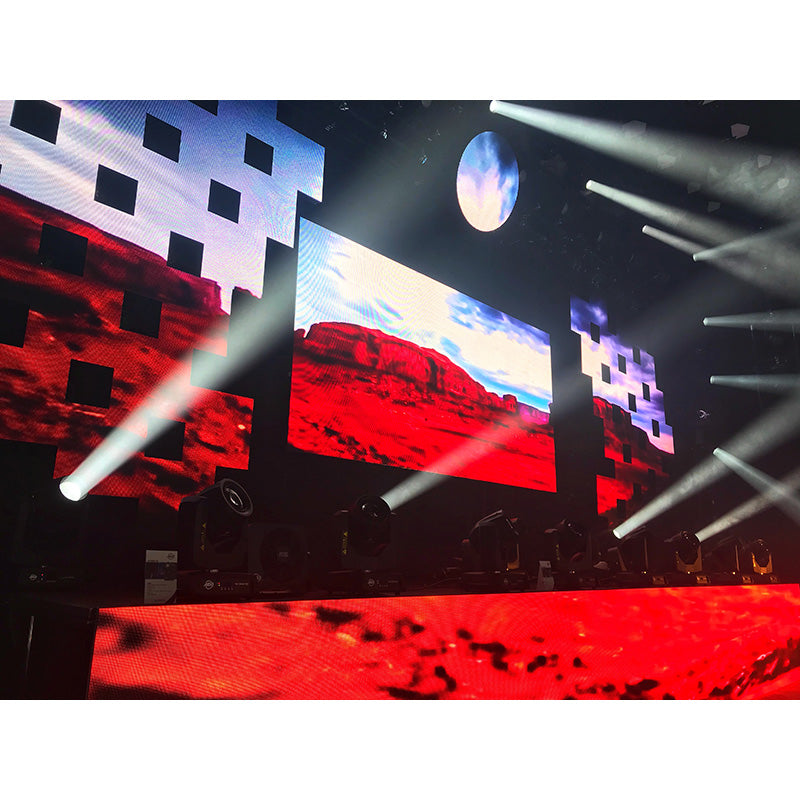

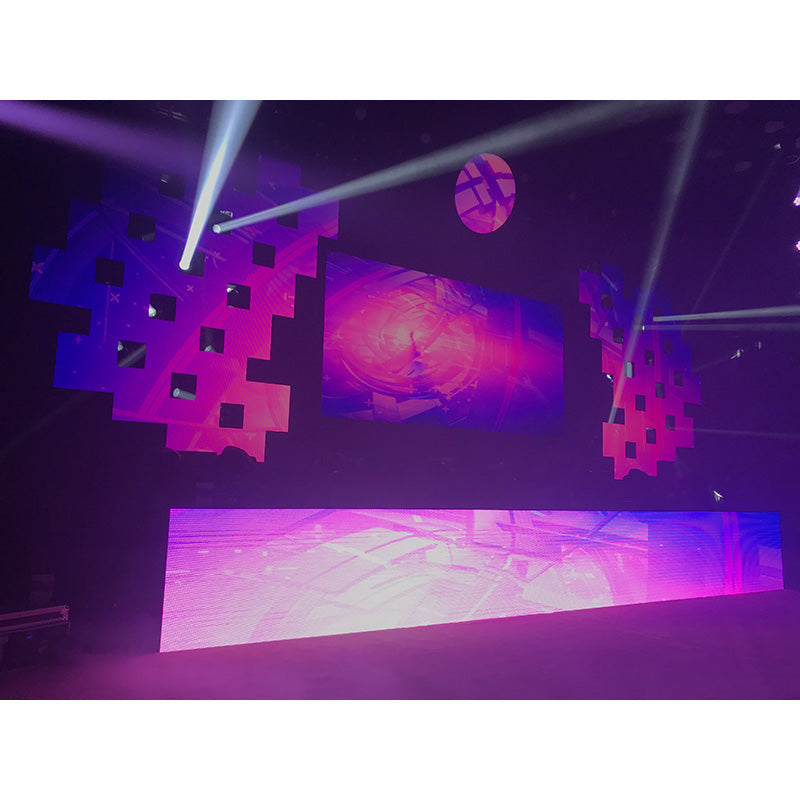

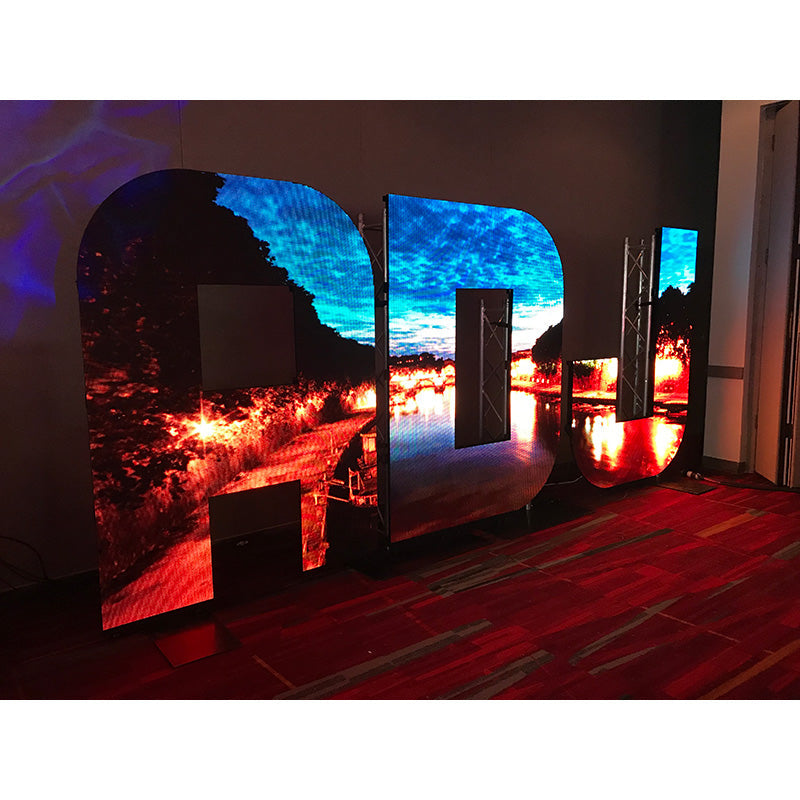

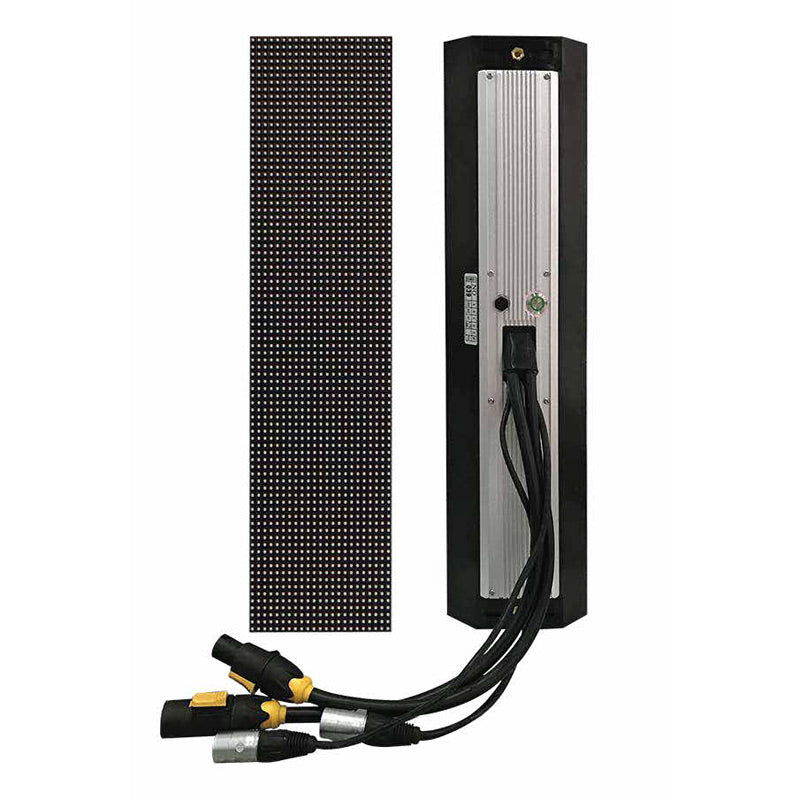

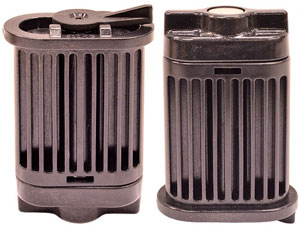

This innovative system comprises four modular panels of different shapes that can be combined together to create video screens of almost any conceivable shape. The DS4 (square), DS4T (triangle), DS4QC (quarter circle) and DS4HC (rectangle) can be easily linked together, rigged and transported using an expansive collection of accessories, allowing unique and eye-catching screen configurations of any size to be created for fixed installations and touring productions. Each panel is lighter in weight than most panels currently on the market, offers a 4.8mm (0.19") pixel pitch and brightness of 1200 NITS as well as a wide viewing angle of 160-degrees (horizontal) and 120-degrees (vertical), making them ideal for a wide variety of applications.

Learn more about the Design Series Video Panels in this product spotlight article CLICK HERE.

Specifications

Specifications

SPECIFICATIONS:

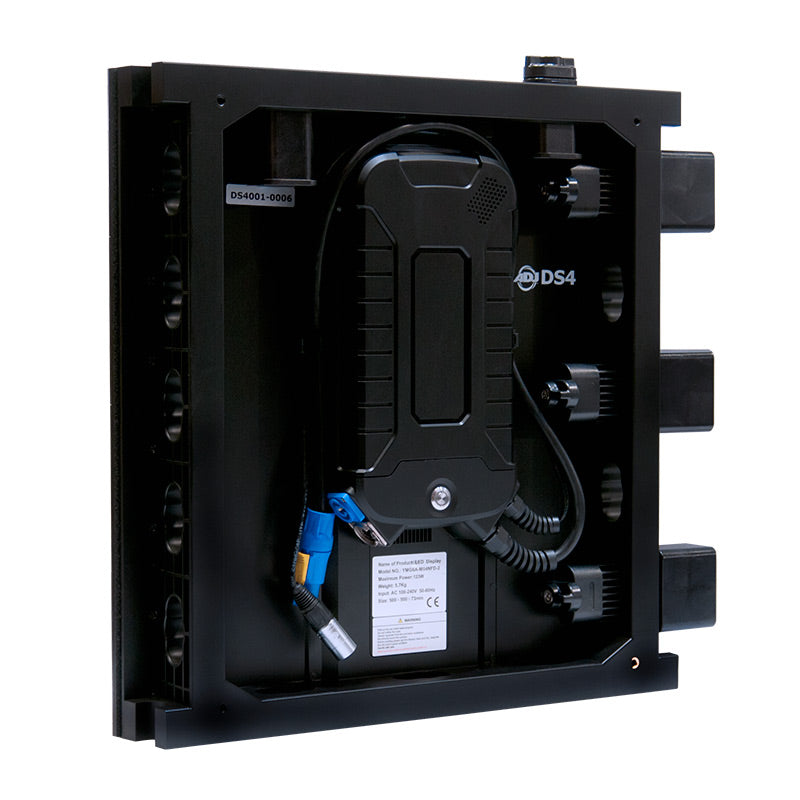

• Square shaped LED video panel

• Pixel Pitch: 4.8mm (0.19”)

• LED Configuration: 3-in-1 SMD2020 LED

• Pixel Density: 104x104; 43,264 per square meter

• Dimensions (LxHxW): 20” x 20”  x 3” / 508x76x508mm

• Weight: 14 lbs. / 6.35 kg.



MECHANICAL RATINGS:

• Surface Flatness: Gaps±0.3mm



OPTICAL RATINGS:

• Brightness: 1200 NITS

• View Angle: Horizontal 160°/Vertical 120°

• Distance: 12.5ft. (3.8m)

• Gray Scale / Display Color: 14Bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit



POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 157.5W/per panel

• Average Power Consumption: 52.5W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/13 Duty

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network



ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -20° + 45° / Celsius: 10-90% (No Condensation)

• Operating Life / MTBF: 80,000 Hours / 10,000 Hours

• Out of Control Rate: <0.003%

• Listings: CE, FCC, ETL
