SKU: DP2 | UPC: 640282092241

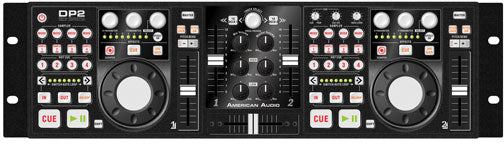

The DP2 Digital Media Controller from American DJ offers the tactile control of traditional mixers with the versatility of having digital media and effects at your finger tips. Includes onboard effects, sampler, scratch jog wheel, crossfader, and multiple In/Out jacks
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

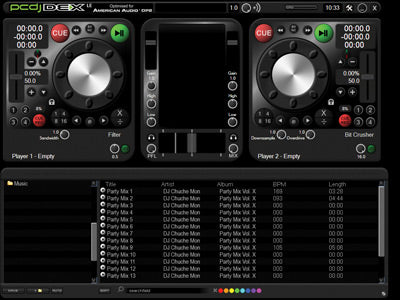

For the DJ who wants the control of traditional mixers and turntables with the versatility of digital media, the DP2 Digital Media Controller offers the best of both worlds. This media controller allows you to play digital music from your computer while using the scratch job wheel for the tactile control you're used to. The DP2 also includes an onboard mixer, sampler, and effects to give you even more options for creating incredible tracks. Onboard effects include Flange, Echo, Filter, and Bit Crusher, and the included PCDJ DEX Le software is easy to install and learn.

The Mixer component features a 2-channel mixer with volume faders and crossfader, low & high adjustments, mic and master volume adjustment and track & deck selectors. The rear panel of the unit offers USB input, headphone & microphone jacks, and separate RCA outputs for Channel 1 and Channel 2.

If you're ready to bring your DJ gear into the 21st century, American DJ is here to show you the way. The ADJ DP2 brings you the tactile response and old-school feel PLUS all the benefits of digital media control.



  • Large jog wheel
  • 4 sample buttons per side (Sample length can be adjusted in preference dialog / Audio system setting page, 8~30 seconds per sample if the PC hard disk memory size allow)
  • 4 Hot Cue buttons per side
  • Seamless Loop
  • Smart loop
  • X & Y Parameter adjustment
  • Scratch effect
  • Pitch Lock (Tempo Lock)
  • Pitch Bend
  • Pitch Adjustment Knob (+/- 4%, +/- 8%, +/- 16%)
  • 2-channel mixer with volume faders and crossfader
  • Low and High adjustment
  • Microphone volume adjustment
  • Master volume adjustment
  • Track & Deck selectors
  • USB Input
  • Headphone Jack
  • Microphone Jack
  • Channel 1 & 2 RCA Outputs
  • Dimensions (LxWxH): 482x132x74.8mm
  • Weight: 5 lbs. / 2.1 kgs.





The following downloads are available for this product:

Title Description
DP2 Midi Command Files (Traktor Pro/Traktor Duo) Download
PCDJ DEX LE Software (PC Version) Download
DP2 User Manual Download
PCDJ DEX LE Software (MAC Version) Download
Configuring Virtual DJ (MAC) Download
DP2 Instructions for Traktor Download
Windows 7 Drivers (32-Bit) Download
Windows 7 Drivers (64-Bit) Download
Midi Command Files (Virtual DJ 6) Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

The DP2 Digital Media Controller is compatible with Windows 8 or is there a Driver for W8.

Sorry, but this device was discontinued several years ago and therefore there is no updated driver for windows 8.

You may want to look at the current VMS4.1 Media Player.

I recently purchased an American Audio DP2 and downloaded the drivers for Win.7. I set it up with my PCDJ Red Mobile 1.1. Everything is working great except the microphone control on the mixer section. When I turn the volume a line moves around the circle on screen for player 1, but no sound comes our of the mic. Any configuration suggestions? Thanks!

Please contact ernies@ameericandj.com.

Hi: I need to replace the AC Adapter on my American Audio DP-2. Can you please tell me if I can order it from you? If not, can you tell me the specifications I need to consider before buying a generic brand? Thank you very much! Sincerely, D.J. Castol.

Hello Alejandro,

Here is the link to the power supply.


Let me know if you have any further questions,


Hi: I recently upgraded my Windows 7 Laptop PC to Windows 10, but ever since I have not been able to have my American Audio DP-2 recognized by my Laptop. I get a message saying "Device Not Recognized". Can you please tell me if there is a work around for this? At this point I wouldn't mind to use only its midi function even without the soundcard option (ASIO). I am the biggest fan of this awesome device and would not want to stop using it! Thank you very much! Sincerely, D.J. Castol.

Please call our support team so we can properly troubleshoot this issue. 800-322-6337 ext 549
