DP-415

(Discontinued)
SKU: DP-415 | UPC: 819730012005

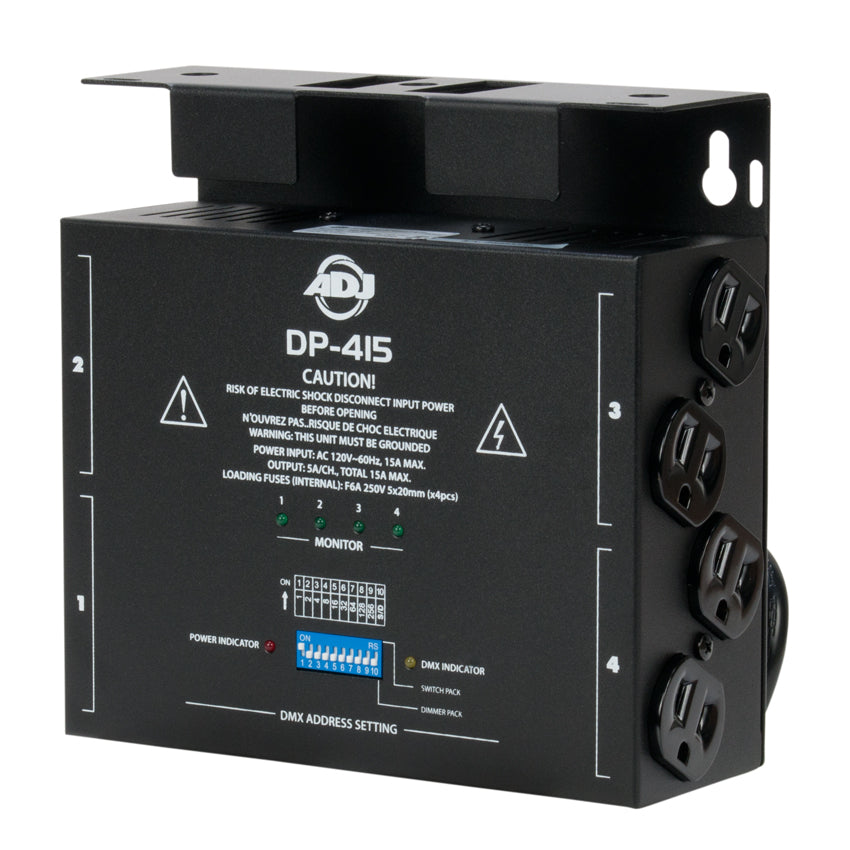

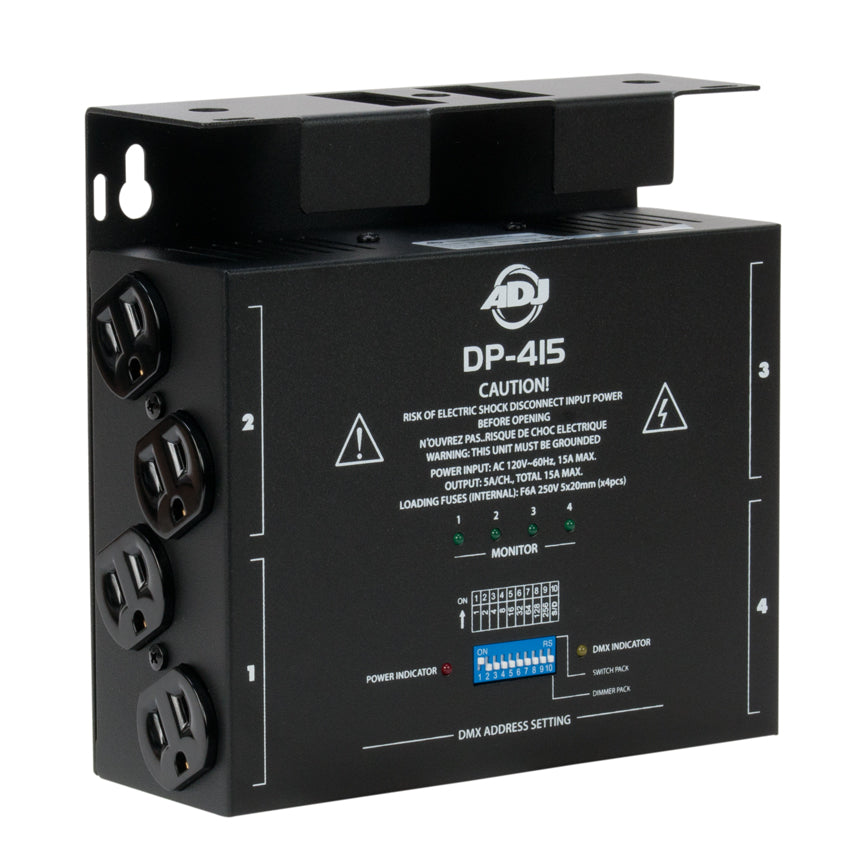

ADJ's DP-415 is a versatile 4-channel dimmer pack that also doubles as a switch pack. This compact unit features eight, 3-prong Edison sockets (2 for each channel) controlling up to 8 fixtures. The built-in hanging bracket is reversible to hang on truss or can be used with a clamp.
Advantage Points: 170

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

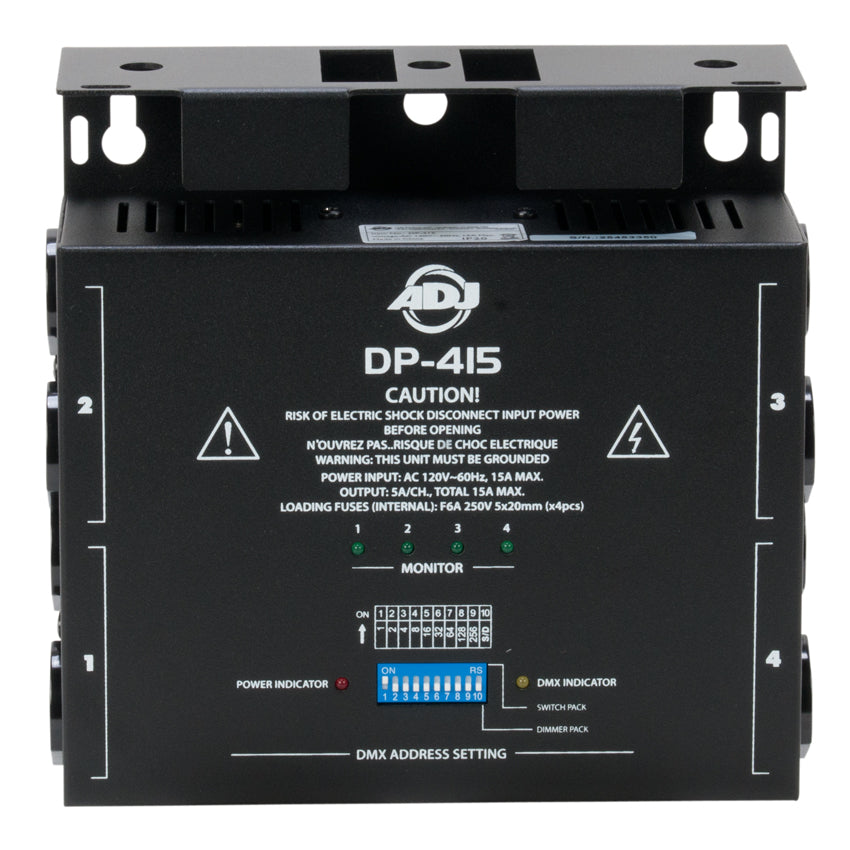

ADJ's DP-415 is a compact, poratable 4-channel DMX dimmer that has two 3-prong 15Amp Edison sockets for each channel giving you a total of 8 plugs altogether allowing you to be able to control up to 8 fixtures. The dip switches on the face of the unit allow you to set the DMX patch address and operation mode for the pack


The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.



Specifications

Specifications

  • Compact 4-Channel DMX Dimmer
  • 2x 3-pong Edison plugs per channel (8 total plugs)
  • On/Off power switch

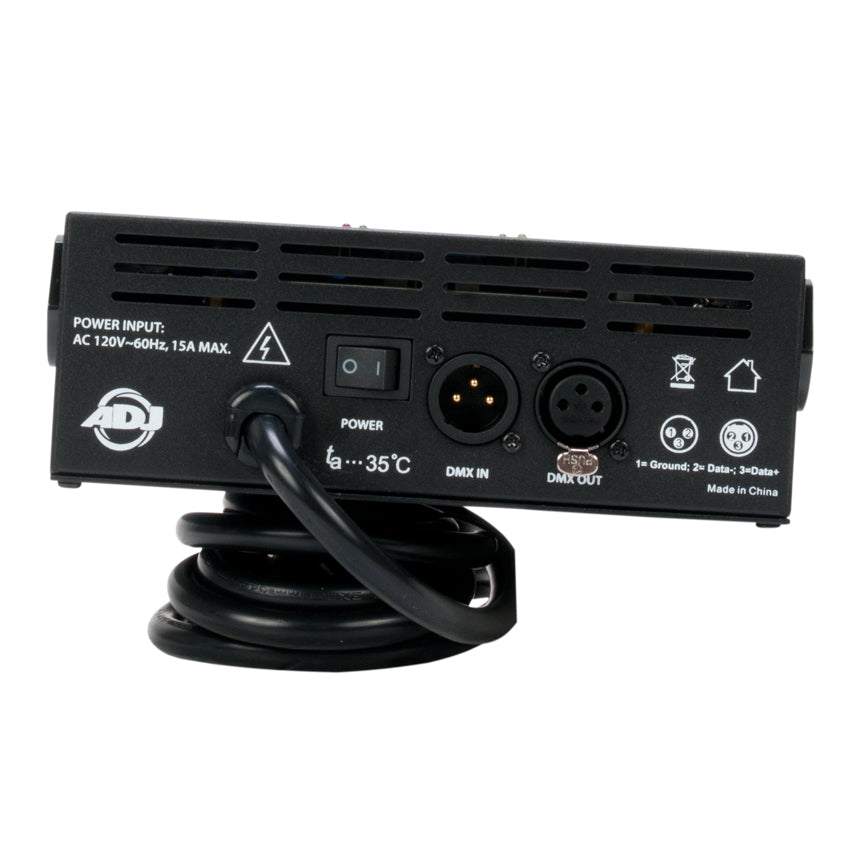

  • XLR In/Out
  • 10-position dip switch settings to address DMX
  • Assign as a dimmer pack or switch pack
  • Changeable hanging bracket to hang on truss
  • LED “On” indications
  • Max Power: 15A Total, 5A per channel
  • Dimensions (LxWxH): 7” x 7” x 2.5” / 180x177x64mm
  • Weight: 3 lbs./1.2 kgs.

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
DP-415 User Manual (Rev. May 2006) Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

How do I set my dipswitches on the Dp-415s?

The first dimmer pack is set to dip switch 1 on and the second pack is set to 1 and 3 on.
