Dotz TPar System

The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting The Dotz TPar System is an exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting
SKU: DOT442 | UPC: 819730012319

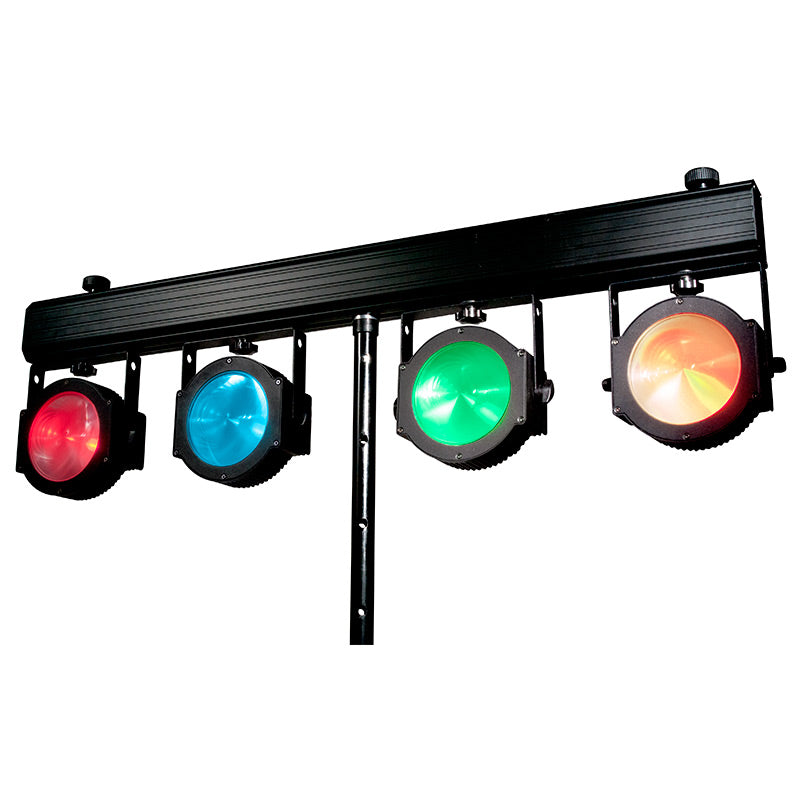

The Dotz TPar is an LED Light Fixture from ADJ that offers smooth color mixing using state of the art TRI COB LEDs. It creates wash lighting, pixel mapping, pulse, and strobe effects for any event. Operates in auto run, sound active, color macro, dimmer and is fully DMX controllable.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

If you want to have to create the proper experience for your audience or crowd you need lighting fixtures you can trust to produce high quality light, be easily controllable with lots of features, and be durable and portable so you can take it anywhere and know it's going to last for years to come. With the Dotz TPar LED Par Can Lighting System from ADJ you can create the perfect atmosphere to have your clientele coming back night after night. Ample and  well controlled lighting is key to an easily enjoyed performance; the Dotz TPar Lights exceled at providing you with powerful light effects with built-in features that allow for the greatest ease of operation. Made from high quality materials and using 50,000 hour rated LEDs the Dotz TPar is built to last and operate flicker free. Now you can create the permanent professional setup of your dreams, or the professional mobile production of a lifetime with the powerful lighting services of the Dotz TPar LED Par Can Lighting Unit from ADJ, an affordable and lasting investment.

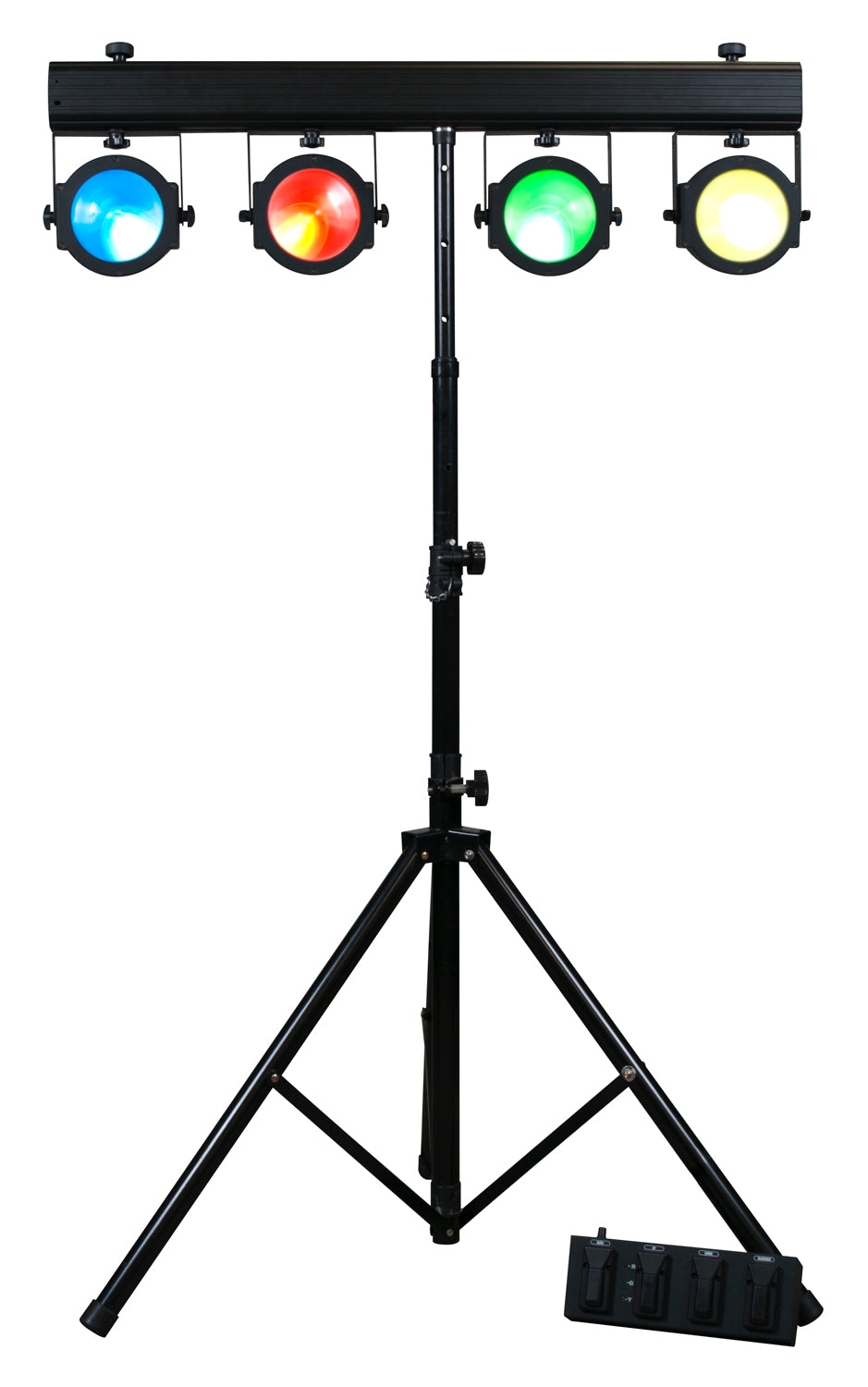

 System includes:
• 4x COB LED Par Wash Fixtures
• 1x Foot Controller
• 1x Lighting Stand
• 1x RF Remote Control
• 1x Stand Bag

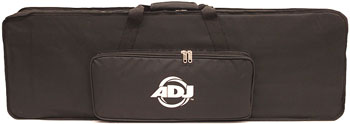

• 1x Soft case for lighting system


Specifications

Specifications

  • COB LED Par Wash System with 4 Par fixtures
  •  COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  •  Smooth RGB Color Mixing (fast or slow color change operation)
  •  Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers
  •  Emits less heat on performers on stage as opposed to conventional stage lighting
  •  4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
  •  Stand Alone or Master-Slave Setup
  •  Pixel Flip option changes pixel orientation
  •  14 Built-in Programs
  •  5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
  •  Digital DMX Display with 4-button menu for easy navigation
  •  3-Pin DMX In/Out
  • With Wired Digital Communication Network
  •  Strobe & Pulse LED Effect
  •  Electronic Dimming: 0-100%
  •  5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  •  Beam angle: 90-degree
  •  Includes 25-degree beam angle lens kit
  •  Long Life LEDs (Rated at approximately 50,000 hrs.)

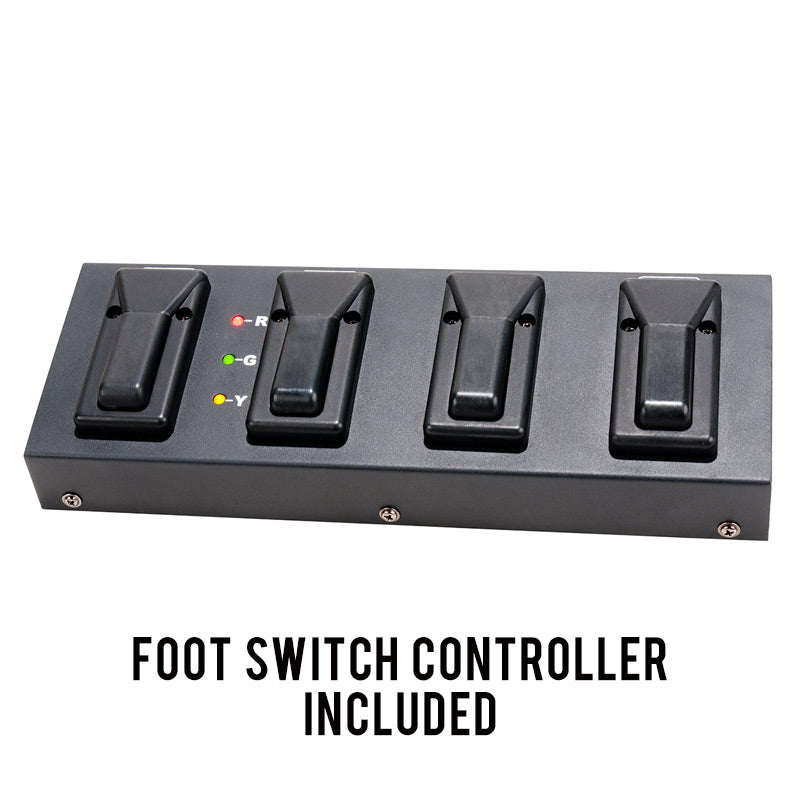

  •  Foot Controller Features: Mode, Black Out and Program Change
  •  RF Remote Control control up to 25 meters
  •  Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
  •  LUX @ 3M: 1345
  • Refresh Rate: 3.6KHz
  •  Power Draw: 144W Max (entire system)

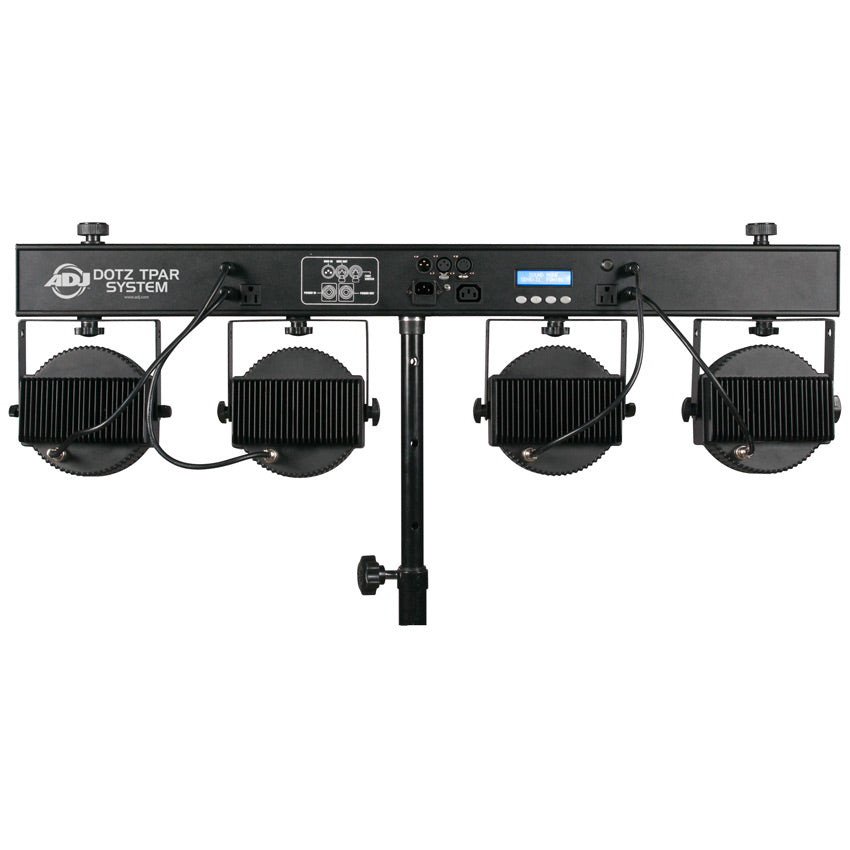

  •  2x power plugs on rear or plug in other lighting fixtures (120V = Edison, 230V = Shuko)
  •  Includes hardware to mount lighting fixtures on top of bar
  •  Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
  •  Dimensions (LxWxH): 39.5” x 12.75”x 3.25”/ 1000 x 320 x 82mm
  •  Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)
  • Maximum stand height: 9 feet

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Dotz TPar System Photometric Test Report Photometric Test Report Download
Dotz TPAR System User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Why does the spec on http://www.americandj.eu/en/dotz-tpar-system.html say 3,6,7,12 and 18 channel options whereas http://www.adj.com/dotz-tpar-system says 3,5,9,12 & 18, please?

I have no idea. We are AMERIVAN DJ USA and our dotz T bar System is 3,5,9,12 and 18. It may be an error or that product is different for Eurepean needs.

Hello. I have two Dotz Par System. And dmx mode suddenly stop working. I have checked all cables and they are fine. Other lights are working. I have a problem only with Dotz Par System. It was working but during last party Dotz Par stopped working.

Please contact ernies@americandj.com

I've broken a filter screw on one of the lights...... do you have additional screws for sale....i have been unable to find them on your site.

Please call 323-582-2650 and speak to service to locate the parts you need.

how do i dim the lights on a Dotz TPar System.. do i need Dmx to do that ?

The unit comes with everything you need to controll the unit, including the dimming function.

How do you dim this fixture without dmx? What is the procedure on the menu?

Hello Tanner,

You can only dim each color individually. If you want to dim down all colors at the same time then you will need a dmx controller. Let me know if you have any further questions.

Thanks,

On the Dotz TPar System can the two additional lights plugged into the top be controlled by the pedalboard and/or the remote. I have two of your Jelly Par Profile units. Thanks, Sid

Hello Sid,

Unfortunately, you will only be able to power on your additional jelly par profiles with the pedalboard and that's pretty much it. If you looking on controlling them you will either need the handheld remote for the jelly pars or a dmx controller. Let me know if you have any further questions.

Thanks,

Will the ADJ RGBW4C IR controller work with the Dots TPar system?

Hello John,

Yes, that controller will work with the dotz t par system. But the RGB 3C IR will be more appropriate controller since the dotz system can only go into 3 channel mode and not in the 4 channel mode. Let me know if you have any further questions.

Thanks,

When using a Dotz TPar System with foot controller or RF remote, can I connect a second Dotz TPar fixture via DMX as a slave? So I can control two fixtures with one foot controller or one RF remote.

Hello Don,

Yes, you will be able to master and slave both systems with one foot controller. Let me know if you have any further questions.

Thanks,
