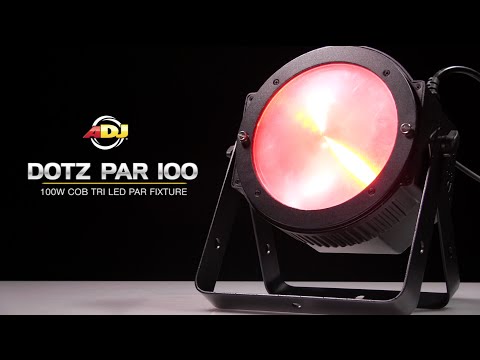

Dotz Par 100

SKU: DOT903 | UPC: 819730014238

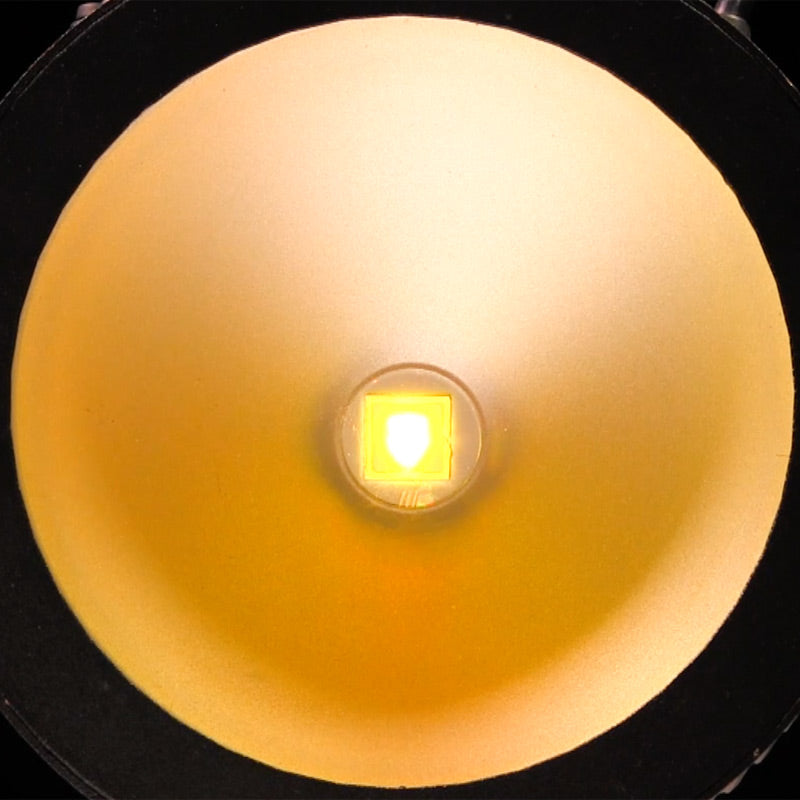

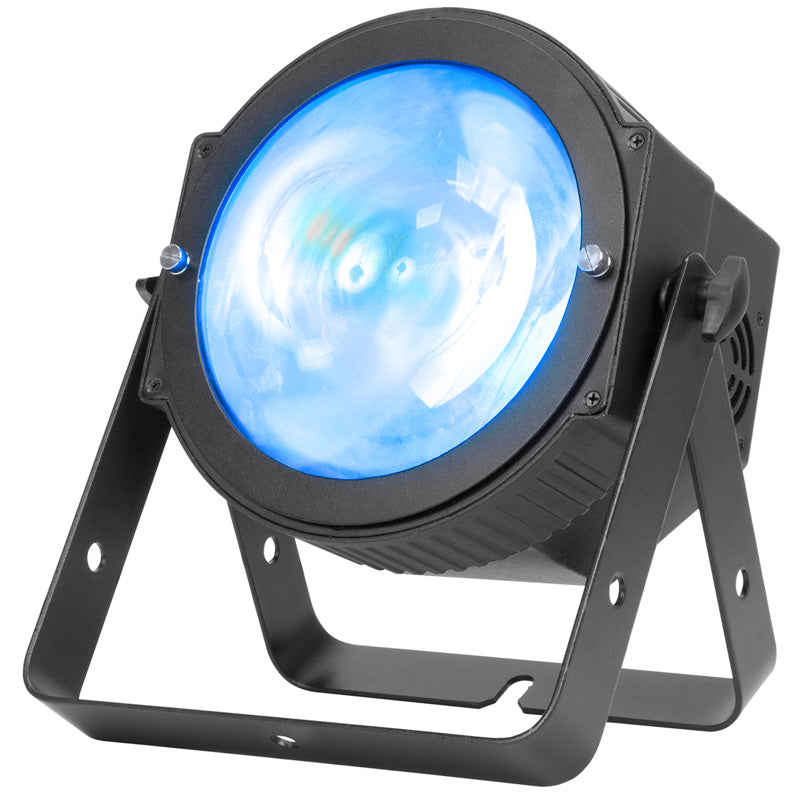

The ADJ Dotz Par 100 uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows
Advantage Points: 330

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

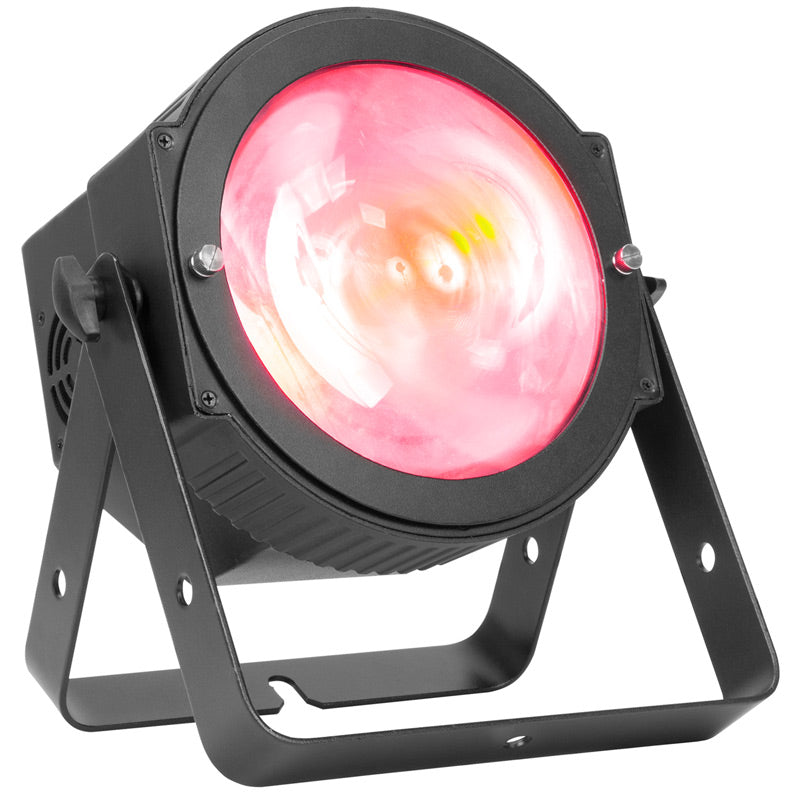

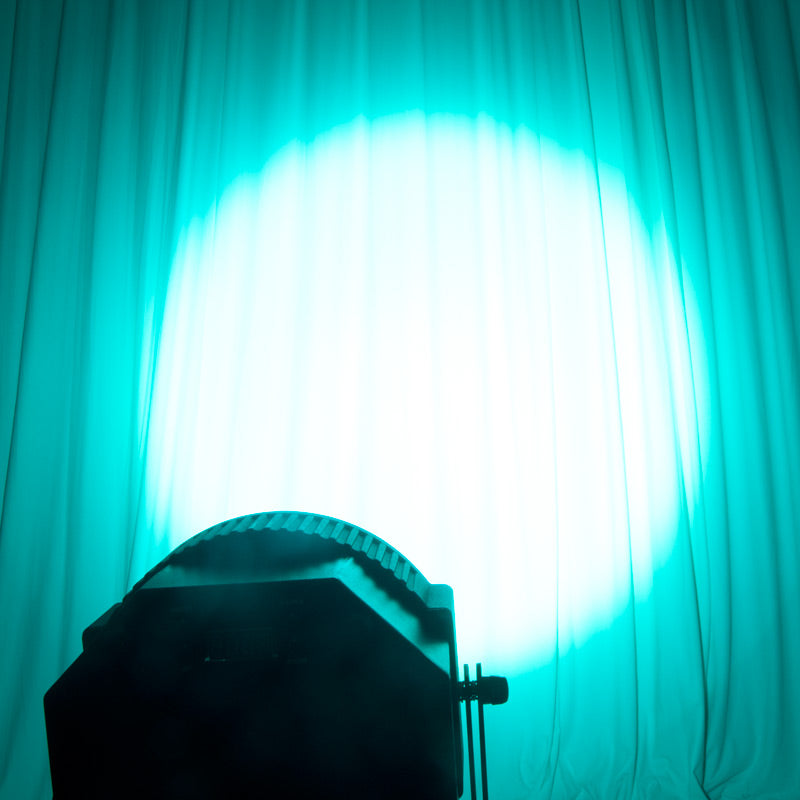

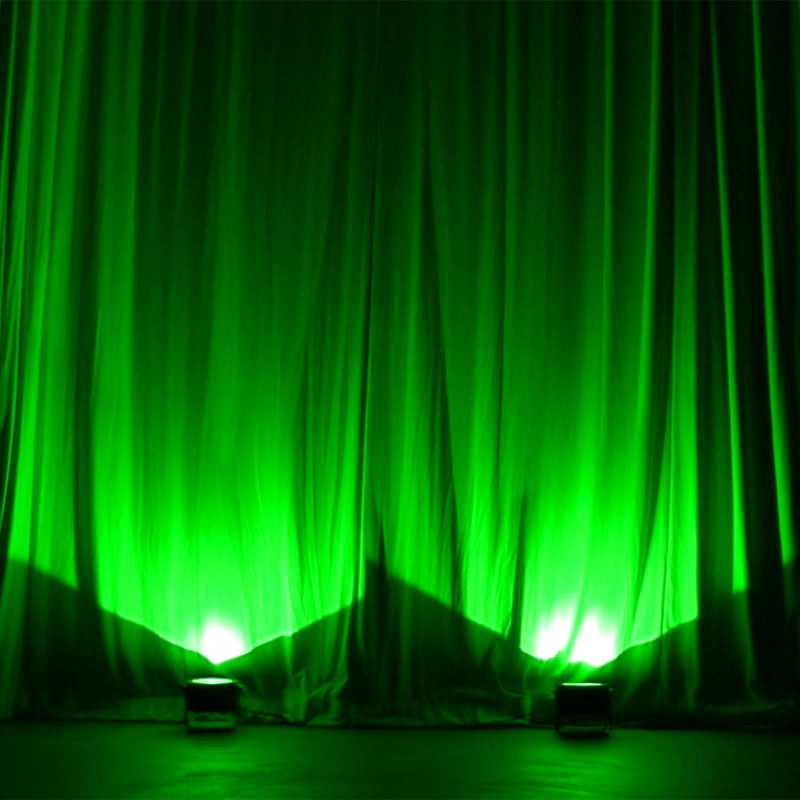

The ADJ Dotz Par 100 uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par 100 is a TRI 100 W (3-In-1).



The Dotz Par 100 produces wash of 80-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 32 built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Par RF wireless remote control.

Specifications

Specifications

  • Light Source: 1x 100W COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
  • COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  • 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX
  • 4 DMX channel modes: 3, 4, 5 or 9 channel
  • Built-In preset colors and programs / 32 built-in Color Macros
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Beam angle: 80-degrees (25-degrees with supplied lens kit)
  • Light Output: 2521 LUX @2M; 648 LUX @4M (25-degree beam -Lens On), 240 LUX @2M; 56 LUX @4M (80-degree beam - Lens Off)
  • Refresh Rate: 3.6KHz

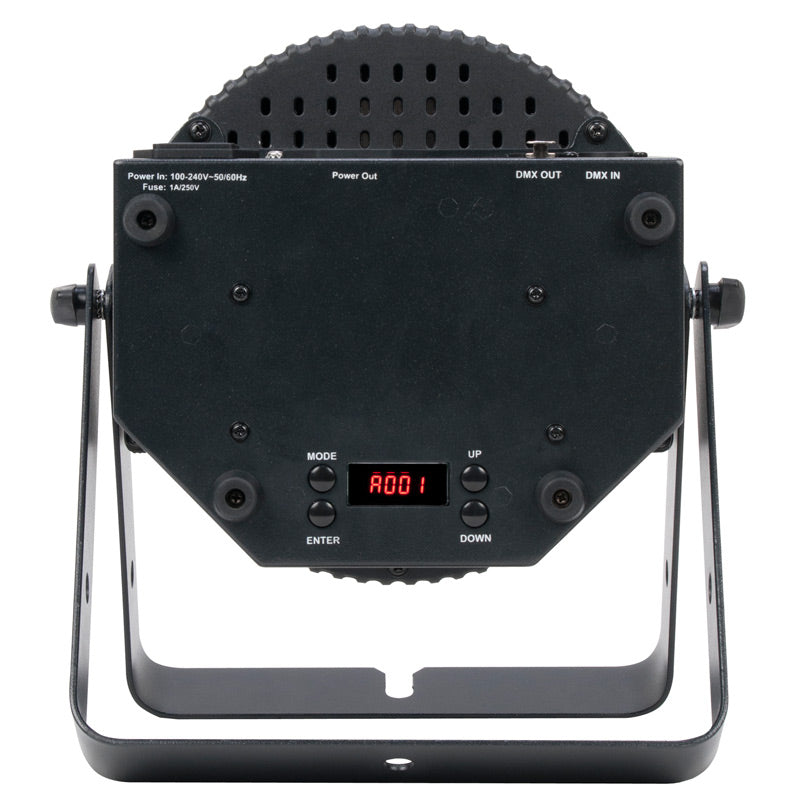

  • 3-pin XLR chassis mount connectors for DMX linking
  • With Wired Digital Communication Network

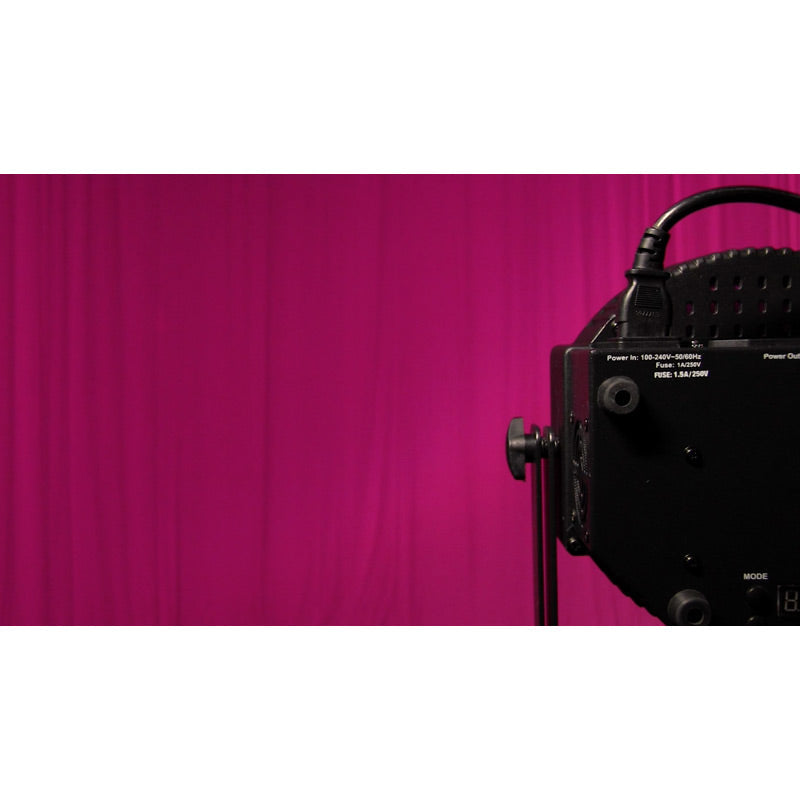

  • IEC AC IN/OUT to daisy chain power (up to Dotz Par’s @ 110V andDotz Par’s @ 230V)
  • Power Draw: 100W total (All LEDs @ Full On)
  • Dimensions With Bracket (LxWxH): 10” x 5.75” x 11”/ 254 x 146 x 280mm
  • Dimensions Without Bracket (LxWxH): 8” x 5.75” x 8”/ 203 x 146 x 203mm
  • Weight: 5 lbs. / 2 kgs.
  • ETL Approved


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Dotz Par 100 User Manual Download
Dotz Par 100 Photometric Test Reports Photometric Test Reports Download
Dotz Par 100 Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

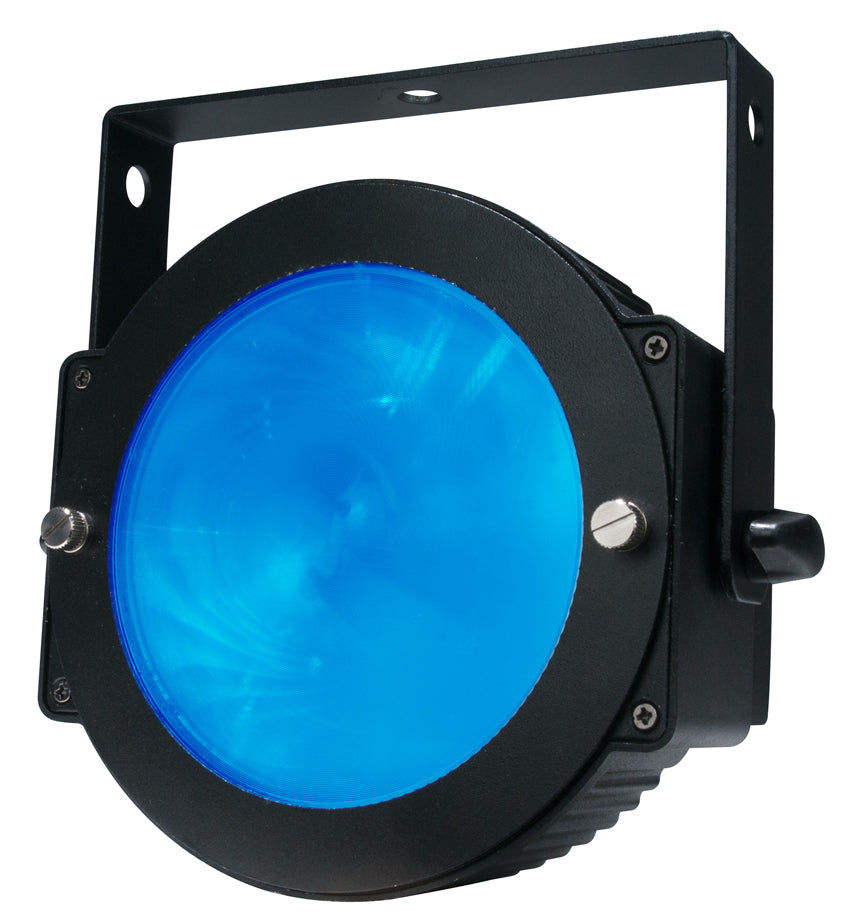

Just checking to be sure that this is the same weight and size as your prior Dotz par as indicated on your website and that you can use the same wireless remote.

I would suspect the Remote is the same but until I see that in print, I will not guarantee it is the same remote. Please check backwith us by end of month.

Could you recommend which Accu-case i would use to fit 2 dotz par 100 fixtures into please.

I would reccomend the F8 PAR BAG as it is 29"x10"x9.25 and the DOTZ PAR 100 is is 10" with the bracket on. Just remove the dividers to fit the lights.
