Dotz Par

SKU: DOT246 | UPC: 819730012302
The ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space.
Advantage Points: 150

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

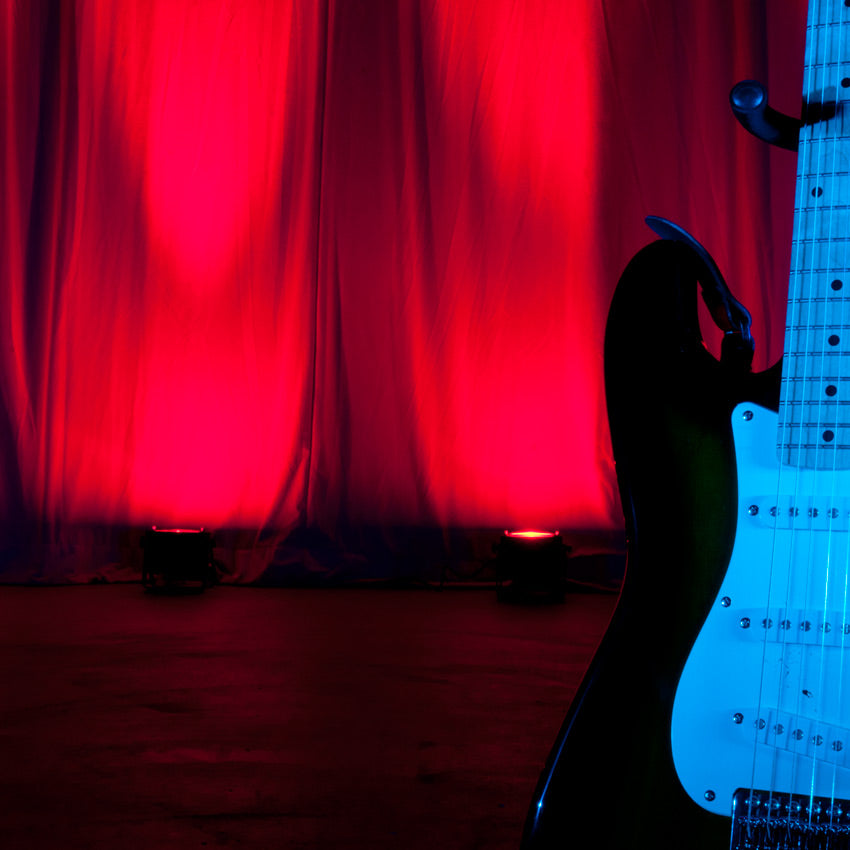

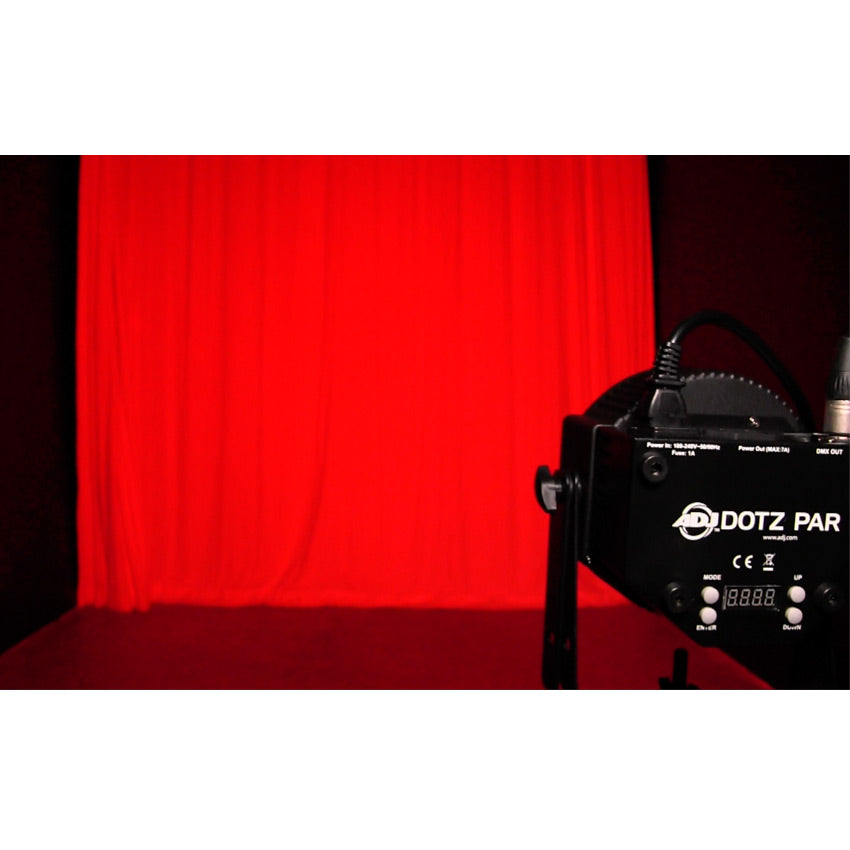

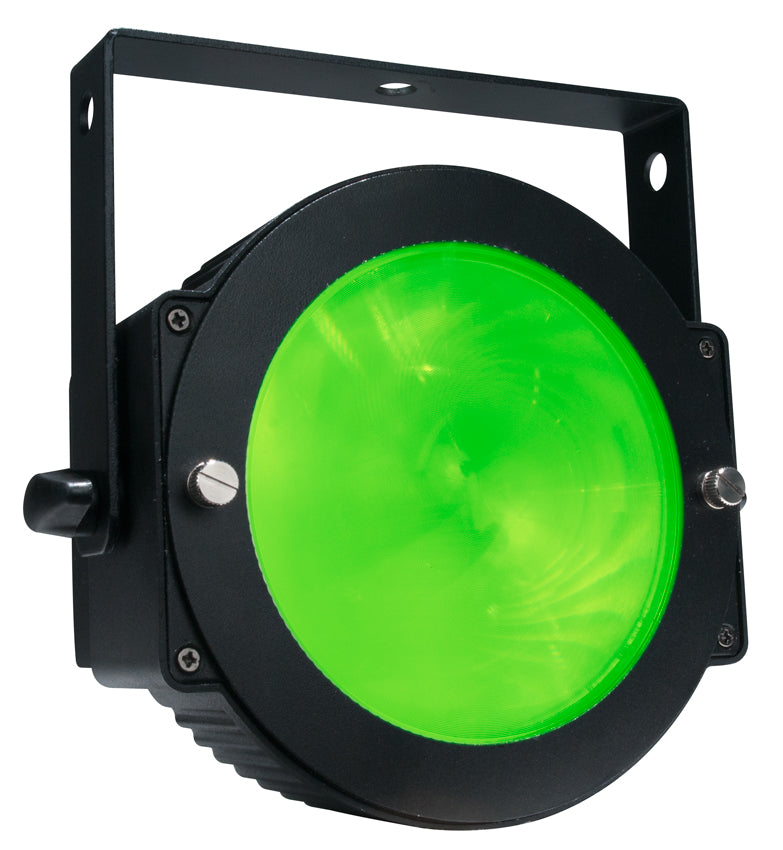

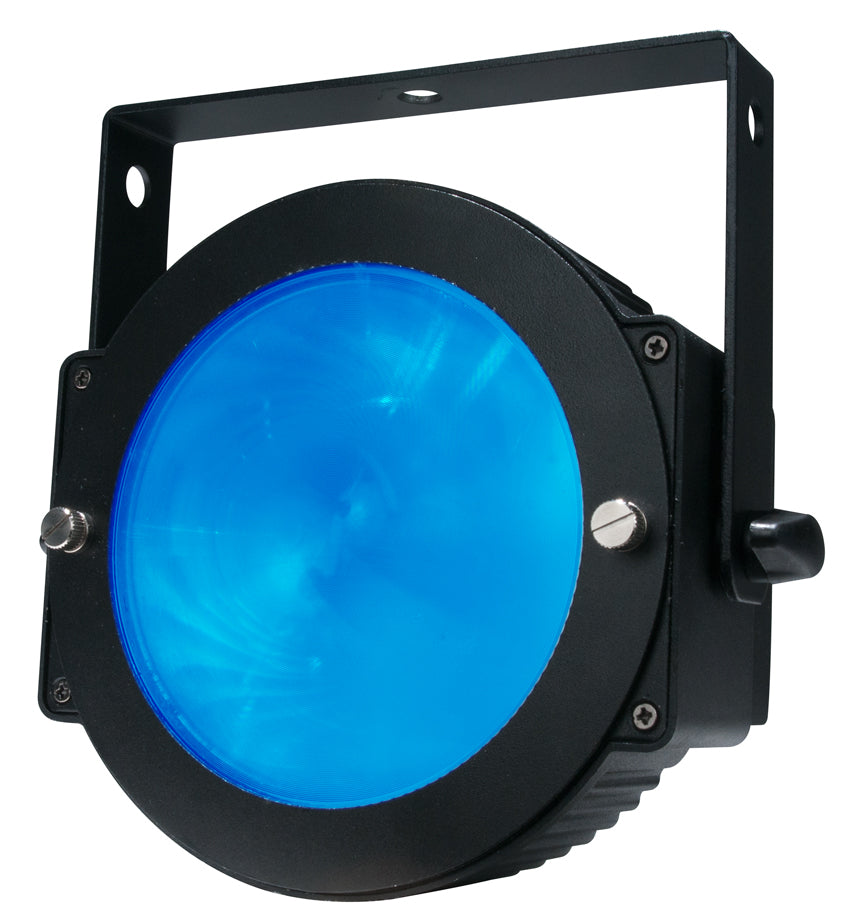

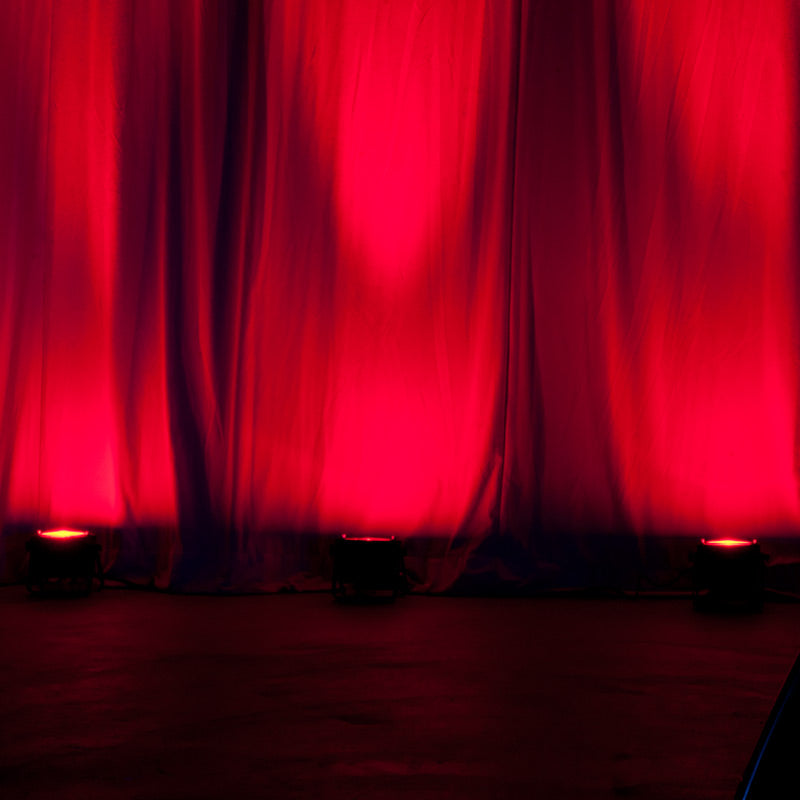

The ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par is a TRI 36W (3-In-1).



The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 32 built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller , or from the ADJ Par RF wireless remote control.

Specifications

Specifications

• High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED

• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

• Use as Wash/par or Pixel Mapped for a stunning visual effect

• 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode

• 4 DMX channel modes: 3, 4, 5 or 9 channel

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Built-In preset colors and programs

• Flicker Free operation (No flickering on camera)

• 32 built-in Color Macros

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• Beam angle: 60-degrees (25-degrees with supplied lens kit)

• 3-pin XLR chassis mount connectors for DMX linking
• With Wired Digital Communication Network

• IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par’s @ 110V and 28 Dotz Par’s @ 230V)

• Power Draw: 36W total (All LEDs @ Full On)
• Power Cable Length: 1.8M (IEC)

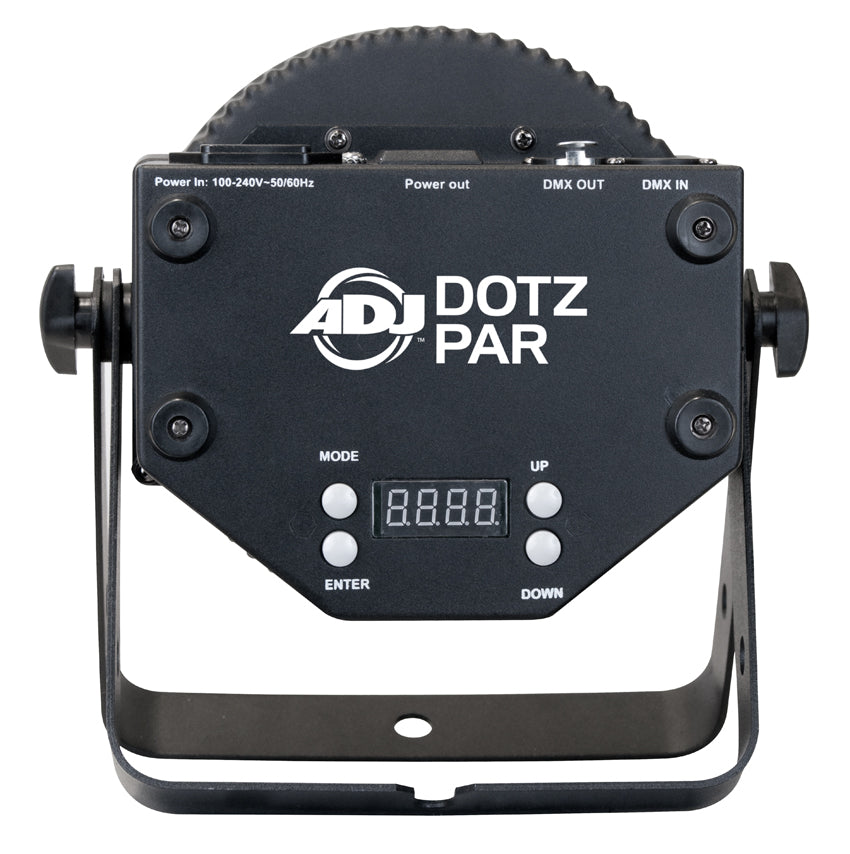

• 4-button LCD DMX display on rear panel

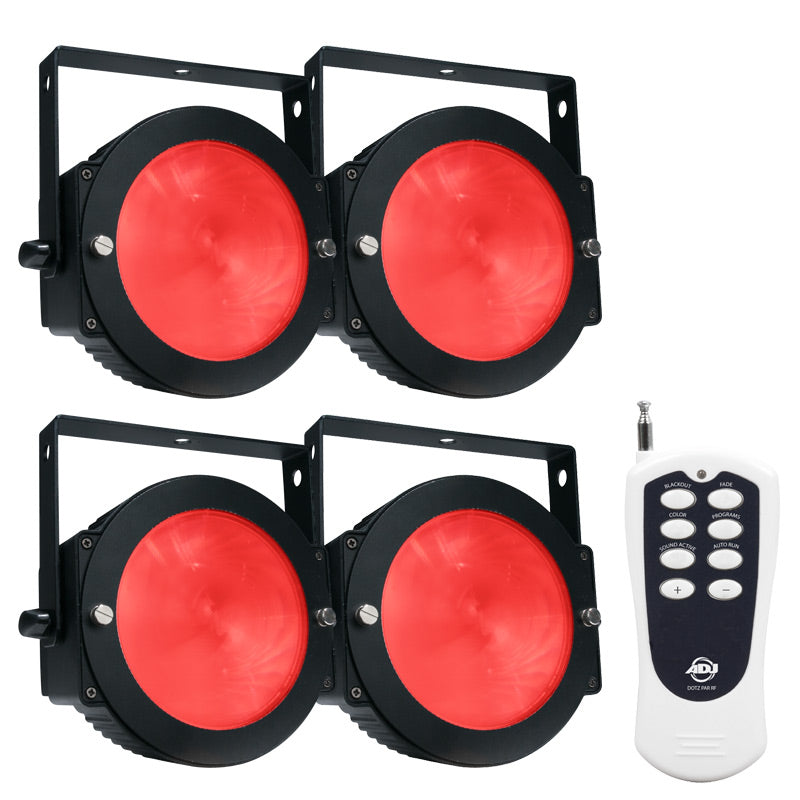

• Compatible with ADJ Par RF wireless remote control (sold separately)

• Single yoke allows fixture to be mounted

• Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)

• Light output: LENS ON: 970 LUX @2M; 266 LUX @4M (25-degree beam), LENS OFF: 130 LUX @2M; 36 LUX @4M (60-degree beam)
• Refresh Rate: 3.6KHz
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Dimensions (LxWxH): 6. 5” x 4.5” x 6.5”/ 165 x 114 x 165mm (Without Bracket) / 8.25” x 4.5” x 8.75” / 209 x  114 x 222mm (With Bracket)

• Weight: 5 lbs. / 2 kgs.
• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Dotz Par User Manual (Rev. 12/23/14) Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

How many dotz pars would I want to cover a 24' wide 20' deep stage from a downstage position.

It depends on how high up in the air you are mounting it. What distance will it need to get to the stage?

Hello I am tossing up whether to purchase the mega tripar profile or the dotz par. I like on the mega tripar profile that you can individually colour mix on the unit itself, is this possible on the Dotz par? Also will the remote allow this to happen? Thanks

You can mix colors on both units through the Menu on the unit or using the appropriate remote controls. The Dotz Par als allows you to remove the Lens to achieve a wider spread.

I recently purchased 4 dotz pars. I was wondering if there was a more detailed explanation of setting the parameters for the programs. Thank you.

Hello Rocco,

Thank you for reaching out to us. I would suggest contacting ADJ support. We need more information regarding your inquiry. (323) 582-2650

 Best Regards,
