Dotz Matrix

SKU: DOT294 | UPC: 819730010773
Utilizing Chip On Board technology the Dotz Matrix light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Get ready to create the a rich display of RGB mixed color at your next event. With advanced Chip On Board technology the Dotz Matrix from ADJ allows for a stunning display of Pixel Mapping or Wash effect from 9 powerful LEDs in a 4 x 4 arrangement. With all it's great features like auto run, sound active mode, and built-in programs this DMX compatible LED fixture is easy to use and integrate into any entertainment production. This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs. Made from high quality materials the Dotz Matrix is built to last. Despite being high output and durable, this LED fixture is lightweight and will be easy to transport to wherever your next event may be. While portable, the Dotz Matrix has a high quality and powerful output making it ideal for theaters, venues, and night clubs. Get quality lighting you can trust with the Dotz Matrix LED Fixture from ADJ.

Specifications

Specifications

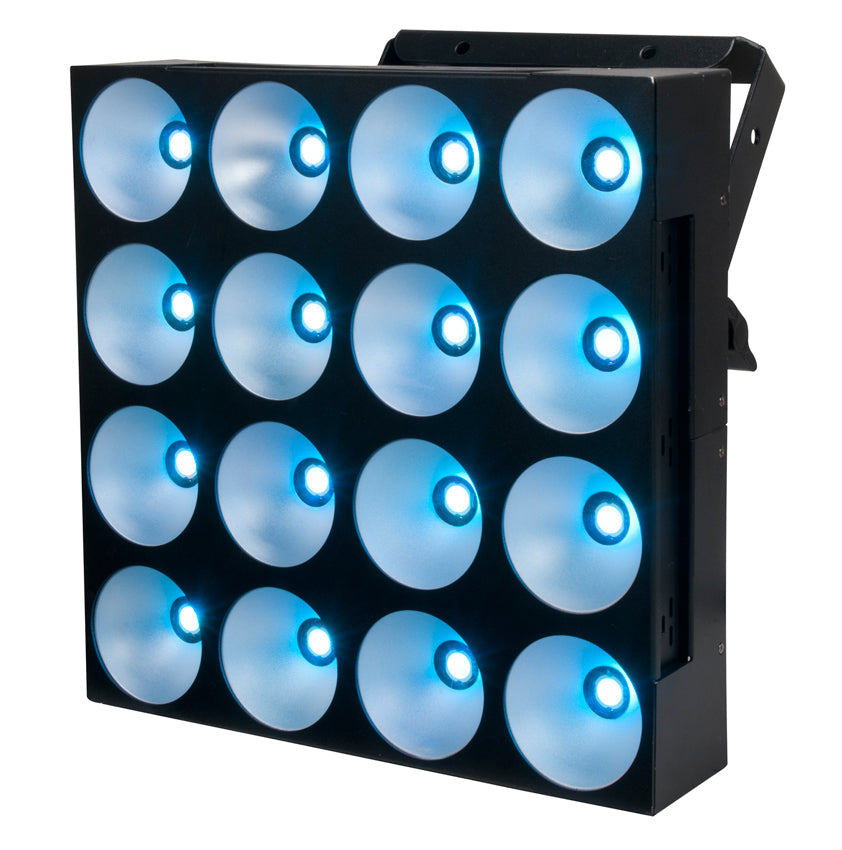

  •  4 x 4 COB LED high output Wash/Blinder Matrix panel
  •  COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  •  Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
  •  Great for Stage Lighting, Bands or Night Clubs
  •  5 DMX channel modes: 3, 6, 7, 48 & 53 channel
  •  Individual Pixel controllable in 48 & 53 channel DMX modes
  •  4x Pixel Flip options changes pixel orientation
  •  4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
  •  RDM Compliant (Remote Device Management)
  •  Built-In preset colors and programs
  •  Flicker Free operation (No flickering on camera)
  •  LED pulse and strobe effect
  •  Electronic Dimming: 0 - 100%
  •  5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  •  60-degree beam angle

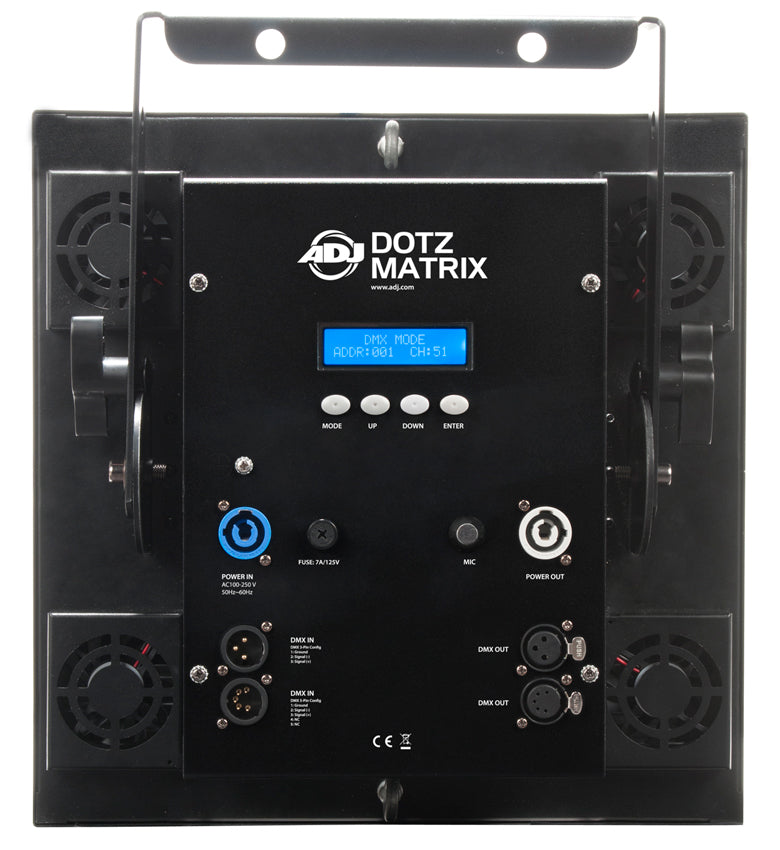

  •  3 & 5-pin XLR chassis mount connectors for DMX linking
  •  With Wired Digital Communication Network
  •  PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
  •  Power Draw: 430W total (All LED's @ Full)
  •  4-button DMX LCD display
  •  Single yoke allows fixture to be mounted
  •  Fan Cooled
  •  Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
  • 2630 LUX @2M; 730 LUX @4M (60-degree beam)
  • Refresh Rate: 3.6KHz
  •  Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  •  Dimensions (LxWxH): 13.75” x 6.75” x 14.75”/ 345 x 170 x 370mm
  •  Weight: 18 lbs. / 7.8 kgs.
  • ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Dotz Matrix Photometric Test Report Photometric Test Report Download
ADJ Dotz Matrix User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I have two Dotz Matrix units. I just bought the American DJ DMX Operator 384. I been trying to run the Dotz Matrix via DMX but the lights do not respond to the dmx controller! I set the first light to dmx, channel 001, connect it to the controller set it to fixture one press the program mode button on the controller, but once I move up and down the 8 faders nothing happen. Can I get some help, I trying to figure out these lights and the new DMX Controller Thank you...

Please contact info@americandj.com
