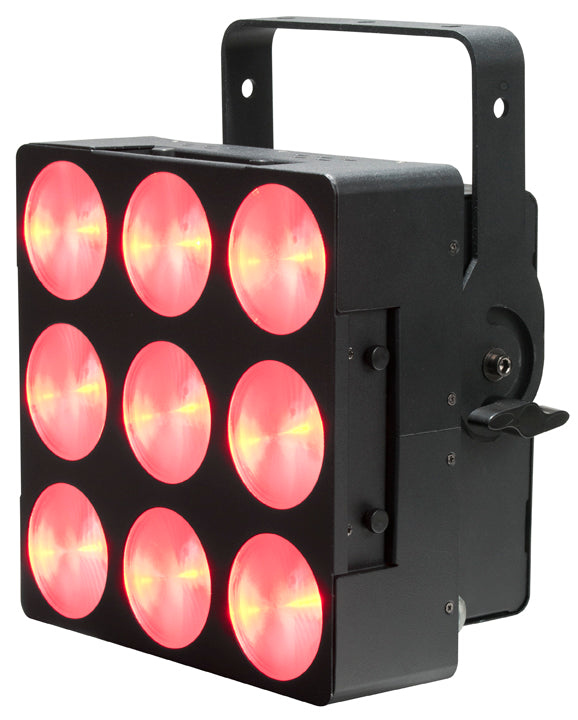

Dotz Brick 3.3

(Discontinued)
SKU: DOT421 | UPC: 819730010995
Utilizing Chip On Board technology the Dotz Brick 3.3 light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.
Advantage Points: 500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

DISCONTINUED PRODUCT

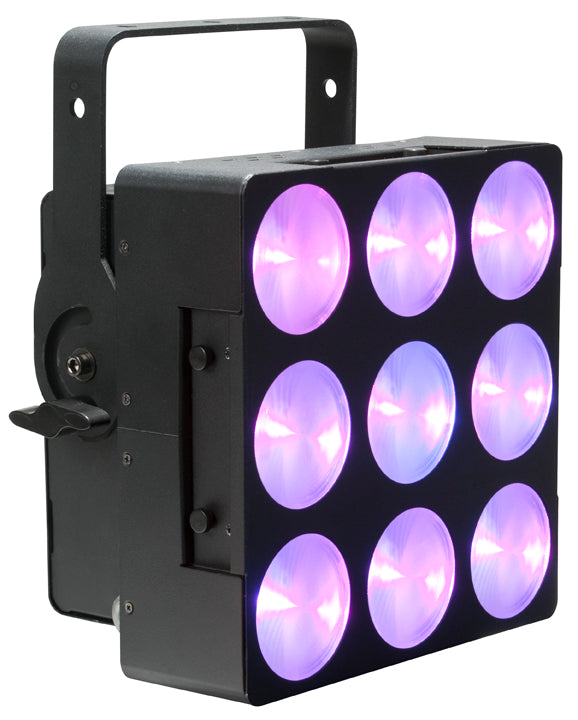

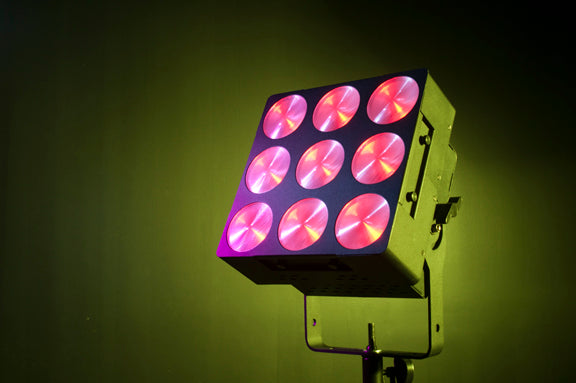

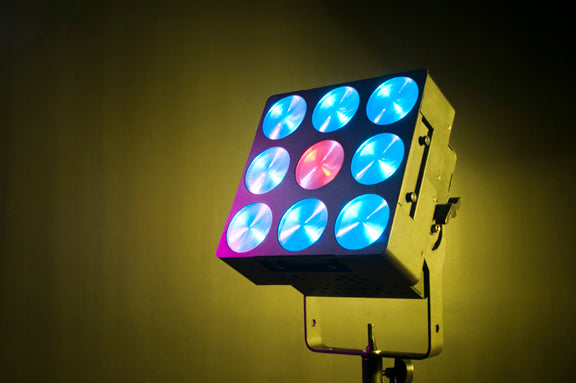

Get ready to create the a rich display of RGB mixed color at your next event. With advanced Chip On Board technology the Dotz Brick 3.3 from ADJ allows for a stunning display of Pixel Mapping or Wash effect from 9 powerful LEDs in a 3 x 3 arrangement. With all it's great features like auto run, sound active mode, and built-in programs this DMX compatible LED fixture is easy to use and integrate into any entertainment production. This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs. Made from high quality materials the Dotz Brick 3.3 is built to last. Despite being high output and durable, this LED fixture is lightweight and will be easy to transport to wherever your next event may be. While portable, the Dotz Brick 3.3 has a high quality and powerful output making it ideal for theaters, venues, and night clubs. Get quality lighting you can trust with the Dotz Brick 3.3 LED Fixture from ADJ.

Specifications

Specifications

  •  3 x 3 COB TRI LED high output Wash/Blinder Matrix panel
  •  COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  •  Use as Wash/Matrix or Pixel Mapped for a stunning visual effect
  •  Great for Stage Lighting, Bands or Night Clubs
  •  4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
  •  5 DMX channel modes: 3, 6, 8, 27 or 32 channel
  •  Individual Pixel controllable in 27 or 32 channel DMX mode
  •  Pixel Flip options changes pixel orientation
  •  RDM Compliant (Remote Device Management)
  •  Built-In preset colors and programs
  •  Flicker Free operation (No flickering on camera)
  •  LED pulse and strobe effect
  •  Electronic Dimming: 0 - 100%
  •  5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  •  25-degree beam angle

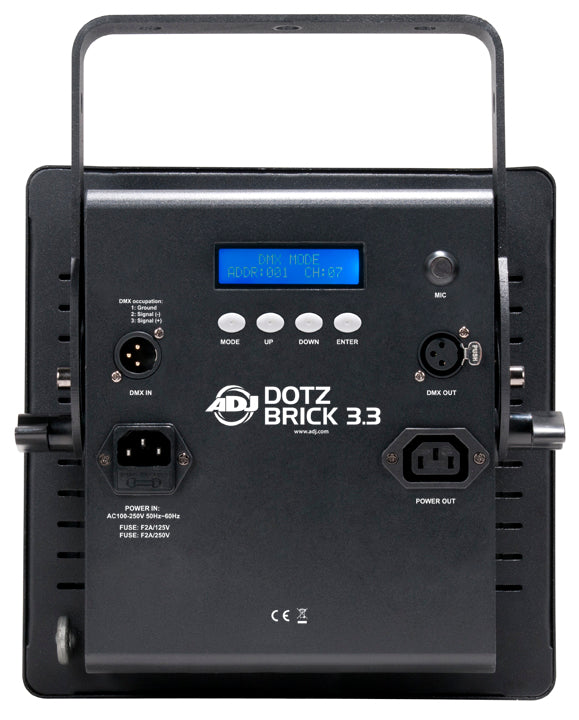

  •  3-pin XLR chassis mount connectors for DMX linking
  •  IEC AC IN/OUT to daisy chain power (up to 7 Dotz Brick 3.3’s @ 120V and 14 Dotz Brick 3.3’s @ 230V)
  •  Power Draw: 116W total (All LED's @ Full)
  •  4-button DMX LCD display
  •  Single yoke allows fixture to be mounted
  •  Fan Cooled
  •  Light Source: 3 x 3 9-Watt COB TRI LEDs (RGB: 3 in 1)
  •  Lux @ 3M: 471 Lux
  • Refresh Rate: 3.6KHz
  •  Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  •  Dimensions (LxWxH): 10.25” x 6.75” x 12”/ 259 x 169 x 300mm
  •  Weight: 11 lbs. / 4.8 kgs.
  • ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Dot Brick 3.3 Photometrics Download
Dotz Brick 3.3 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Dotz Brick 3.3
