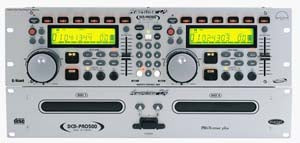

DCD-PRO500
This item is discontinued
DCD-PRO500
Sale price$0.00
DCD-PRO500
Specifications
- Forward amp; Reverse Sampling
- Pitch Bend amp; Pitch Control on Samples
- 80 storeable amp; recallable samples, loops or cue points
- 6 "Flash Start" buttons per side ndash; recalls cue points or samples instantly amp; on the fly
- Loops amp; samples may be reversed with Pitch Adjustment amp; Pitch Bend
- Seamless Loop
- Fader "Q" Start (Compatible with American DJ Q-Series mixers)
- Flip Flop button (Relay Playback) ndash; When one entire CD or song is finished the other side will cue and start to play
- Bop Effect
- Back lit ergonomically designed rubber Play, Cue, amp; Flash Start buttons
- Mechanical Anti-Skip Protection
- Direct Time entry / Go to Time
- 8x Oversampling 1 bit D/A Converter
- Edit on the fly
- True Instant Start / Eliminates Dead Spaces
- +/- 16% Pitch Bend o Interactive Jog Wheel for Pitch Bend or Frame Search
- Selectable Pitch Control (+/-8%, +/-12% or +/-16%)
- Pitch Display
- 30 Programmable Play Tracks on each side
- 6 Different Speed Scans
- Direct track acess buttons
- Beat Counter
- Frame Search
- Large, Bright LCD Display for wide view angles
- 3 in. / 8cm CD Singles Compatible
- Auto Cue
- Realtime Cue
- Instant Cue Point Recall
- Digital Ouput
- 60 second transport protection (open tray closes after 60 sec.)
- Reads CD Recordable (CDR) disks
- Single, continue
- Sleep Mode (laser amp; motor shut down after 15 minutes of inactivity)
- Silver, brushed aluminum face plate
- Dimensions: Player unit: 19"(W) x 3 15/32" (H) x 9 55/64" (D) / 482mm (W) x 88.8mm (H) x 264mm (D) Control unit: 19"(W) x 3 15/32" (H) x 1 37/64" (D) / 482mm (W) x 132mm (H) x 74mm (D)
- Installation: 19-inch rack mountable
- Player amp; Controller units: 2 separate units / Player is 2 rack spaces, Controller is 3 rack spaces
- Weight: Player unit: 11 lbs. / 5 kg., Control unit: 4.5 lbs. / 2 kg
- Power supply: 115/60 Hz AC or 230V/50Hz AC switchable
- Power consumption: 25W
- Sampling rate: 44.1 kHz at normal pitch
- Over sampling rate: 8 times
- D/A conversion: 16 bit
- Frequency response: +/- 1.0dB 20Hz-20KHz, 0dB
- Total Harmonic Distortion: 0.02%
- Signal to noise ratio: 88 dB
- Channel separation: 80 dB
- Output level: 2.OV +/- 1dB
- Load impedance: 47 kohm or more
- Variable pitch: +/-16% or more
- Search accuracy: 1/75 sec. (1 subcode frame)
- Memory: Last Settings
