D6 Branch

SKU: D6B774 | UPC: 819730015983
Signal splitting/amplification is easier now thanks to the D6 Branch from American DJ. This DMX Splitter/Amplifier allows for the easy connection to lighting units and the transmission of signals to them. Lightweight and easy to mount, functions perfectly as a transmission hub for any permanent setup or mobile entertainment system.
Advantage Points: 210

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Do you want to manage your DMX fixtures in a more organized fashion using an easy solution? The D6 Branch from American DJ is the solution you need. The D6 Branch Splitter/Amplifier allows you to make your fixtures easy to manage. By significantly reducing your need for DMX cables in your production you make set-up easier, reduce the risk of a plug failure or tripped over wire, while also making your whole production cleaner and less cluttered.

Though lightweight, the D6 Branch is built from high quality materials making it the ideal blend of functionality, durability and portability. This unit is perfect for any club, bar, stage or mobile show looking to reduce their need for wires, decrease set-up time, and eliminate restrictions on where controllers and fixtures can be placed in relation to one another. Modernize your light show production today, go professional with the D6 Branch DMX Splitter/Amplifier from American DJ.

Specifications

Specifications

  • 6-Way DMX Splitter & amplifier

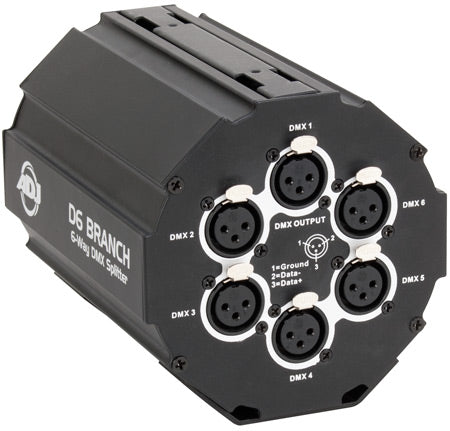

  • 1x DMX In, 6x DMX Out & 1 DMX Thru (all 3-pin XLR’s)
  • Link with other D6 Branch Splitters
  • Input & outputs are electrically and optically isolated from each other

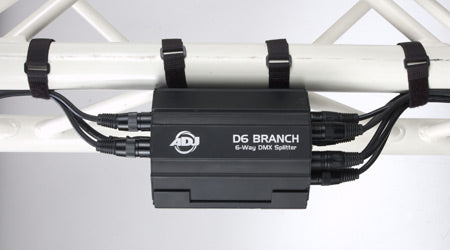

  • Includes two straps to securely attach to truss
  • Clamp mount bracket included

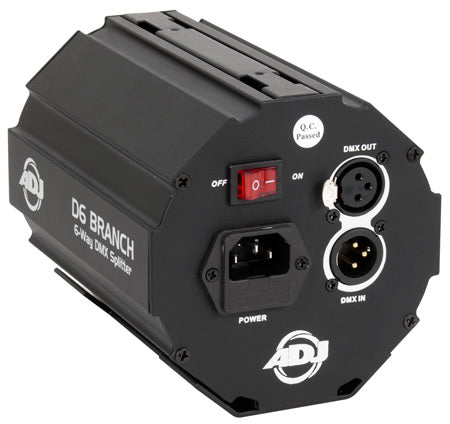

  • On/Off power switch
  • Multi-voltage operation: AC 100-240V, 50/60Hz (IEC Socket)
  • Dimensions (LxWxH): 4.75”x5”x6” / 118.5x122.5x153mm
  • Weight: 2.5 lbs/ 1 kg.

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
D6 Branch User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

For any of the inputs or the thruput; (6x DMX Out & 1 DMX Thru), do you need a terminator if not in use, or does it have a terminator built in, making a terminator redundant?

The D6 Branch does not have a terminator built in. Typically a terminator is used to terminate the end of a line or run not at the splitter or controler.
