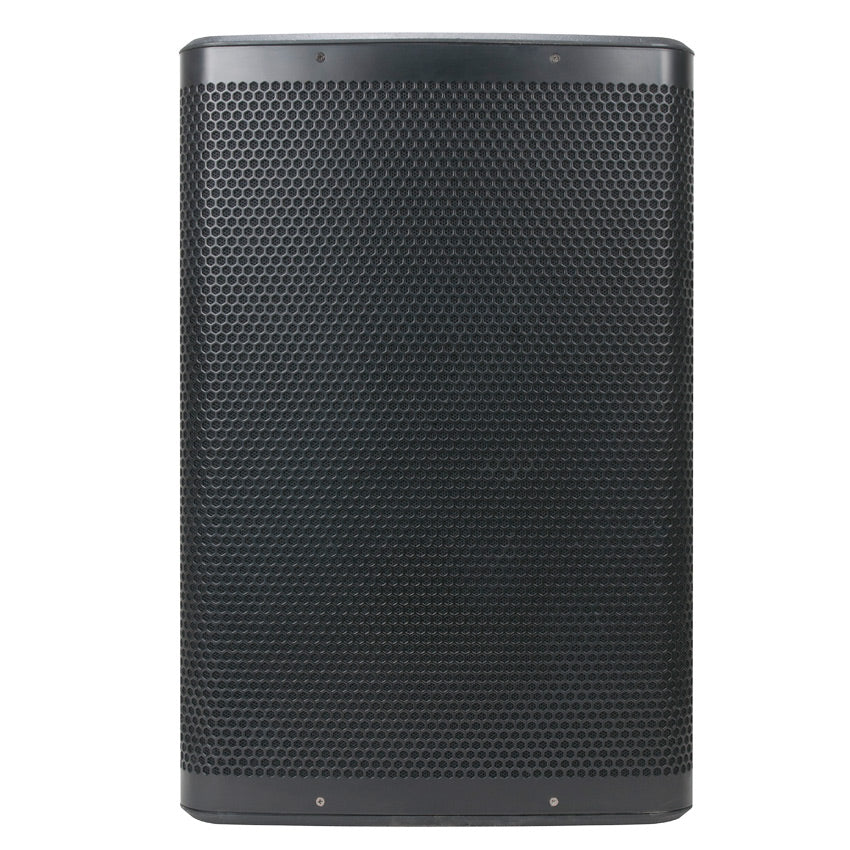

CPX 15A

SKU: CPX155 | UPC: 819730017321
CPX 15A 2-way active speaker with 15 inch woofer, features class D amp, time aligned crossover, M10 rigging points, heavy duty steel front grill, 500 watt built-in bi amplifier, ergonomic handles, Power and clip LED indicators, XLR and RCA inputs, XLR and TRS throughputs, clipping and thermal protection. From American DJ.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The American DJ CPX 15A 500W, 2-way active speaker is designed for mobile entertainers,  and production companies. It's also great for installations where affordable sound is required. The CPX 15A is designed to deliver great sound for your band, mobile DJing, or for installation in churches, clubs, lounges, or bars. This speaker makes a great floor monitor or side fill as well.

Features include 15 inch woofer, a 2-way speaker with high efficiency Class D amplifier, 500W built-in bi-amplifier, 5 M10 rigging points, time aligned electronic crossover with low pass: 2nd ordered filter 2.7KHz and Low cut: 2nd ordered filter 30Hz. Speaker is stand mountable with heavy duty steel front grill, ergonomic handles, power and clip LED indicators, XLR and RCA inputs, XLR and TRS throughputs, clipping and thermal protection. The Channel Equalizer provides 100 Hz +/- 12dB Bass and 10KHZ +/- 12dB Treble.

The four models in the CPX series are appropriately nicknamed "Road Warriors" because of their rugged, durable construction. While the competition has opted to exchange hard wearing, long lasting, sturdiness for lighter weight,  this series delivers on both. The CPX 15A weighs in at only 40 pounds and is durable enough for the road.

Specifications

Specifications

  • 2-way Speaker with High Efficiency Class D Amplifier
  • 500W Built-in Bi-amplifier
  • Time Aligned Electronic Crossover
  • 5 M10 Rigging points
  • Stand Mountable
  • Heavy Duty steel grill
  • Ergonomic handles
  • Power and Clip LED Indicators
  • XLR and RCA inputs
  • XLR and TRS throughputs
  • Clipping and Thermal Protection
  • S/N Ratio: Line 100dB, Mic 80dB
  • Frequency Response: 30 Hz – 18 kHz
  • Nominal Coverage: 90º x 60º
  • Low Frequency: 15" (390mm), 2.5" (75mm) Voice Coil
  • High Frequency: 44mm Voice Coil, 1"(25mm) Throat
  • Input Sensitivity: 0.5V
  • Output Sensitivity: 97dB(1m/1w)
  • Max. SPL: 118dB
  • Balanced Input Impedance: Line 20K?, Mic 3.6K?
  • Unbalanced Input Impedance: Line 10K?, Mic 1.8KO
  • Multi Voltage Switch: AC 115V/60Hz or 230V/50Hz
  • Dimensions (LxWxH): 18” x 15.5” x 27”/ 456 x 390 x 680mm
  • Weight: 62 lbs. / 28 kgs.
CROSSOVER:
  • Low Pass: 2nd order filter 2.7KHz
  • Low Cut: 2nd order filter 30Hz
CHANNEL EQUALIZER:
  • Bass: 100Hz +/- 12dB
  • Treble: 10KHz +/- 12dB

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
CPX 15A User Manual Download
CPX Speaker Series Cutsheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Hi, Can you please tell me whether you can ship or send 'american audio cpx15a' product to India? If yes, let me know detail price information otherwise please suggest me any other way to ship this product to India. Thanks!
