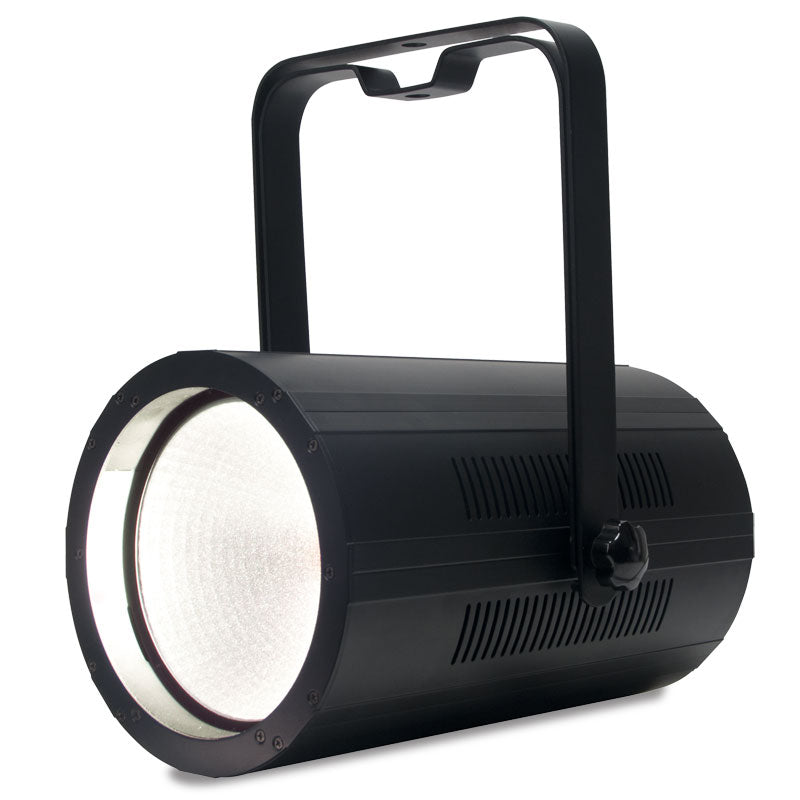

COB Cannon Wash DW

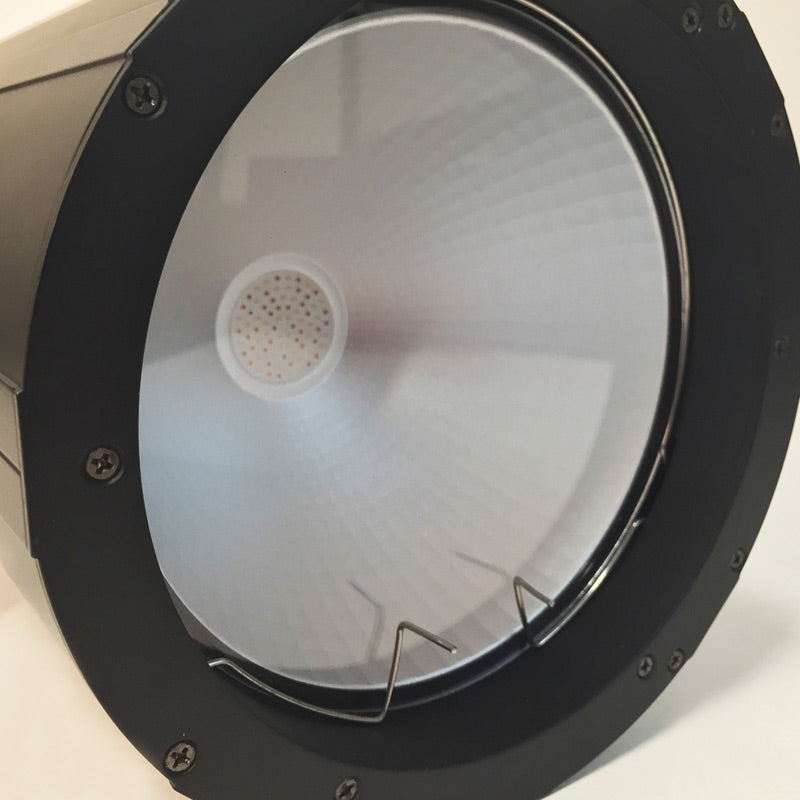

The ADJ COB Cannon Wash DW uses advanced Cool White and Warm White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches.
The COB Cannon Wash DW produces washes of 40 or 50-degrees with supplied optics and 80-degrees without special optics. It has DMX Channel modes for programming flexibility, built-in color macros and selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button DMX display. It may run in its stand-alone mode from built-in programs,from a DMX controller.
Learn more about the COB Cannon Wash DW in this product spotlight: http://tinyurl.com/zrr8mun
• Light Source: 1x 150-Watt COB Warm White/Cool White LED (CRI over 90; Warm White: 3000K, Cool White: 6500K, rated at approximately 50,000 hrs)
• 6 DMX Channel modes (1, 2, 3, 4, 5, & 6 Ch.)
• 8 warm white/cool white macros

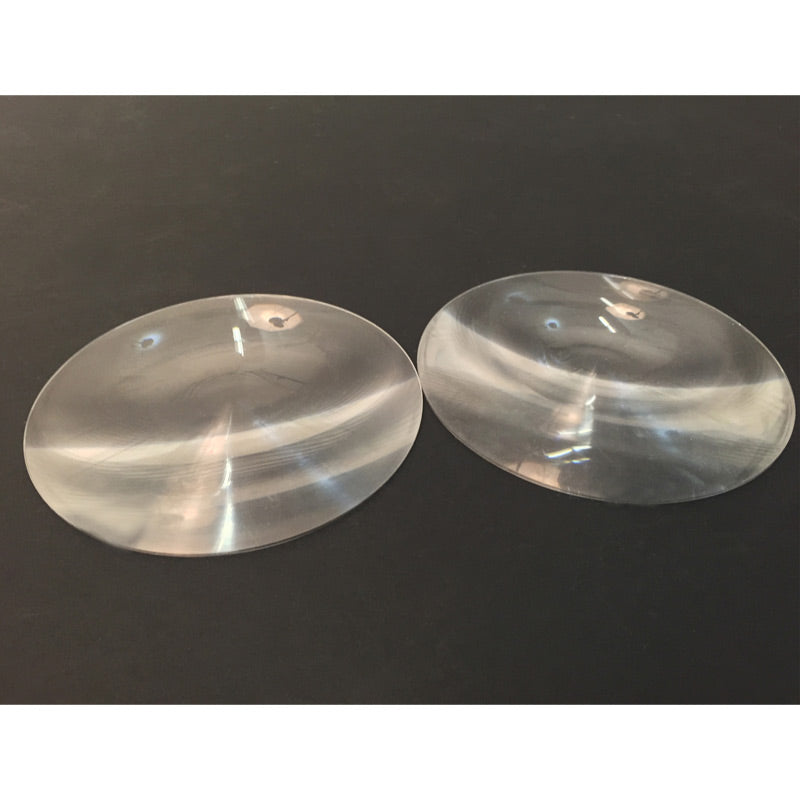

• 80-degree beam angle (no lens), 50 and 40 degree lens kit included
• Dual White LEDs for color temperature adjustment, plus 64 built-in color macros
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%

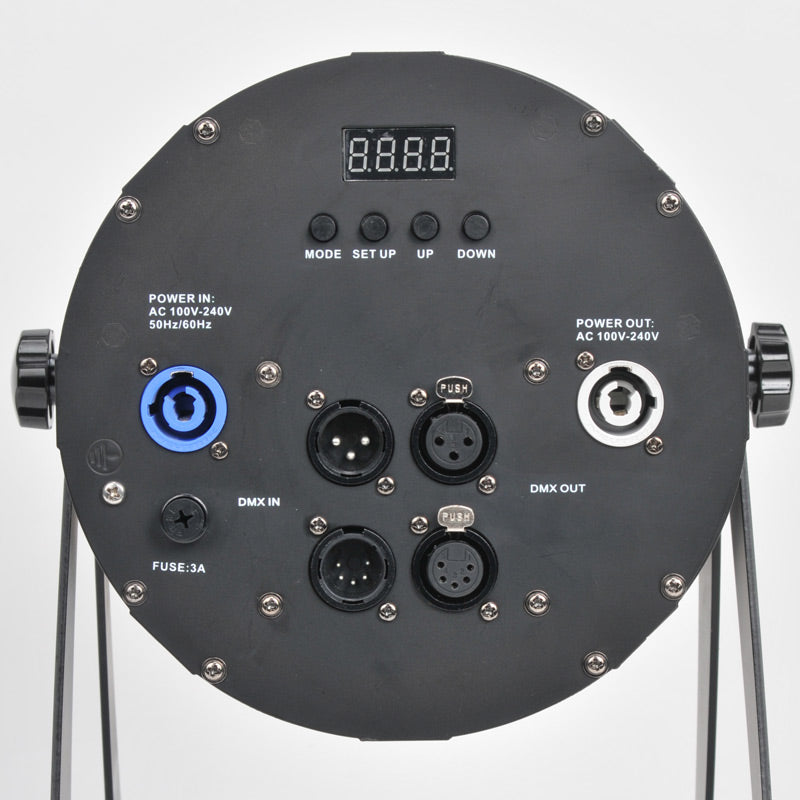

• 4-button digital DMX display on rear panel
• Compatible with ADJ RFC wireless remote control (sold separately)
• Dual yoke allows fixture to be mounted on truss or set on the ground
• 3 Pin and 5 Pin XLR chassis mount connectors for DMX linking
• With Wired Digital Communication Network
• PowerCon AC IN/OUT to daisy chain power (up to 5 fixtures @110V)
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm
• Weight: 9 lbs. / 4.1 kg.
• ETL Approved
Accessory: BAR001 Barn Doors
The following downloads are available for this product:
|COB Cannon Wash DW CAD Drawing||CAD Drawing||Download|
|COB Cannon Wash DW User Manual||User Manual||Download|
|COB Cannon Wash DW Photometric Test Reports||Photometric Test Reports||Download|
|COB Cannon Wash DW Photometric IES Files||Photometric IES Files||Download|
