COB Cannon Wash

SKU: COB963 | UPC: 819730014580
The ADJ COB Cannon Wash is an LED Par Can that uses advanced RGBA COB (Chip On Board) technology. The COB Cannon Wash has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ COB Cannon Wash uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash is a QUAD RGBA 4-In-1). It also doubles as an uplight with its dual yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

It has 7 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and powerCon power daisy-chaining, and a 4-button DMX display. COB Cannon Wash Pearl may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.





Specifications

Specifications

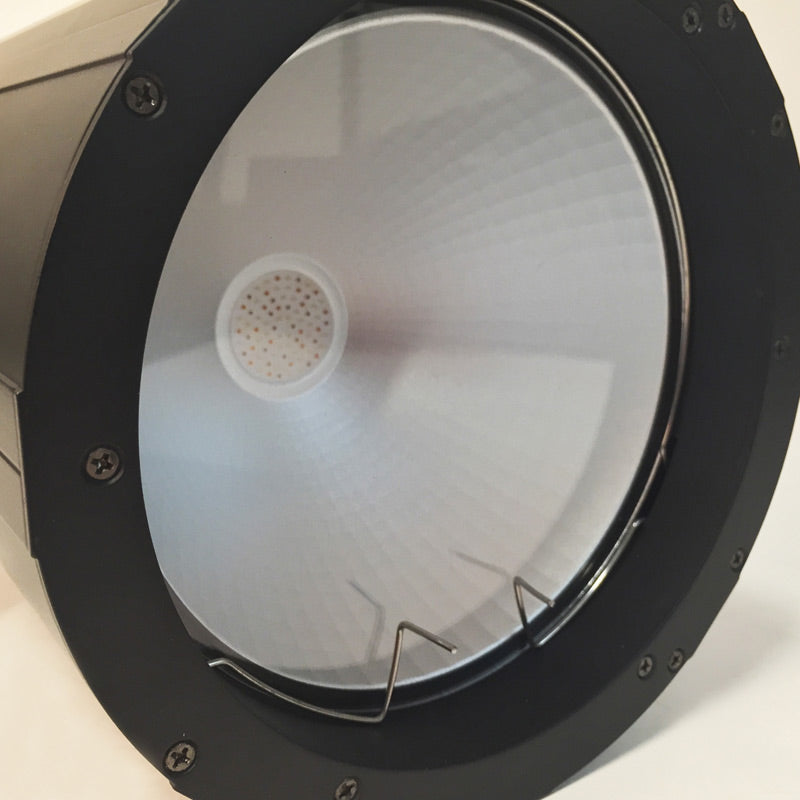

• COB Technology (Chip On Board) with one Quad (4-IN-1) RGBA COB LED

• Produces powerful, smooth RGBA color mixing with rich palettes of color

• Use as Wash/par or Pixel Mapped for a stunning visual effect

• 64 built-in color macros

• Flicker Free operation (No flickering on camera)
• Refresh Rate:1KHz

• Built-in Color Macros

• 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• 80-degree beam angle

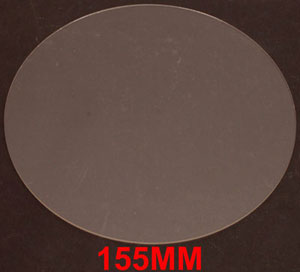

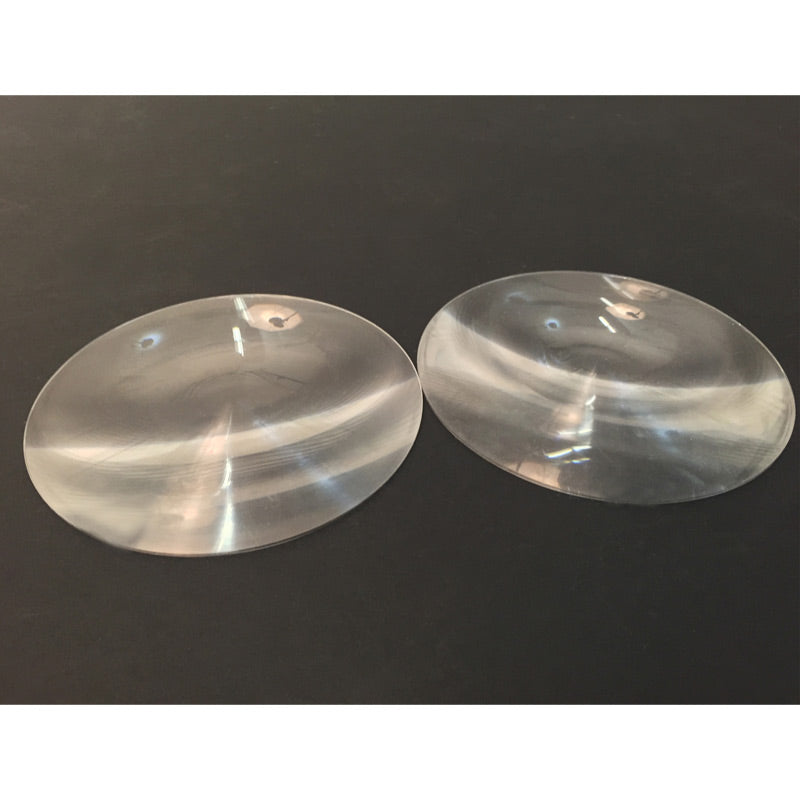

• Includes lens kit to change to 40-degrees or 50-degrees beam angle

•  3-pin XLR chassis mount connectors for DMX linking

• PowerCon AC IN/OUT to daisy chain power (up to 5 fixtures)

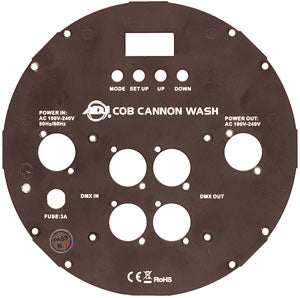

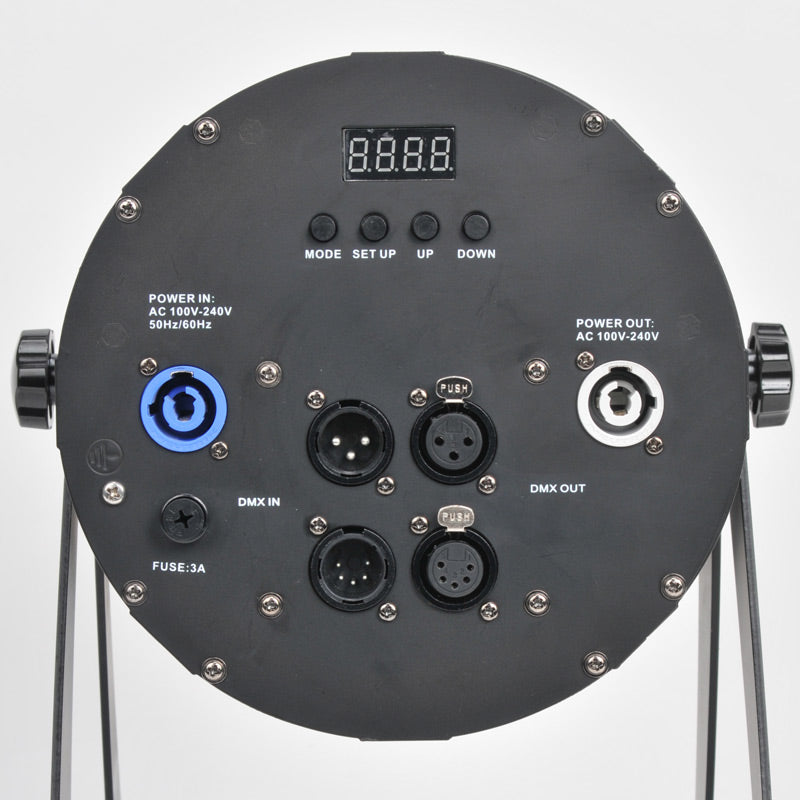

• 4-button digital DMX display on rear panel

• Compatible with wireless remote control (sold separately)

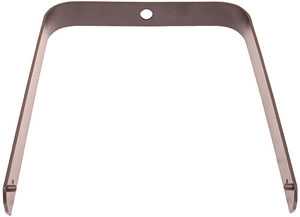

• Dual yoke allows fixture to be mounted on truss or set on the ground

• Light Source: 1x 150-Watt COB Quad LED (RGBA: 4-IN-1, rated at approximately 50,000 hrs)
• Light Output: 1970 LUX @2M; 474 LUX @4M (40-degree beam), 1472 LUX @2M; 373 LUX @ 4M (50-degree beam), 996 LUX @2M; 238 LUX @4M (80-degree beam)

• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm

• Weight: 9 lbs. / 4.1 kg.
• cETLus Approved (#4002034)

Accessory: BAR001 Barn Doors

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
COB Cannon Wash User Manual Download
COB Cannon Wash Cut Sheet Download
COB Cannon Wash User Manual Rev. 1/15 Download
COB Cannon Wash Photometric Test Reports Photometric Test Reports Download
COB Cannon Wash Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Is this product available for purchase in Australia yet and if so where from. Also is there an option for barndoors for the fitting. regards Steven Tibbits

This product isn't avaliable in the USA yet nor Australia.Approximate delivery yo USA is 03/20/15. It is manufactured by our Chinese Factory and we do not produce Barn Doors for it.

How can I get the Adj Cannon cob to output white light at 3500k?

Hello Jeremy,

Unfortunately, this unit is an rgba and it will not do white. If you’re looking for white output look into the lightning cob cannon. Let me know if you have any further questions.

Thanks,

How many lumens does this fixture produce?

Hello Christopher,

Thank you for reaching out to us. Here is the link of photometrics of the cob cannon wash.  file:///C:/Users/pnavarette/Downloads/cob_cannon_wash_photometrics.pdf

Let me if you have any further questions.

Thanks,

The LEDS go off flash white and then come back up at the programmed color in between cues. This does not happen all the time. We are using a etc element board for programming. I am a music teacher learning lighting not a lighting tech!

Hello Brent,

Thank you for reaching out to us. It could be a bad DMX cable. Try running a single cable to that fixture. If it works fine, then we know there’s a bad DMX cable in the chain. If the problem continues, try the following. There can also be an issue with the profile, try all DMX channel modes. Channel 4 would be best for troubleshooting. If the problem continues, contact support 800-322-6337 ext 592

Thanks,
