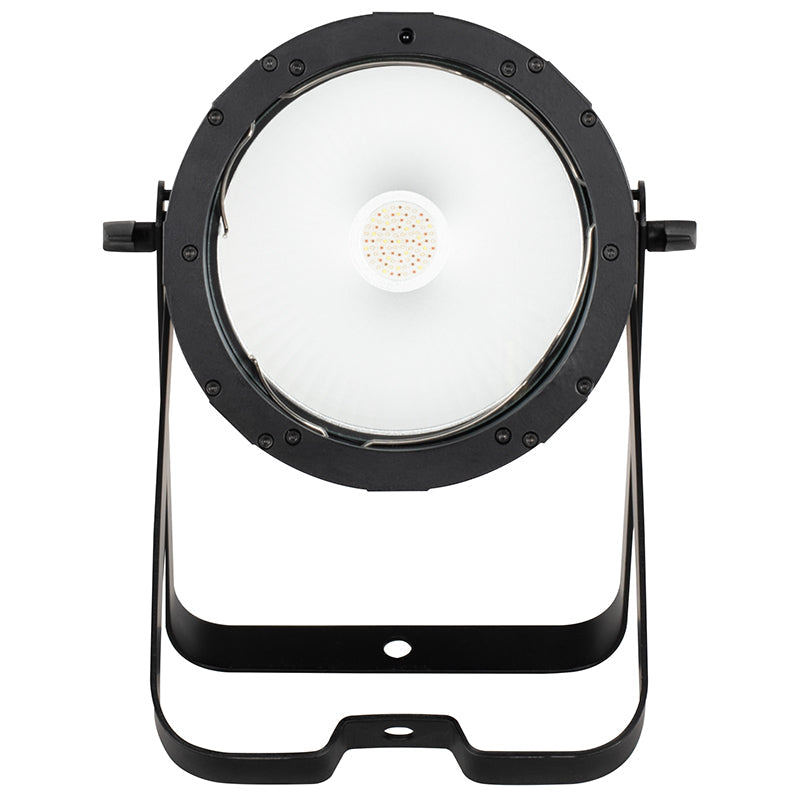

COB Cannon LP200X

Name: COB Cannon LP200X
Brand: ADJ
SKU: COB240
Availability: InStock

Featuring a high output 200-Watt COB (Chip On Board) LED engine, the ADJ COB Cannon LP200X is a potent color mixing wash lighting fixture. Its 5-in-1 light source combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors with a high CRI, plus a tunable white color temperature between 2300K and 9900K. A compact and versatile fixture, it offers a wide 80-degree native beam angle but is also supplied with both 40-degree and 50-degree lens options. This fixture includes the Aria X2 wireless management system.

UPC: 810087373856

SKU: COB240

COB Cannon LP200X

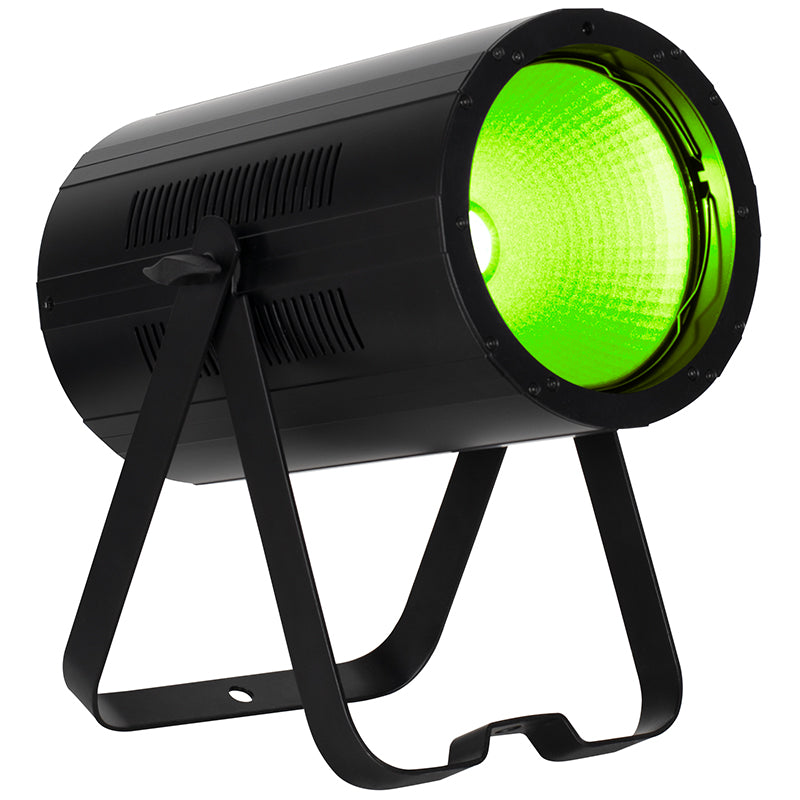

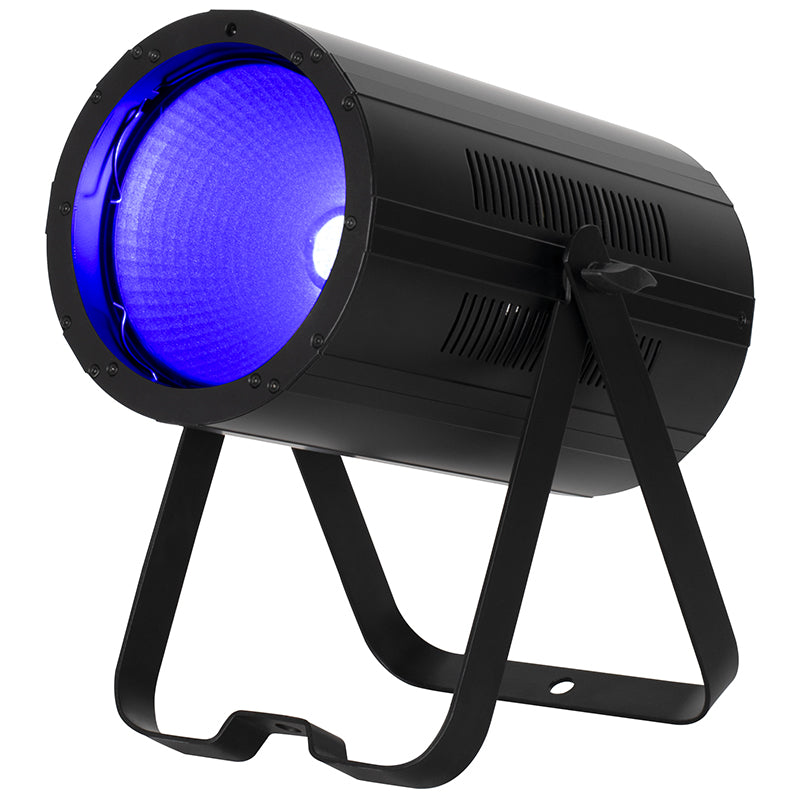

The ADJ COB Cannon LP200X is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a tunable white color temperature between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90.

The Aria X2 wireless management system is built into this fixture. The Aria X2 BLE app enables wireless control of the COB Cannon LP200X, including Over-the-Air (OTA) firmware updates, fixture settings like DMX addressing, channel modes, RDM, dimming options, LED refresh rates, and more. It also provides direct control over the fixture’s color output.

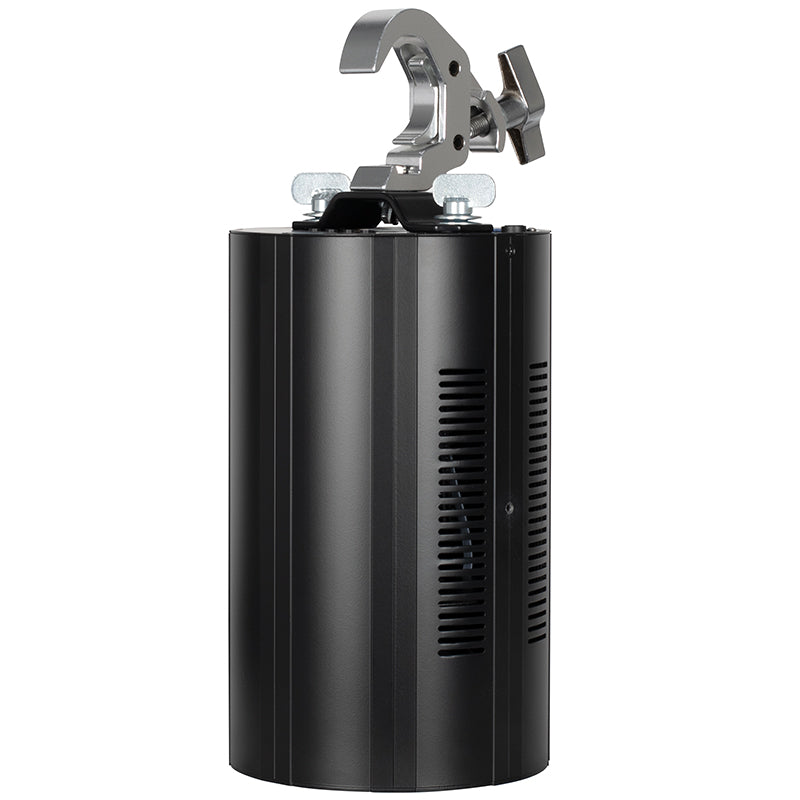

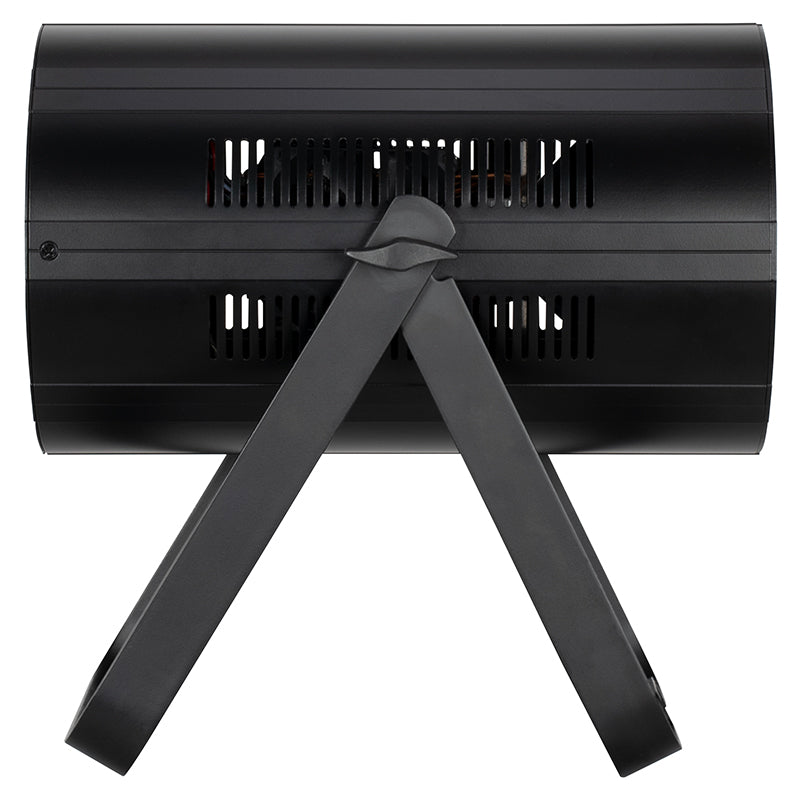

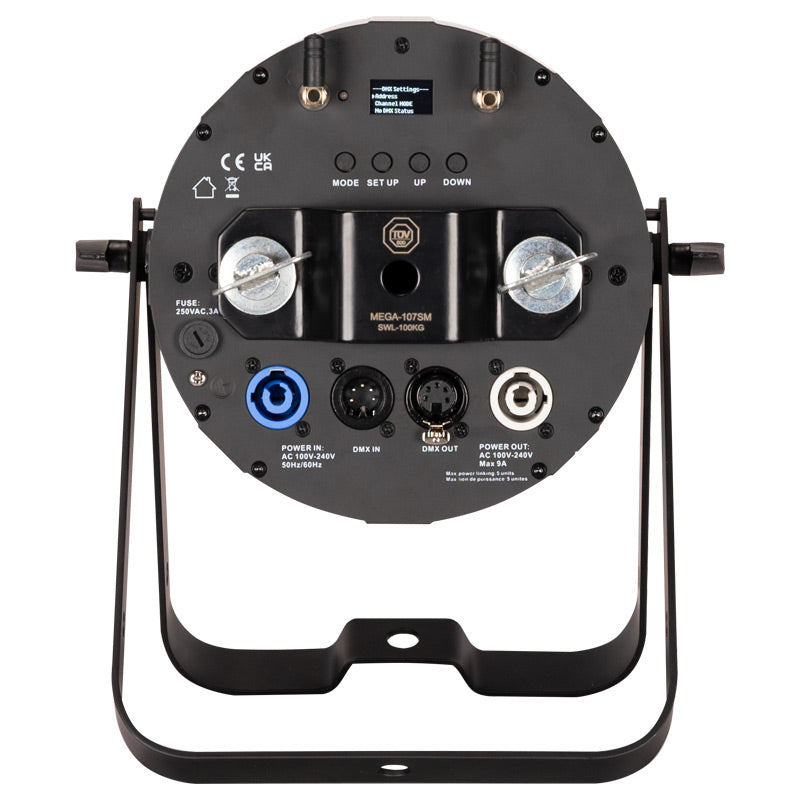

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory. An Omega Bracket is included so that this fixture can be hung vertically as a pendant light.

Specifications

OPTICAL:

• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber amp; Lime), LED Engine

• LED Engine Life Rating: Approximately 50,000 hrs.

• CRI: gt;90

• Tunable White Color Temperature: 2300~9900K

• 80-degree beam angle

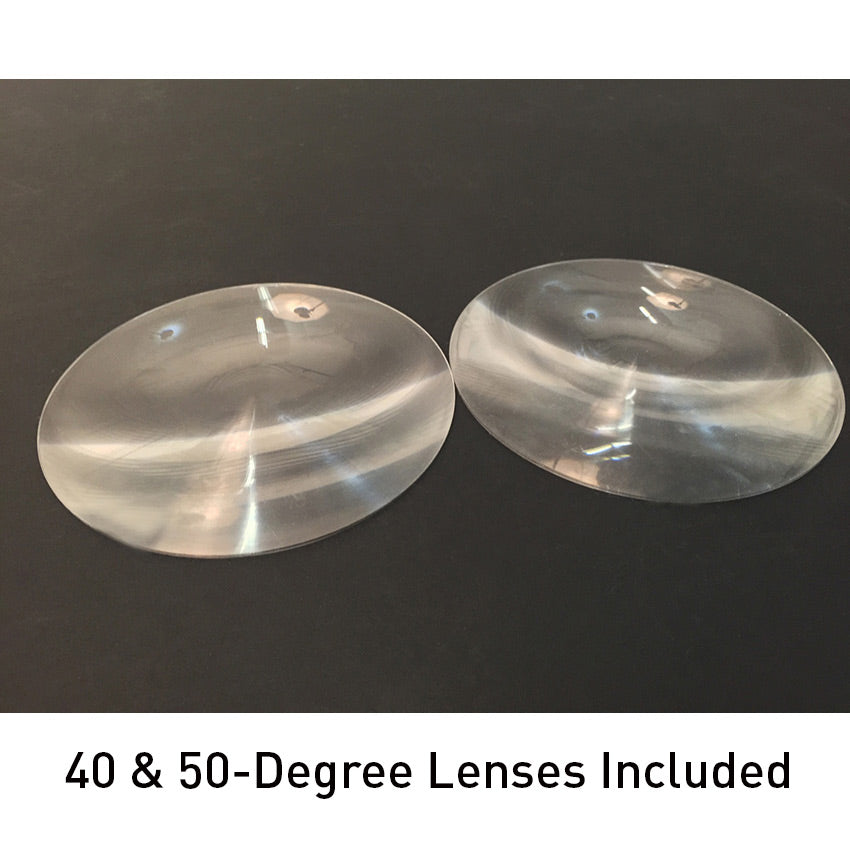

• Includes lens kit to change to 40-degrees or 50-degrees beam angle

FEATURES:

• Embedded Aria X2 Wireless Management System

• Primary / Secondary Mode

• Flicker Free operation (No flickering on camera)

• Produces powerful, smooth RGBAL color mixing with

rich palettes of color

• Scissor yoke allows fixture to be mounted on truss or

set on the ground

• Optional Barn Doors (BAR001) sold separately

CONTROL:

• 10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)

• Linear color temperature control via DMX

• Built-in color temperature presets accessible via DMX

• 64 built-in color macros

• 4-button OLED digital DMX display on rear panel

• Compatible with the ADJ UC IR remote control (included)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 6 selectable Dim Modes (Standard, Stage, TV,

Architectural, Theatre amp; Stage 2)

• 4 selectable Dim Curves (Square, Linear, Inv. Squa amp; S.Curve)

• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

CONNECTIONS:

• 5-pin XLR connectors for DMX data linking

• Indoor locking power In amp; Out connections to daisy chain power

ELECTRICAL:

• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Power Draw: 175W max

• Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm)

• Weight: 9.45 lbs. / 4.30 kg.

WHAT’S INCLUDED:

• (1) 50-degree lens

• (1) 40-degree lens

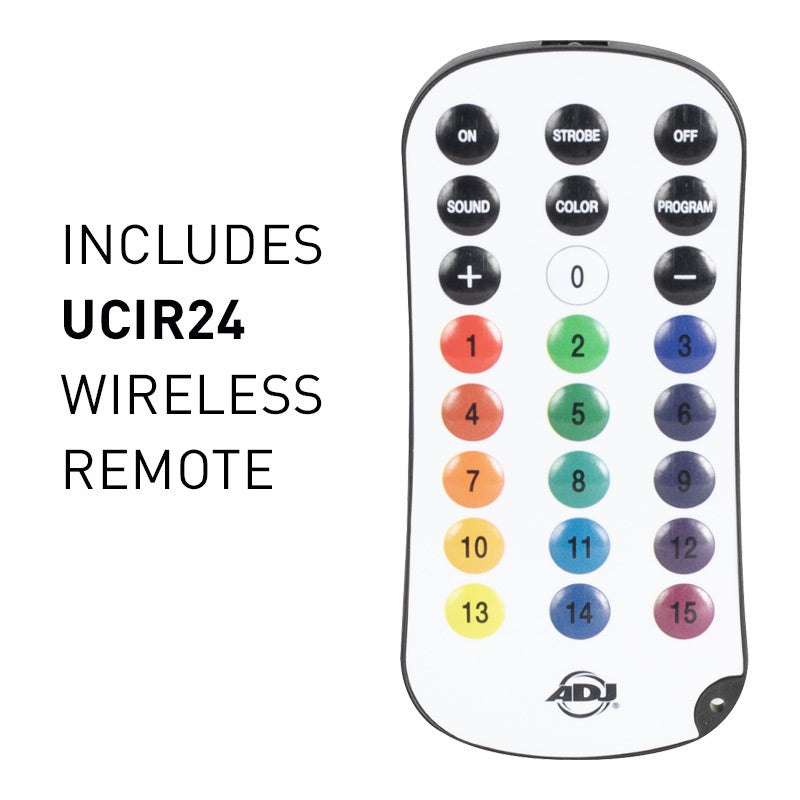

• UCIR24 Wireless IR Remote

• Power Cord

• Scissor Yoke

• Omega Bracket

ACCESSORIES:

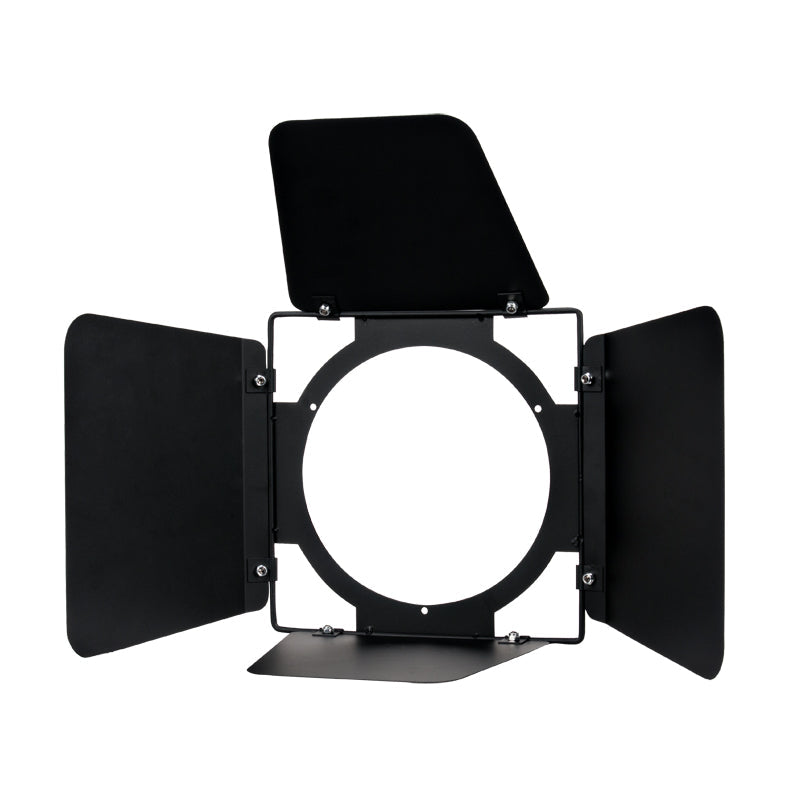

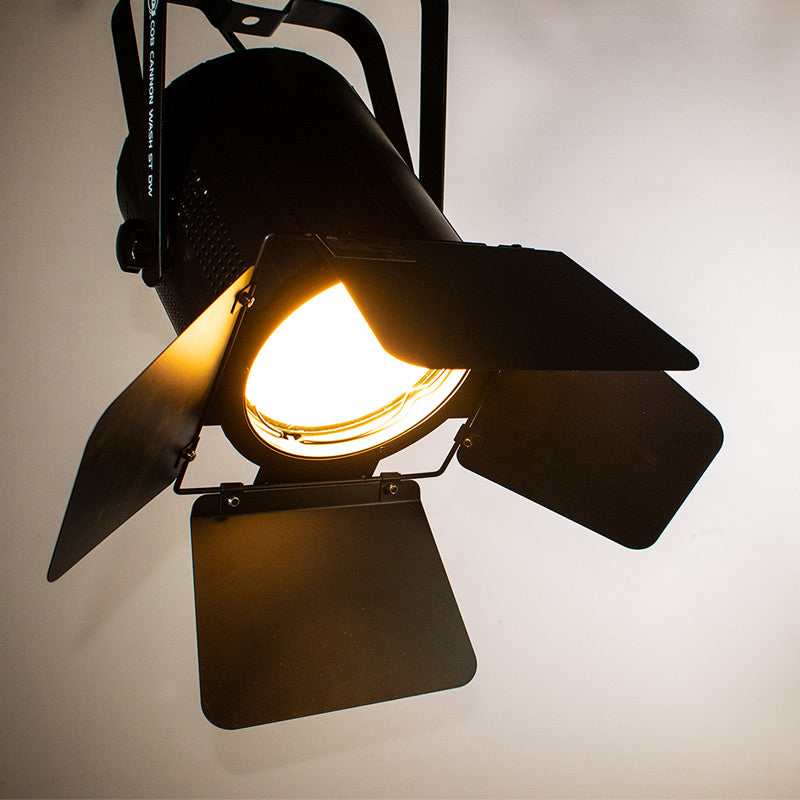

• BAR001 - COB Cannon Wash Barn Doors

RATING / APPROVALS:

• cETLus (Control # 4002034)

Specifications are subject to change without notice.
