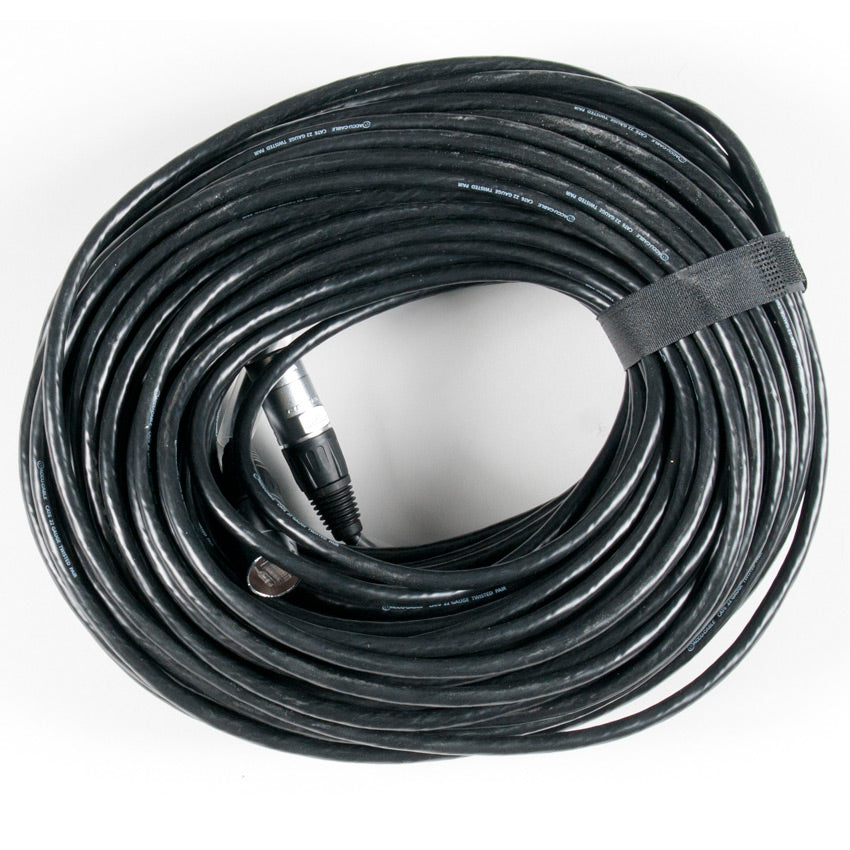

CAT6PRO100
The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
CAT6PRO100
The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
Specifications
- Inner conductor: Bare COPPER 19 x 0.12
- Inner conductor section: 0.22mm²
- Isolation: HDPE Ø 0.95mm
- T-568B, Straight Cable Wiring : Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)
- Number of conductors: 8
- Conductor Twisting: Yes
- Outer jacket: Flexible PVC
- Outer jacket Black
- Outer jacket dimensions: Ø 6.5mm
- American Wire Gauge: 24 AWG
