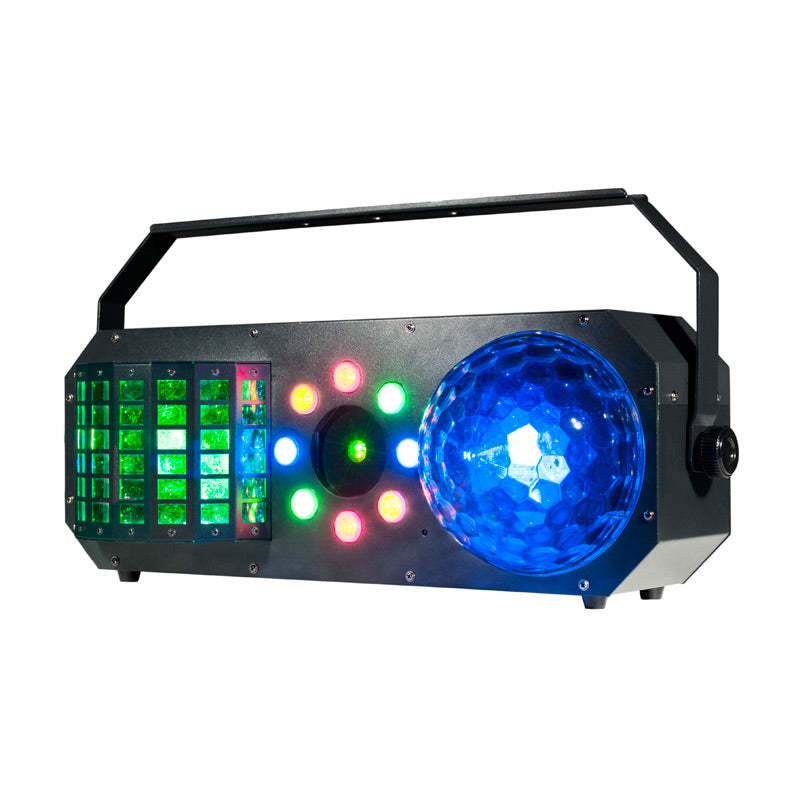

Boom Box FX1
• High Output 4-FX-IN-1: One Dome effect, one Derby effect, one Strobe/Chase and one green & red Laser effect
• 2 DMX Channel Modes: 3 Channels & 22 DMX Channels
• 3 Operating Modes - Show Mode; Sound Active; DMX Controlled
• Stand Alone or Primary/Secondary Configuration
• 9 Exciting built-in shows
• Produces 63 Preset Color Combinations
• Linkable via 3-pin XLR cable

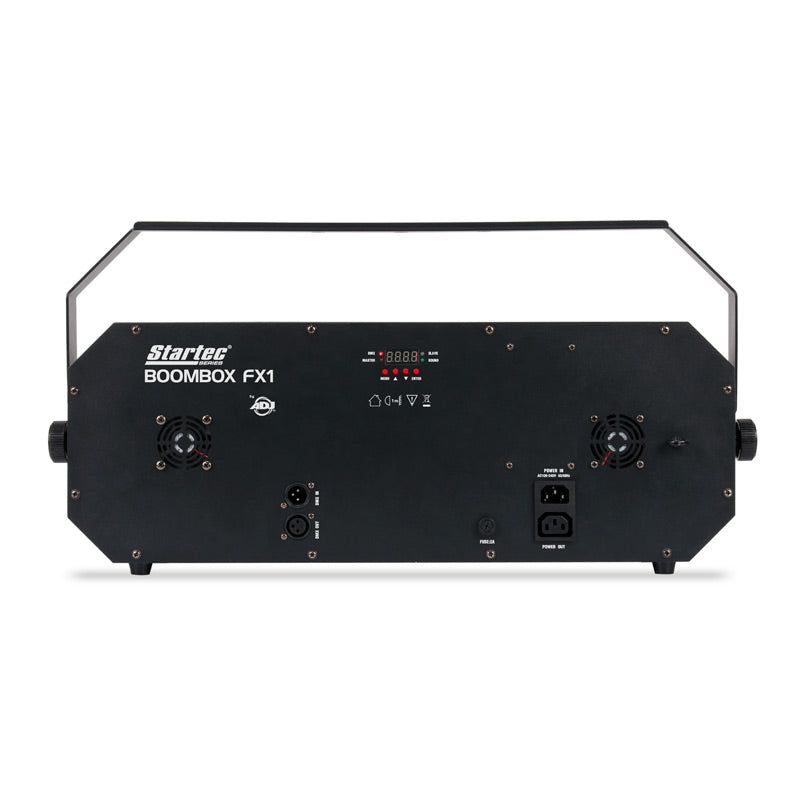

• 4-button DMX display on rear panel
• Strobe & Chase LED Effect
• DMX-512 Protocol
• NO Duty Cycles! - Run all night!
• IEC AC IN/OUT on rear to daisy chain power (8 Fixtures Max. @ 120V and 16 Fixtures Max. @230V)
• With Wired Digital Communication Network
• Safety Loop on rear panel
• Power Draw: 66W Max (Full On)
• UC IR Remote Control (Sold Separately) & Airstream IR Compatible
• Multi Voltage: 100V~240V, 50/60Hz
• Long life LEDs (Rated at approximately 50,000 hours)
• Light Source: Dome: 6 x 3W LEDs (1 Red, 1 Green, 1 Blue, 1 White, 1 Amber, & 1 UV); Wash: 8 x 1W LEDs ( 2 Red, 2 Green, 2 Blue, & 2 Amber); Derby Effect: 2 x 10W Quad LEDs (RGBW) + Red & Green Laser
• Dimensions (L x W x H): 9.5” x 25”x 12.5” / 239 x 634 x 319mm
• Weight: 14.2 lbs. / 6.5kg.
• Laser Accession No. 1720142-000
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Boom Box FX1 Cut Sheet | Cut Sheet | Download |
| Boom Box FX1 User Manual | User Manual | Download |
| Boom Box FX1 CAD Drawing | CAD Drawing | Download |
Put some “BOOM” into your lightshow! Create pure lighting excitement for any event with the 4-FX-IN-1 Boom Box FX1. Cover the room in light from the unique party dome or classic Derby effect, wash the dance floor in colors and mesmerize the crowd with the Galaxian style red and green laser!
The Boom Box FX1, part of the Startec Series, create’s an event to remember! With 4 different lighting effects in one from 9 built-in lightshows and 63 preset color combinations you have hours of fun built into one lighting fixture.
Learn more about the Boom Box FX1 in this product spotlight article: CLICK HERE
