AV6XS
SPECIFICATIONS:
• Pixel Pitch: 6.0mm (0.25”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 22.75” x 22.75” x 3” / 576 x 576 x 75mm
• Module Quantity: 4
• Weight: 23lbs. / 10.5Kg
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPITCAL RATINGS:
• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Distance: 20ft. (6m)
• Gray Scale / Display Color: 14Bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 300W/per panel
• Ave. Power Consumption: 120W/per panel

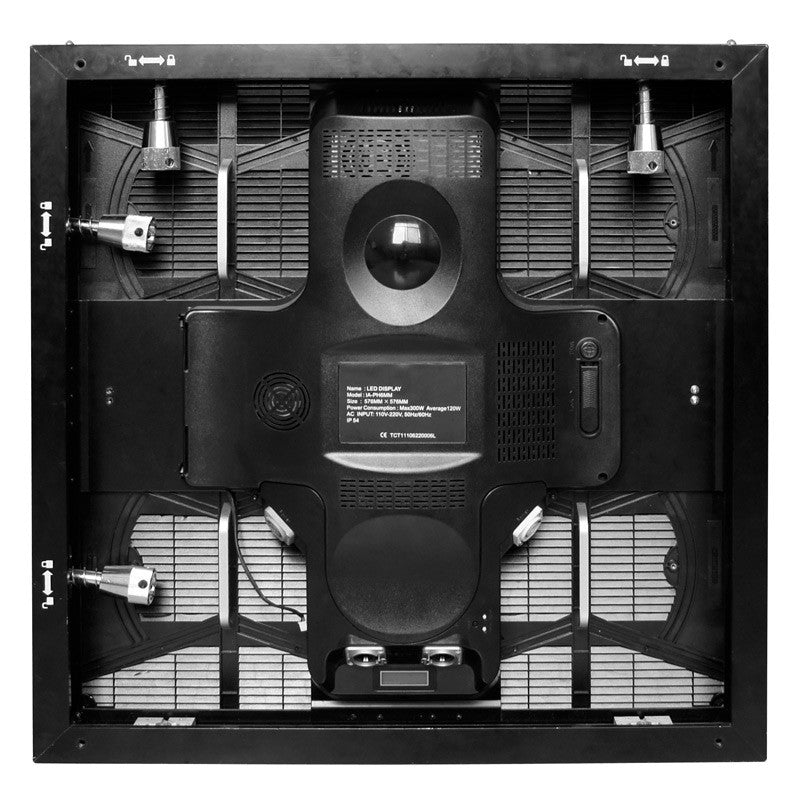

• Connections Power/Data: Locking power and data In/Out connections
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/
10-90% (No Condensation)
• Operating Life / MTBF: 100,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: CE, FCC Class A
OPTIONAL ACCESSORIES:
AV6FC: Flight Case - fits 8 AV6 Video Walls Click here
AV6RB1: Rigging Bar - Connect up to 20 AV6XS Video Walls Click here
MCTRL-300: Video Processor Click here
Media Master Express 4: Video Software Click here
GrandVJ 2.0: Video Software Click here
CABLES:
Cabinet to Cabinet Data Link Cables Click here
Power Locking Link Cables Click here
Power Locking Main Power Cables Click here
Videos
There are currently no videos available for this product.
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| AV6XS User Manual | User Manual | Download |

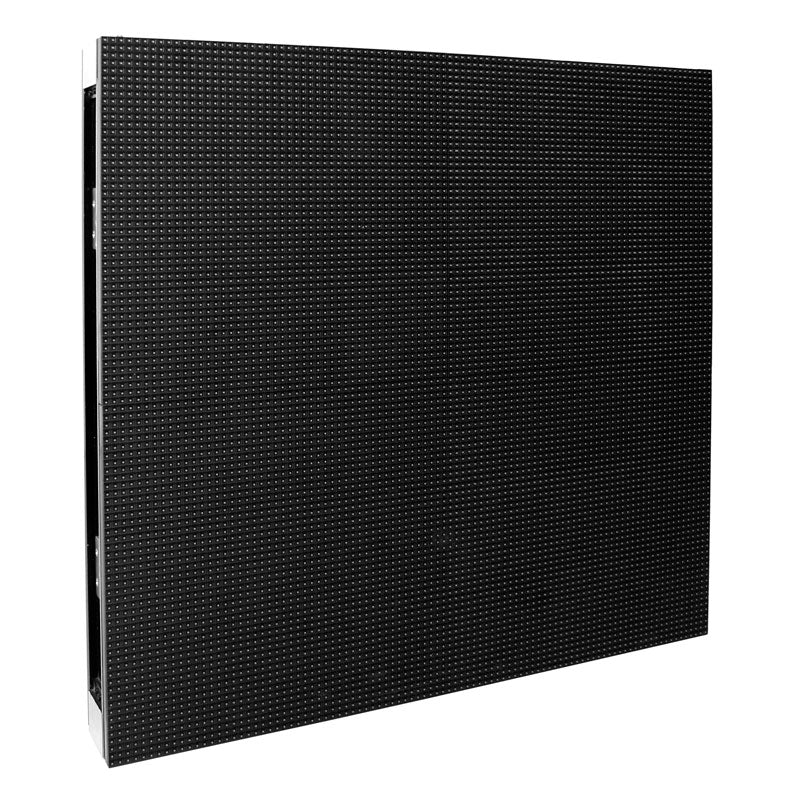

The AV6XS is a new and improved video panel from ADJ. It still features the high resolution quality and performance that users have come to appreciate from the AV6 and AV6X, but it now features higher quality LEDs for better color consistency, a darker black masking for higher contrast and upgraded LED driver IC's.

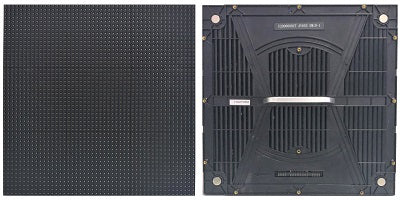

Each panel has a pixel pitch of 6.0mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1200NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV6XS connections include power locking power and data In/Out connections. This panel also features a Novastar receiving card.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases.
Learn more about the AV6X in this product spotlight: http://tinyurl.com/z6r5ljr

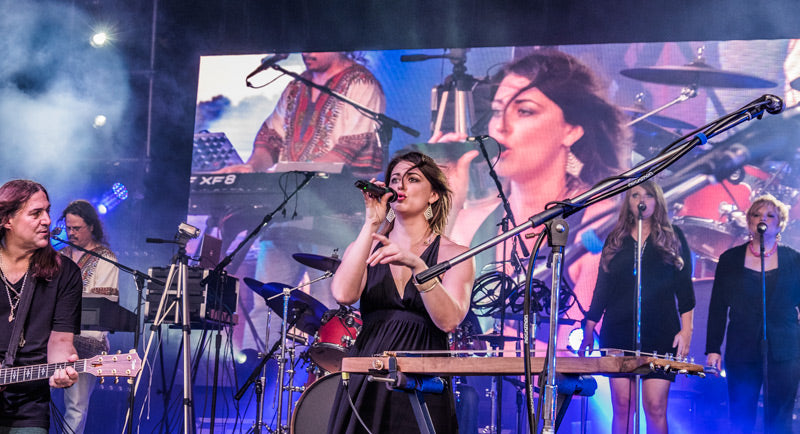

Check out how 140 panels were used at the Fatboy Slim + Basement Jaxx event: http://tinyurl.com/jzqyn2s

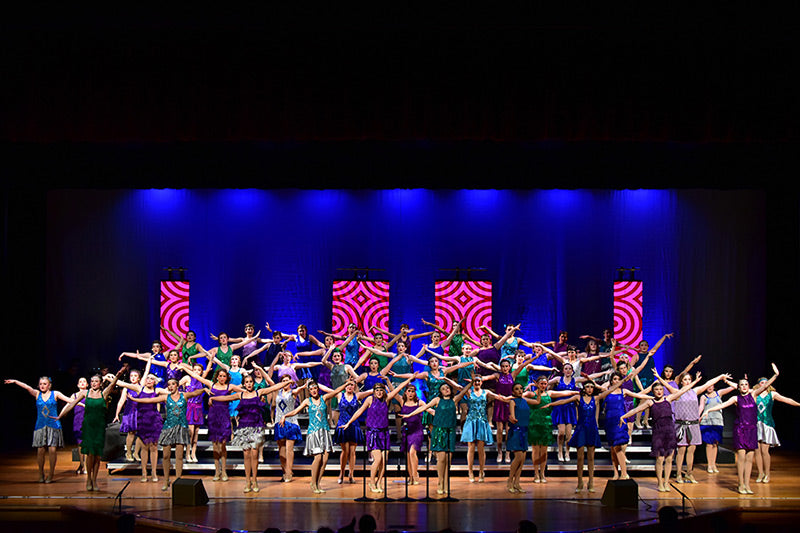

Check out 45 panels are used on the RiverStage in Jeffersonville, IN: http://tinyurl.com/j82hh39
