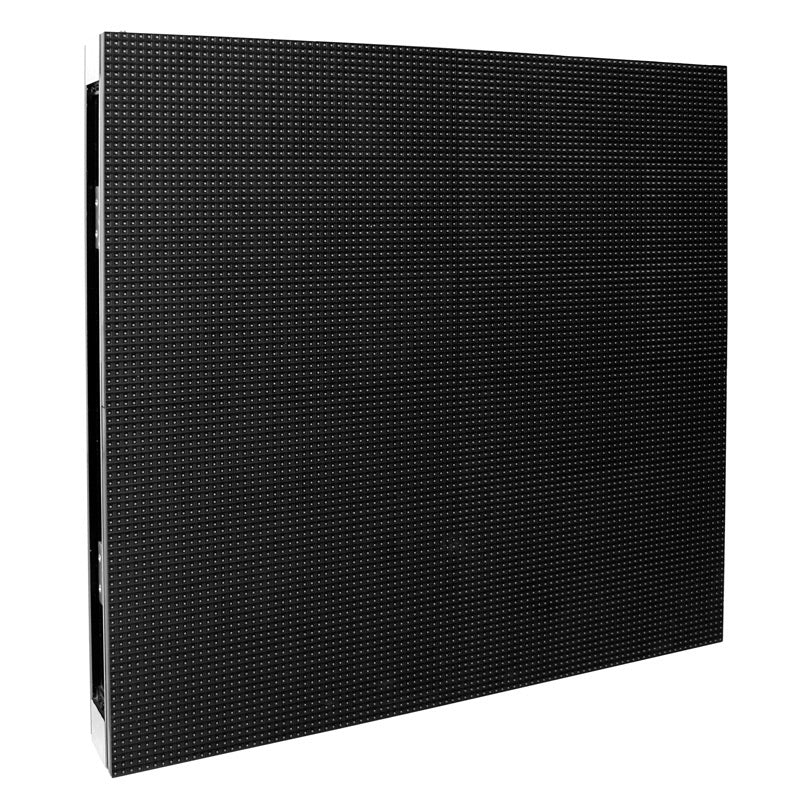

AV6X

The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
SKU: AV6222 | UPC: 819730019271
The AV6X is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

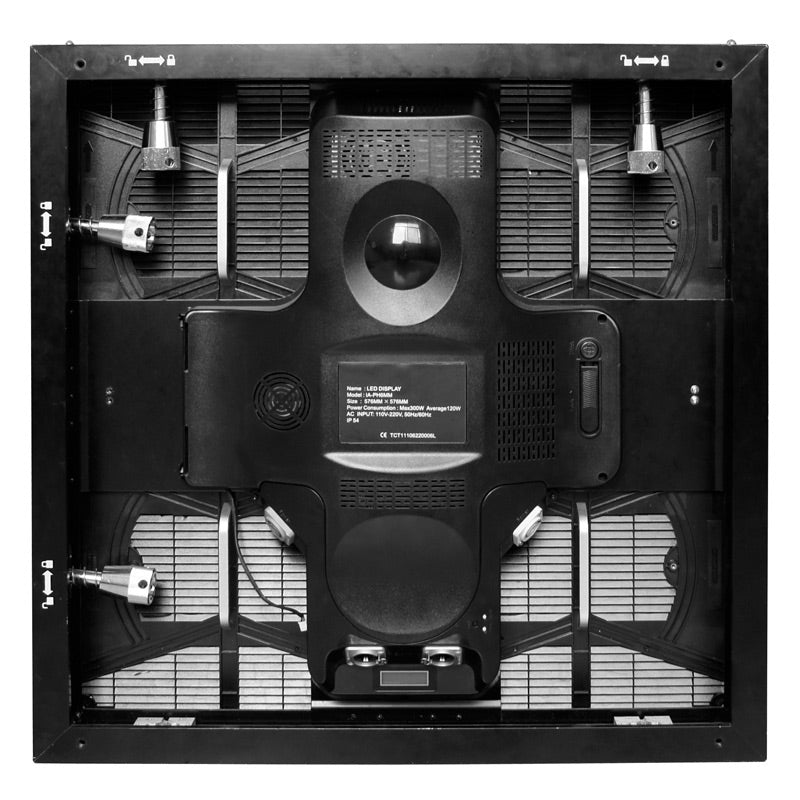

The AV6X is a new and improved video panel from ADJ. It still features the high resolution quality and performance that users have come to appreciate from the AV6, but it now features higher quality LEDs for better color consistency and a darker black masking for higher contrast.

Each panel has a pixel pitch of 6.0mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1200NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV6X connections include powerCon In/Out and Ethercon In/Out. This panel has features a Navistar receiving card.

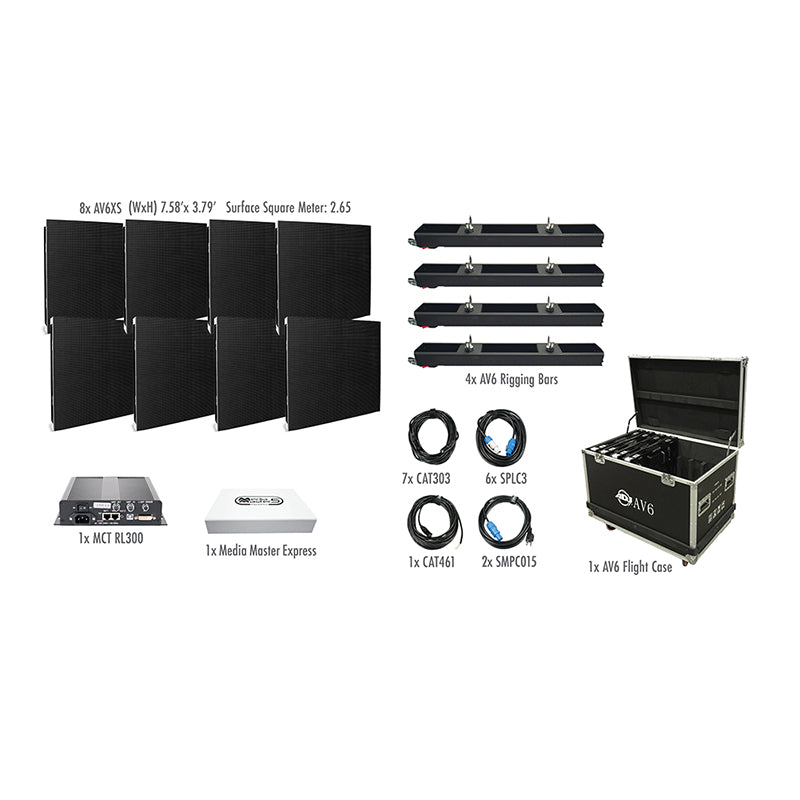

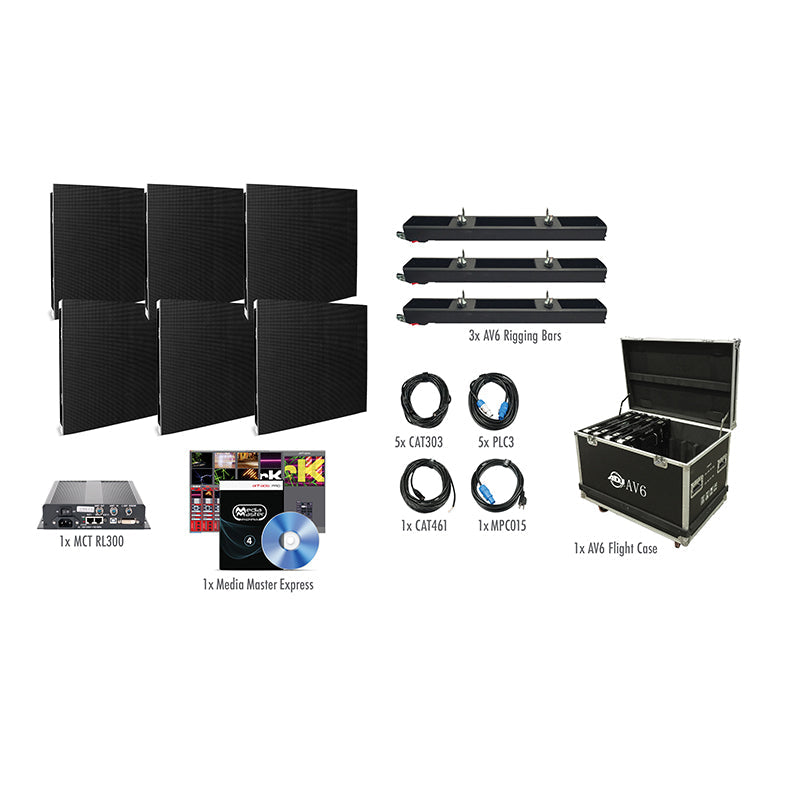

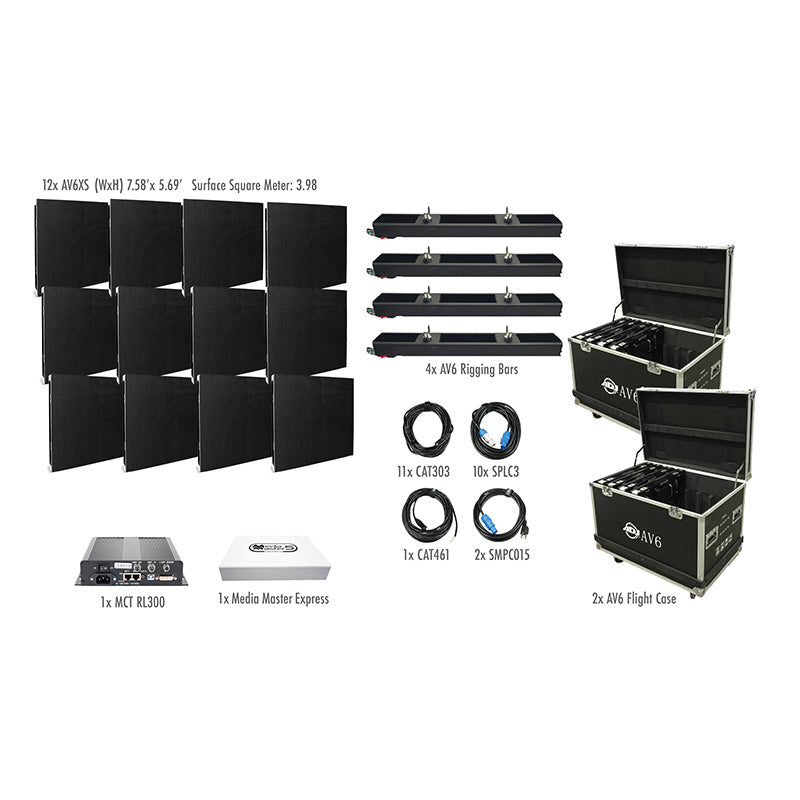

ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases.

Learn more about the AV6X in this product spotlight: http://tinyurl.com/z6r5ljr

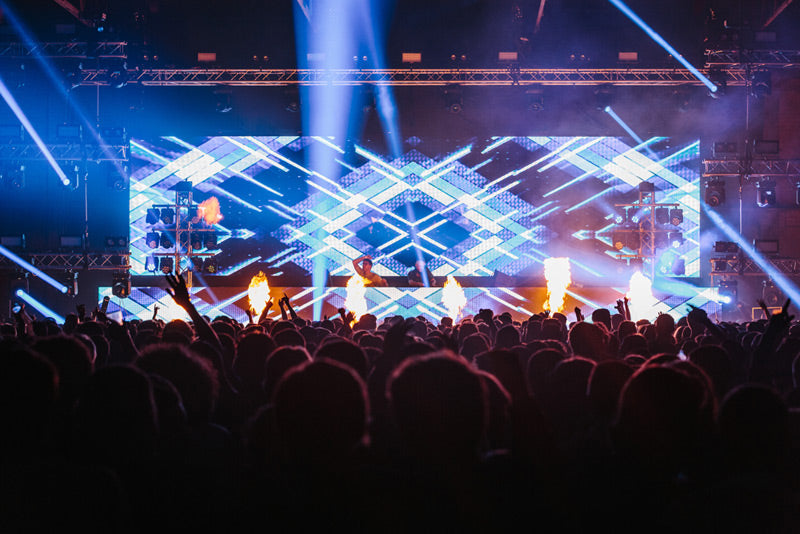

Check out how 140 panels were used at the Fatboy Slim + Basement Jaxx event: http://tinyurl.com/jzqyn2s

Check out 45 panels are used on the RiverStage in Jeffersonville, IN: http://tinyurl.com/j82hh39



Specifications

Specifications

SPECIFICATIONS:

• Pixel Pitch: 6.0mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 96x96; 27,777 per square meter

• Size: 22.75” x 22.75” x 3” / 576 x 576 x 75mm

• Module Quantity: 4

• Weight: 23lbs. / 10.5Kg

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

• Brightness: 1200 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Distance: 20ft. (6m)

• Gray Scale / Display Color: 14Bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 300W/per panel

• Ave. Power Consumption: 120W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/12 Duty

• Refresh Rate: 1200Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/

   10-90% (No Condensation)

• Operating Life / MTBF: 100,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings: CE, FCC Class A

OPTIONAL ACCESSORIES:

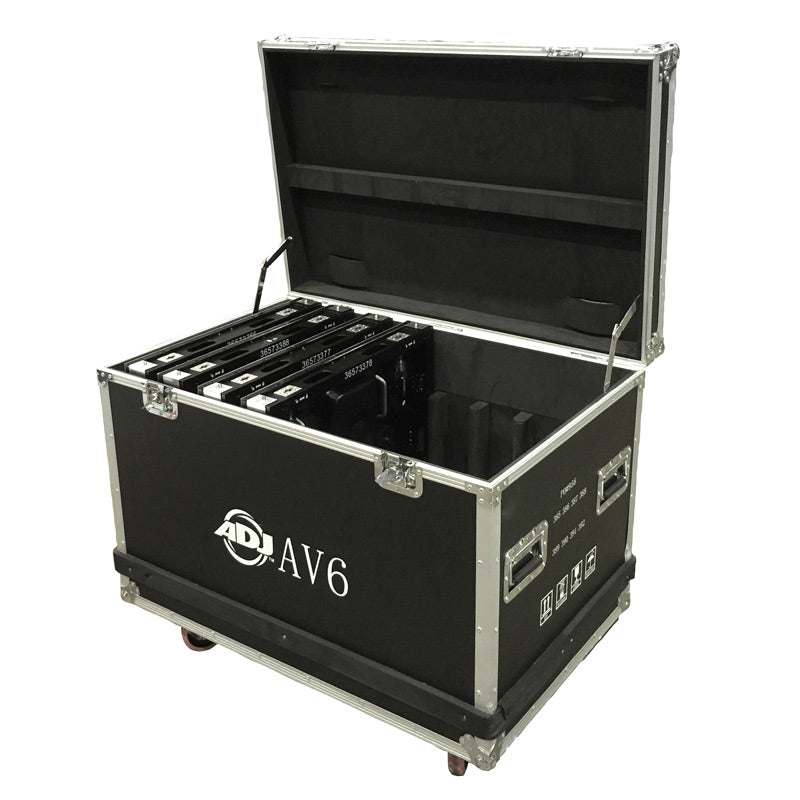

AV6FC: Flight Case - fits 8 AV6 Video Walls Click here

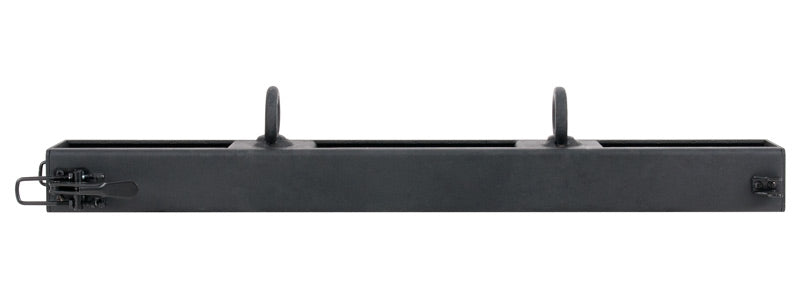

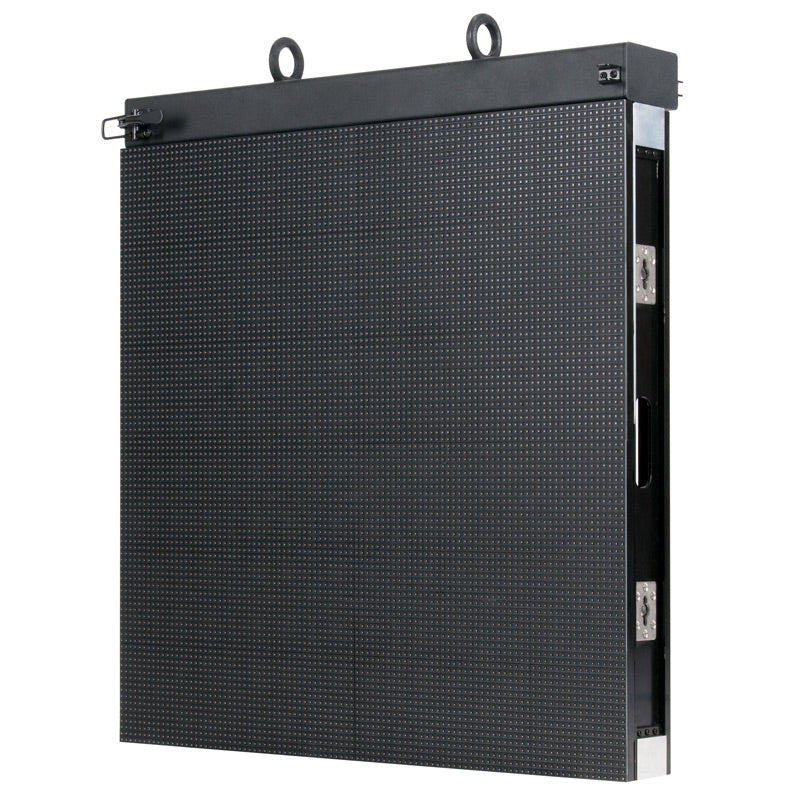

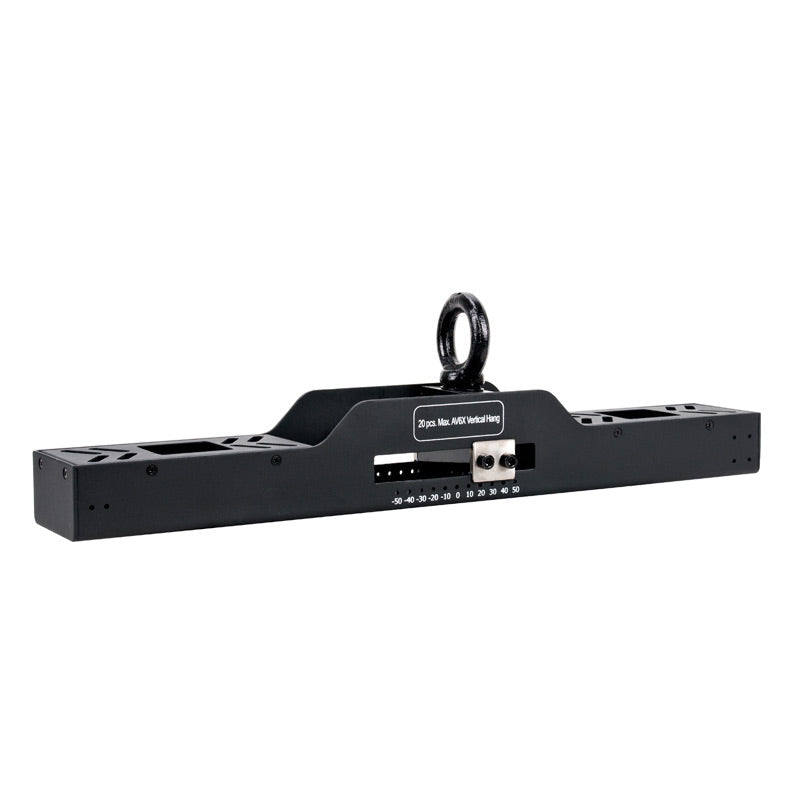

AV6RB1: Rigging Bar - Connect up to 20 AV6 Video Walls Click here
MCTRL-300: Video Processor Click here
Media Master Express 4: Video Software Click here
GrandVJ 2.0: Video Software Click here

CABLES:
Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors) Click here

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors) Click here
NEUTRIK POWERcon Link Cables Click here
NEUTRIK POWERcon Main Power Cables Click here

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
AV6X Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for AV6X
