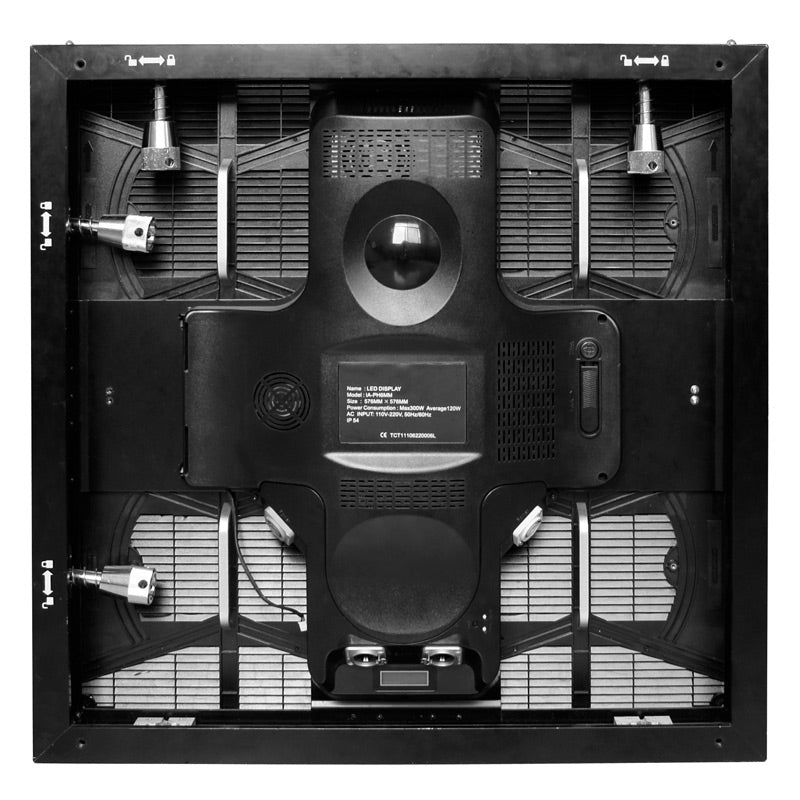

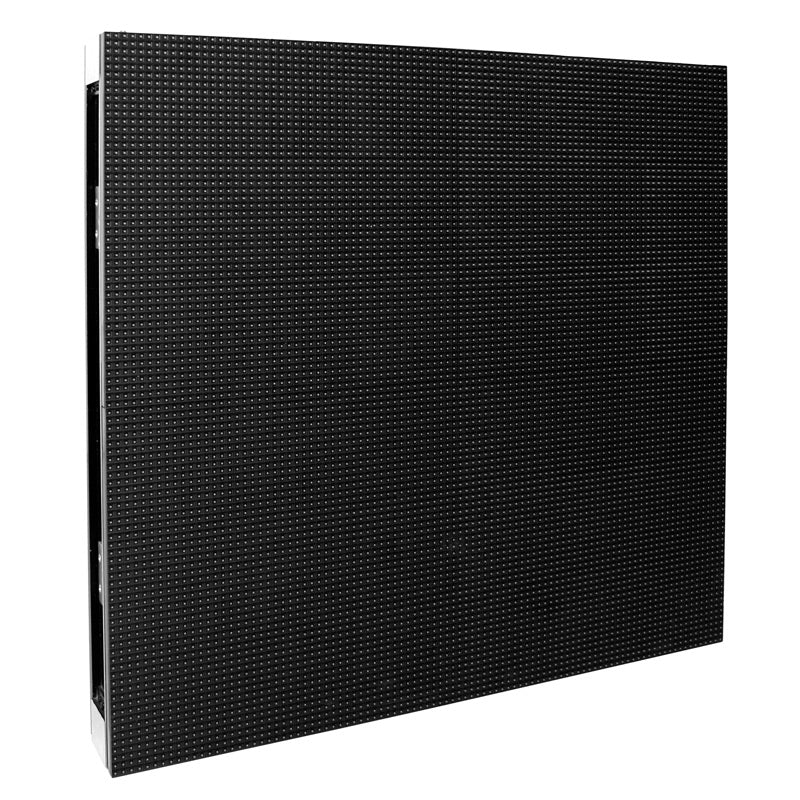

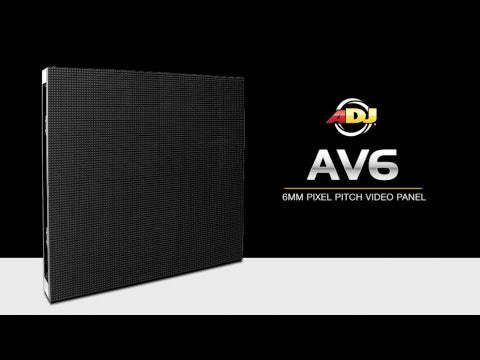

AV6

The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved. The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
SKU: AV6001 | UPC: 819730016584
The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Check out the “AV6 Video Wall Systems” brochure for ideas on popular configurations and components needed to build the systems: http://read.uberflip.com/i/649707-adj-av6-video-wall-systems

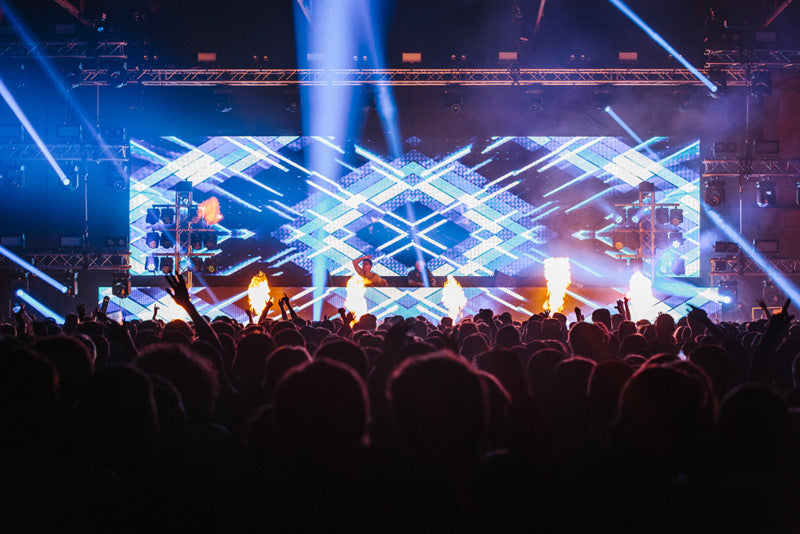

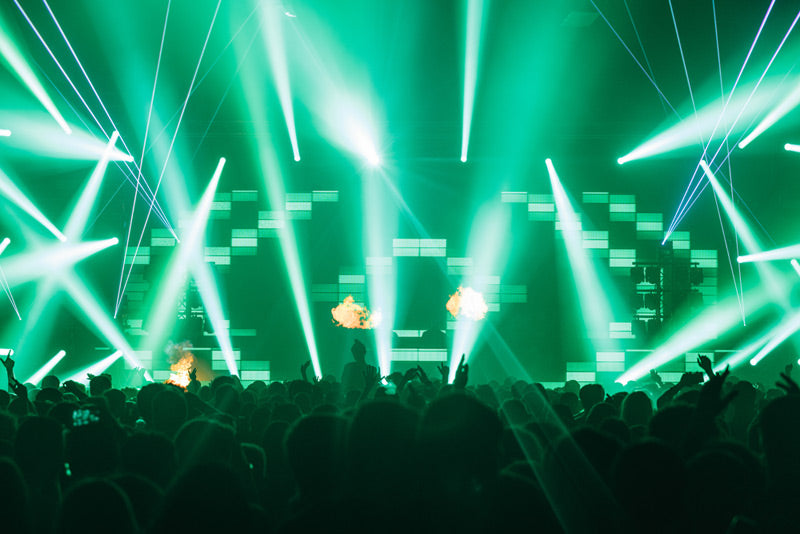

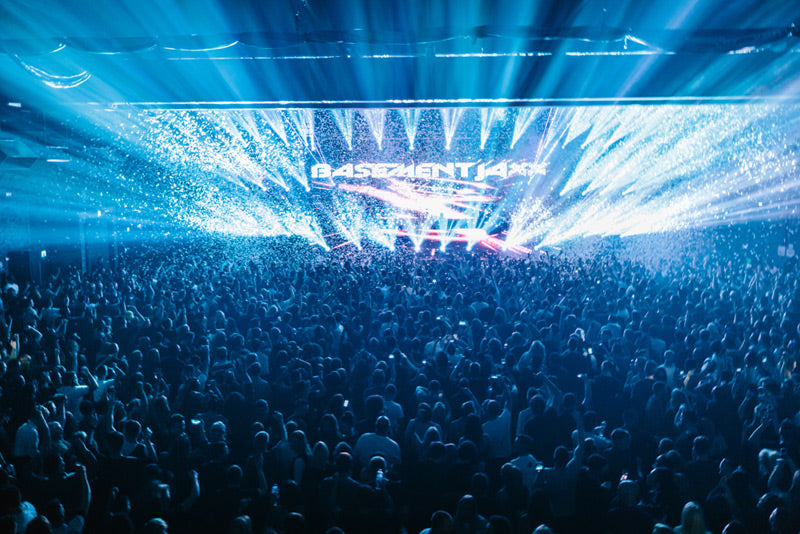

Check out 140 AV6 panels at the Fatboy Slim + Basement Jaxx event: http://tinyurl.com/jzqyn2s


ADJ now offers the powerful Novastar VX4S video processor - compatible with the AV6: http://www.adj.com/novastar-vx4s

Specifications

Specifications

• Pixel Pitch: 6.0mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 96x96; 27,777 per square meter
• For indoor use only

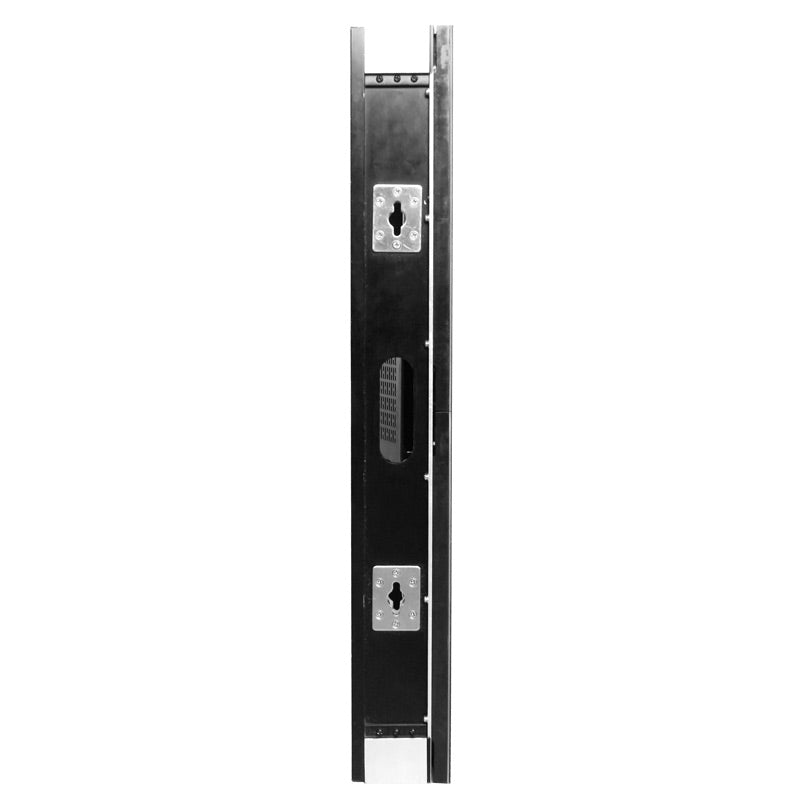

• Size: 576 x 576 x 75mm / 22.75” x 22.75” x 3”

• Module Quantity: 4

• Weight: 23lbs. / 8.15Kg



MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm



OPITCAL RATINGS:

• Brightness: 1200 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Distance: 20ft (6m)

• Gray Scale / Display Color: 14Bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14Bit



POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 300W/per panel

• Ave. Power Consumption: 120W/per panel

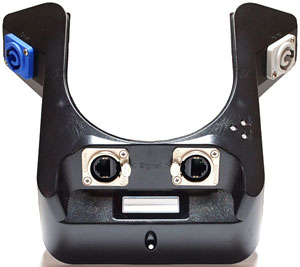

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/12 Duty

• Refresh Rate: 1200Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668

• Brightness Correction: Pixel, Module, Cabinet



ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/

   10-90% (No Condensation)

• Operating Life / MTBF: 100,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

HEAT EMISSIONS:

• 100% Brightness = 172W = 587 BTU/h

• 75% Brightness = 133W = 454 BTU/h
• 50% Brightness = 96W = 327 BTU/h
• 25% Brightness = 57W = 195 BTU/h

LISTINGS:

cETL, CE, FCC Class A



OPTIONAL ACCESSORIES:

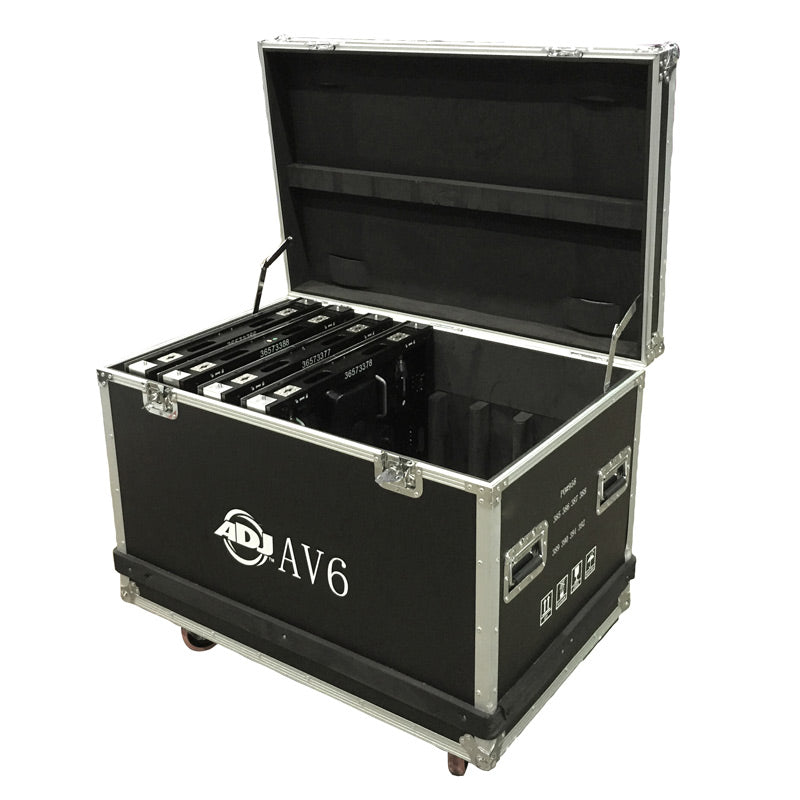

AV6FC: Flight Case - fits 8 AV6 Video Walls Click here
AV6RB1: Rigging Bar - Connect up to 20 AV6 Video Walls Click here
MCTRL-300: Video Processor Click here
Media Master Express 4: Video Software Click here
GrandVJ 2.0: Video Software Click here

CABLES:
Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors) Click here

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors) Click here
NEUTRIK POWERcon Link Cables Click here
NEUTRIK POWERcon Main Power Cables Click here

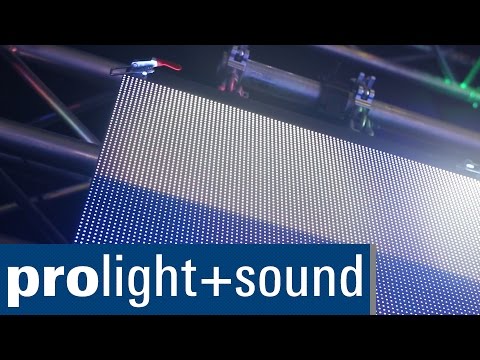

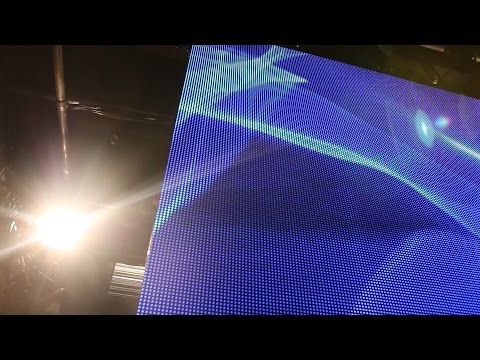

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
AV6 Cut Sheet Download
AV6 User Guide Download
AV6 Video Wall Systems Brochure Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I have to purchase a (modular) led screen, but maybe the AV6 is my best solution. can you give me an estimated date when this will be shipped in Europe?

Please contact ADJ EU.

PHN # 0031 45 546 85 00 or sales@americandj.eu

Hello, is each 23.75" panel $999 ? What does it mean by 4 modules ? Also is this capable of accepting Arkaos Media Master as visual content ?

Each panel is constructed of 4 smaller modules that can be removed in order to allow repairs to be made if necessary.

As long as you are using the INTERFACE,yes as the interface will interprate the signals for tthe panels.

You mention in a previous answer an interface, what interface do you need?

You will need the MCT300 tinterface in order to operate the system.

What is the best viewing distance for this 6mm pixel?

Hello Aleks,

The best viewing distance will be between 15-20 feet. Let me know if you have any further questions.

We are trying to build two screens for our church, for a long time we have been using projectors, the problem that i have is that i don't know and i havent being able to find a tool that will allow me to build a 16:9 aspect ratio for the screen to get an idea how many pannels we may be needing. do you have a tool that i can use base on the physical space that we have to work.

Please contact AV6 Support for details, 800-322-6337 ext 516
