AV4IP

UPC#: 818651020595
Advantage Points: 1600
Redemption Points: 32000
SKU
AV4127
The AV4IP is a high resolution, outdoor rated video panel from ADJ. Indoor or temporary outdoor use for stages, installation or events.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

SPECIFICATIONS:

• Pixel Pitch: 4.81mm (0.19”)

• LED Configuration: 3-in-1 SMD1921 LED

• Pixel Density: 104x104; 43264 (dot/m2)

• Panel Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Module Quantity: 2

• Module Size: 250 x 500mm

• Module Resolution: 52 x 104 pixels

• Panel Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:

• Brightness: 4000 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Gray Scaler: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Input Voltage: 100~240V 50-60Hz

• Max. Power Consumption: 180W/per panel

• Ave. Power Consumption: 60W/per panel

• Connections Power/Data: Power = True1 powerCON In/Out; Data = etherCON In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:

• Operating Temp / :  Fahrenheit: -14° + 122° / Celsius: -10° + 50°
• Humidity: 10-90% (No Condensation)

• Operating Life / MTBF: @ 50,000 Hours

• Protection Level: IP65 Front, IP54 Back (Temporary outdoor use)

• Out of Control Rate: <0.02%

• Listings:  cETL, CE, FCC Class A

OPTIONAL ACCESSORIES:

AV3FC (AV3095): Flight Case - fits 8 AV4IP

AV3RB1 (AV3070): Rigging Bar - Holds up to 15 AV4IP vertically

AV3FWA (AV3111): Rear Support Bracket

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Novastar NOVA PRO HD: Video Processor

Media Master Express 4: Video Software

GrandVJ 2.0: Video Software

MAIN POWER CABLES, IP65 (IP65 Locking Power to Edison):

10ft. / 3.04M (TRU200)

15ft. / 4.57M (TRU215)

25ft. / 7.62M (TRU230)

50ft. / 15.24M (TRU254)

100ft. / 30.48M (TRU271)

PANEL TO PANEL POWER LINK CABLES, (IP65 Locking Power Out Connector to IP65 Locking Power In Connector):

1.64ft. / .50M  (TRU064)

3.28ft. / 1M (TRU113)

4.92ft. / 1.5M (TRU126)

9.84ft. / 3M (TRU139)

13.12ft. / 4M (TRU152)

22.96ft. / 7M (TRU165)

49.21ft. / 15M (TRU178)

98.42ft. / 30M (TRU191)

MAIN DATA CABLES, Bare RJ45 Ethernet to Locking RJ45 Ethernet Connector

10ft. / 3.04M (CAT271)

25ft. / 7.62M (CAT729)

50ft. / 15.24M (CAT743)

100ft. / 30.48M (CAT757)

PANEL TO PANEL DATA LINK CABLES, (Locking RJ45 Ethernet Connector to Locking RJ45 Ethernet Connector):

3ft. / .91M (CAT303)

5ft. / 1.52M (CAT305)

10ft. / 3.04M (CAT310)

15ft. / 4.87M (CAT315)

25ft. / 7.62M (CAT325)

50ft. / 15.24M (CAT350)

Videos

Downloads

The following downloads are available for this product:

Title Description
AV4IP User Manual User Manual Download
AV4IP Brochure AV4IP Brochure (PDF - 4MB) Download

Available now from ADJ USA • Contact an ADJ Dealer for pricing

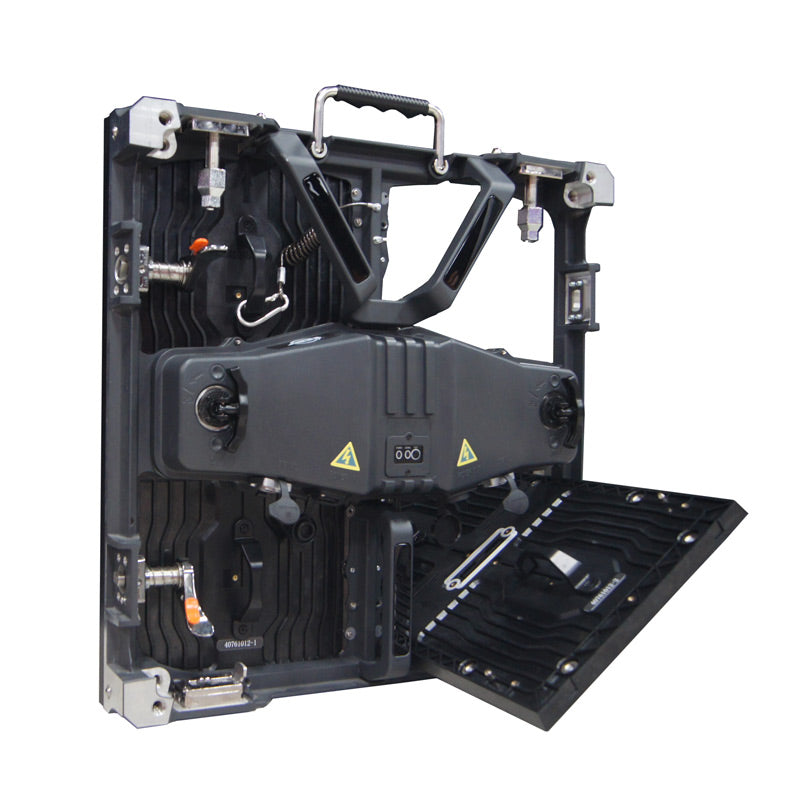

The AV4IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LED's. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4000 NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV4IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a Novastar receiving card.

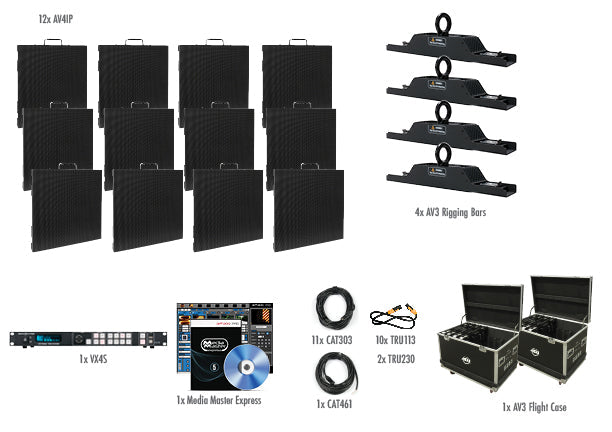

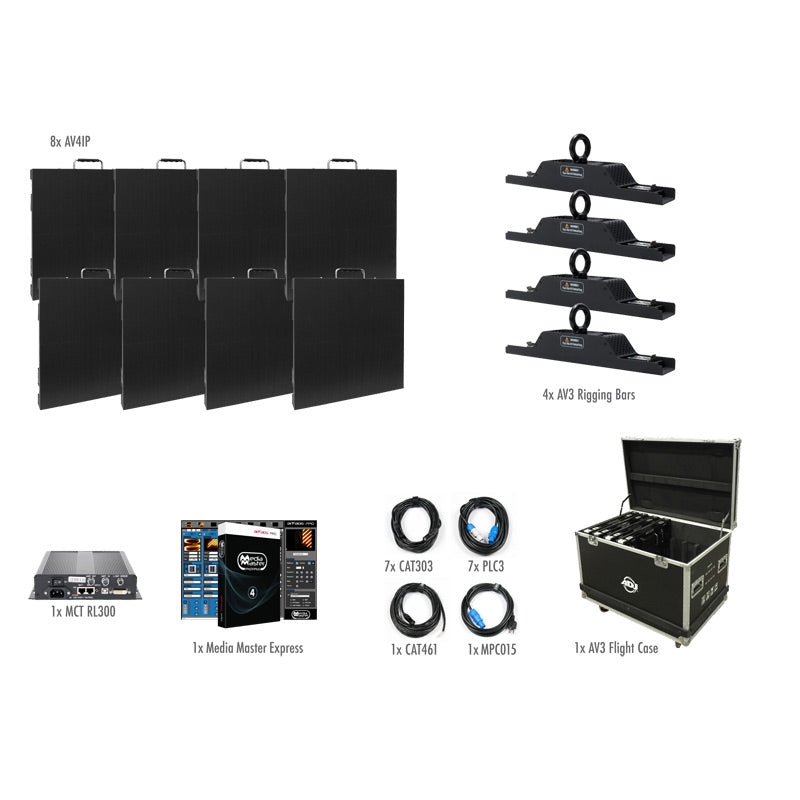

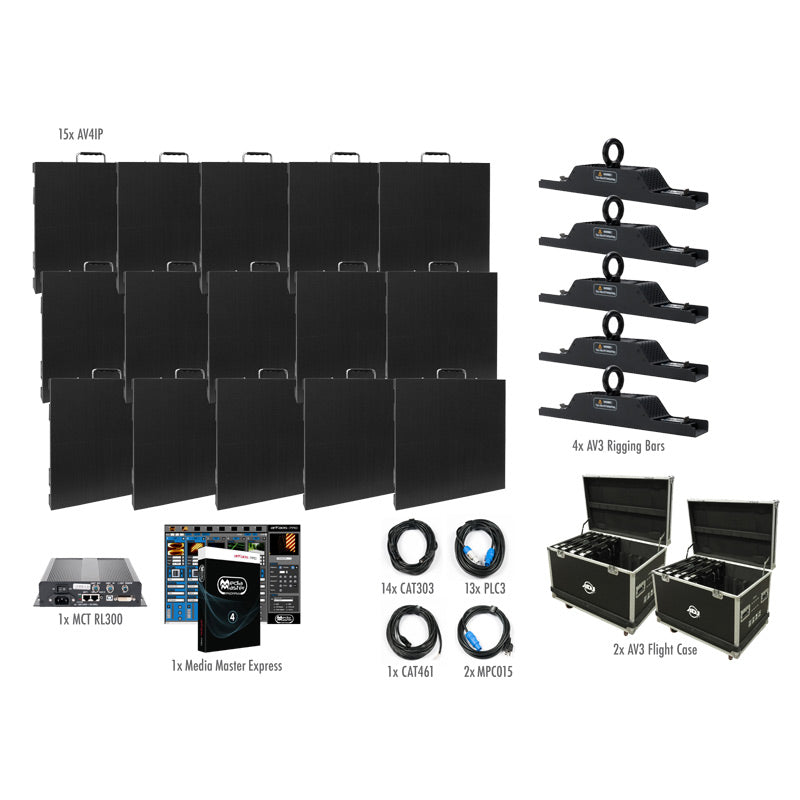

The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


• 4.81mm pixel pitch high resolution video panel

• IP65 Front, IP54 Back (Temporary outdoor use)

• SMD1921 3-IN-1 RGB LEDs

• NITS: 4,000

• Pixel Count:  104x104

• Quick release power supply / receiving card module

• IP65 Locking Power In/Out Connections

• Locking RJ45 Ethernet In/Out  Connections

• Novastar receiving card

• Dimensions: 19.7" x 19.7" (500x500mm) panel size

• Flight Case: AV3FC (AV3095): Flight Case - fits 8 AV4IP Panels
• Rigging Bar: AV3RB1

Click on the Specifications tab for more info...

To learn more about the AV4IP check out this product spotlight article: CLICK HERE

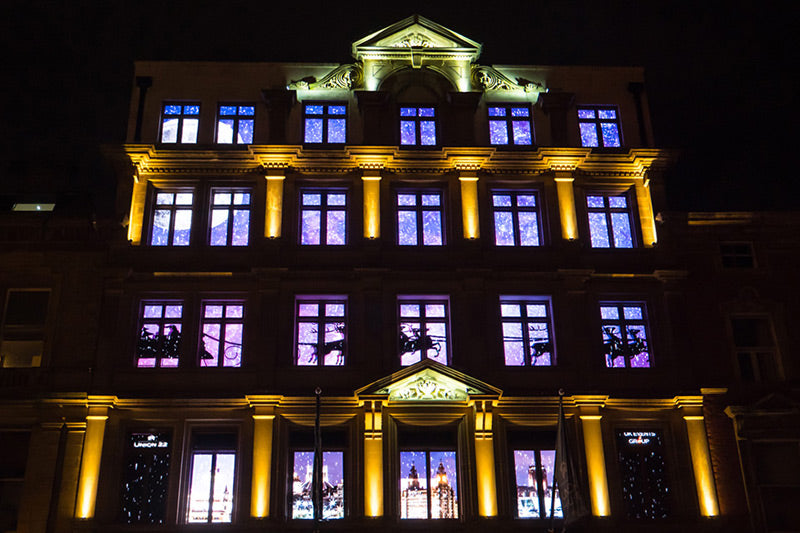

See how the AV4IP was used at Union 22 as a display in a retail store in Liverpool, UK: CLICK HERE
