APX CS8
This product is CE certified.
This item is discontinued
This product has been discontinued. Click here to see the current model: https://www.avanteaudio.com/as8-acdc
APX CS8
Sale price$0.00
Video
APX CS8
This product has been discontinued. Click here to see the current model: https://www.avanteaudio.com/as8-acdc

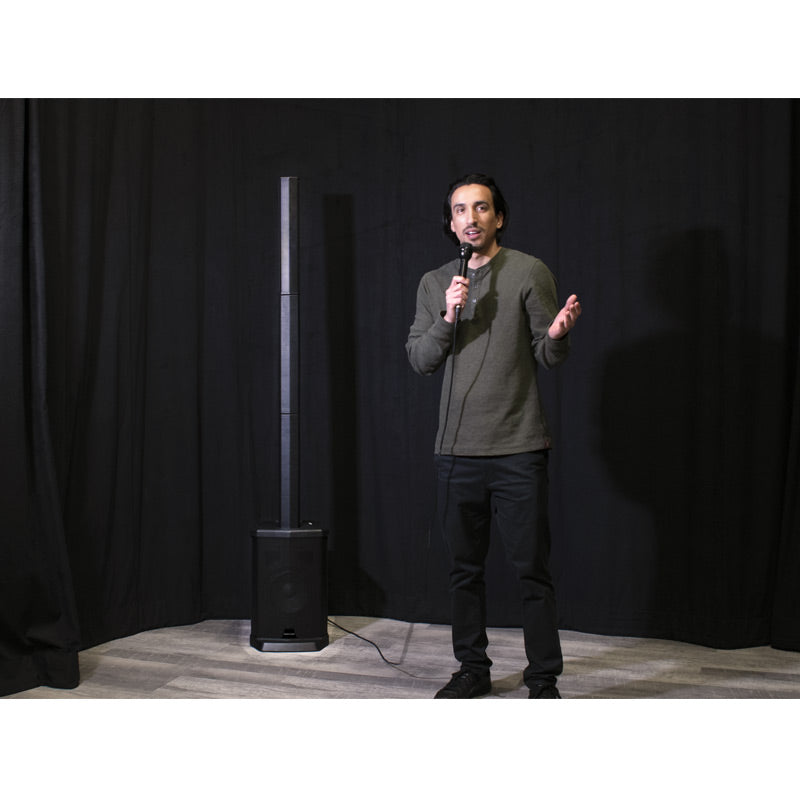

The American Audio APX CS8 Column AC Powered PA System is lightweight, portable and feature packed. Offering an impressive output from a very compact column system, it is a great choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The system features an 8-input mixer with Bluetooth® TWS (True Wireless Stereo) playback, SD Card input, USB input, mini jack input, two XLR inputs and two ¼-inch stereo inputs.The APX CS8 is powered by a Class-D amplifier with an 8-inch woofer. It has 3 columns, one with four (4) 2.5-inch drivers, and two spacers.

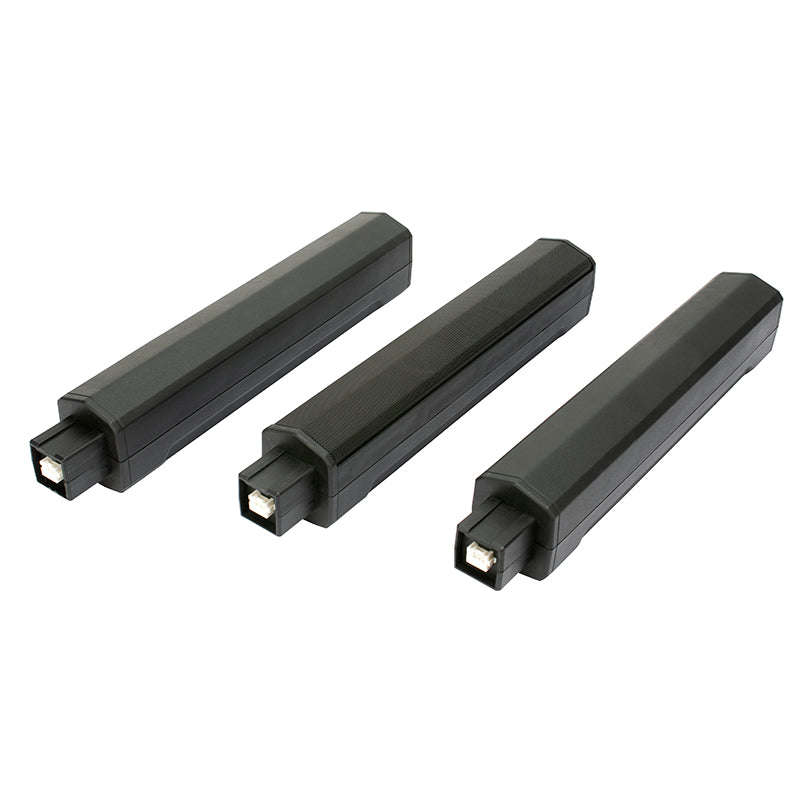

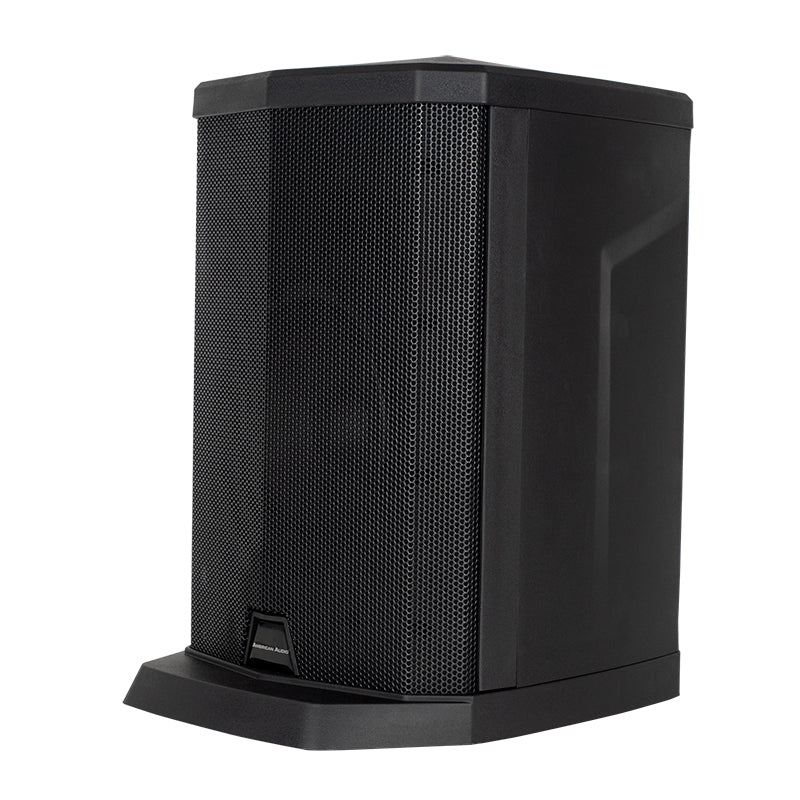

The System includes: (1) 8-inch active subwoofer, (1) column speaker with four 2.5-inch drivers, (2) spacer.
Specifications
SYSTEM INCLUDES:
• (1) 8-inch Subwoofer
• (1) Column with four 2.5-inch neodymium Speakers
• (2) Spacers
Speakers: 8-inch Column Speaker with subwoofer and 4x 2.5inch drivers
System type: AC Powered subwoofer with four treble-reflex enclosures
SPL Output: 108 dB max
AC Input: AC115V~230V 50/60HZ
Amplifier: 100W Class-D Power System
Output Connectors: XLR output
Mixer Input Impedance: Ch1-4 inputs (2 Mono Mic/Line, Stereo)
Signal Indicators: Main Output LED Ladder
Grill: Power coated perforated steel

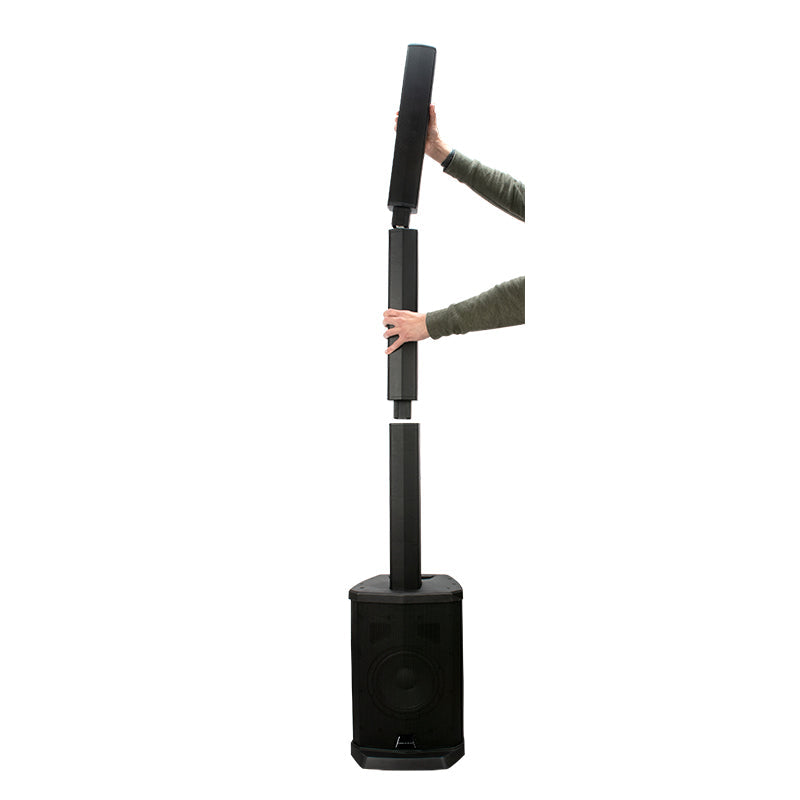

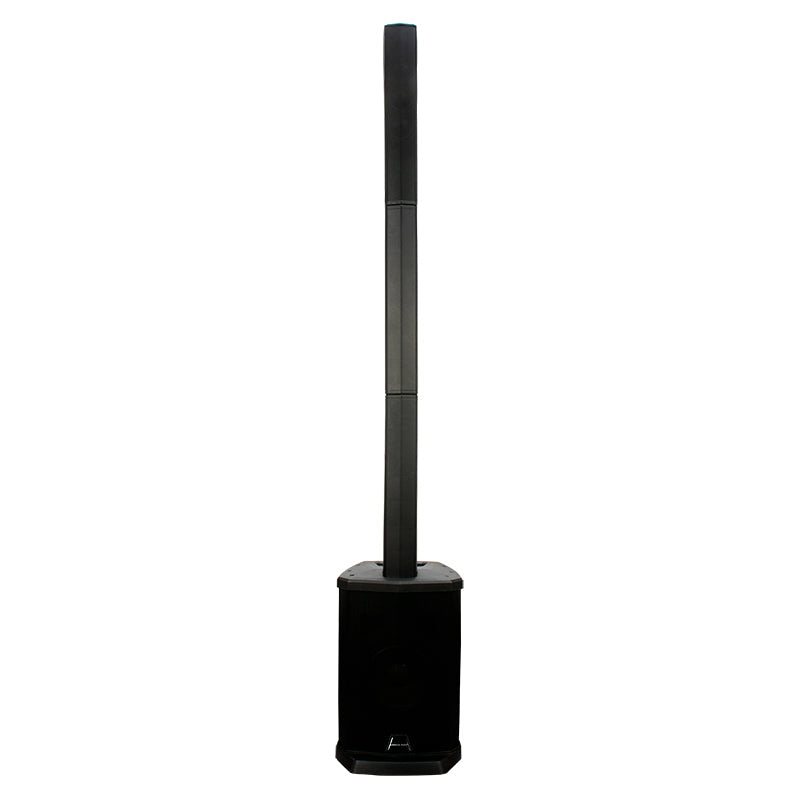

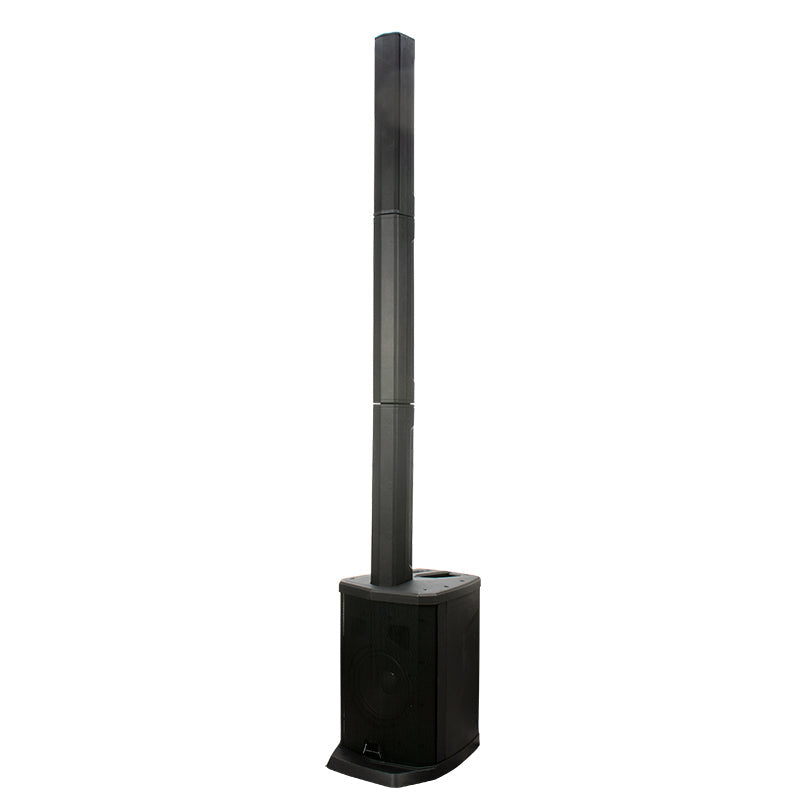

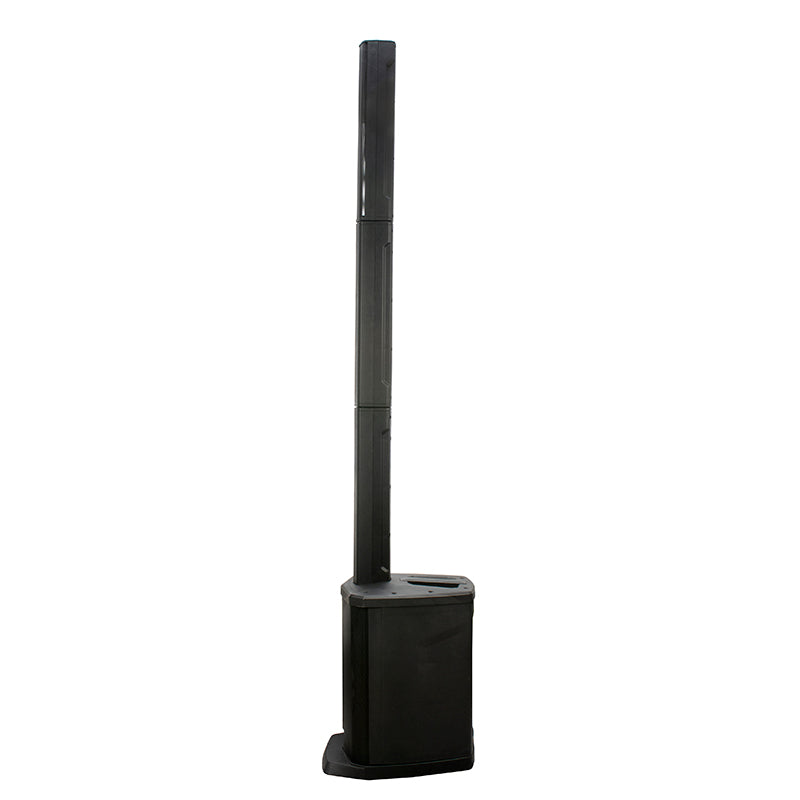

Extended Position (3 columns):
• Dimensions: 15.7”x12.5”x73.1” / 399x317.9x1856.6mm
• Weight: 40 lbs. / 18 kg.
Compact Position 2 (only 2 column):
• Dimensions: 15.7”x12.5”x54.6” / 399x317.9x1386.6mm
Compact Position 1 (only 1 column):
• Dimensions: 15.7”x12.5”x36.1” / 399x317.9x916.6mm

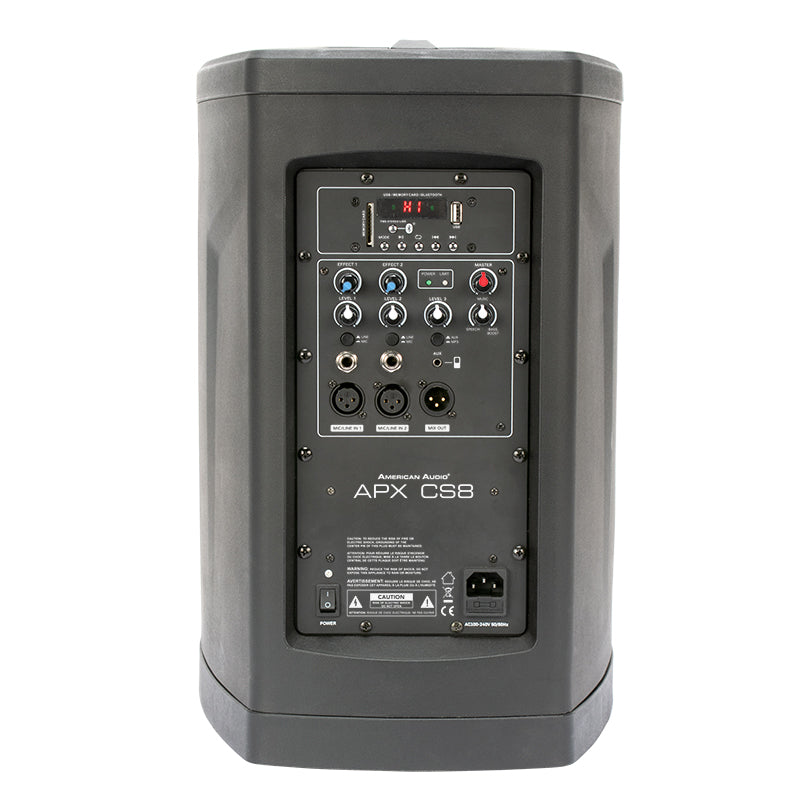

Rear Panel Features:
• 8 input mixer with line out
• Two (2) Mic/Line Input (XLR)
• Two (2) Guitar/Line Input (1/4" Stereo)
• 1/8” stereo Aux Input
• BLUETOOTH® TWS (True Wireless Stereo) Connection
• SD Card reader
• USB Input
• Line Output (XLR)
• Two (2) Echo Adjustment Potentiometers
• Three (3) Channel Volume Adjustment Potentiometers
• One (1) Master Volume Adjustment Potentiometers
• One (1) Bass Boost Volume Adjustment Potentiometers
Accessories (Sold Seperately):
SKAC10: Accu-Cable 10 ft. AC Power to XLR combo cable
SKAC25: Accu-Cable 25 ft. AC Power to XLR combo cable
SKAC50: Accu-Cable 50 ft. AC Power to XLR combo cable
XLPRO-25: 25-foot pro audio XLR cable
Downloads
Cad drawing
Cut sheet
Dimensional drawings
User manual
APX CS8 Parts & Service
Our APX CS8 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your APX CS8. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
APX CS8 Parts & Service
