SKU: ALL026 | UPC: 818651026870
Quick moving linear fixture with 6 lenses with individual color control, motorized zoom (4 ~ 32-degrees), motorized tilt and strobe and pulse effects.
Advantage Points: 1400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


Available now from ADJ USA

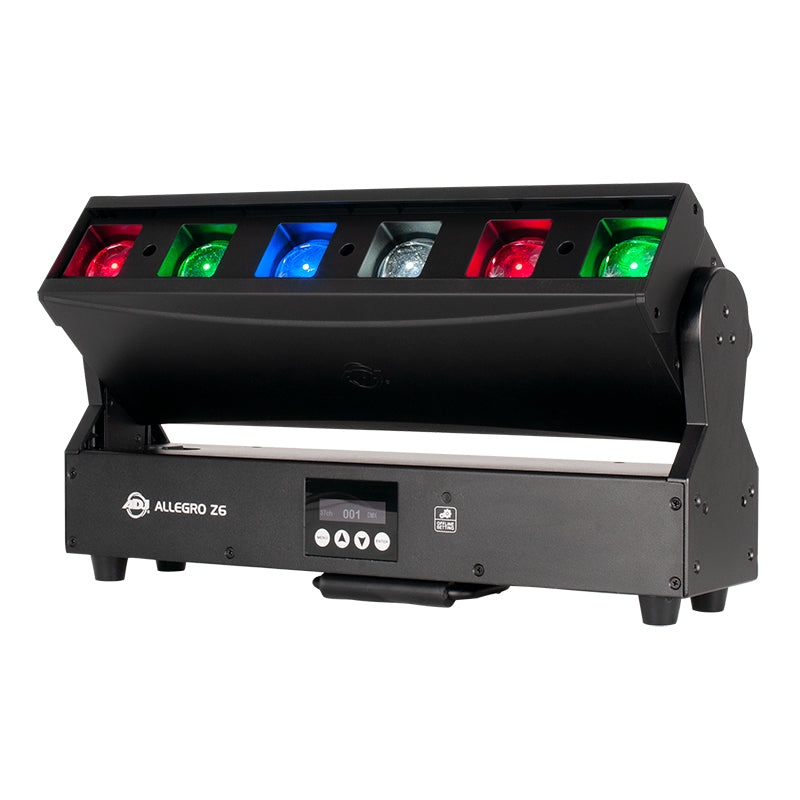

The ADJ Allegro Z6 is a linear fixture that features 6 lenses, motorized zoom and motorized tilt (220-degrees) on the X axis. It’s powered by six 30W Quad (4-IN-1) RGBW LEDs. Each LED’s color may be controlled individually.

The fixture’s beam angle is adjustable between 4-degrees and 32-degrees. It has a 4-button function display, 5-pin DMX In/Out to link data and locking power connectors to daisy chain power. The fixture also has RJ45 In/Out connections for Art-Net and Kling-Net control. There is a convenient USB input for updating the fixture’s firmware.

The Allegro Z6 is a powerful and versatile fixture ideal for use on concert stages and on touring productions as well as for permanent installation in large nightclubs and other entertainment venues. It is available now from ADJ subsidiaries, distributors and dealers worldwide.



Light Source:

• LED: 6x 40W QUAD (4-In-1) RGBW LEDs (30,000 hr.)

• Motorized Zoom: 4° ~ 32°

• LUX: 47,000 @ 2M, Zoomed in to 4°; 1,900 @ 2M, Zoomed out to 32°


• Motorized Zoom

• Tilt Lock for stable transporting

• USB Input for Updating Fixture Firmware

• Folding carrying handle

• Rubber feet so fixture can be set on the ground

• All metal construction with black housing

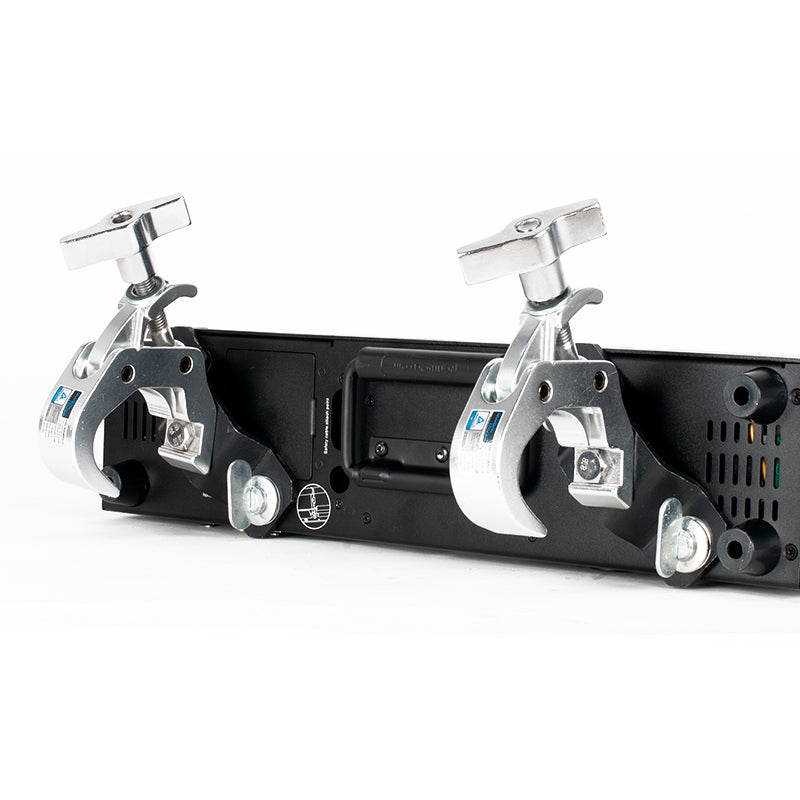

• Includes 2 Omega brackets for mounting to truss

• Flicker Free, 1200Hz PWM frequency

• Linear variable white temperature control


• Display: OLED display with function buttons

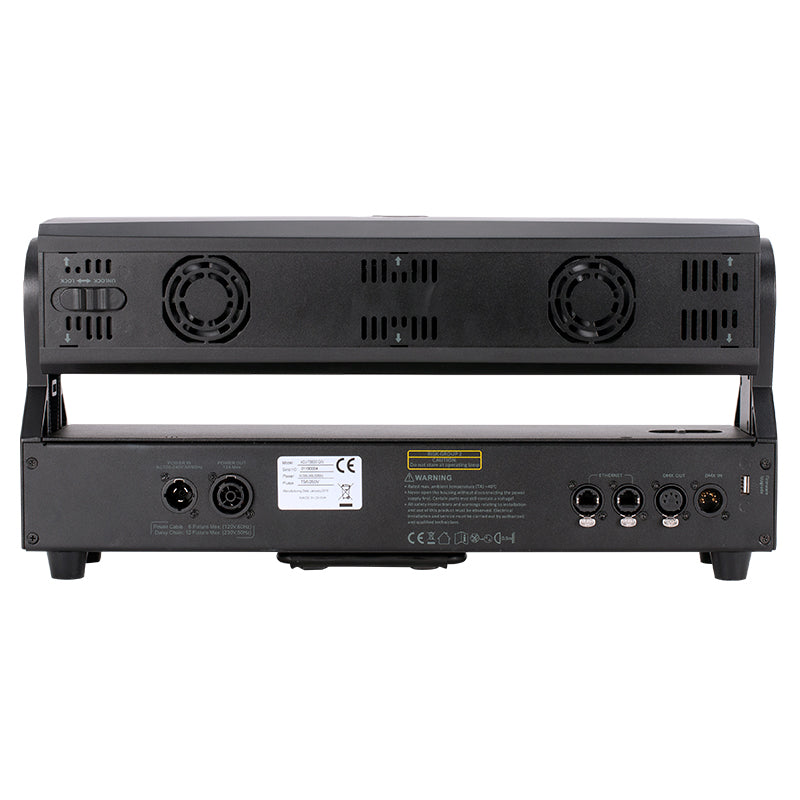

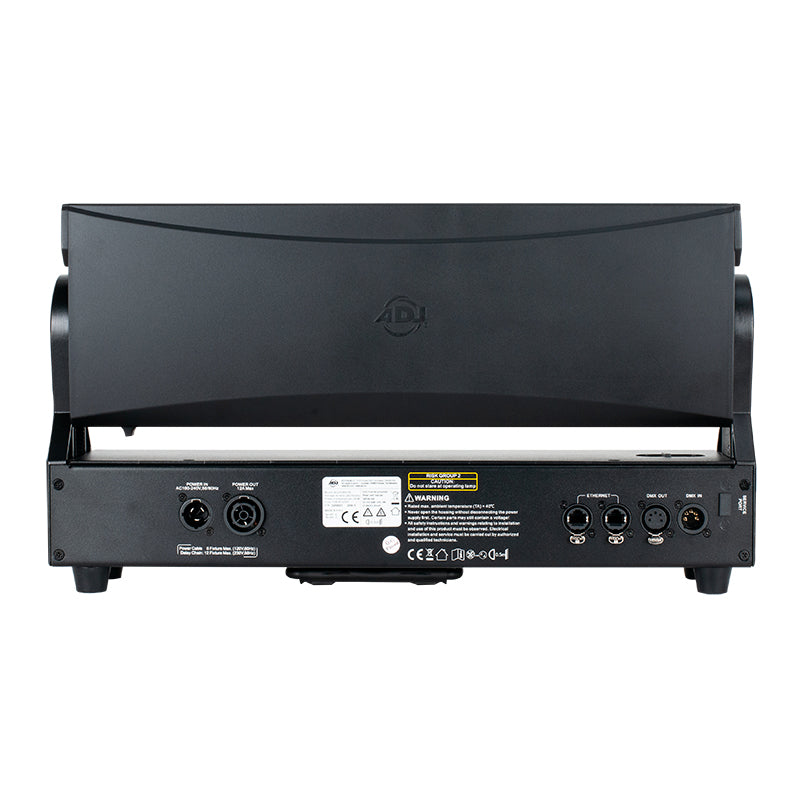

• 5-pin DMX In/Out for data linking

• RJ45 In/Out for Art-Net & Kling-Net control

• Locking power In/Out to daisy chain up to 6 fixtures (@ 120V), 11 fixtures (@ 230V)


• Control Modes: DMX512, RDM, Art-Net & Kling-Net

• Multiple DMX channel modes

• Tilt & Tilt Fine: 220°

• Strobe & Pulse Effects

• 6 individually controlled Pixels

• 0-100% Dimming + 16-bit Fine Dimming

• 6 Preset Dim Curve Modes plus Dim Speed control

• With Wired Digital Communication Network


• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 240W max

Dimensions & Weight:

• Dimension (LxWxH): 19.6” x 4.5” x 11” / 500x113x278mm

• Weight: 22 lbs. / 10kg.

What's Included:

• Two Omega Brackets

• Locking power cord


ETL Approved
