Airstream DMX Bridge

The ADJ Airstream DMX Bridge is aWifi interface that works with Airstream DMX App to control DMX products through WiFLY wireless DMX or a hardwire connection via 3-pin XLR. The ADJ Airstream DMX Bridge is aWifi interface that works with Airstream DMX App to control DMX products through WiFLY wireless DMX or a hardwire connection via 3-pin XLR.
SKU: AIR286 | UPC: 819730017697
The ADJ Airstream DMX Bridge is a Wifi interface that works with Airstream DMX App to control DMX products through WiFLY wireless DMX or a hardwire connection via 3-pin XLR. Download the Airstream DMX App for iOS devices in the App store.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Airstream DMX Bridge is a powerful DMX control software for iOS mobile devices (iPad and iPhone) that may be downloaded from the App Store. The hardware creates a wireless WIFI DMX network to control DMX lighting fixtures. It is compatible with ADJ WiFLY and Elation Professional E-FLY products. Users may also control non-WiFLY products from the unit’s 3-pin DMX output. Airstream DMX Bridge features ADJ’s 2,500 foot “EXR” extended range wireless DMX transceiver.

Download the Airstream DMX App for free from the App Store:
https://itunes.apple.com/gd/app/airstream-dmx/id1032178432?mt=8

ADJ Airstream DMX Bridge User Discussion Group:
https://www.facebook.com/groups/airstreamdmx/

ADJ Airstream DMX Bridge Video Tutorials by Arnoldo Offermann:
https://www.youtube.com/playlist?list=PLxXpR7a9HcIRapJX6Yo2HdnF0CZpkfq9K

ADJ Airstream DMX Bridge Video Tutorials by Joe Lott: https://www.youtube.com/playlist?list=PLX80zlUzaSJlMhDc_s2yvGiTE1A7uzy-2

Learn more about the Airstream DMX Bridge in this product spotlight: http://tinyurl.com/zs6ccnz

Compatibility: Requires iOS 8.4 or later. Compatible with iPhone, iPad and iPod Touch.

Specifications

Specifications

• Creates a wireless DMX network to control DMX lighting fixtures using Airstream DMX App for iOS devices

• Compatible with all ADJ WiFLY and Elation Efly products

• Control non-WiFLY products throughout the 3-pin XLR Out connection

• Airstream DMX App available in the App Store

• WiFLY wireless signal indicator on side panel

Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects

• Quick lock bracket included

• Up to 2500 wireless feet (open line of sight) when using other “EXR Extended Range” WiFLY products

• One transmitter can send to many receivers using the same radio channel

• Receivers automatically listen for transmitters (no pairing required)

• 14 WiFLY Channels

• 3-pin DMX Out

Wireless Frequency: 2.4 GHz DSSS

• Power Supply: DC 9-12V

• Dimensions (LxWxH): 5” x 7” x 2.5” / 125 x 175 x 62mm

• Weight: 1 lbs. / 0.5 kg.


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
AIRSTREAM DMX BRIDGE USER MANUAL AIRSTREAM DMX BRIDGE USER MANUAL Download
AIRSTREAM DMX BRIDGE & APP SPEC SHEET AIRSTREAM DMX BRIDGE & APP SPEC SHEET Download
Airstream DMX Bridge Firmware V3 Update V3 Adds support for Artnet and sACN Download
Airstream DMX Bridge Setup Utility for PC Use to update and configure network settings in Airstream DMX Bridge Download
AIRSTREAM DMX APP USER MANUAL V2.0 AIRSTREAM DMX APP USER MANUAL V2.0 Download
Airstream DMX Bridge Setup Utility for Mac Use to update and configure network settings in Airstream DMX Bridge Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Is this Compatible with non ADJ / Elation lighting

Hello Bigg,

Yes, it is compatible with other lighting products that are dmx compatible. The Airstream Bridge Dmx app allows you to create generic profiles for any dmx light. Let me know if you have any further questions.

Thanks,

Really excited to see this and the app for it. I'm hoping to use this on an install where there will be multiple devices that need access to this, although not at the same time. After programming on one device, how do I transfer the files to another device. Currently we are using mydmx 2.0 with easy remote, but unfortunately easy remote only allows for one device. Connecting a second device disables the first one. I'm really hoping this will work so I can replace mydmx with it. I REALLY want to stay with the ADJ line but this customer MUST have the ability to have multiple devices attached to it... Just don't want to have to program them all separately. Thanks

Hello Jimmy,

Thank you for reaching out to us. Unfortunately, the airstream bridge dmx is it's own system. With that said you will have to program all your lights shows again. There is no way of transfering any programed shows to this system. Let me know if you have any further questions.

Thanks,

Is it possible to convert products that are not WiFLY? I hate using dmx cables.

Hello Lucky,

Thank you for reaching out to us. Unfortunately, we cannot convert non wifly products to wifly at this moment. Let us know if you have any further question.

Thanks,

i just want to know if the following is possible. The signal flow will be comms between iPad and DMX Bridge via Wi-Fi. Comms between DMX Bridge and ADJ Wi-Fly Transciever. Wired DMX output to nine DMX fixtures. (Some are ADJ some are Chauvet and others Xtatic )

Hello Victor,

Yes, you could go dmx wired out from the airstrean dmx bridge into your other lights and control them. Just remember to create profiles for the Chauvet fixtures. Let me know if you have any further questions.

Thanks,

Hello, are you going to open up the communication protocol? Or will it stay closed sourced?

Hello Rick,

Thank you for reaching out to us. Unfortunately, the airstream bridge dmx is not an open source. Let me know if you have any further questions.

Thanks,

Any plans for Android?

Hello Gerry,

Thank you for reaching out to us. Unfortunately, there are no plans for andriod app at the moment. Let me know ify you have any further questions.

Thanks,

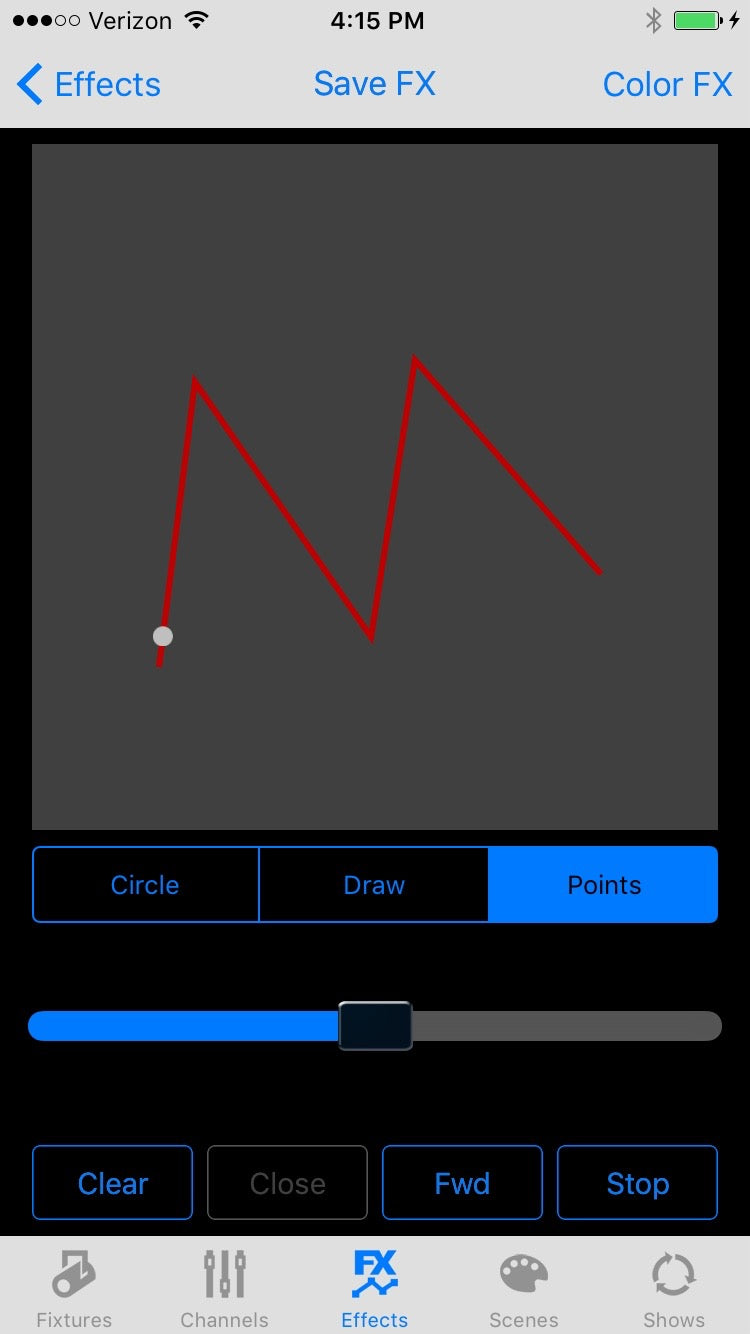

With your controller can you sequence so if I had 4 moving head lights can I programme so 2 go one direction and 2 go the other or do they all move together in one direction

This is not an option when using the built in movement effect generator. You'll need to create your a show and manual program the movement steps for each light. The other option would be to invert the pan or tilt option on half of your light fixtures, just keep in mind that not all light fixture have this option.
