5P HEX

The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P
SKU: ULT674 | UPC: 819730013125
The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. The 5P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ 5P Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

 5P HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in IEC In/Out power connectors.

 The 5P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

Specifications

Specifications

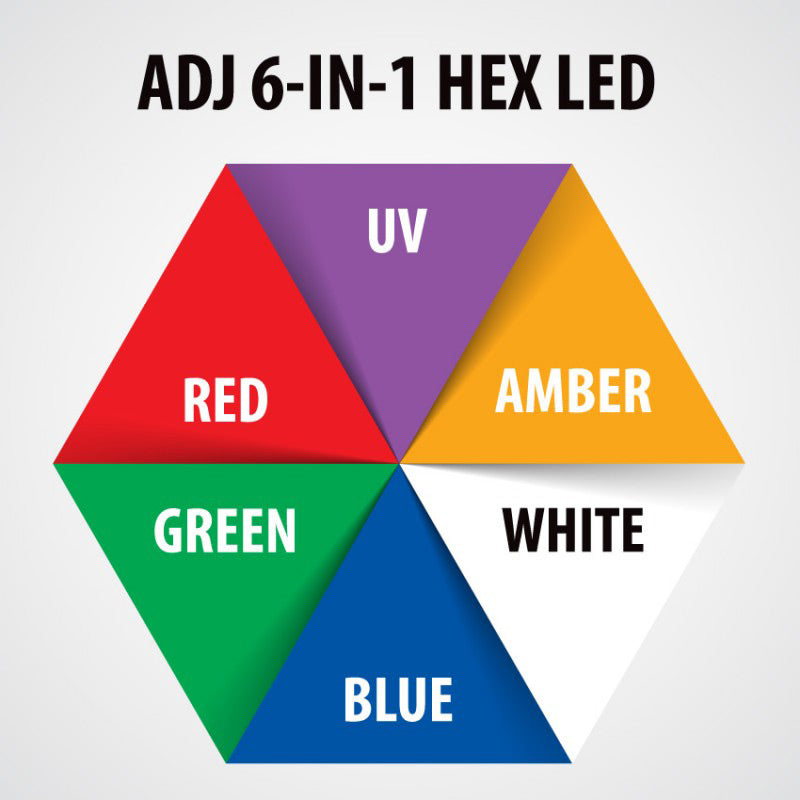

  • Ultra bright, flat wash fixture with 5 x Red, Green, Blue, Amber, White & UV LED pixels
  • Smooth RGBAW + UV color mixing

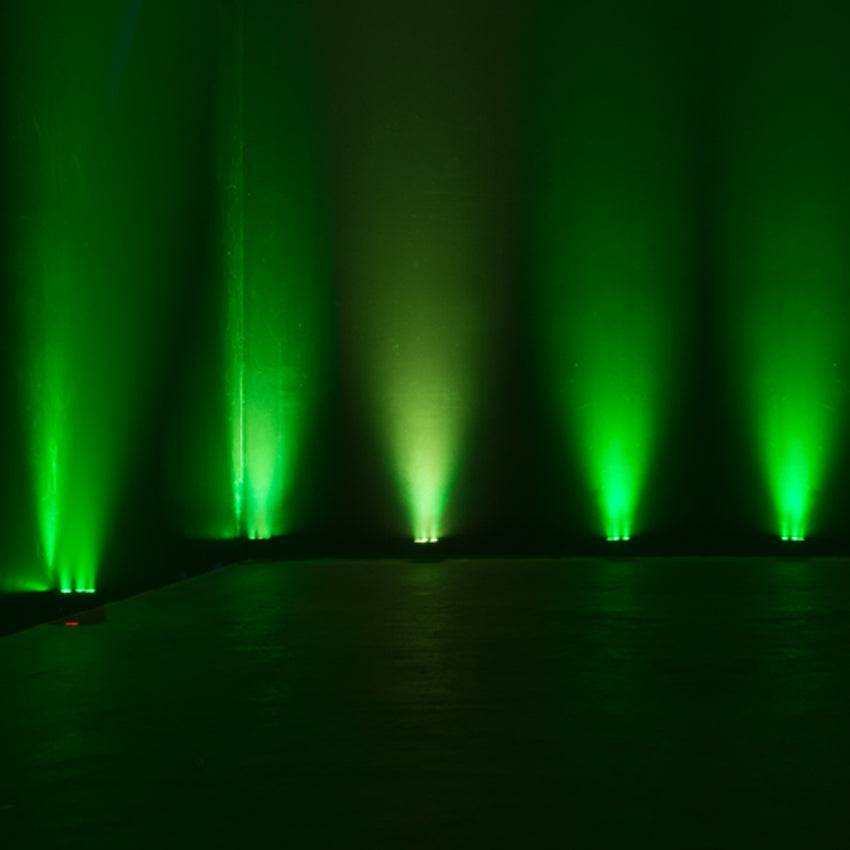

  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

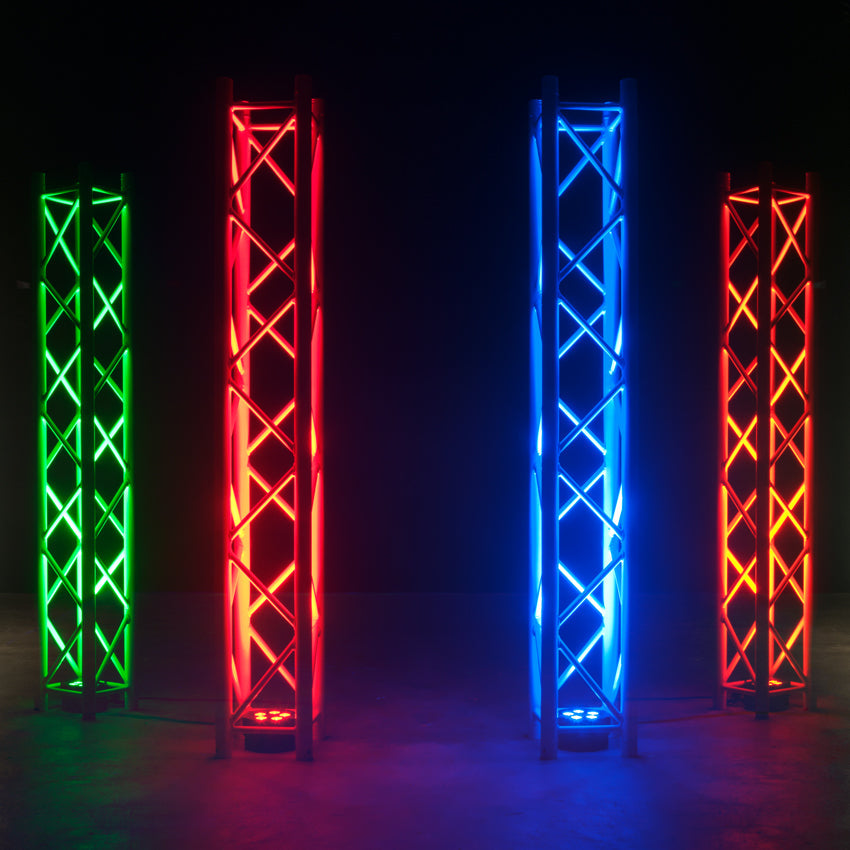

  • Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
  • 4 DMX Modes: 6, 7, 8, & 12 channel
  • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
  • 7 Built-In Programs
  • 63 built-in Color Macros
  • Flicker Free operation (No flickering on camera)
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • Beam angle: 30-degree

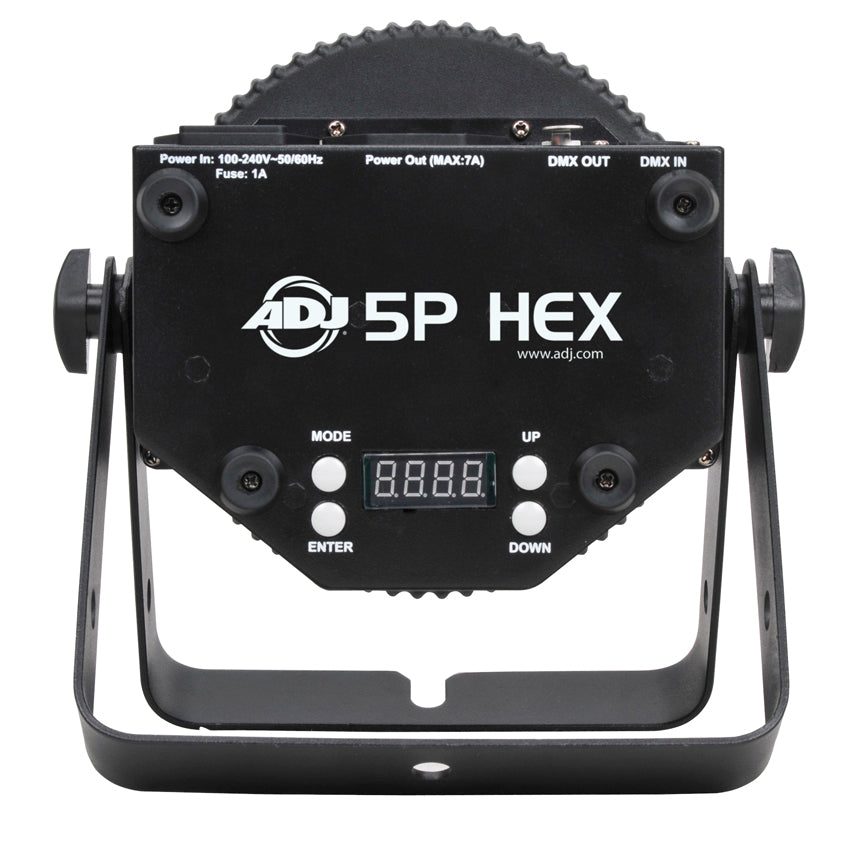

  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • Dual yoke allows fixture to be hung or set on the ground
  • Data linkable via 3-pin XLR cables
  • Power linkable via IEC power cables. (8x 5P Hex’s Max @ 100V, 21x 5P Hex’s Max @ 240V.)
  • Light Source: 5 x 10-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
  • Light Output: 1250 LUX @2M; 318 LUX @4M (30-degree beam)
  • UV Wavelength: 395nm
  • Refresh Rate: 3.6KHz
  • Power Draw: 49W total (All LED's @ Full On)
  • Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
  • Dimensions (LxWxH): 8.25” x 4” x 8.75”/ 210 x 100 x 220mm
  • Weight: 5 lbs. / 2 kgs
  • ETL Approved

OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here

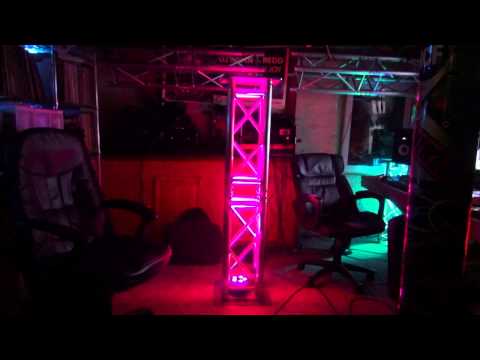

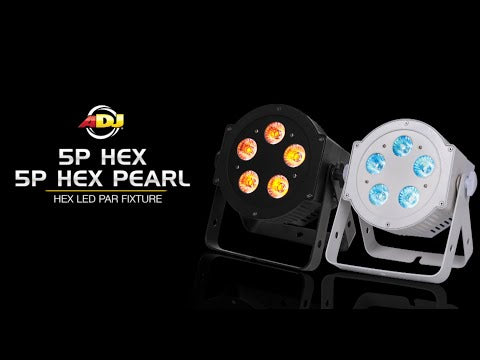

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
5P Hex/5P Hex Pearl User Manual Download
ADJ 5P HEX Photometric IES Files Download
ADJ 5P Hex Photometric Test Reports Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I just got 2 5P Hex and I can't find them in myDMX 2.0 software. I have the last ver. from Dec 23. What do I need to do to add them? I am running on a Mac.

Please send your request to ernies@americandj.com and he will have someone contact you to discuss the DMX traits.

Is the 5p hex fan cooled or is it silent during operation?

The unit uses no fan only a heatsink.

Hello, Is it possible to add a gel frame for the 5P Hex (to put a LSF filter for example) ? Thank you Arnaud (France)

The unit is designed for outdoor use and has no place to add a gel frame.

I just purchased 12 5P Hex instruments and have MyDMX 2.0 with the most current release but cannot find their profiles. Do you have a profile that can be used in place of it or is there one that you can send a link to? Thanks!

Please contact service@americandj.com.

In a previous FAQ you mention the unit is for outdoor use, yet in the specifications it mentions nothing about outdoor use or being ip rated. Can it be used outdoors or not?

Hello Ben,

This unit is not an ip rated and it will not work under wet conditions. If you are looking for an Ip rated outdoor fixture, i do have this model that will work for you. Let me know if you have any further questions.

http://www.adj.com/wifly-exr-hex5-ip

Hi, Can these clamp on to an outdoor trussing? I see them placed underneath the trussing in your picture but how to they clamp on to the top of the trussing for events/lights for sporting events? Thank you, Morgan

Hello Morgan,

Thank you for reaching out to us. The clamp that we use to hang our 5P Hex inside truss are called mini o clamps. This mini o clamp will allow you to clamp on to cross brance on top of the truss which will allow you have your 5p hex to shoot downwards inside the truss. Here is the link to the clamp. http://www.adj.com/mini-o-clamp Let me know if you have any further questions.

Thanks,
