3D Vision

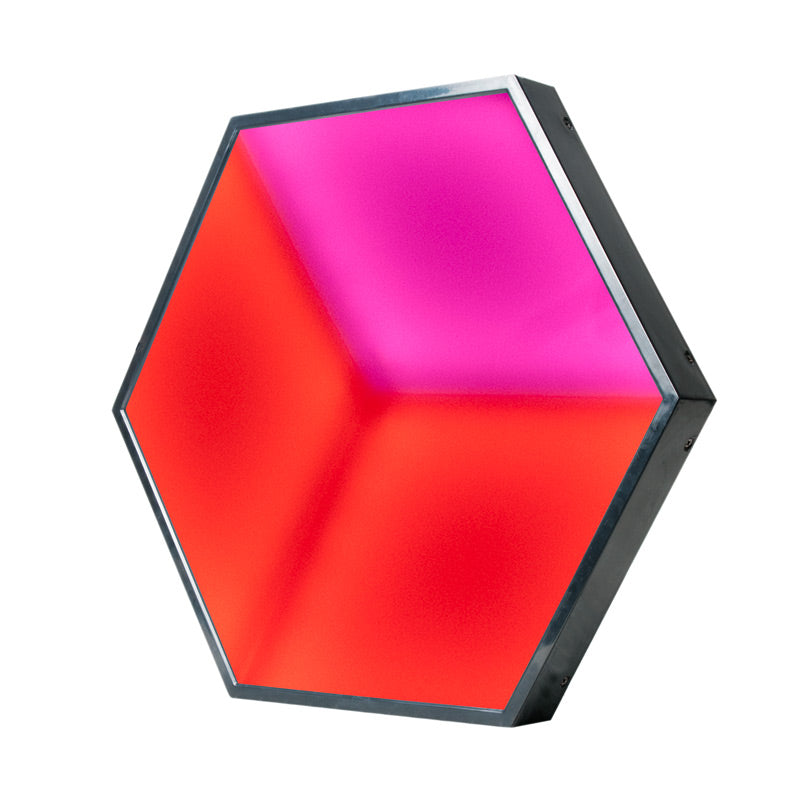

The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers.
SKU: 3DV100 | UPC: 819730019325
The ADJ 3D Vision panel is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers.
Advantage Points: 170

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available Now! • $169.99 per panel

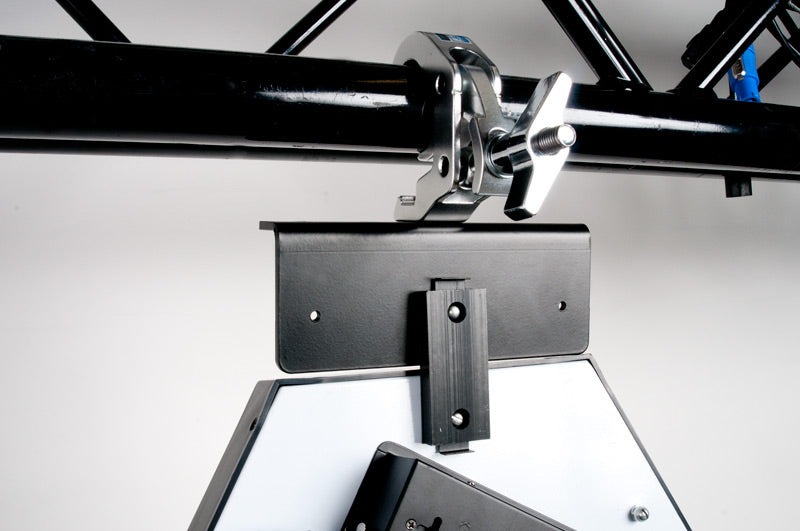

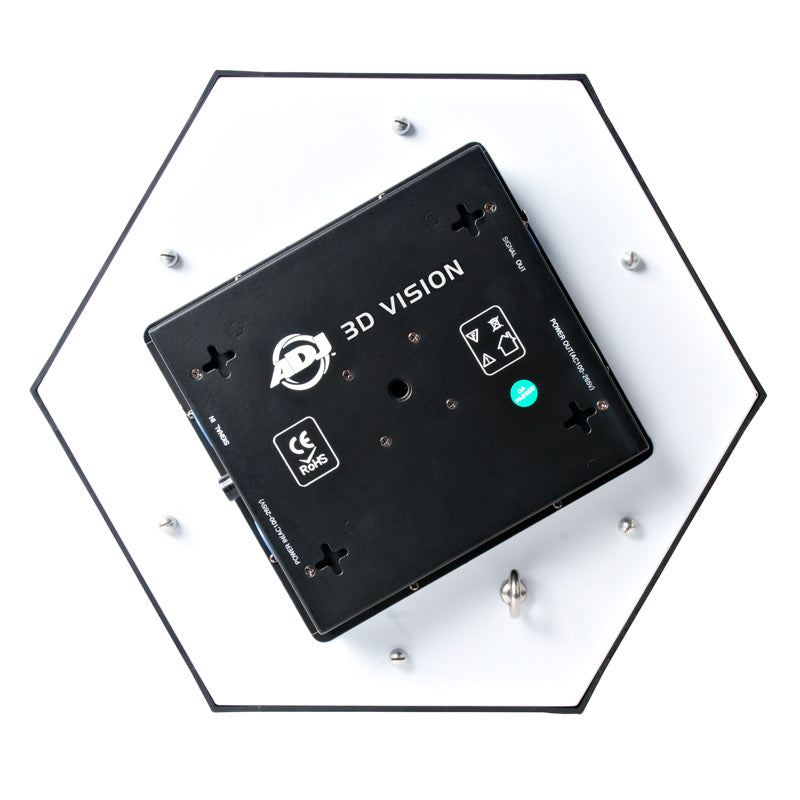

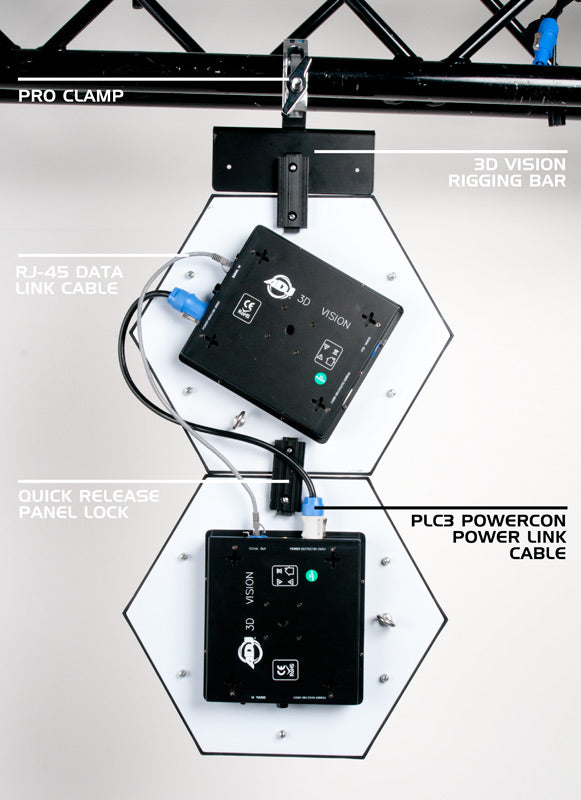

Hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. Controllable via DMX. Can also be used with EZ Kling interface for Artnet and KlingNet, LED Master control. Link multiple panels together via powerCon input/output with RJ45 ports for data linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also available for dead hang installation (m10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe).

Learn more about the 3D Vision in this product spotlight: http://tinyurl.com/hc3jfts

Get the 3D Vision DMX traits here: http://tinyurl.com/hjydsav

Specifications

Specifications

SPECIFICATIONS:

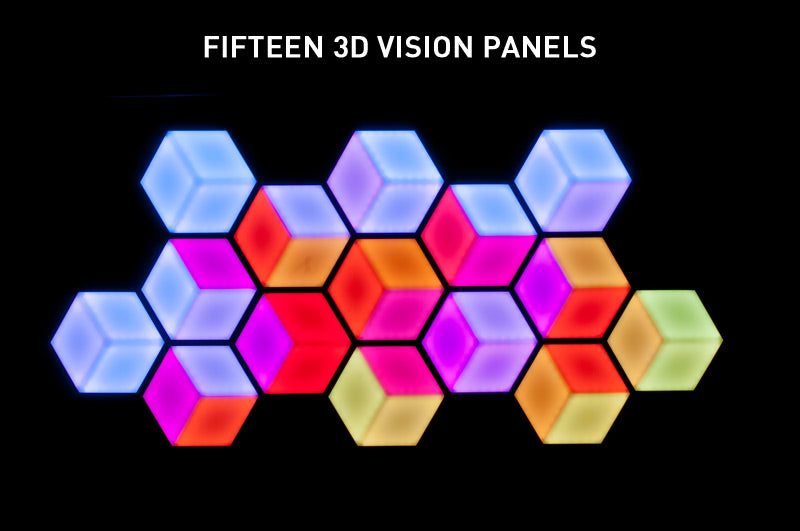

• 3D LED Effect panel. Use in multiples to create a dynamic

• Modular connecting system allows you to create different configurations

• Quick lock rigging system allows you to assemble and disassemble quickly

• 10mm thread on rear for standard Pro Clamp, truss mount

• Control Protocol: DMX512

• Data Connections: Ethercon, Input, and Output

• Product Size: 15.8” x 15.8” x 2.7” (400 x 400 x 68mm)

• LED Quantity, per unit: 72pcs.

• LED Type: 5050 SMD, 3in 1

• Power Connections: Powercon, Input, and Output

• Max Power Consumption: 13W

• Input Voltage: 100-250V

• Net Weight: 6 lbs. (2.74kg)

• Face Material: Frosted Whtie Acrylic

• Viewing Angle: 180-degrees

• Working Temperature: -4 to 140 F (-20 to +60 C)
• ETL Approved

•  Working Lifespan: ≥50,000 Hours

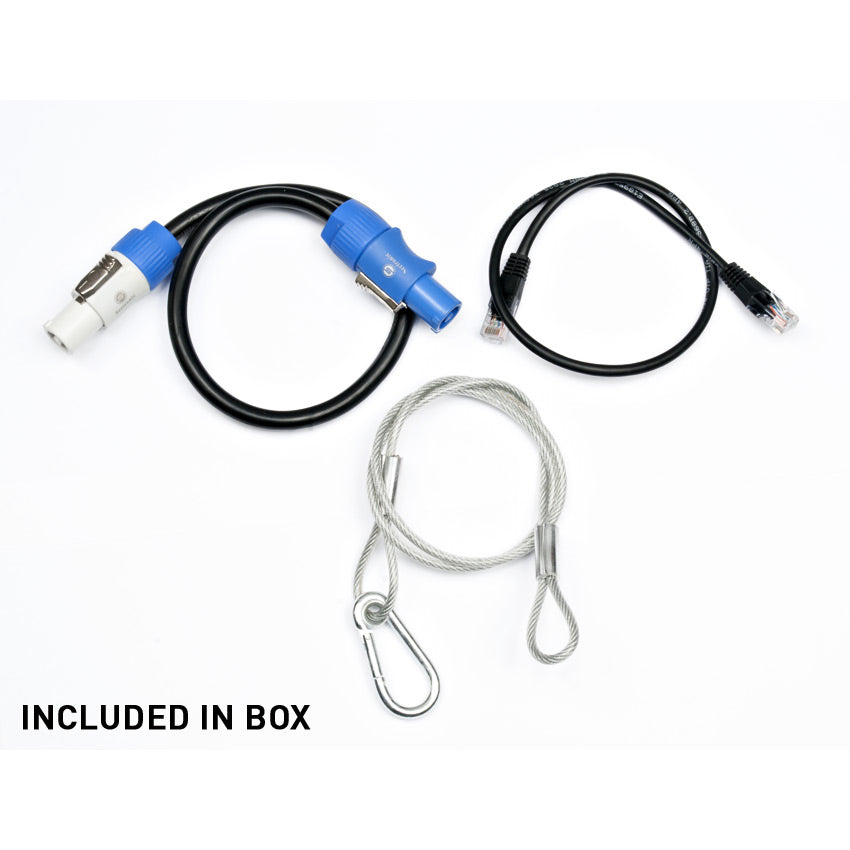

• Includes one (1) data cable, one (1) linking cable and one (1) safety cable

Main power cable sold separately

3D VISION ACCESSORIES:

• myDMX 2.1: DMX Control Software (Click Here)

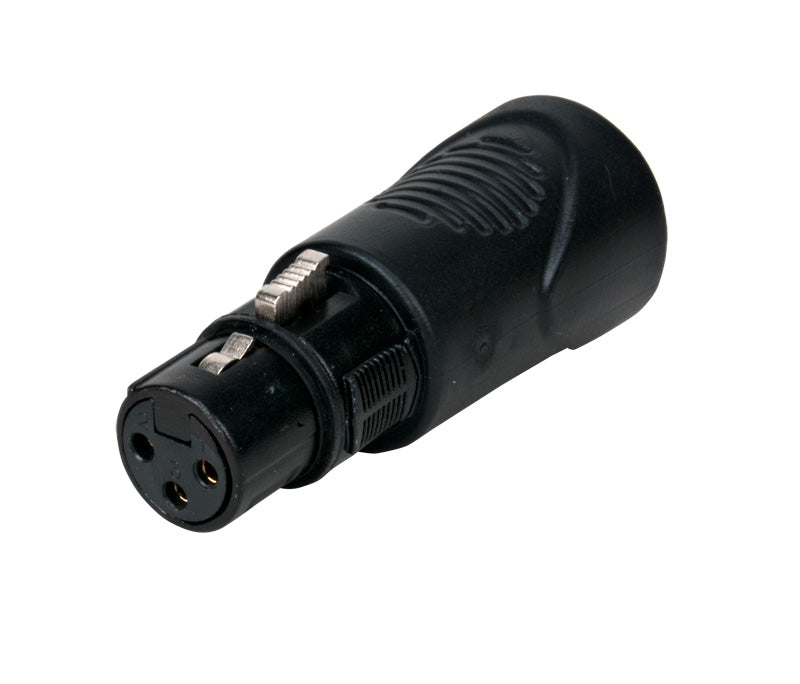

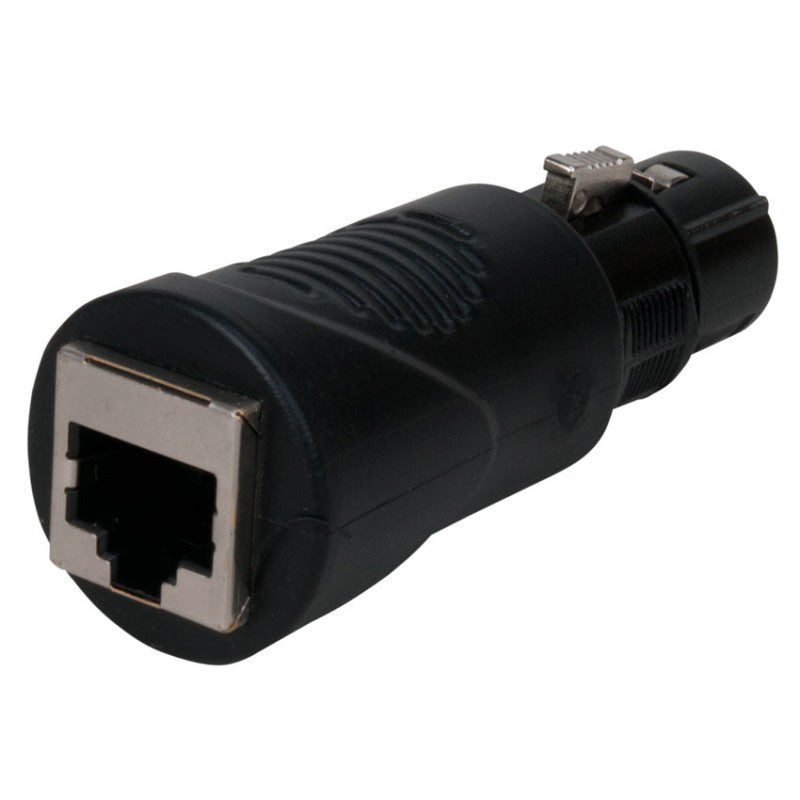

• ACRJ453PFM: RJ45 to 3-pin male XLR DMX (Click Here)

• 3D Vision Encoder (3DV125): Sets DMX channels for 3D Vision panels (Click Here)

• 3D Vision Quick Release Panel Lock (3DV175) (Click Here)

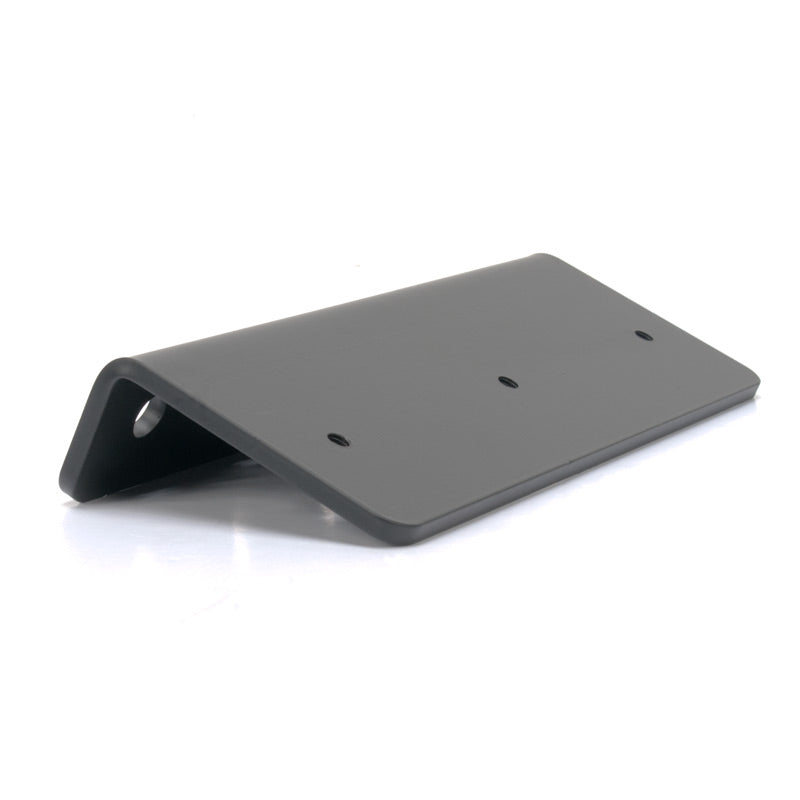

• 3D Vision Rigging Bar (3DV149) (Click Here)

• powerCon 3-foot power link cable (PLC3) (Click Here)

• RJ45-3 (NET403): 3-foot RJ45 to RJ45 Cable

• RJ45-6 (NET456): 6-foot RJ45 to RJ45 Cable

• RJ45-10 (NET510): 10-foot RJ45 to RJ45 Cable

• Pro Clamp (Click Here)







Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
3D Vision CAD Drawing Download
3D Vision Wall Mount Template Download
3D Vision Cut Sheet Download
3D Vision User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for 3D Vision
