32 HEX Panel IP Pearl

New Product
The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree b The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree b The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree b The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree b The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree b
SKU: HEX300 | UPC: 818651026030
The ADJ 32 HEX Panel IP Pearl is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. All metal, white housing.
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $999.99


The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

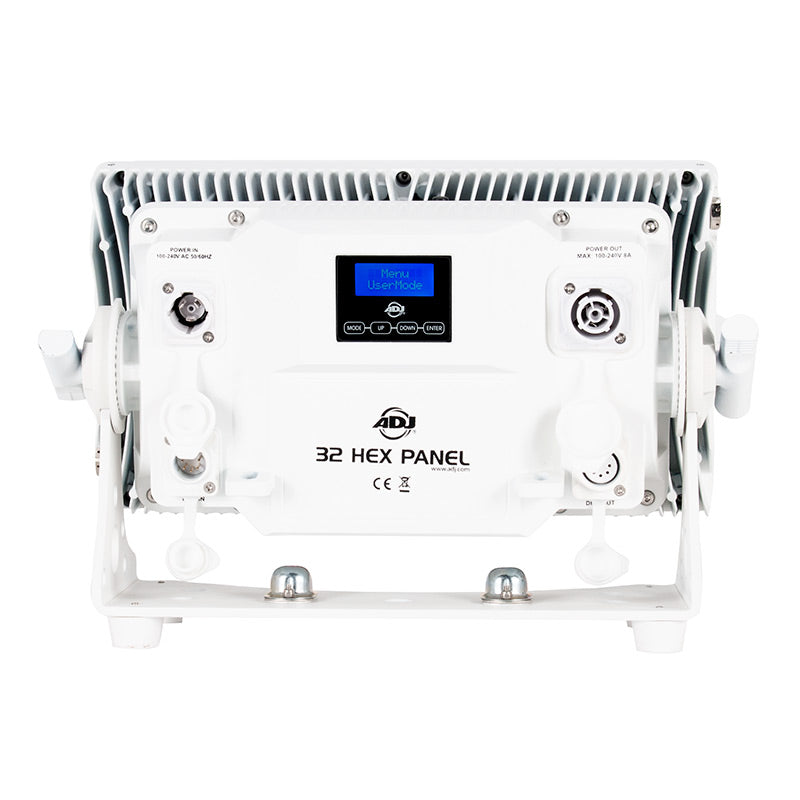

On the rear panel it features Seetronic, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, Power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.


The 32 HEX Panel IP is flicker free for film and broadcast, and has multiple DMX control modes, dim modes, and selectable gamma and LED refresh rate settings.


Read the 32 HEX Panel IP Pearl press release.


Read the 32 Hex Panel IP Pearl product spotlight


Specifications

Specifications

Light Source:

• LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)

• Beam Angle: 24-degrees

• LUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)


Features:

• IP65 rated – protects from dust, sand, moister, water

• All metal construction with black housing

• Includes heavy duty bracket

• Sure-lock locking bracket system (securely locks every 10-degrees)

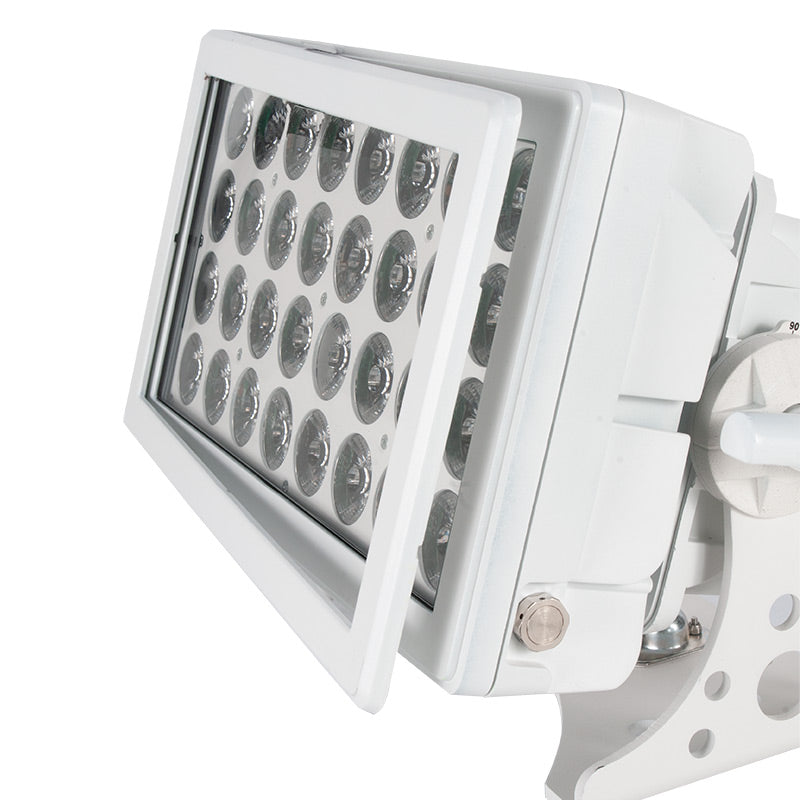

• Includes magnetic removable filter frame to add a diffusion filter

• Flicker free for film and broadcast


Construction:

• Display: OLED display with function buttons

• Data In/Out: Seetronic IP65 rated, 5-pin XLR, DMX In/Out (with rubber protective covers over connections)

• Power In/Out: Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)

• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications


Control:

• 7 DMX Channel Modes: Multiple DMX channel modes

• 8 individually controlled sections with Pixel Zone Control

• 0-100% Dimming + smooth 16-bit Dimming

• 5 Dimming Curve Modes

• Control Mode: DMX512, RDM

• Gamma Brightness: Multiple settings

• LED Refresh Rate: Multiple settings

• With Wired Digital Communication Network


Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 220W Max


Dimensions & Weight:

• Dimension: 13.75”x 9” x 6.75” / 350x230x170mm

• Weight: 24.25 lbs. / 11kg.


What's Included:

• Removable frost filter with metal frame

• Seetronic IP65 rated locking power cord

• Two Safety cables

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
32 HEX PANEL IP PEARL User Manual User Manual Download
32 Hex Panel IP Photometric IES Files Photometric IES Files Download
32 Hex Panel IP Photometric Test Reports W/Difuser Photometric Test Reports Download
32 Hex Panel IP Photometric Test Reports Photometric Test Reports Download
32 HEX PANEL IP PEARL CUT SHEET Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for 32 HEX Panel IP Pearl
