3 Sixty 2R

SKU: SIX321 | UPC: 819730012272

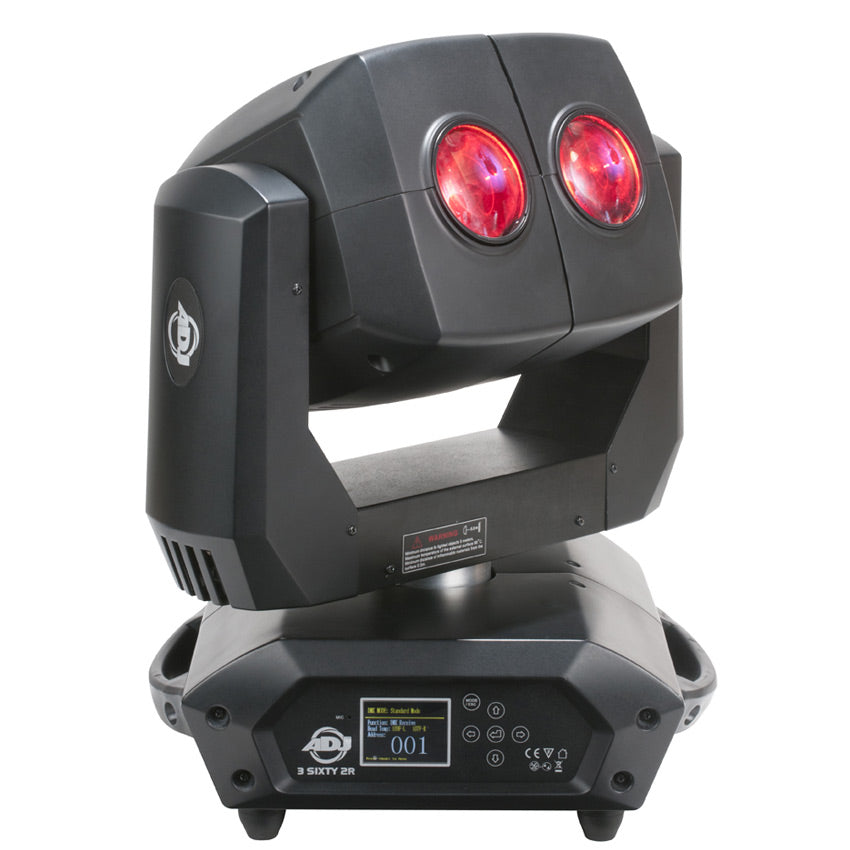

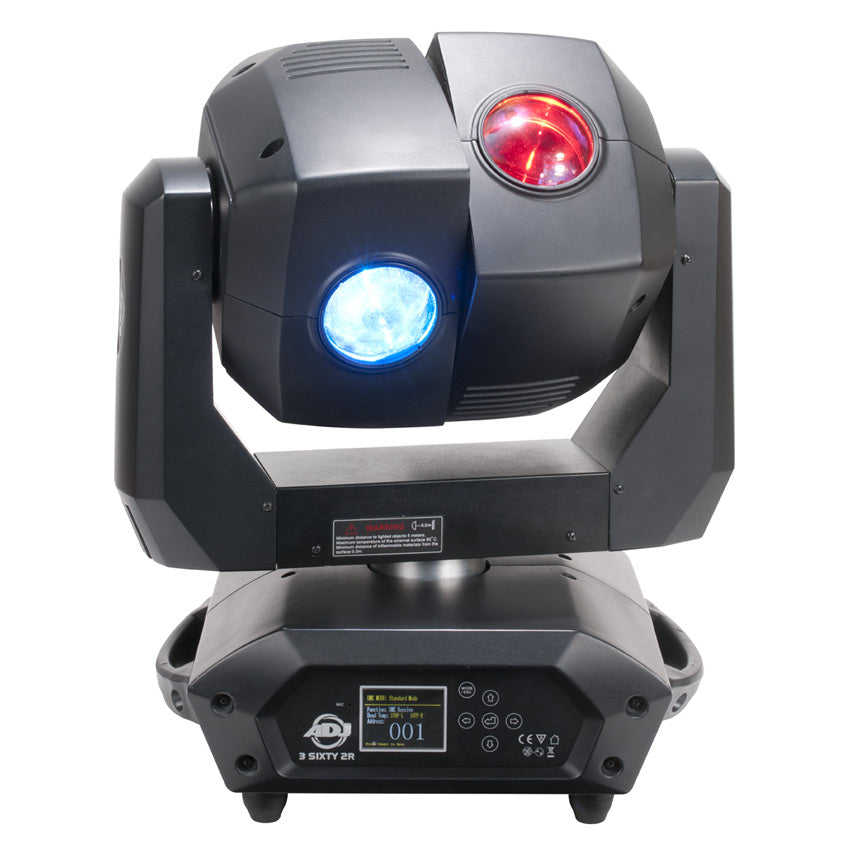

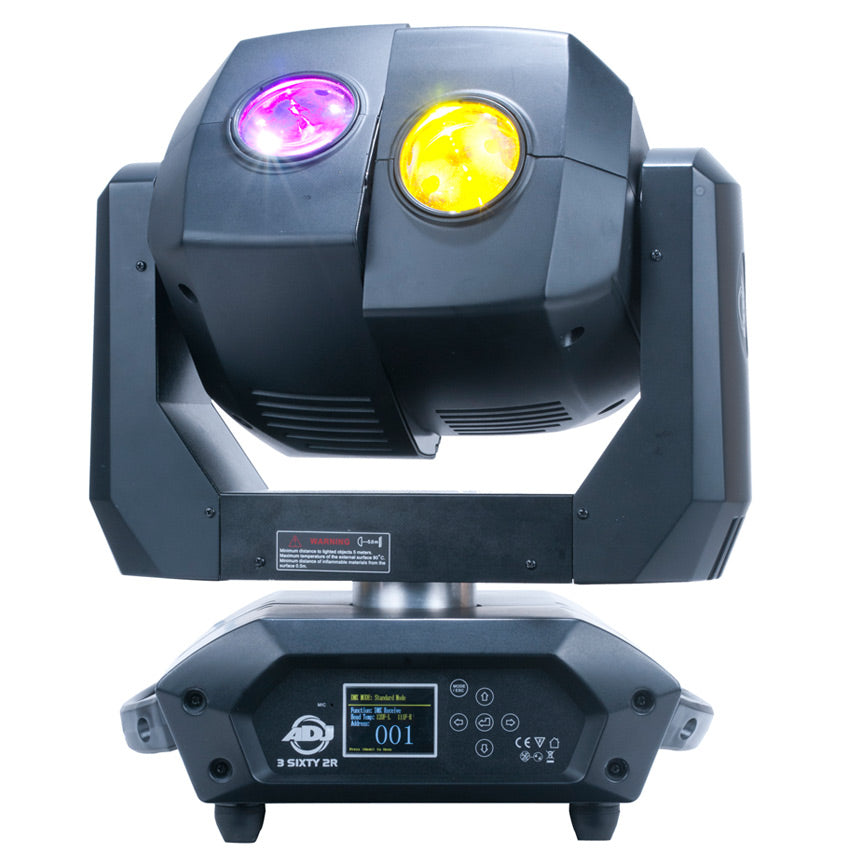

The 3 Sixty 2R is a dual Moving Head fixture with continuous rotation of base, plus independent continuous rotation of both heads. It features the 135W Philips® Platinum 2R lamp with over 6,000 hours of lamp life, 14 GOBOs (plus spot), and 13 colors (plus white).
Advantage Points: 1040

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


When ADJ co-engineered the Platinum 2R with Phillips®, the result is a top of the line lighting fixture sure to dazzle the crowd at a night club or large event. The 3 Sixty 2R from ADJ features dual moving heads that deliver continuous 360 degree rotation and infinite panning in either direction. Creative sparks will fly when you add the 3 Sixty 2R to your collection! If you're serious about professional quality effects, then this is the right piece for you.

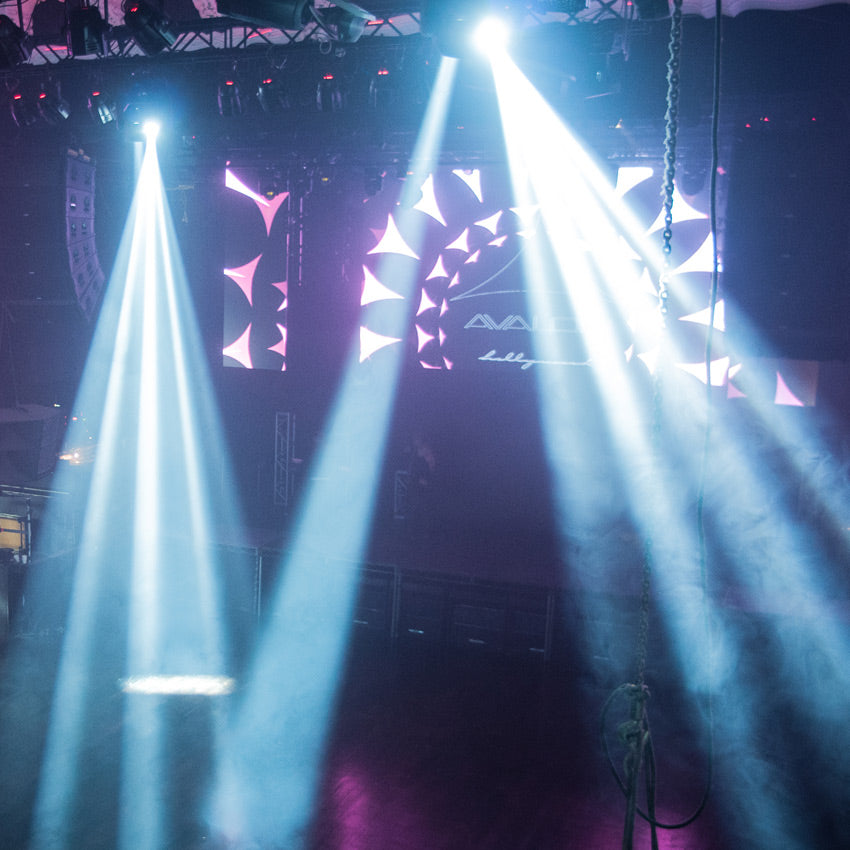

ADJ's 3 Sixty 2R will amaze and energize the crowd with top-quality, dynamic lighting. This moving head lighting fixture uses 2 Phillips(r) MSD Platinum 2R discharge lamps with 135W output and 6,000 hour lamp life. The ADJ 3 Sixty 2R brings the dance to your party and will make your large school dance, club show, stage production, or any other event more exciting. Light up the night with 13 different colors (plus white), 14 fixed GOBOs and dual rotating heads for a dazzling display! For added effects, use with a smoke or fog machine to amplify the ambiance and bright colors.



  • Unique dual Moving Head with a bright white Phillips MSD Platinum 2R lamp source
  •  360° continuous Pan / Tilt movement /rotation

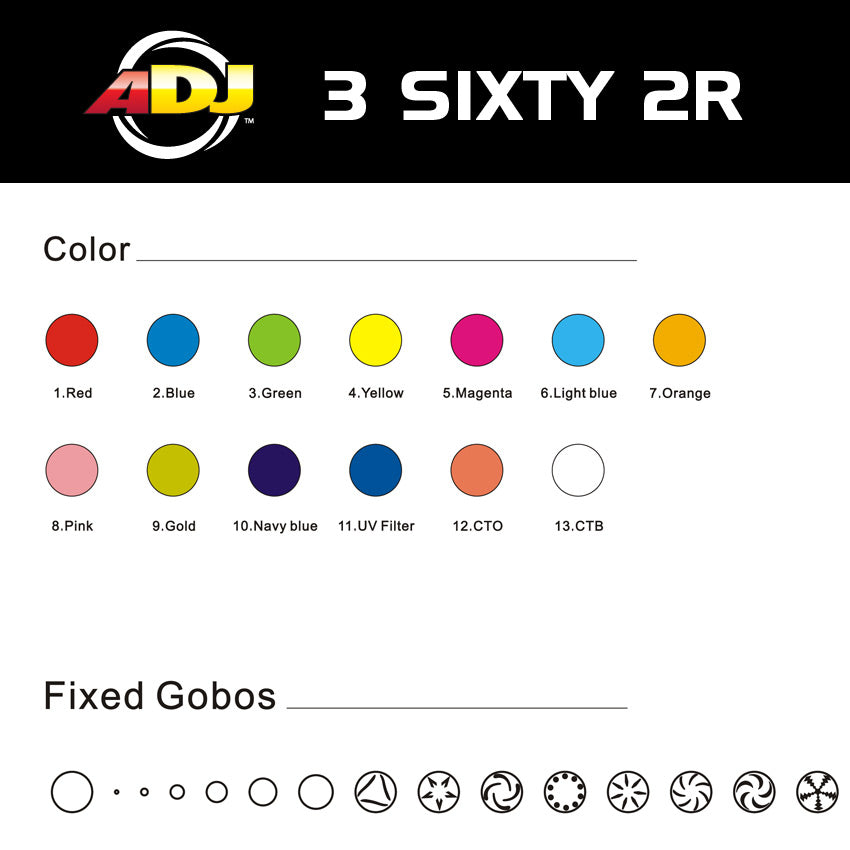

  •  13 colors + White
  •  14 fixed gobos + open spot
  •  Auto X-Y repositioning
  •  3 Operational modes: DMX, Master/Slave & Sound Active
  •  3 DMX Channel modes: Standard, Basic & Extended (21, 24, 32 Ch.)
  •  6-Button, full color LCD
  •  Built-in programs
  •  Separate, static Color & Gobo Wheels
  •  8-facet prism
  •  Frost filter for wash effect
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Fan Cooled
  •  4° beam angle
  •  RDMX Compliant
  •  RDM Compliant

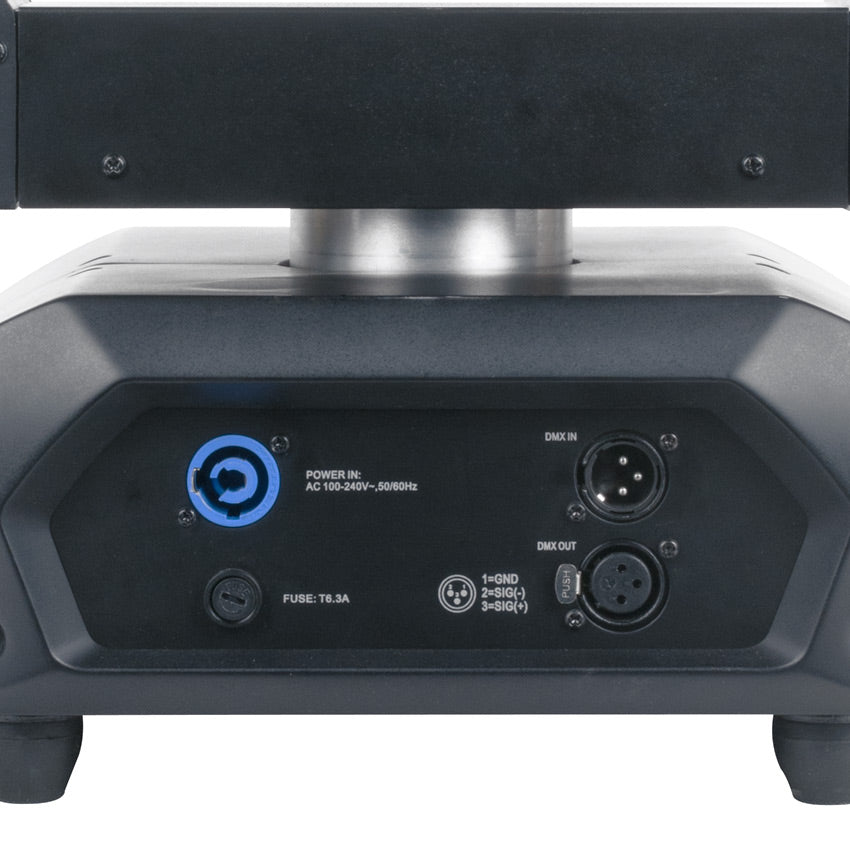

  •  3-pin XLR chassis mount DMX connectors
  •  With Wired Digital Communication Network
  •  Stepper motors with micro stepping
  •  IP Rating: IP20
  •  Power consumption: 400W total
  •  Multi-voltage operation: AC 100-240V 50/60Hz- Powercon In
  • Power Cable Length: 1.8M (IEC)
  •  Light Source: 2x Philips® MSD Platinum 2R discharge, (135W, 8,000°K – 6000 hr. long life)
  • Light Output: 50460 KUX @10M; 21850 LUX @ 15M (4-degree beam)
  •  Lux @ 10M: 50460 Lux
  •  Dimensions (LxWxH): 17” x 13” x 18.75” / 428 x 326 x 473mm
  •  Weight: 45 lbs. / 20.5 kgs.
  • ETL Approved





The following downloads are available for this product:

Title Description
3 Sixty 2R User Manual User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.


Hola Andres,

Si tienes tiempo llamame a mi telephono para darte precios. 323 213 4519


Are the lamps ran independently of each other or can you use one side and when it dies use the other and replace them both at once?

The lamps can be indivially controlled via DMX (intensity, strobing and On/Off), but they run on a shared timer which should not exceed 6000 hours. We recommend replacing both lamps when reaching the maximum lamp hours.
