12P HEX

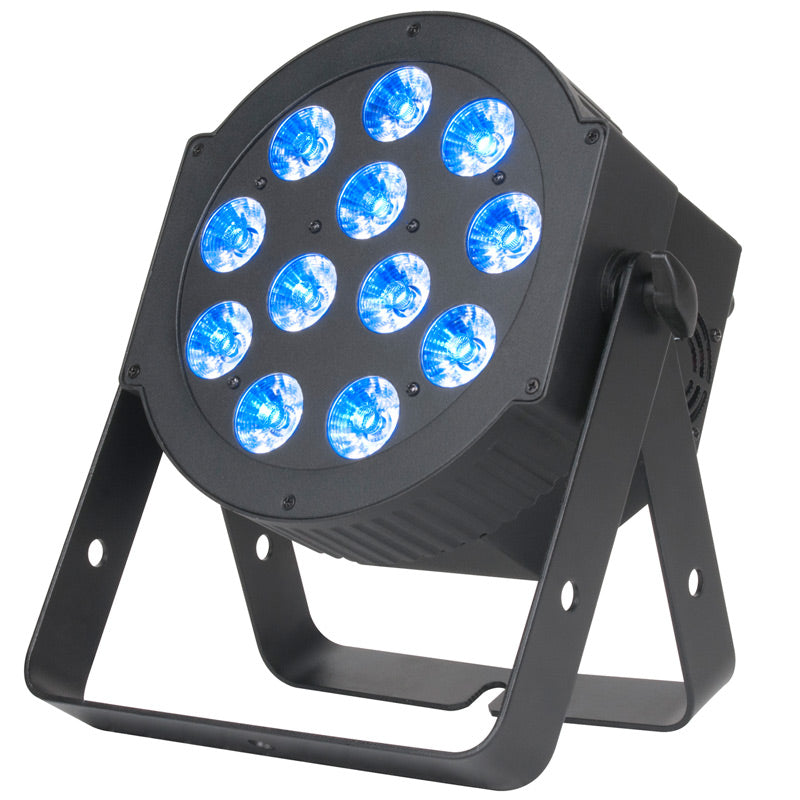

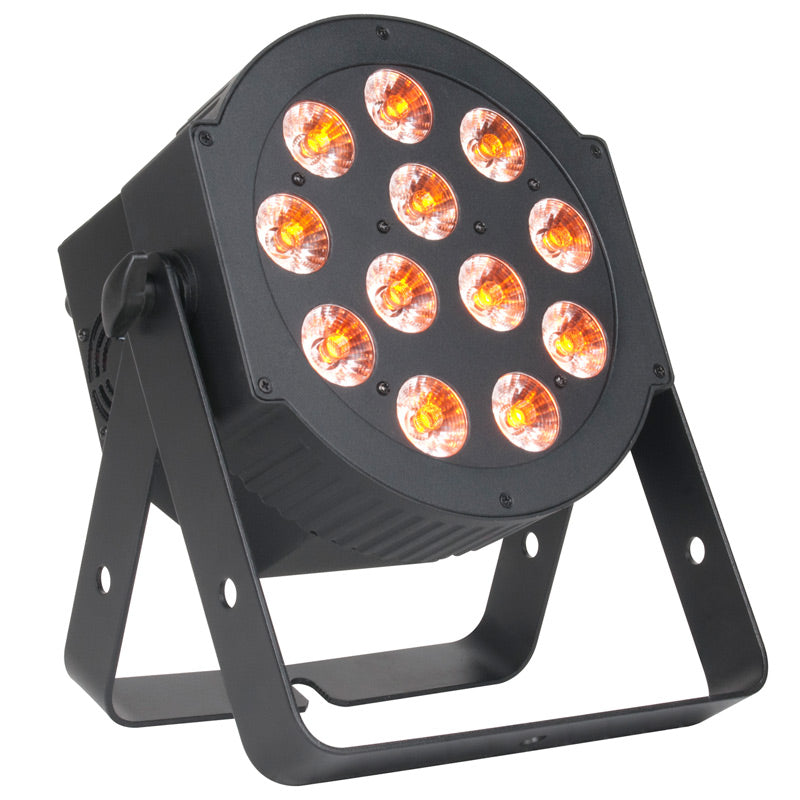

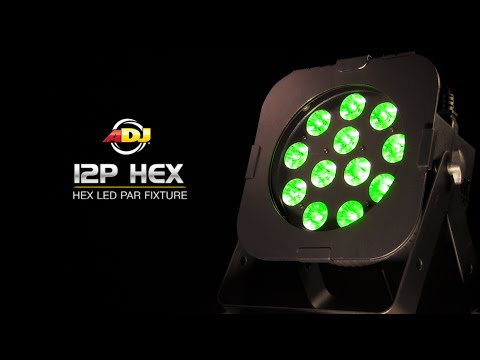

The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs.
SKU: HEX120 | UPC: 819730013866
The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs.
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.



12P HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 6 units (110V) or 13 units (240V) together via the fixtures built-in IEC In/Out power connectors.



The 12P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.


Specifications

Specifications

• Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels

• Smooth RGBAW + UV color mixing

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

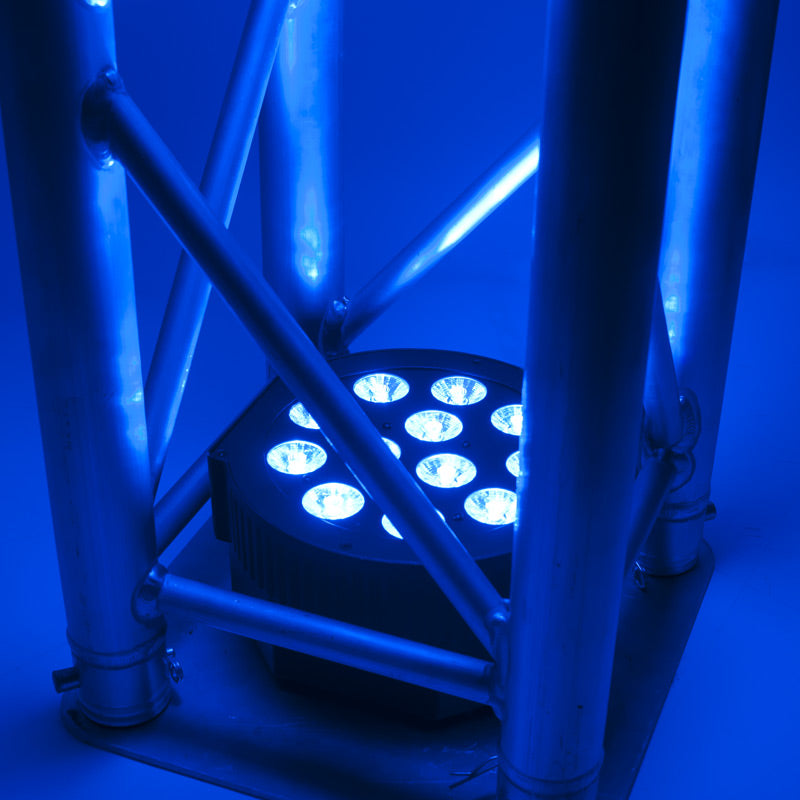

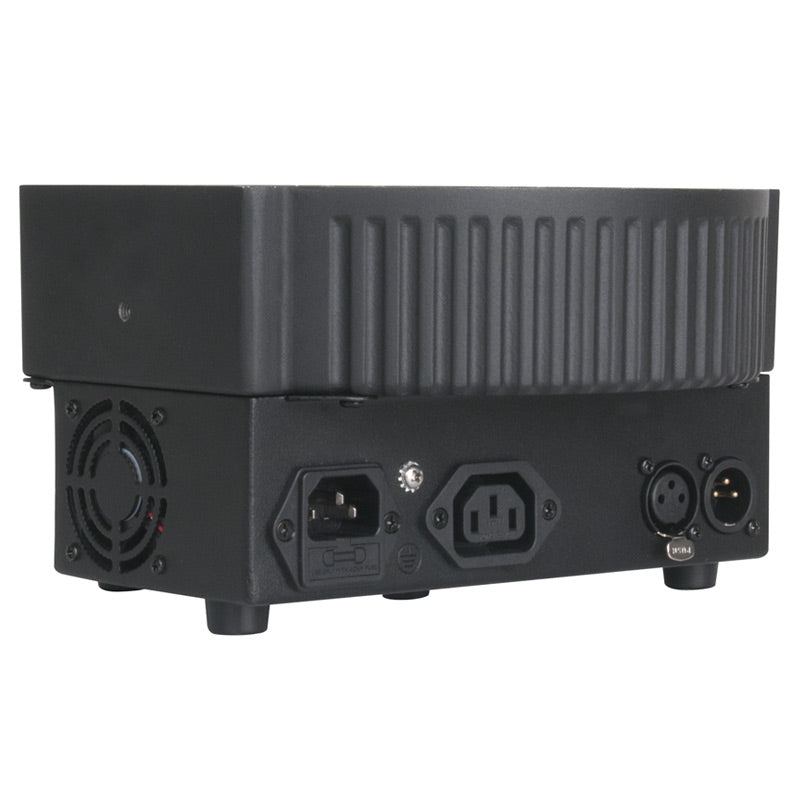

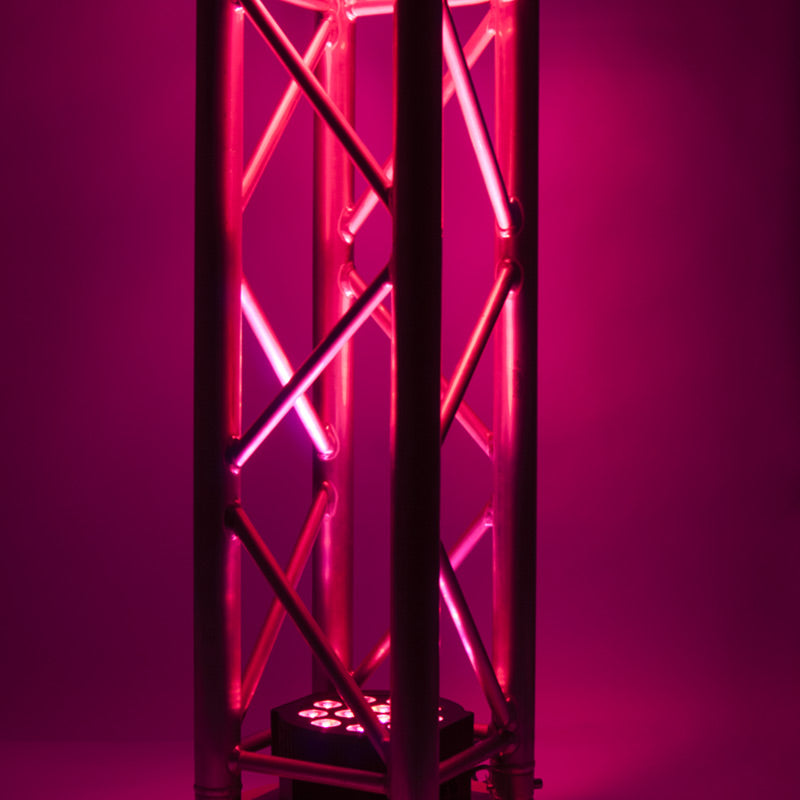

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• 4 DMX Modes: 6, 7, 8, & 12 channel

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

• 7 Built-In Programs

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Beam angle: 30-degree

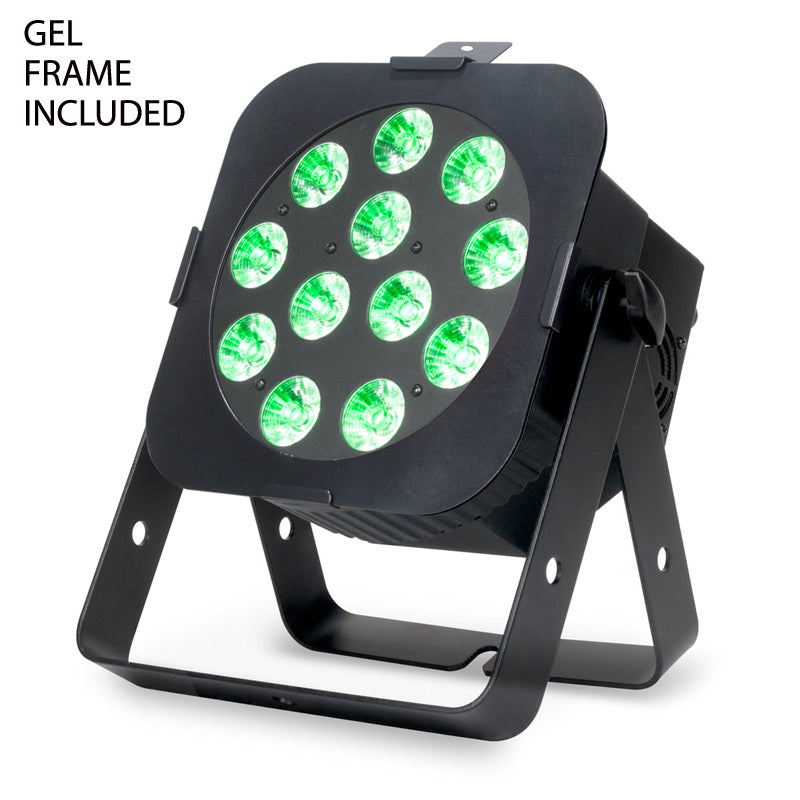

• Includes metal gel frame

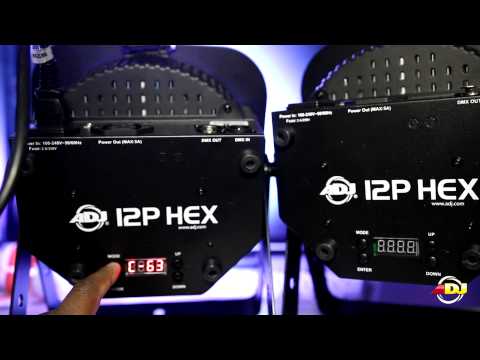

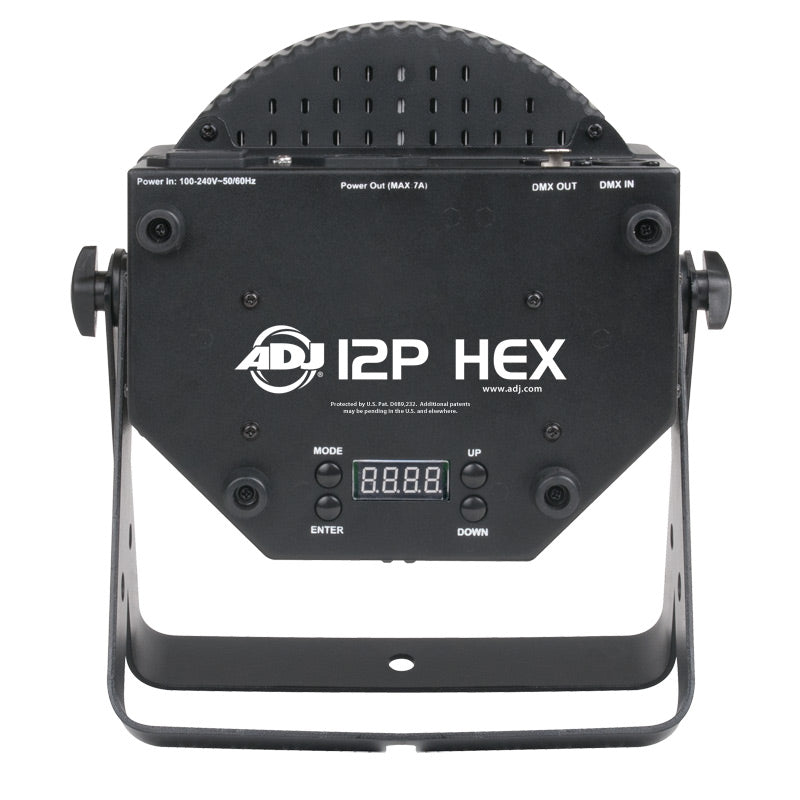

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• Dual yoke allows fixture to be hung or set on the ground

• Data linkable via 3-pin XLR cables

• Power linkable via IEC power cables. (6x 12P Hex’s Max @ 110V, 13x 12P Hex’s Max @ 240V

• Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)

• Light Output: 2770 LUX @ 2M; 733 LUX @ 4M (30-degree beam)

• UV Wavelength: 395nm

• Refresh Rate: 3.6KHz

• Power Draw: 150W total (All LED's @ Full On)

• Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)

• Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm

• Weight: 9 lbs. / 3.9 kgs

• ETL Approved



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
12P Hex Cut sheet Download
ADJ 12P Hex Photometric IES Files Download
ADJ 12P Hex Photometric Test Reports Download
ADJ !2P Hex/12P Hex Pearl User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Are there barn doors available for the 12P HEX. Also does this product come with a gel holder?

There are no barn doors made for this product. It does come with Gel Clips to put a gel on it.

would the 12 p hex be a good replacement for 300 w par 56 for stage lighting?

Hello kevin,

Thank you for reaching out to us. Yes, 12p hex will be a very good replacement for a 300watt par 56 can. The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle it's very bright fixture. Let me know if you have any further questions.

Thanks,

Hi. I assume these are fan cooled? If so, how noisy are they? I'd like to use them in a small village hall for drama purposes so need to be fairly quiet.

Hello Barry,

Yes, the fans in our 12P Hex are fairly quite you should have no issues. Let me know if you have any further questions.

Thanks,

My 12p hex is burning hot to the touch, should I be concerned. RGBW are on at full.

The Unit will get warm but it should not be hot tot he touch where it is unbarable.

What size yoke bolt does this fixture take if I want to hang it?

Hello Brittany,

those are normally no bigger than 10mm. Let me know if you have any further questions.

Thanks,

Where can i find the Profile for the 12P Hex par for my hog3?

Hello,

Here is the link to where you can get the profile for this unit.

https://www.highend.com/

Let me know if you have any further questions.

Thanks,

Photometrics?

A photometric chart is located on page 18 of the product manual. See link below



file:///C:/Users/scervantes/Downloads/12p_hex_12p_hex_pearl%20(2).pdf
