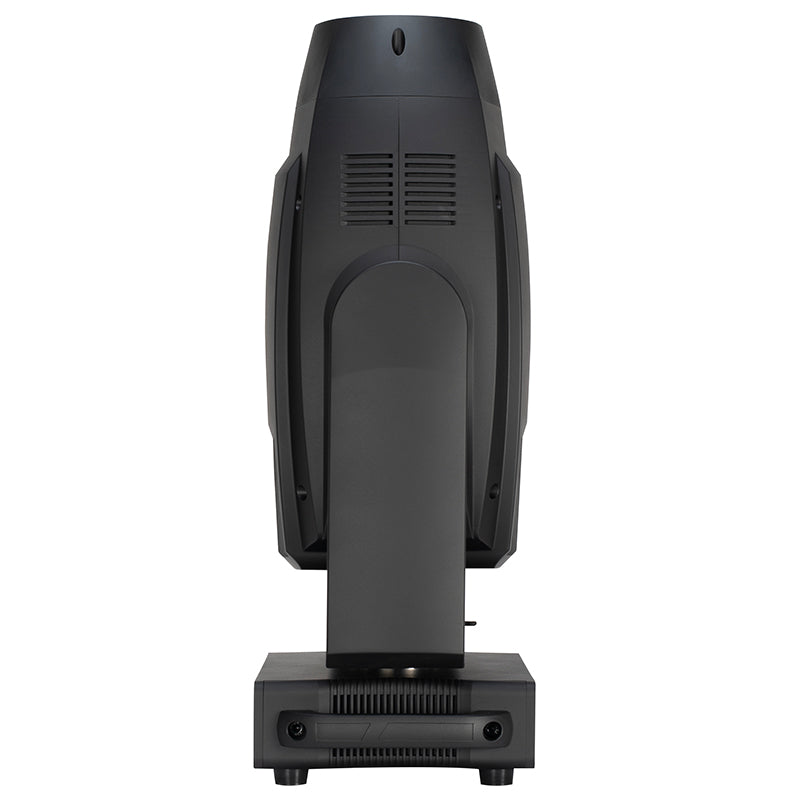

Focus Spot 7Z
UPC#: 810087371401
Advantage Points: 4450
Redemption Points: 89000
SKU
FOC750

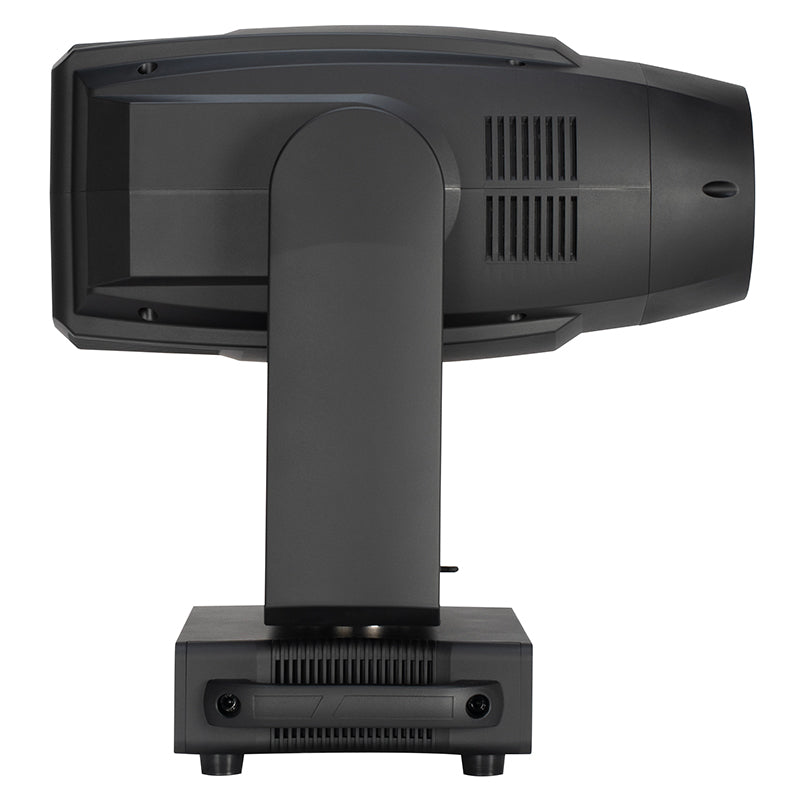

Offering an impressive output of 20,000 Lumens, the ADJ Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing spot and wash effects. Its efficient 420W LED light engine and superior optics allow the fixture to deliver crisp and even projections, while its extensive collection of integrated beam-shaping tools provide lighting designers with immense creative potential. These include full CMY + CTO color mixing; an animation wheel; motorized zoom (6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms and frost filters.
SOURCE
420W White LED Engine
20,000 Hour Average LED Life
PHOTOMETRIC DATA
19,000 Total Lumens
7,000K, >73CRI (without CRI Filter)
7,700K >85CRI (with CRI Filter)
50,528 LUX @16.4’ (5m) (6° Beam)
1,799 LUX @16.4’ (5m) (48° Beam)
EFFECTS
4-Facet Circular & 6-Facet Linear Rotating Prisms
2 Frost Filters (Light & Heavy)

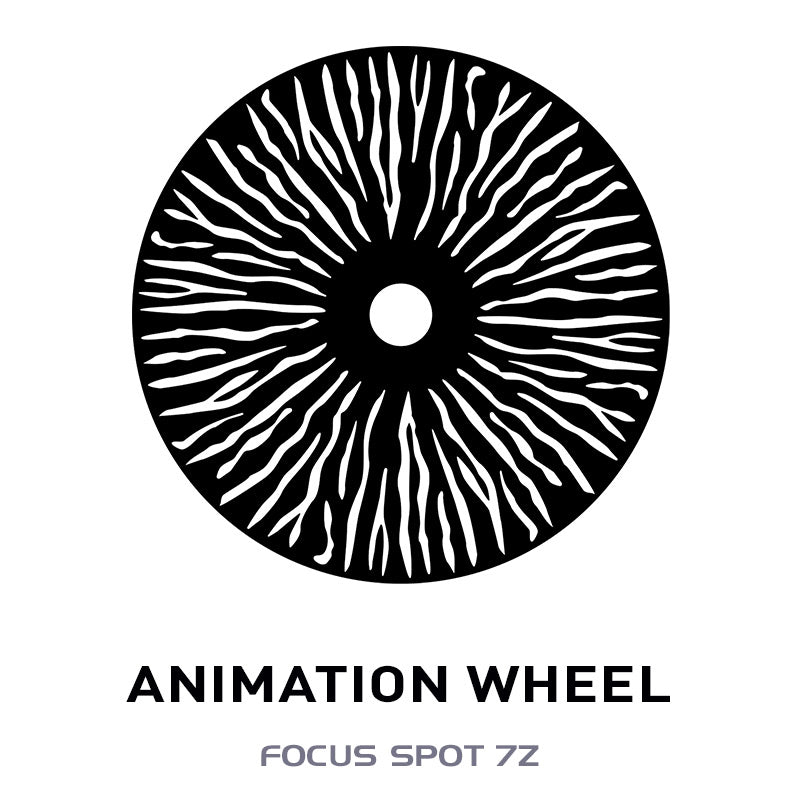

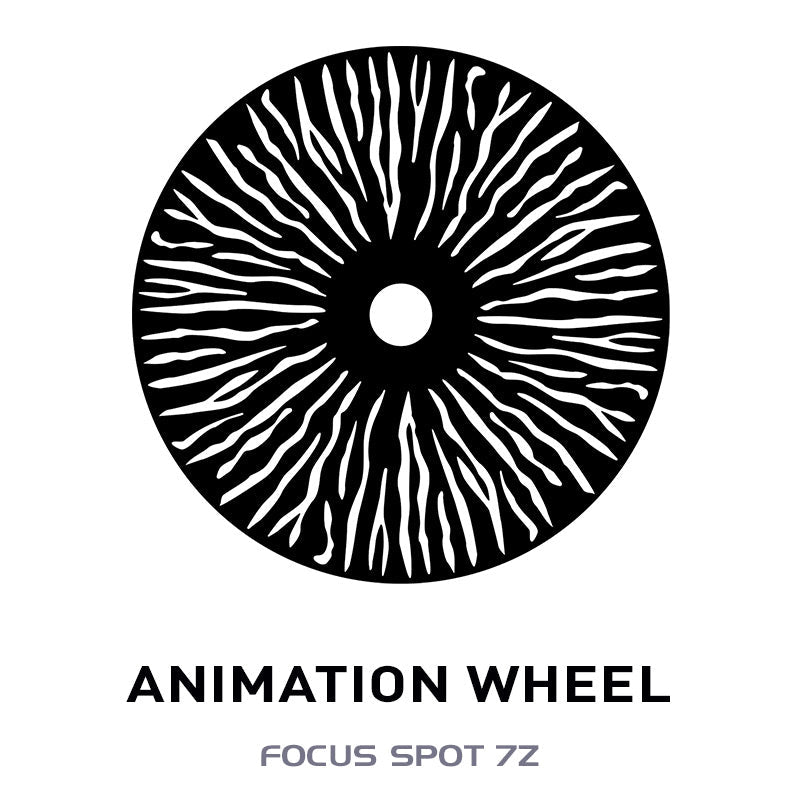

Animation Wheel (Rotatable and Indexable)
Motorized Zoom (6° ~ 48°)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)
COLOR

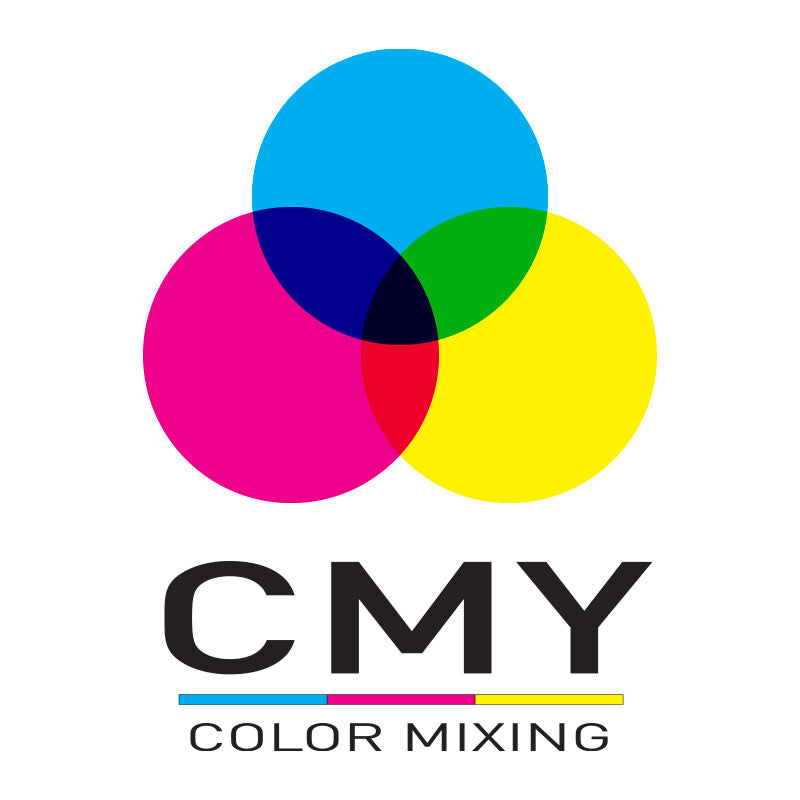

Full CMY color mixing
Variable CTO (2,700K to 8,000K)

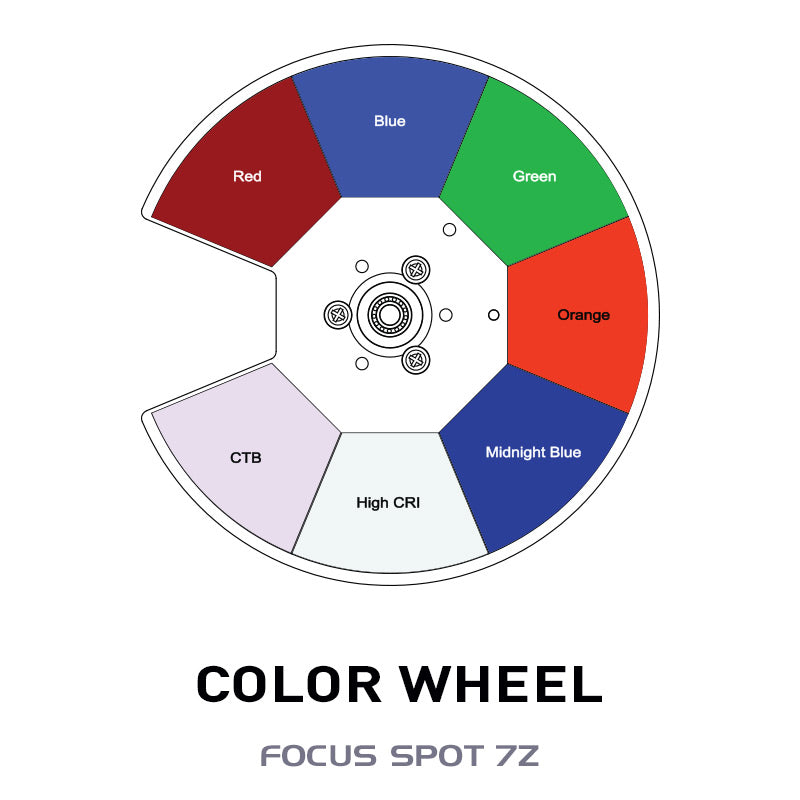

Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
CMY and Color Wheel preset macros
GOBOS
(2) Gobo Wheels

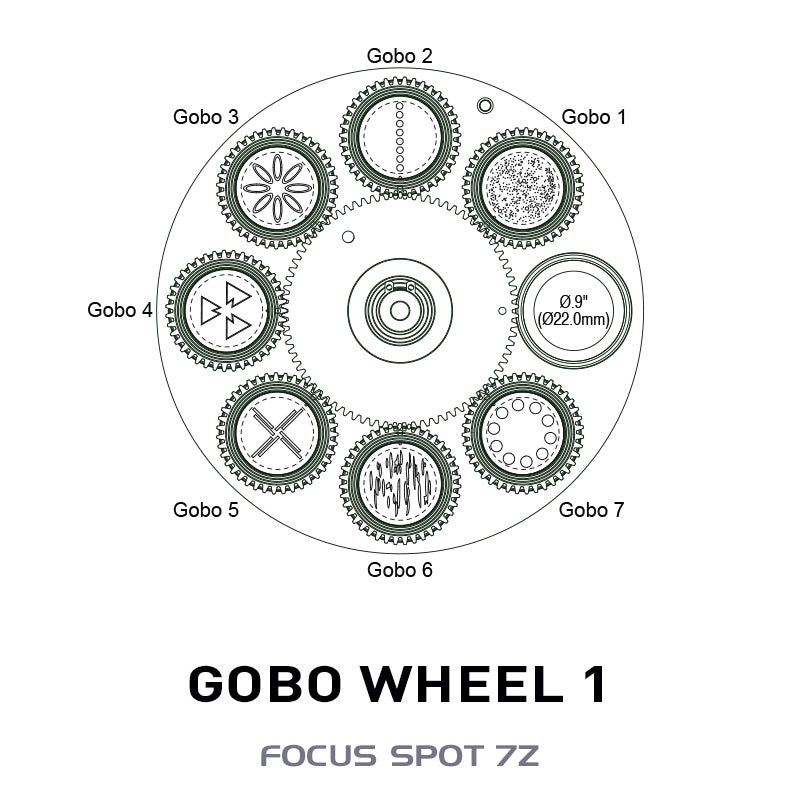

#1 - (7) Interchangeable Rotating-Indexing Glass Gobos

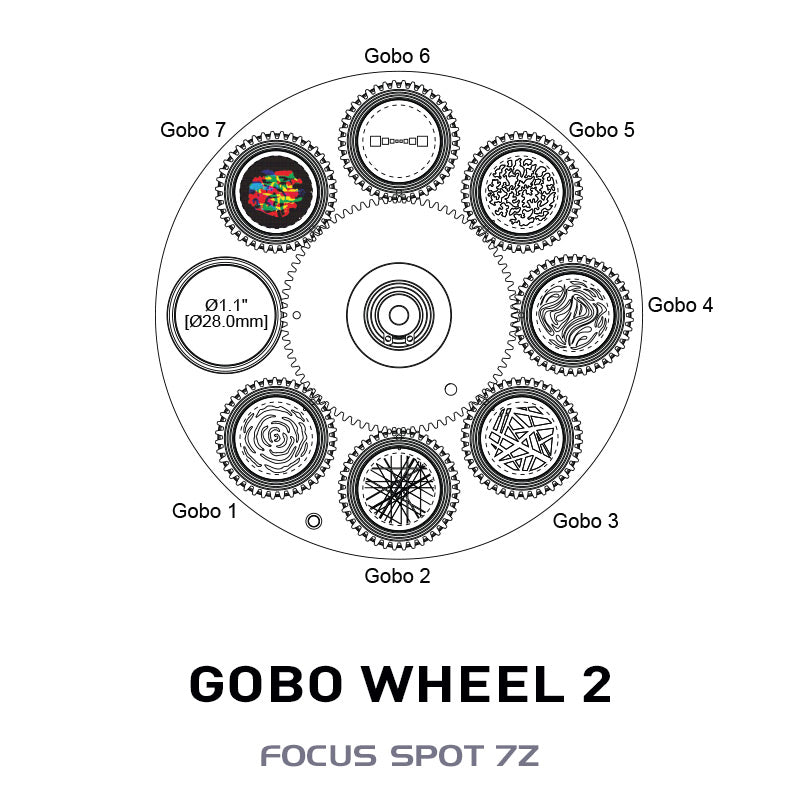

#2 - (7) Interchangeable Rotating-Indexing Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (30 / 34 / 45)
DMX512, ArtNet and sACN protocols
Aria X2 Wireless Management / DMX System
RDM (Remote Device Management) compliant

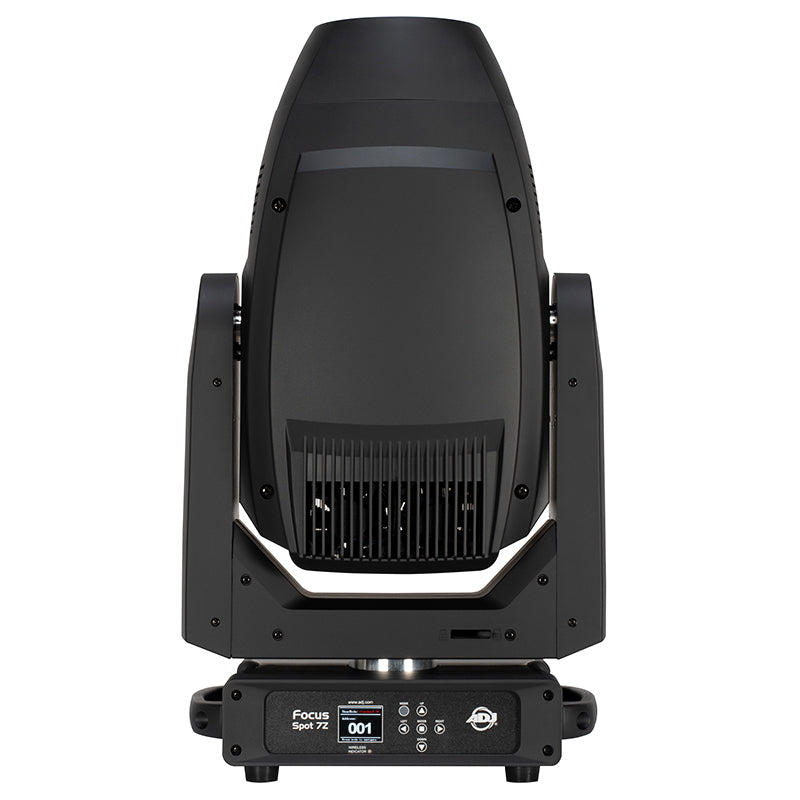

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

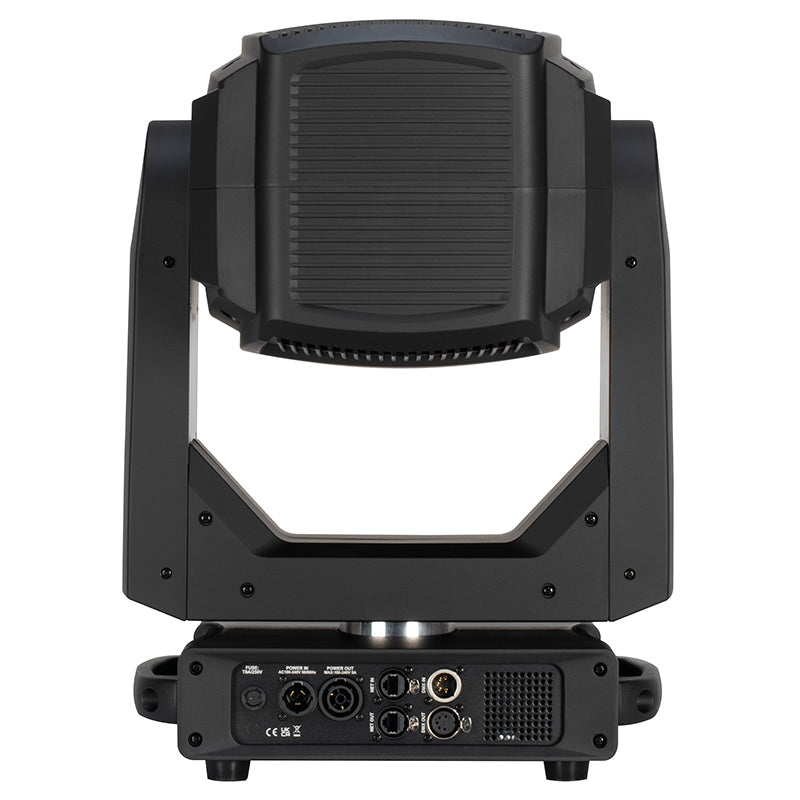

5-pin XLR DMX In/Out
RJ45 connectors In/Out
Locking In/Out power connections
With Wired Digital Communication Network
PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks
SIZE / WEIGHT
Length: 18.8” (477.5mm)
Width: 14.7” (374mm)
Vertical Height: 25.7” (653mm)
Center Spacing: 24.0” (609.6mm)
Weight: 55.3 lbs. (25.1kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 524W
Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
Max housing temperature: 136°F (58°C)
TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60
APPROVALS / RATINGS
CE | ETL Approved (Control #4010765)
IP20
INCLUDED ACCESSORIES
Locking Power cable
180mm Omega brackets (x2)
Specifications and documentation subject to change without notice.
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Focus Spot 7Z - Cut Sheet | 3MB PDF File (Revised July 2023) | Download |
| Focus Spot 7Z - User Manual | User Manual | Download |
| Focus Spot 7Z - DMX Traits | DMX Traits | Download |
| Focus Spot 7Z - 3D Cad | Focus Spot 7Z - 3D Cad | Download |
| ADJ Focus Spot 7Z - 2D Cad | ADJ Focus Spot 7Z - 2D Cad | Download |
| ADJ Focus Spot 7Z - Dimensional Drawing | ADJ Focus Spot 7Z - Dimensional Drawing | Download |
| ADJ Focus Spot 7Z Photometric Data | ADJ Focus Spot 7Z Photometric Data | Download |
| ADJ Focus Spot 7Z IES Files | ADJ Focus Spot 7Z IES Files | Download |
AVAILABLE NOW FROM ADJ USA
Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.
An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).
The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).
Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading spot/wash fixtures in its class.
