XS 400

(Discontinued)
A new revolution in Moving Heads, the XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The ADJ XS 400 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The ADJ XS 400 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The ADJ XS 400 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The ADJ XS 400 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the ADJ XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The XS 400 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the ADJ XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The XS 400 is compatible with the UC IR or Airstream IR wireless controllers.
SKU: XS4400 | UPC: 819730017765
A new revolution in Moving Heads, the ADJ XS 400 is a rotating head Moving Head with four lenses. The head rotates continuously 360-degrees. The XS 400 is compatible with the UC IR or Airstream IR wireless controllers.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

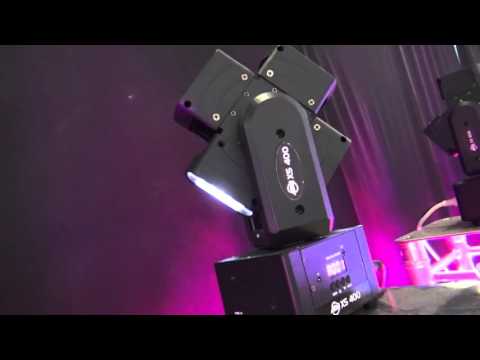

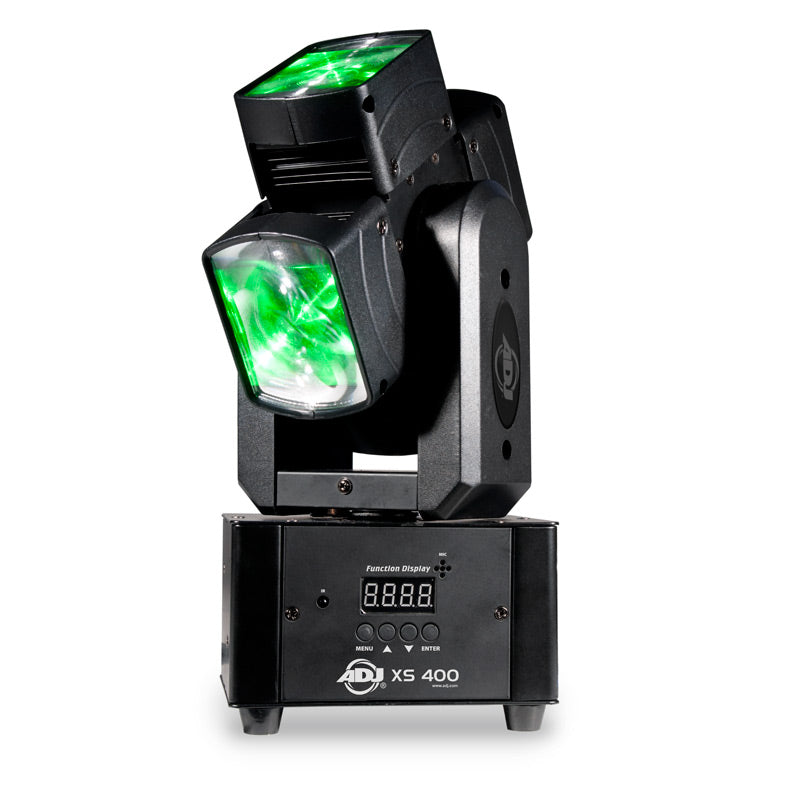

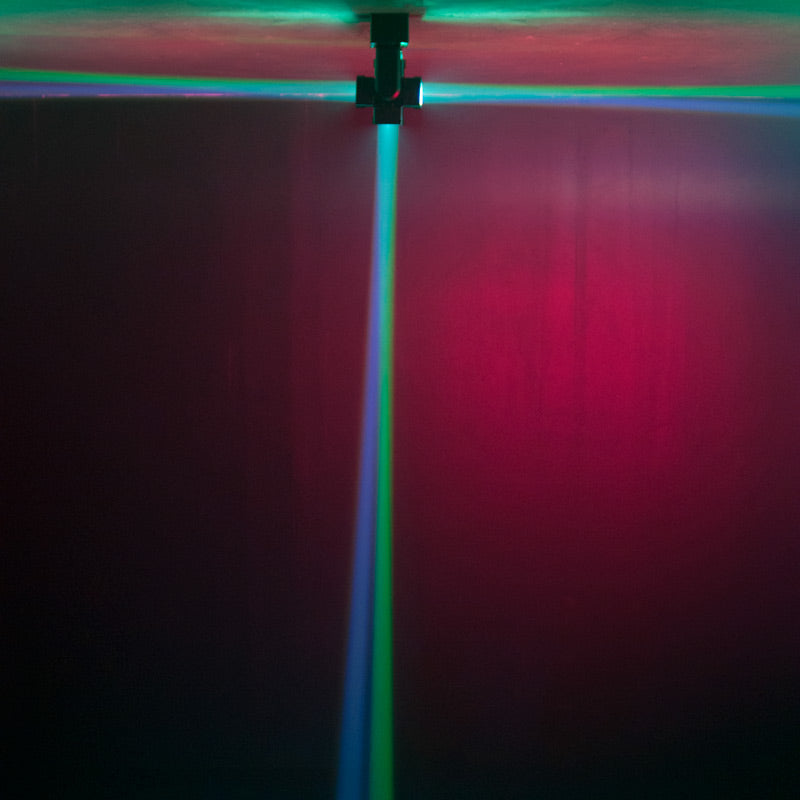

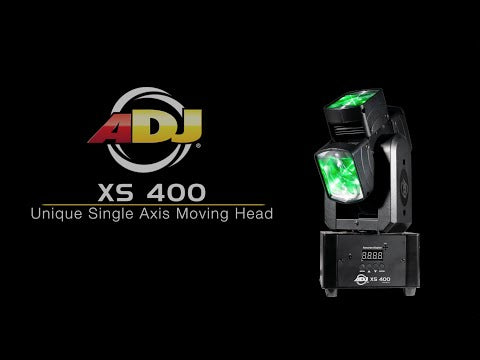

The ADJ XS 400 is a new revolution in moving lights. It features a single Axis head that has continuous 360 degree tilt rotation. The XS 400 utilizes 4 x 10-Watt LED that project sharp beams of light. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers or any mobile production.

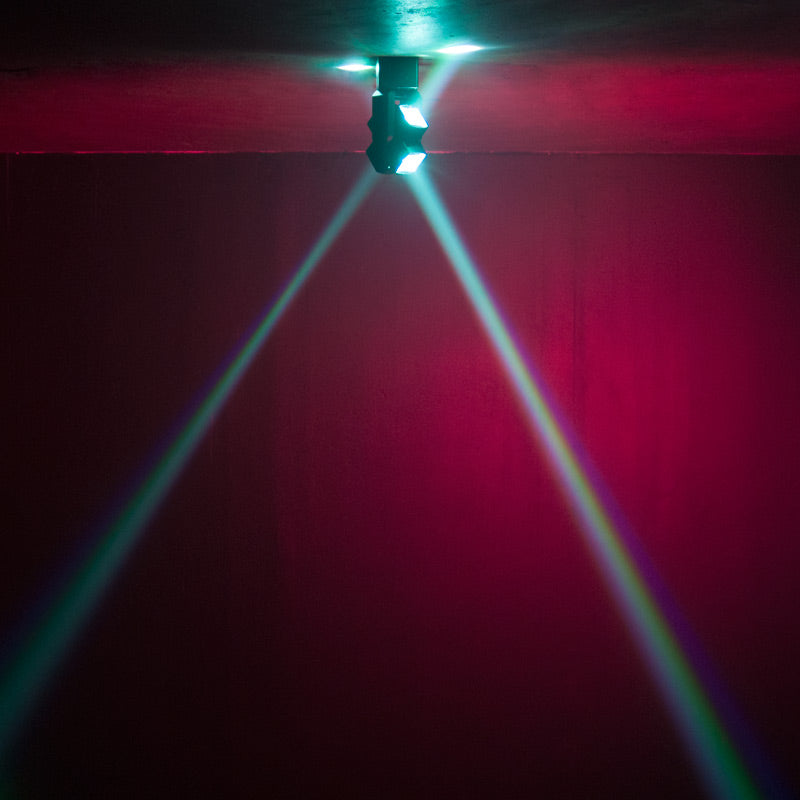

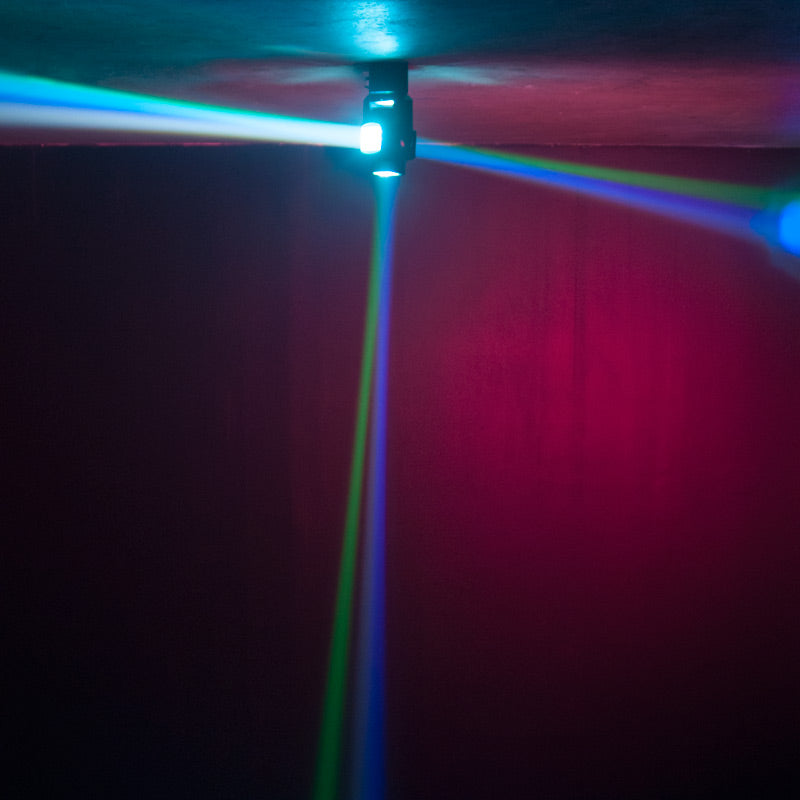

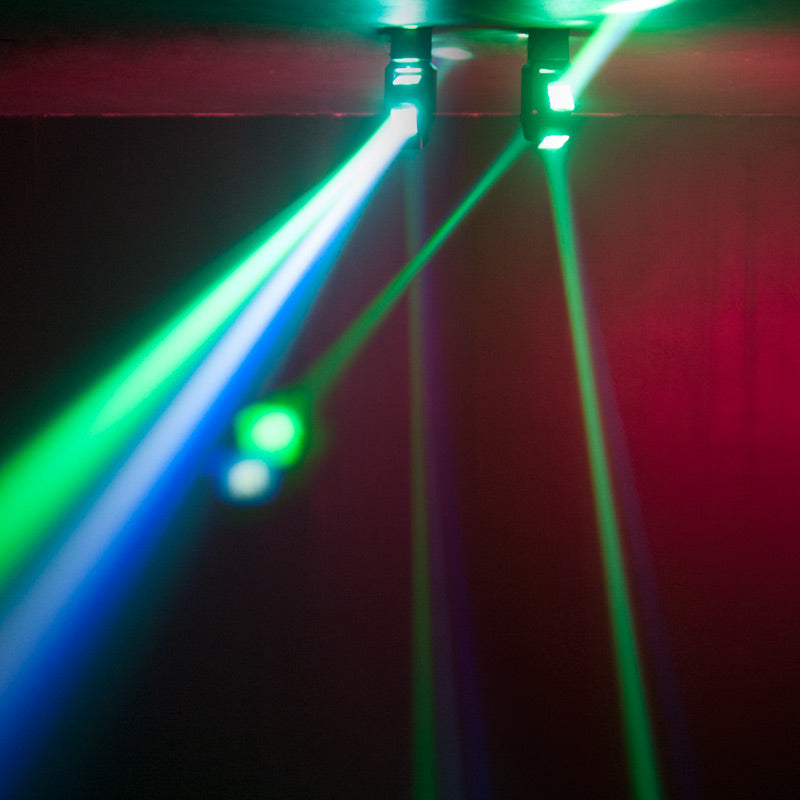

The XS 400 creates the ultimate visual effect that involves fast moving beams and color changes. In show mode you can access 9 different shows or create your own color palette by color mixing the RGBW LEDs via DMX control.



The XS 400 comes with 3 different operating modes; sound active mode with sound sensitivity adjustment, show mode, or DMX control, used to create your own moving light shows or color combinations. The XS 400 can be used as a stand alone unit or in master-slave set up. The XS 400 is UC IR and Airstream IR compatible (Sold Separately) and is used to control various functions for the XS 400.

Specifications

Specifications

• Unique dual axis Moving Heads

• 360-degree continuous tilt rotation (spinning)

• 4 x 10W RGBW (4-in-1) LEDs

• Pixel control of each LED

• RGBW Color Mixing in DMX mode

• 3 Operational modes: DMX, Show Mode & Sound Active

• Stand Alone or Master-slave set up

• 2 DMX Channel modes: 16 Channels & 18 Channels

• 4-Button menu system LED Display making it easy to navigate

• 9 Built-in shows

• 5-degree Beam Angle
• Light output: 5331 LUX @2M; 1242 LUX @2M (5 degree beam)

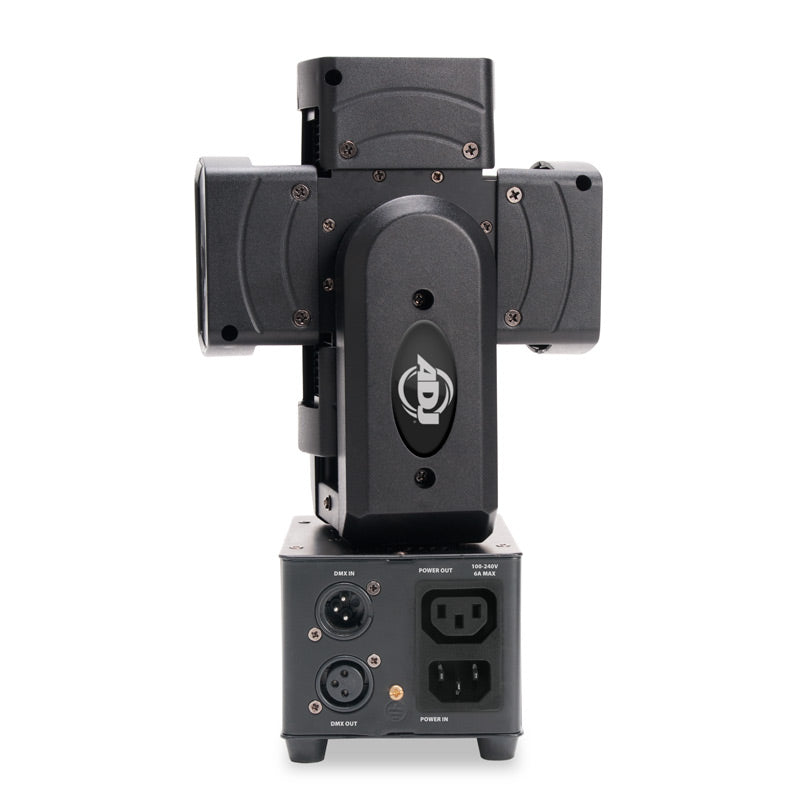

• 3-pin XLR DMX connectors

•  I.E.C. In/Out Connections

•  Lifetime of the LEDs (50,000 hr. rating)

•  Power consumption: 40W total
• Power Cable Length: 1.2m (IEC)

• UC IR wireless controller & Airstream IR wireless App compatible (sold separately)

• IEC In & Out to Daisy chain Power (Connect up to 8 Fixtures)

• Multi-voltage operation: AC 100-240V 50/60Hz  (IEC input only)

• Dimensions (LxWxH): 6.75” x 4.75” x 11.25” / 170 x 124 x 285mm

• Weight: 6 lbs. / 2.5 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
XS Photometric Chart Download
XS 400 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can I get the profile for the xs400 for ShowXpress please?

Hello Bobby,

Thank you for reaching out to us. For profiles email Sergioc@americandj.com Let me know if you have any further questions.

Thanks,
