WM-16HH

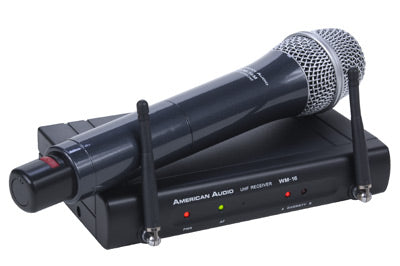

American Audio WM 16HH Wireless Hand Held Microphone System has unidirectional electric condenser unit microphone. It also has a 16 channel single handheld microphone with 16 selectable UHF frequencies. It has a XLR Balanced and unbalanced 1/4 inch mono jack.
Advantage Points: 130

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

This is a wonderful wireless mic that can be used in most any setting, weather it is in a dance club, convention, outdoor event or office meeting.  The American Audio WM 16HH Wireless Hand Held Microphone System has unidirectional electric condenser unit microphone. It also has a 16 channel single hand held microphone with 16 selectable UHF frequencies.  It has a XLR Balanced and unbalanced 1/4 inch mono jack.                                                                                                                                           Consumer Alert: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at http://www.fcc.gov/cgb/wirelessmicrophones .

Specifications

Specifications

  • Hand Held PLL Synthesized UHF Wireless Microphone System
  • Switching diversity (Antenna diversity)
  • Super high sensitivity, low noise transmission and reception
  • Diversity A/B indicators- indicates the antenna has received the RF signal
  • AF indicators the audio signal has been received
  • Uni-directional electret condenser unit microphone
  • 16 selectable UHF frequencies
  • Outputs: XLR balanced & unbalanced 1/4-inch mono jack
  • Wireless range up to 150 ft. (In standard condition)
  • Freq. channel: 682-698MHz
  • S/N ratio more than 94dB
  • On/Off control on mic
  • On & Low Battery LED indicators
  • Includes small screwdriver inside mic to change frequencies
  • Power Supply: DC 12V~18V for receiver
  • Battery: DC3V (2 x 1.5V AA size batteries) or DC2.4V (2 x 1.2V AA size rechargeable batteries) for transmitter
  • Weight (mic & receiver): 0.95 lbs / .43 kgs
  • Dimensions: (Receiver only LxWxH): 6.7”x4.17”x1.26” / 170x106x32mm

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
WM-16HH User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for WM-16HH
