When controlling the WiFLY EXR Hex Par wirelessly, will it also output the DMX data on its DMX out jack?
Hello Sebastian,
Yes, it will send dmx out to the next light you want to dmx. Let me know if you have any further questions.
Thanks,
WiFLY EXR Hex Par
(Discontinued)
SKU: WIF162 | UPC: 819730016997
The WiFLY EXR HEX PAR is a battery powered, WiFLY wireless DMX LED Par with 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing.
Advantage Points: 420
Details
The ADJ WiFLY EXR HEX Par is a compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR HEX PAR.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
Specifications
- Rechargeable Lithium battery powered, with wireless DMX
- Extended range wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver

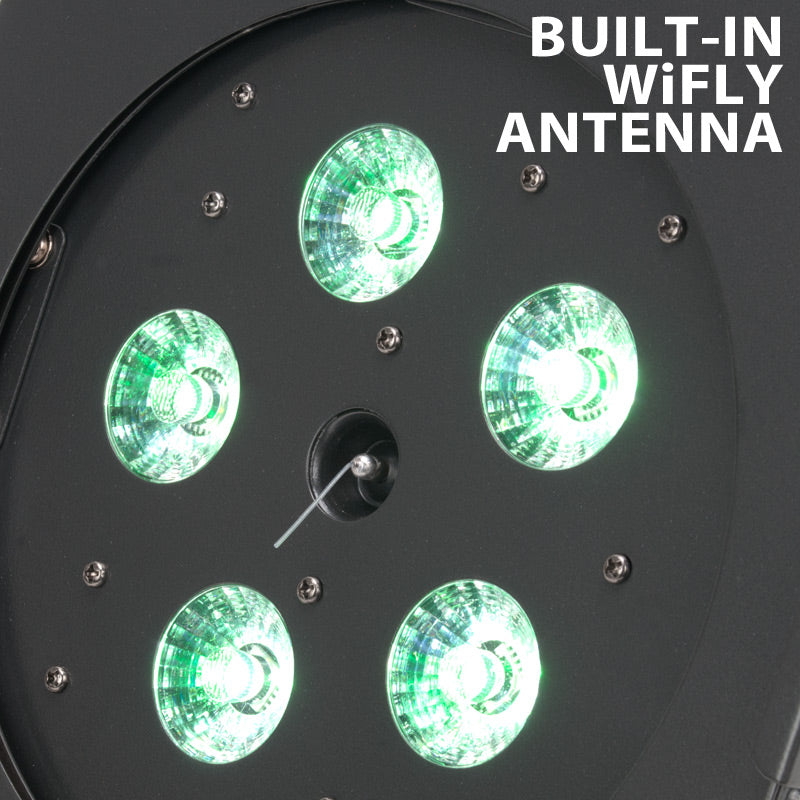

- Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
- Variable RGBWA+UV color mixing offers a smooth, seemingly unlimited color palette - Great for stage or wall washing!
- Compatible with ADJ RFC wireless remote control (sold separately)
- 5 DMX Channel modes: 6, 7, 8, 11 or 12 channel modes
- 5 Operational modes: RGBWA+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled
- 16 Color Change Modes
- 16 Color Fade Modes
- 63 built-in Color Macros
- LED pulse and strobe effect
- Flicker Free Operation
- Refresh Rate: 1KHz
- Electronic Dimming: 0 - 100%
- Beam angle: 40-degree
- DMX linkable via 3-pin or 5-pin DMX cable (In/Out)
- With Wired Digital Communication Network
- 4-button DMX menu display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
- IEC Power AC IN/OUT outlets on rear to daisy chain power (up to 10 units)
- Run all night – No duty cycle
- LED Source: 5x 10-Watt Hex LEDs (6-in-1 RGBWA+UV- Red, Green, Blue, White, Amber, & UV LEDs, rated at approximately 50,000 hrs)
- Light output: 866 LUX @ 2M; 206 LUX @ 4M (40-degree beam)
- Battery Charge Time: 5 Hours (With POWER switch Off)
- Battery Life: 6 Hours Full On, 10.5 Hours in Energy Save Mode (With Full Charge)
- Energy Saving Mode
- Power Draw: 58W total (All LED's @ Full On)
- Power Cable Length: 1.8m (IEC)
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Dimensions (LxWxH): 10.5” x 9.5” x 6.5” / 265 x 240 x 164mm
- Weight: 12 lbs. / 4.42kg.
Battery Specifications
- Battery Charge Time: 5 Hours (Load Switch Off)
- Battery Life: 6 Hours Full On (Full Charge), 10.5 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- Battery Type: Fixed Lithium Battery
- Battery Energy: 227.92WH (Watt Hours)
- Battery Weight: 2.8lbs. / 1.31kg
- Battery Voltage: 25.9V
- Battery Capacity: 8.8AH
- Total Lithium Ion Cells: 28pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Videos
There are currently no videos available for this product.
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| WiFLY EXR Hex Par User Manual | User Manual | Download |
