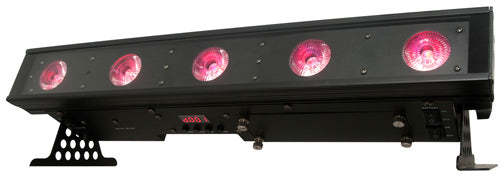

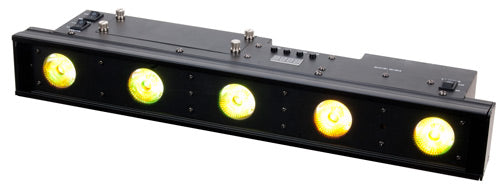

WiFLY Bar QA5

SKU: WIF070 | UPC: 819730010117
The ADJ WiFLY Bar QA5 allows you to create rich hues and smooth color mixing for stage or wall washing. You can get a wide range of colors on your wall and set the mood to whatever you wish. Perfect for those parts of the stage or club where wiring and other ways for power are inconvenient or just unsafe.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ WiFLY Bar QA5 is a Battery Powered Wireless Quad LED Linear Fixture with a built-in ADJ WiFLY Transceiver with wireless DMX. The rechargeable lithium battery is long lasting and safe to use. With a full charge you will receive up to six hours of life with five hours needed to fully charge it back to full life.

The WiFLY Bar QA5 allows you to create rich hues and smooth color mixing for stage or wall washing. You can get a wide range of colors on your wall and set the mood to whatever you wish. The fixture uses LEDs rated at 50,000 hours with a maximum power draw of 58W. The fixture operates on AC or DC power.

The Transceiver will communicate with any remote for up to 400 feet in an open line of sight. You can run the device in six operational modes, Auto with a Program Run Mode, Sound Active Mode, RGBA Manual Control Mode, Static Color Mode, Slave Mode, and a DMX-512 Mode. Light up an entire wall with rays of light in a seemingly unlimited color palette. Perfect for those parts of the stage or club where wiring and other ways for power are inconvenient or just unsafe.

Specifications

Specifications

  •  Rechargeable Lithium battery powered, with wireless DMX, 20-inch / 0.502 meter ultra bright, indoor LED Linear Fixture with 5 x 5W Ultra bright QUAD (RGBA: 4-IN-1) LEDs
  •  6 DMX Channels: 4, 6, 7, 8, 9 or 22 channels
  •  6 operational modes: Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode, Static Color Mode, Slave Mode and DMX-512 Mode
  •  Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  •  Rechargeable Lithium battery built-in to fixture
  •  Flicker Free
  •  Refresh Rate: 1KHz
  •  48 built-in Color Macros
  •  LED pulse & strobe effect
  •  DMX-512 Protocol
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 25-degree
  •  Linkable via 3-pin XLR cable

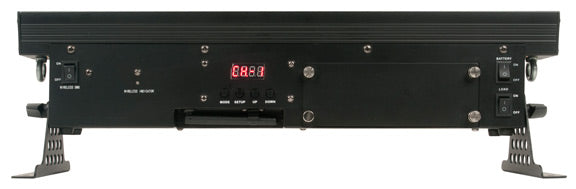

  •  4-button LED display on rear panel

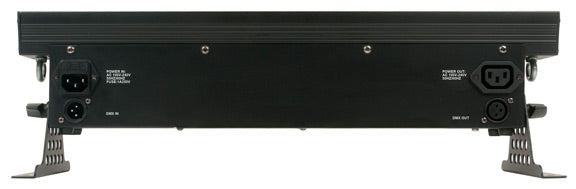

  •  IEC AC Power In/Out on rear to daisy chain power (Up to 10 units)
  •  Includes built-in ADJ’s WiFly Transceiver Wireless DMX
  •  Compatible with ADJ RFC remote control (sold separately)
  •  Includes mounting brackets to mount on a wall or set on the ground
  •  Long life LEDs (Rated at 50,000 hrs.)
  • Light output: 1100 LUX @2M; 300 LUX @4M (25-Degree)
  •  Very low heat output
  •  Run all night – No duty cycle
  •  Rechargeable Lithium battery life: 6 hours full on (with a full charge); 5 hours charge time
  •  Power Draw: 58W max
  •  Multi-voltage Operation: AC 100V/60Hz - 240V/50Hz
  • Power Cable Length: 1.8m (IEC)
  •  Dimensions (LxWxH): 20” x 6” x 6” / 502 x 150 x 152mm
  •  Weight: 9 lbs. / 4 kg.
  • ETL Approved
Battery Specifications
  • Battery Charge Time: 5.5 Hours (Load Switch Off)
  • Battery Life: 6 Hours Full On (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 146.52WH (Watt Hours)
  • Battery Weight: 1.8lbs. / 0.84kg
  • Battery Voltage: 22.2V
  • Battery Capacity: 6.6AH
  • Total Lithium Ion Cells: 18pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
WiFly Bar QA5 User Manual Download
WiFly Bar QA5 User Manual Rev. 8/15 Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for WiFLY Bar QA5
