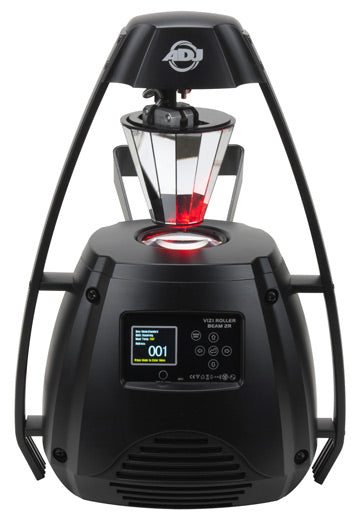

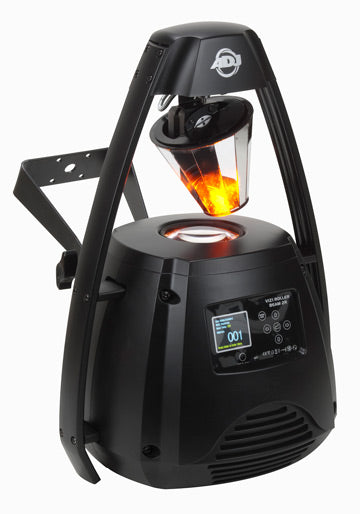

Vizi Roller Beam 2R

SKU: VIZ155 | UPC: 819730010414
ADJ's Vizi Roller Beam 2R uses Philips® Platinum 2R bulb technology to create low power, high output beams from its unique barrel mirror. Great for creating swirling, spiraling beams with 14 colors and 8 gobos, this effect is great for any event!

Advantage Points: 1500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


When ADJ joins forces with Philips®, the results are mind-blowing! The Vizi Roller Beam 2R, part of ADJ's Vizi Series Intelligent Fixtures, is a remarkably DMX barrel scanner powered by Philips® Platinum 2R lamp technology. With this unique barrel mirror unit, you can send cycling, swirling, pulsating beams of light throughout the dancehall. Boasting 360 degree coverage with 14 colors (+ white) and 8 gobos, the Vizi Roller Beam 2R is a definitely crowd pleaser.

What makes this effect truly remarkable is the eco-friendly 135W Platinum 2R technology from Philips®, which gives output like a 250W feature with a maximum draw of only 210W. The Vizi Beam Hybrid 2R consumes less power and is much faster than earlier ADJ moving heads because it is lighter weight and more compact than others in its class. What that means for you is that this fixture is easier to move, easier to set-up, and much more inexpensive to operate night after night, show after show, party after party.

From the slow drift of subdued fireflies to the strobing, shocking spirals of red and orange, the Vizi Roller Beam 2R adds depth and dimension to whatever performance you want to use it for. This is a definite crowd pleasure, and a must-have addition to any lighting array.



  •  Compact 360-degree Barrel Mirrored Scanner with a bright Philips® Platinum MSD 2R source
  •  3 Operational modes: DMX controller, Master/Slave & Sound Active
  •  3 DMX Channel modes (13, 11 or 18 Ch.)
  •  7 Built-in programs
  •  13 colors + white, with two direction rainbow effect
  •  8 Fixed Gobo Patterns + 6 Spot patterns @ different beam angles from VNSP to NSP
  •  Independent gobo and color wheels
  •  Gobo scroll mode
  •  360-degree coverage (4-degree beam angle)
  •  Auto X-Y repositioning

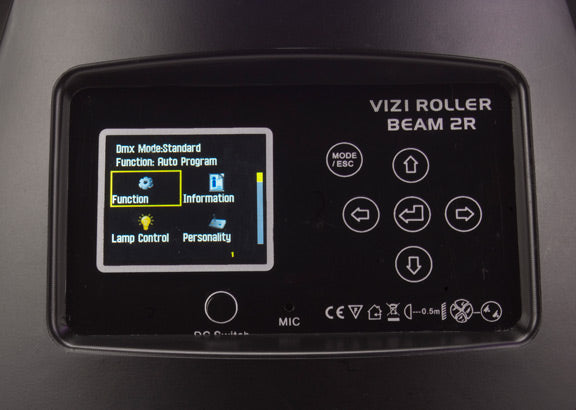

  •  6-Button menu system LED color display making it easy to navigate
  •  Display can be reversed by 180°to fit different installation positions
  •  Gobo Rotate, Shake and indexing effect
  •  5-Facet Prism
  •  16 Gobo / Prism macros
  •  315° pan / 90° tilt (8-bit) + 360° continuous barrel rotation
  •  16-bit fine pan/tilt control
  •  Shutter: Strobe & Pulse effect; random strobe slow to fast
  •  Electronic Dimming: 0% - 100%
  •  Fan Cooled
  •  Stepper motors with micro stepping
  •  Power consumption: 210W
  •  3-pin XLR In/Out
  •  Multi-voltage Operation: 100-240V, 50Hz/60Hz
  • Power Cable Length: 1.8M (IEC)
  •  Lamp: Philips® MSD Platinum 2R discharge 135W, 8,000°K – 6,000 hr. average long life
  • Light Output: 49390 LUX @10M (4-degree beam); 21320 LUX @15M
  •  Dimensions (LxWxH): 17.5” x 12” x 9.25”/ 439.7x300x233.4mm
  •  Weight: 16.75 lbs. / 7.5kgs
  • ETL Approved





The following downloads are available for this product:

Title Description
Vizi Roller Beam 2R User Manual User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Vizi Roller Beam 2R
