Vizi LED Spot

SKU: VIZ480 | UPC: 640282001267

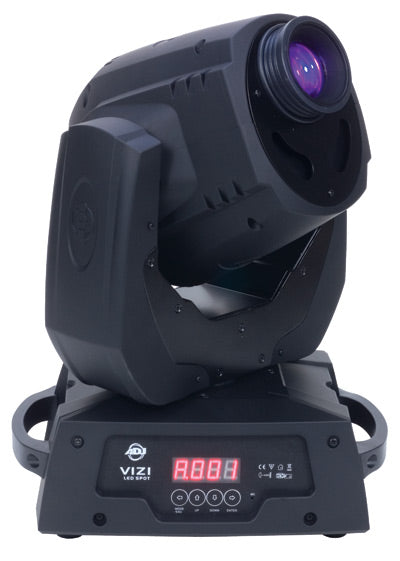

This Moving Head fixture creates all the color, gobo, and prism combinations you need at a fraction of the power draw. 8 dichroic colors + white, 7 rotating gobos + spot, projected through 3-facet, 5-facet, or infinite prisms. You get all those features and more in a lightweight compact unit sporting an 88W power draw and 50,000 hour rated LEDs.
Advantage Points: 750

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


Get the party started and your crowd dancing with the Vizi LED Spot Moving Head from ADJ. The crowd will be wowed by the color and gobo combinations that you can produce, while the 3-facet, 5-facet, and infinite prisms will provide awesome visual effects. Have no worries about running up the electricity bill because this fantastic lighting fixture produces all these wondrous light show productions for a fraction of the power, thanks to long life LED technology.

Lightweight and compact compared to others in its class, there will be no trouble hauling this excellent fixture wherever you need it to go, and installing it when you get there. All thanks to the easy to use 4-button menu and four operational modes (DMX, Master/Slave, Stand Alone & Sound Active). Have the Vizi LED Spot up and running wherever you need to create a light entertainment experience that will be sure to dazzle a crowd.



  •   High output DMX-512 Moving Head with 22W LED source
  •  RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
  •  4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
  •  12 DMX channels
  •  Gobo scroll mode

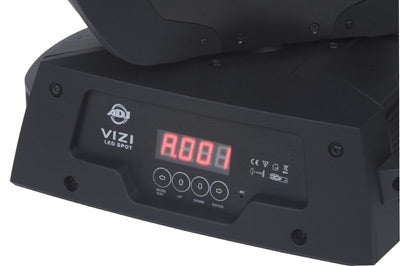

  •  LED DMX 4-Button menu system
  •  14-degree beam angle
  •  Auto X-Y repositioning
  •  8 dichroic colors + white (includes UV)
  •  7 rotating gobos + spot (interchangeable: 5x metal, 2x glass)
  •  Prism Wheel with macros: 3-facet prism, 5-facet prism & Infinite Prism
  •  Gobo Shake effect
  •  Gobo Indexing
  •  Gobo size: 27mm (22mm viewable gobo size)
  •  Independent gobo and color wheels
  •  Pan: 540-degree standard (630-degree optional)
  •  Tilt: 270-degree
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Strobe effect
  •  Flicker-free operation
  •  Manual Focus
  •  Stepper motors with micro stepping
  •  Hanging bracket included

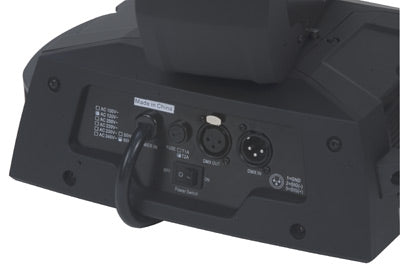

  •  3-pin XLR In/Out
  •  LUX: 12950 @ 1M; 2480 @ 2M; 1231 @ 3M; 486 @ 5M
  •  Multi-voltage Operation: 100-240V, 50Hz/60Hz
  •  Power Consumption: 88W max
  •  Lamp: 22W white LED source, 6500°K (50,000 hour rated)
  •  Dimensions (LxWxH): 12”x16.5”x8.5” / 303x419x214mm
  •  Weight: 20 lbs. / 9 kg.
  •  ETL approved





The following downloads are available for this product:

Title Description
Vizi LED Spot User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

So I have two of these lights and i'm having a problem with one. One of them is a whole lot dimmer than the other one. Like shinning across the room you can barely see one and the other is perfect. This also without DMX this is just from start up. I need quick help please reply ASAP thanks!

Call support at 800-322-6337 and please have your unit handy when you call.
