Vizi Hex Wash7

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX
SKU: VIZ614 | UPC: 819730019745
The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-board.
Advantage Points: 850

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $849.99

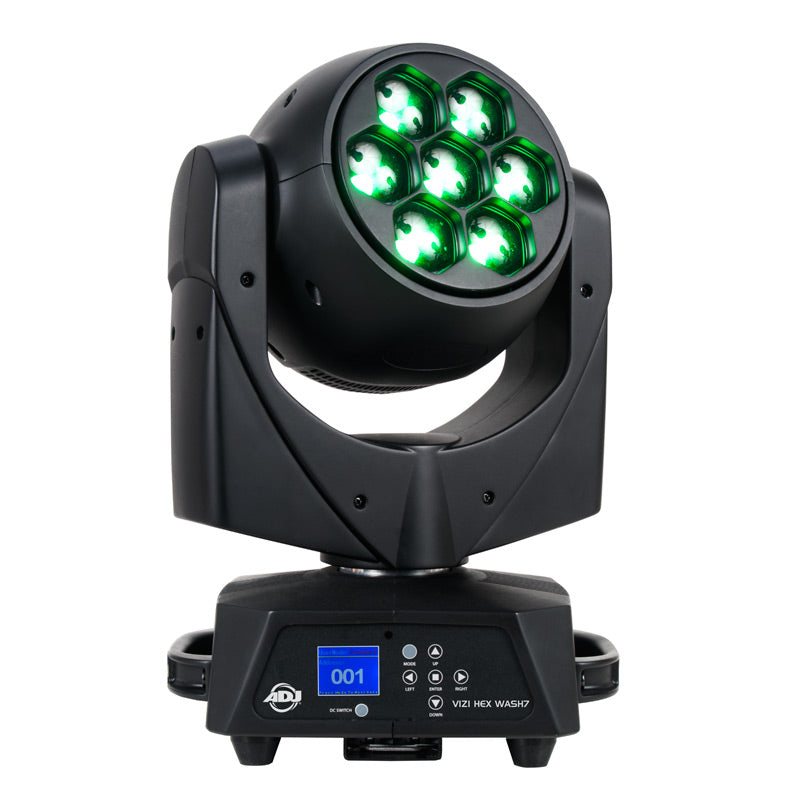

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.



The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and powerCON In/Out power linking. Plus, this fixture is equipped with ADJ's WiFLY wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.

Learn more about the Vizi Hex Wash7 in this product spotlight blog: http://tinyurl.com/hv8x5td

Specifications

Specifications

Optical

• Light Source: 7 (15) Watt HEX RGBWA+UV LED

• Life Expectancy: 50,000 hrs

• Beam Angle: 5~55-degree

• Refresh Rate: 1.2KHz

Specifications

• Pan & Tilt Range: 630-degree (540 Optional) /Tilt 270-degree

• Colors: 64 built-in color macros

• Dimming: Electronic

• Zoom: Motorized 5°-55°

• Strobe: Electronic

• Dimmer Curves: 5 dimmer curves

• Operational Modes: 2 modes Program/ DMX

• Flicker Free

• Wifly EXR DMX Range: 2,500 feet (line of site)

• Wifly On/Off

• Demensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm

• Weight: 19 lbs./8.5 kgs

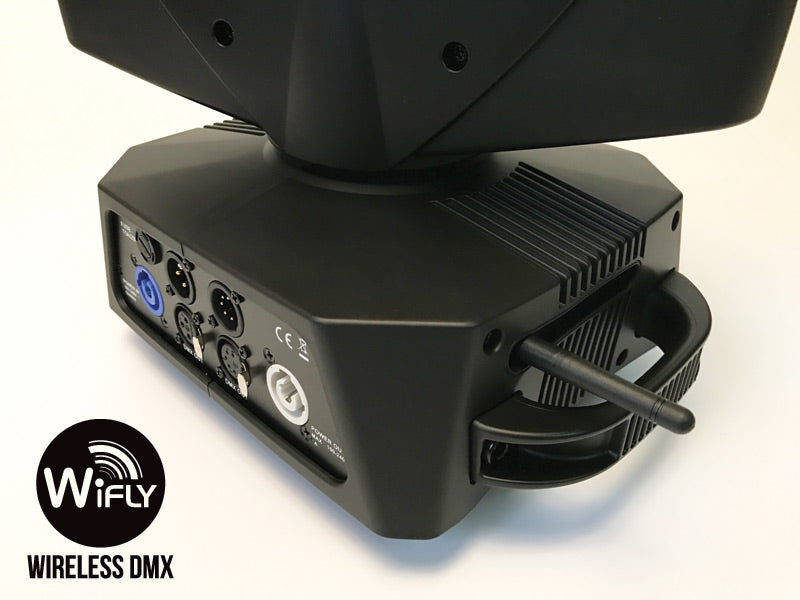

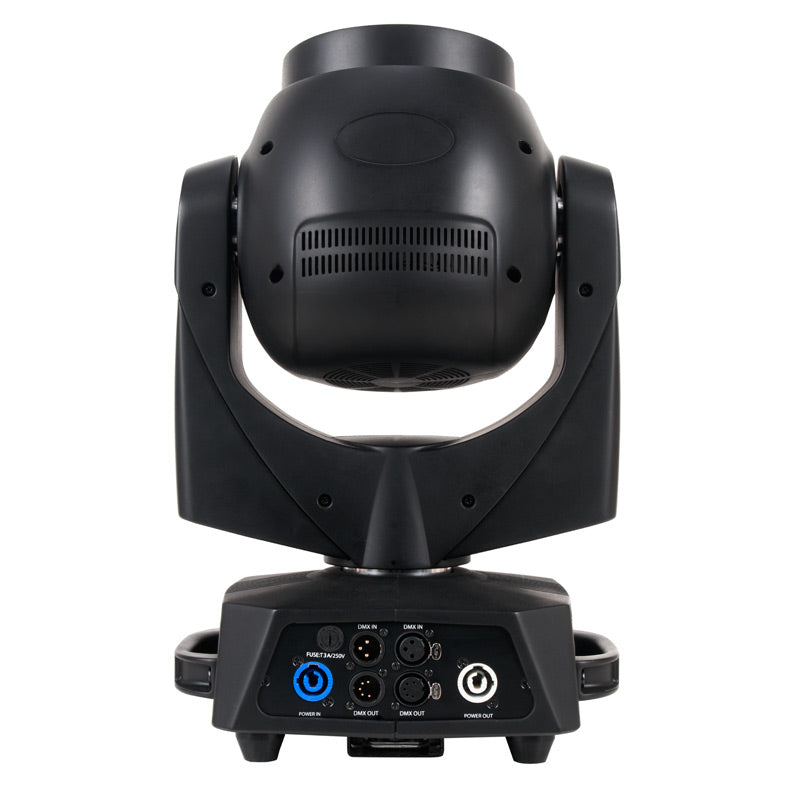

Connections

• Power Input: powerCON

• Power Pass through: powerCON In/Out

• Data: 3 & 5-pin In/Out DMX

Control

• DMX Modes: 2

• On Board: LCD menu 180 degree inverse

• 16 Selectable WiFLY Address Channels


Certifications



• Certifications: ETL Approved

Electrical

• Input Voltage: 100~230 V, 50 Hz./60Hz

• Power draw @120V: 137W

• Power draw @ 220V:

Whats Included

• omega bracket

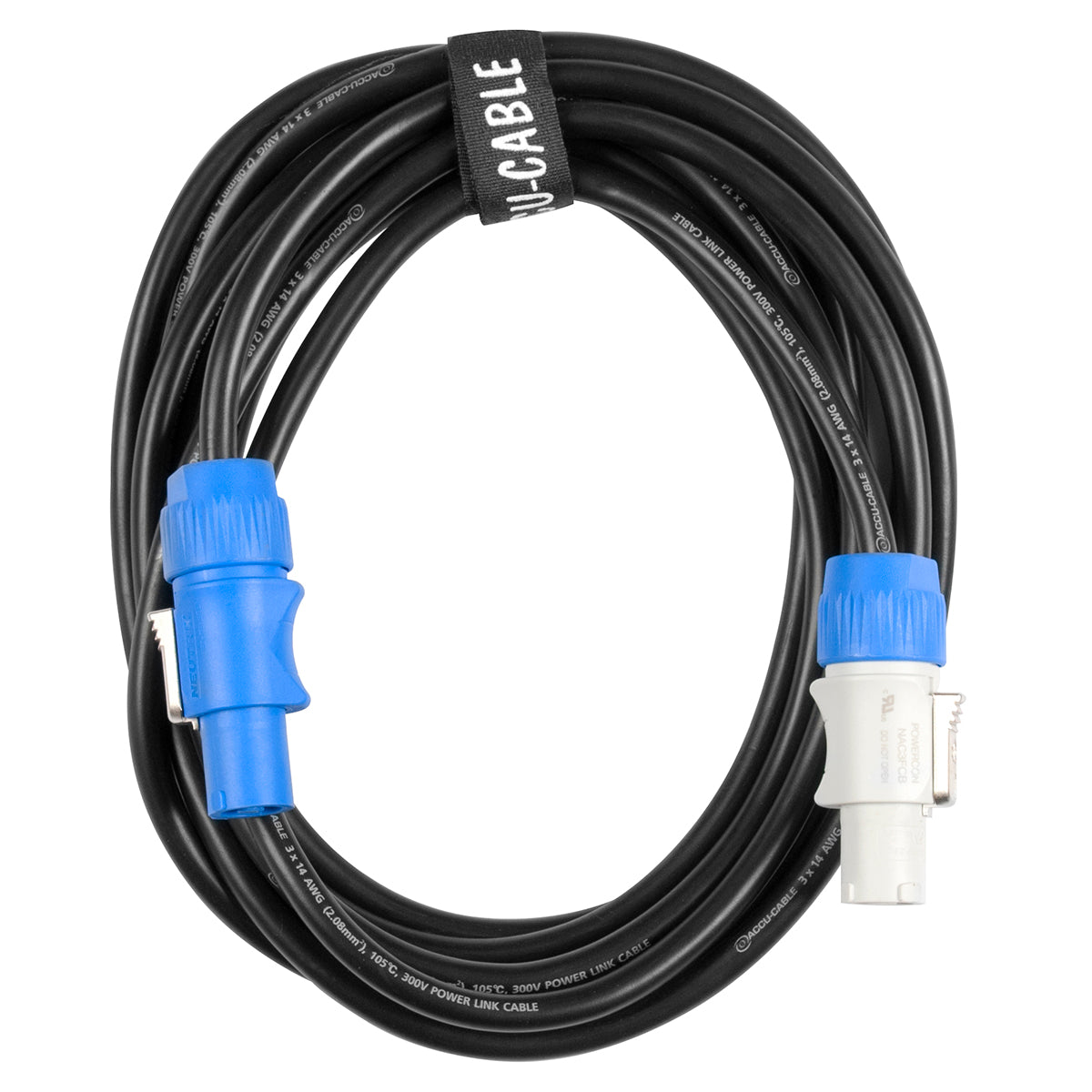

• powerCON cable

• Manual



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Hex Wash7 CAD Drawing Download
Vizi Hex Wash7 User Manual Download
Vizi Hex Wash7 Photometric Test Reports Photometric Test Reports Download
Vizi Hex Wash7 Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Vizi Hex Wash7
