VF Volcano

SKU: VFC042 | UPC: 819730016546
The ADJ VF Volcano is a compact and affordable vertical Fog Machine that mixes color into the fog from 6x 3-Watt RGB LEDs
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

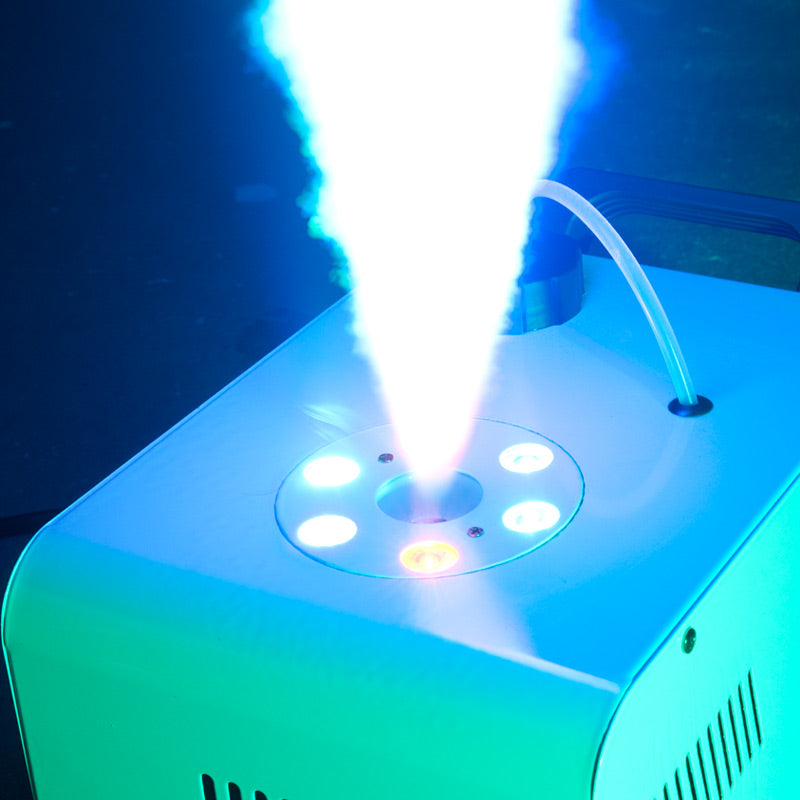

The ADJ VF Volcano  is a compact and affordable vertical Fog Machine that mixes color into the fog from 6x 3-Watt RGB LEDs.  With new advances in ADJ’s heater technology, the VF Volcano produces a dry even blast of fog over 15 feet (4.5 meters) in the air. It has a special heating element design that uses an oil type transmission throughout the pipeline to prevent clogging. It is also equipped with a high performance Italian pump system for optimum output. ADJ’s Electronic Thermo Sensing (ETS) technology is on-board to maintain optimum heat levels with short warm-up time between fog blasts.

The VF Volcano should only be used in a position so fog is shooting upright. The ADJ VFV-WR wireless remote comes included with the VF Volcano.

Specifications

Specifications

• 750W professional vertical Fog Machine with 6 x 3-Watt LEDs

• High performance pump for optimum output

• ADJ’s Electronic Thermo Sensing (ETS) technology

• Special heating element design that uses an oil type transmission pipeline system to minimize the possibility clogging

• 2 Operational modes­­­­­­: Manual & Remote Control

• Convenient carrying handle

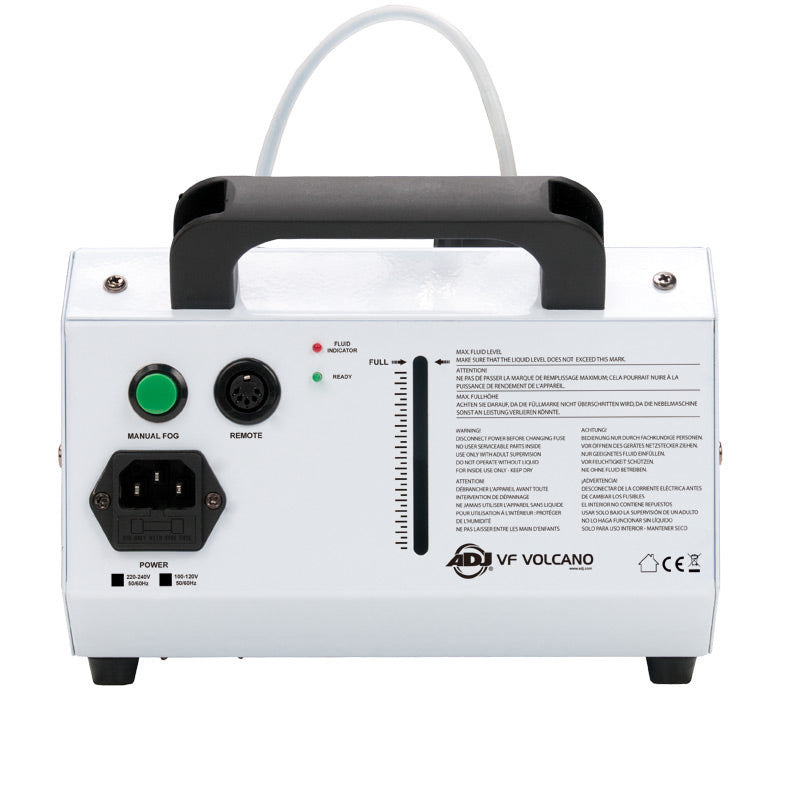

• Low Fluid LED Indicator on rear
• Warm-up time: 6 min

• Output time: 8 seconds max

• Re heat interval: 9.3 secondsAverage )
• Second Fog Shooting Time: 9 Seconds

• External fog fluid tank: 1 Liter
• Fog Output: 8,000 (cu.ft/min)

• Fluid consumption:14ml/min

• Included Accessory: VFV-WR wireless remote

• Power Connection: IEC AC In

• Only use high quality, water-based fog fluid

• Light Source: 6 x 3-Watt LEDs, (2 Red, 2 Green, & 2 Blue LEDs)

• Heater: 750W

• Voltage: AC 120V or 240 50/60Hz (non switching)

• Power Consumption: 770W
• Fluid consumption: 14ml/min

• Dimensions (LxWxH): 13” x 8.25” x 7” / 327 x 212 x 177mm

• Weight: 7.4 lbs. / 3.36 kg.

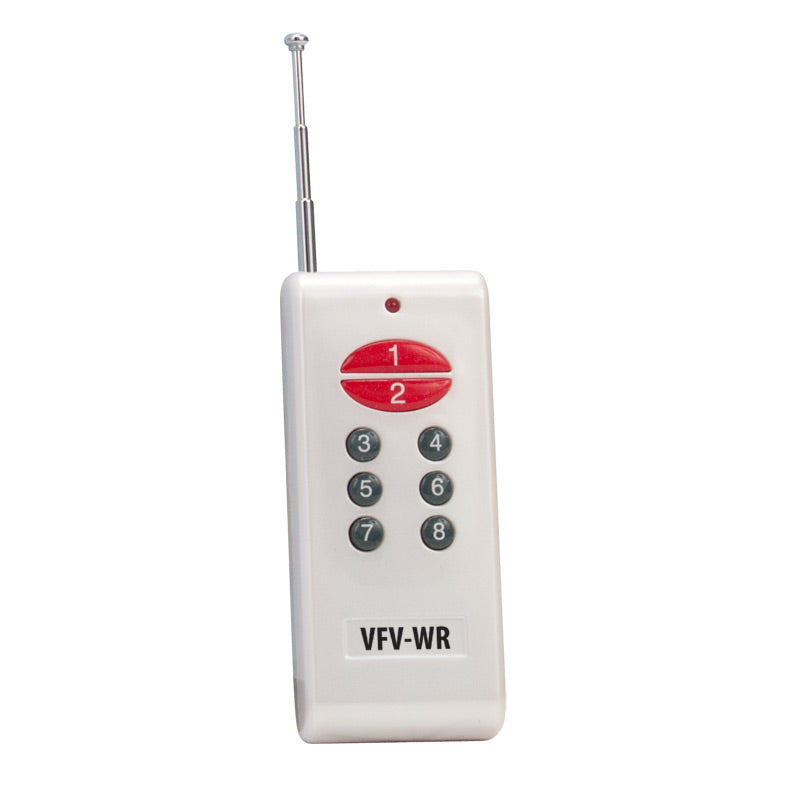

VFV-WR Remote Functions:

Button 1 - Fog + Red LEDs
Button 2 - Fog + Green LEDs
Button 3 - Fog + Blue LEDs
Button 4 - Fog + Red, Green, & Blue LEDs
Button 5 - Fog + Red & Green LEDs
Button 6 - Fog + Red & Blue LEDs
Button 7 - Fog + Green & Blue LEDs
Button 8 - Fog + Red, Green, & Blue LEDs + Strobing



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
VF Volcano User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Brand new unit- right from the start with the tank full of juce "LOW FLUID INDICATOR" flashing RED,unit is not becoming Ready to blast fog.Is it defective or is it a special procedure(not written in instructions manual) to charge the fluid pump? I'm not familiar with fog machines.

Hello Victor,

Thank you for reaching out to us. Sounds like you need to contact our tech support. Here is their contact info. Email: service@americandj.com Phone: (323) 582-2650

Thanks,
