Ultra Kling Bar 18

SKU: ULT538 | UPC: 819730011091

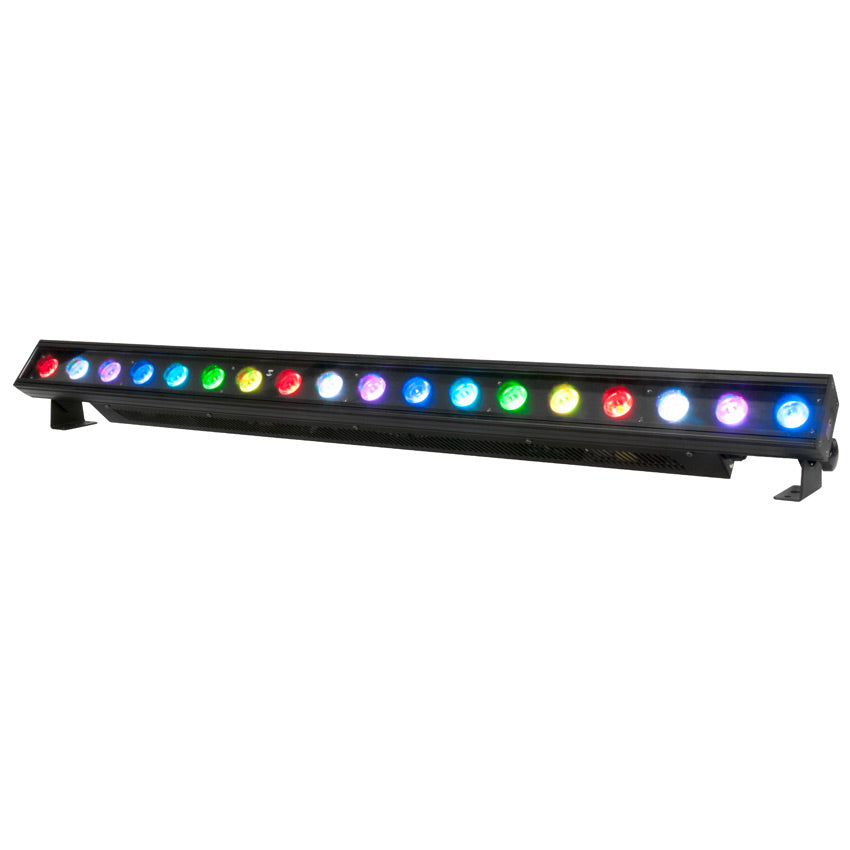

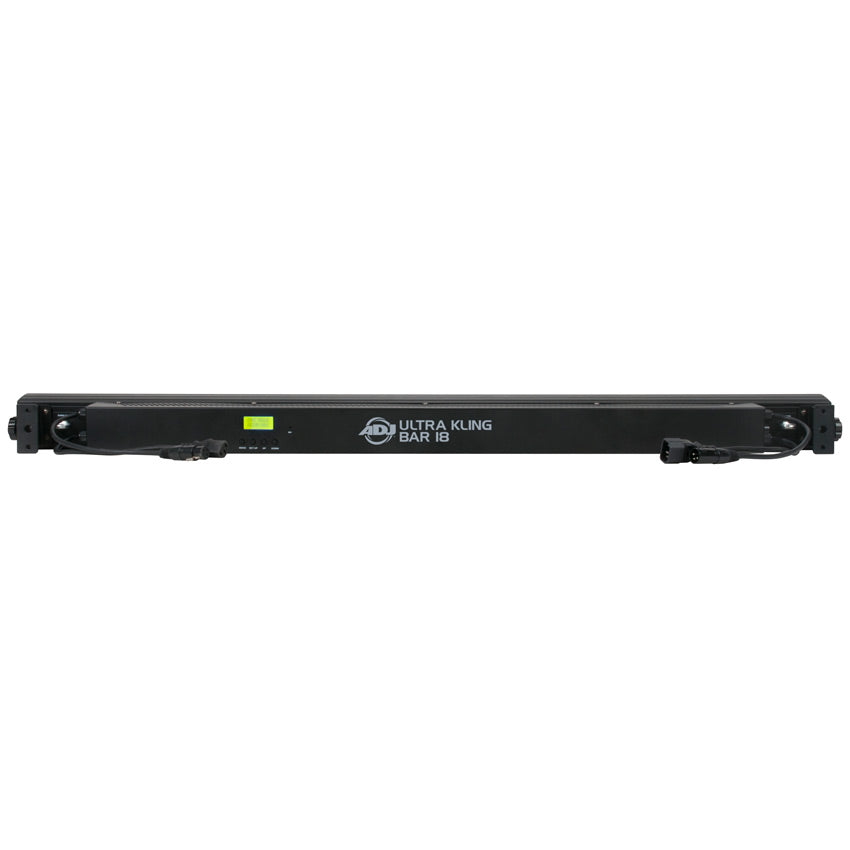

The ADJ Ultra Kling Bar 18 is a 1-meter linear fixture with 18x 3-Watt TRI LEDs. It features individual pixel control allowing for this product to be used in conjunction with Arkaos Kling-Net software to project low-res video across one or multiple fixtures. It may also be used as a traditional linear wash for uplighting and stage lighting utilizing 5 operational modes, 7 DMX channel modes, 14 built-in programs and 32 built-in color macros.
Advantage Points: 450

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Ultra Kling Bar 18 is a 1-meter linear fixture with 18x 3-Watt TRI LEDs. It features individual pixel control allowing for this product to be used in conjunction with Arkaos Kling-Net software to project low-res video across one or multiple fixtures. The result is a stunning video wall that produces pure lighting excitement at a permanent install such as a nightclub, bar, lounge, restaurant or inside a building.

 The Ultra Kling Bar 18 may also be used as a traditional linear wash for uplighting and stage lighting utilizing 5 operational modes, 7 DMX channel modes, 14 built-in programs and 32 built-in color macros.

Specifications

Specifications

  • 1 Meter, 18x 3W Tri LEDs Pixel Bar
  • 5 Operational Modes
  • 7 DMX Channel Modes
  • Built-In Programs & Color Macros
  • Electronic Dimming 0-100%
  • Kling-Net & Art-Net Control available
  • Individual Pixel Control
  • Light Source: 18 x 3W TRI LEDs, (Rated at approximately 50,000 hours)
  • Operational Mode: 5 - DMX Controlled / Sound Active / Net Control / Dimmer / Auto Run
  • Beam Angle: 40-Degrees
  • Luminance: 393 @ 3M at 40°
  • Kling Net Control: Yes
  • Art-Net Control: Yes
  • Display: 2 x 8 LCD character display
  • RJ45 Connection: Yes In/Out
  • DMX Channels: 7 DMX Modes, (3, 4, 6, 8, 9, 15, or 54 Ch)
  • DMX Connections: 3-Pin In/Out
  • Built-In Programs: 14
  • Color Macros: 32
  • Dimming: Electronic 0-100%
  • Flicker Free: Yes
  • Refresh Rate: 1KHz
  • Shutter / Strobe: Yes
  • Strobe Rate: Adjustable
  • Sound Active: Yes
  • Light output: 816 LUX @ 2M; 238 LUX @ 4M (40-degree beam)
  • Power Connection: IEC AC In/out
  • Input Voltage: AC 100V-240V 50/60Hz
  • Power cable length: 1.8 meter (IEC)
  • Power Consumption: 98W (Full on)
  • Power Link: Up to 6 Ultra Kling Bar 18’s
  • Dimensions: (LxWxH) 43.5” x 3.25” x 4.5” / 1100 X 80 X 116mm
  • Weight: 13 lbs. / 6 kg.
  • ETL Approved

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ultra Kling Bar 18 User Manual Download
Ultra Kling Bar 18 User Manual Rev. 10/14 Download
