Saber Spot DTW

Compact spot fixture with a 15-Watt warm white LED, 20-degree beam, dim to warm effect, 3-pin DMX In/Out and powerCON In/Out. Compact spot fixture with a 15-Watt warm white LED, 20-degree beam, dim to warm effect, 3-pin DMX In/Out and powerCON In/Out. Compact spot fixture with a 15-Watt warm white LED, 20-degree beam, dim to warm effect, 3-pin DMX In/Out and powerCON In/Out. Compact spot fixture with a 15-Watt warm white LED, 20-degree beam, dim to warm effect, 3-pin DMX In/Out and powerCON In/Out.
SKU: SAB990 | UPC: 818651024708
Compact spot fixture with a 15-Watt warm white LED, 20-degree beam, dim to warm effect, 3-pin DMX In/Out and powerCON In/Out.
Advantage Points: 140

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $139.99

The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.



The Saber Spot DTW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Learn more about the Saber Spot DTW in this product spotlight article: CLICK HERE.

Specifications

Specifications

Optical:

• Light Source: 15-Watt Warm White LED

• LED Life Expectancy: 10,000 Hrs

• Beam Angle: 20-degrees

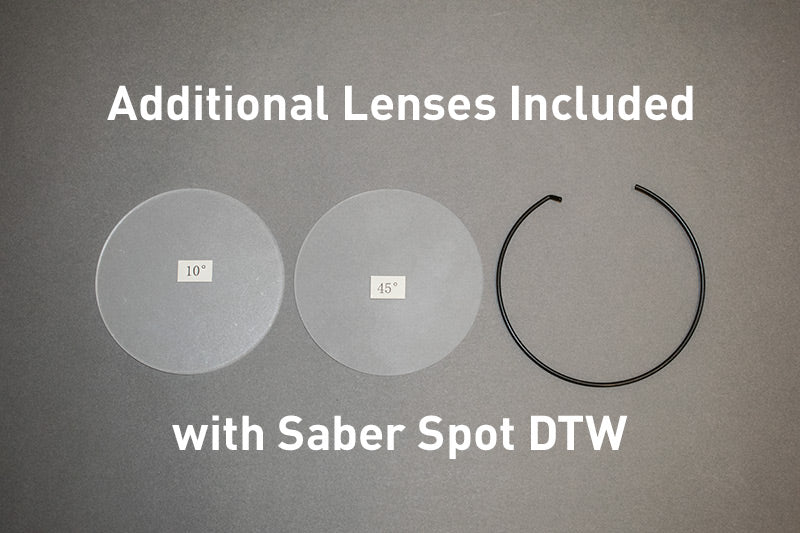

• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)

• Color Temperature (Full on): 3100K (Warm White); 1900K (Amber)

• LUX: 726 @ 3M

• CRI (Full on): 92



Control:

• 3 DMX Channel Modes: 1, 2 or 4

• 4-button Digital Display for easy navigation

• Electronic Dimming 0 – 100%

• 5 Dimming Curve modes

• Dim to warm effect with Amber LED

• Flicker Free (Refresh Rate: 3.6KHz)

• Variable Strobe: 1-20Hz

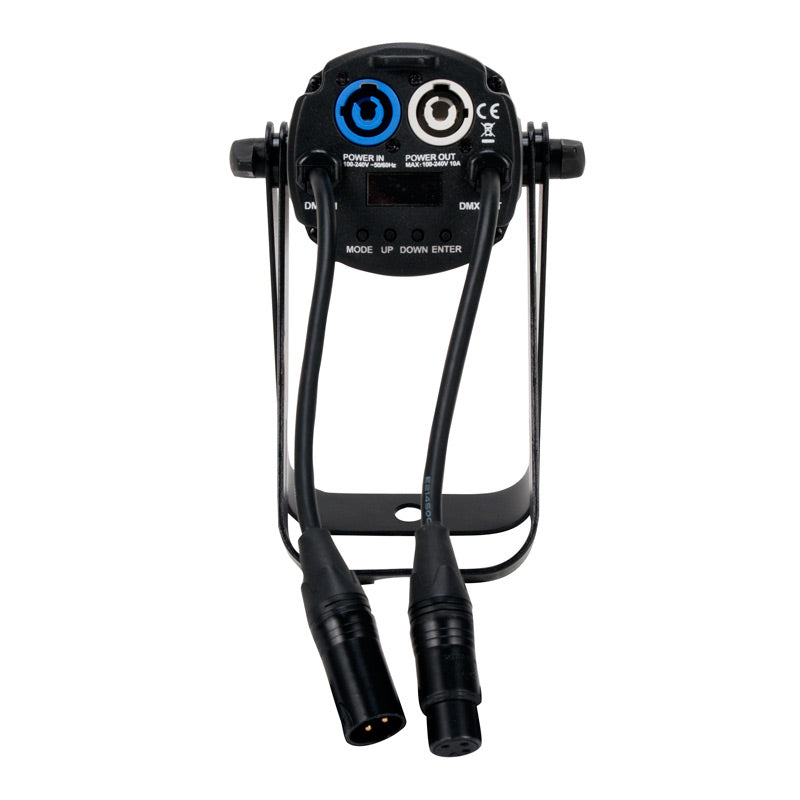

Connections:

• Power Input: powerCON

• Power Pass through: powerCON

• Daisy chain quantity: 33 fixtures (@120V); 71 fixtures (@230V)

• Control: 3-pin DMX In/Out pigtails
• With Wired Digital Communication Network



Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw 120V 60Hz: 15W, 0.13 Amps

• Power draw 220V 50Hz: 15W, 0.07 Amps

• Power Consumption: 24W



Physical:

• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm

• Weight: 2.6 lbs / 1.2 kg.

• Metal Black Housing



Certifications:

• ETL Pending, UL, CE

• IP 20: Dry area, No liquids


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Saber Spot DTW User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Saber Spot DTW
