Pinspot LED Quad

SKU: PIN001 | UPC: 819730010988
Advantage Points: 100

Where to Buy

Enter your zip code below to find this product at a retailer near you!



  •  LED Pinspot with 8-Watt Quad Color (4-IN-1- RGBW) LED
  •  1 operational mode (Without IR remote): Fade/Show Mode
  •  4 operational modes (Using IR remote): Fade Mode
  •   (with adjustable speed), 9 Show Modes, Static Color Mode, and Sound Active
  •  Dimming 0%-100% (In Static Color Mode only and Using the IR remote)
  •  Adjustable Strobing (In Static Color Mode only and Using the IR remote)
  •  Flicker Free
  •  Beam angle: 15-degree
  •  Includes hanging bracket
  •  Long Life LEDs (Rated at approximately 10,000 hrs.)

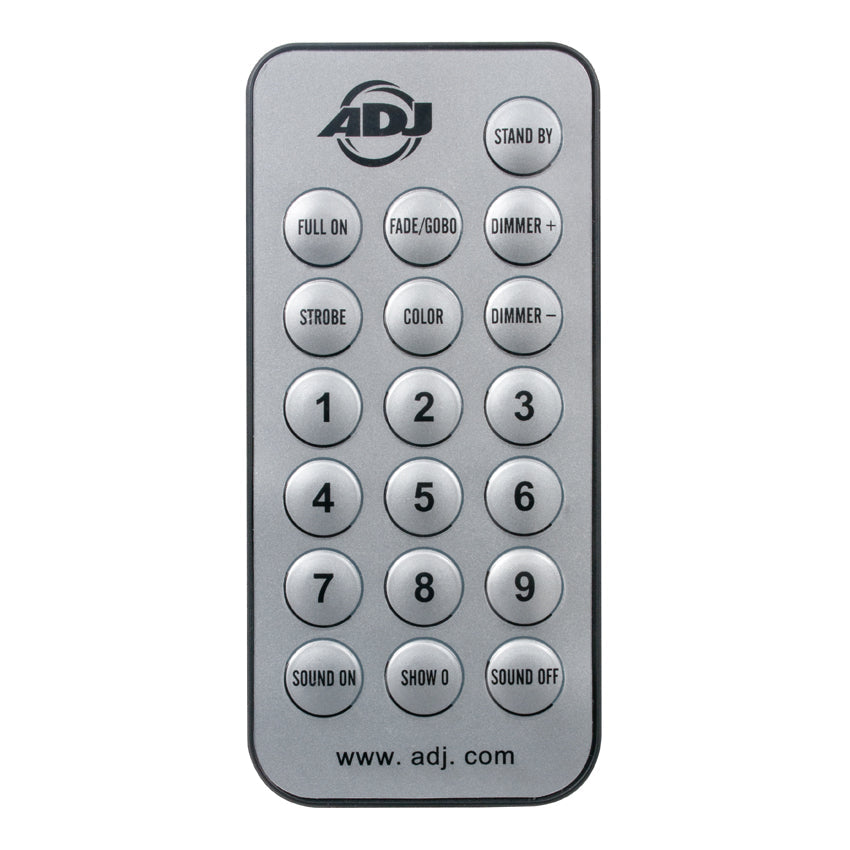

  •  Includes UC IR Remote control
  •  Light Source: 8W Quad (RGBW: 4-IN-1) LED
  •  Lux @ 1M: 740 Lux
  •  Power Consumption: 11.4W (Full On)
  •  Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  •  Dimensions (LxWxH): 7.25” x 4” x 2.5” / 184 x 99 x 61mm
  •  Weight: 1 lbs. / 0.5 kg.





The following downloads are available for this product:

Title Description
Pinspot LED Quad User Instructions Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can the pinspot led quad be controlled by dmx?

The PINSPOT QUAD LED is not a DMX unit. The PINSPOT LED Quad DMX is a DMX product. 2 dofferent items.

Are these indoor / outdoor rated? I would be using them on a covered outdoor patio but even with the cover, some water or spilled drinks may hit the unit.

Sorry, these are only designed for indoor use.
