Pinpoint Go TW

SKU: PIN606 | UPC: 819730014320
The ADJ PinPoint GO TW is a 3-Watt Cool White/Warm White/Amber 3-in-1 LED.

It produces a sharp 40-degree beam of light, and is designed to spot tables, decor, architecture or used for special effect lighting.
Advantage Points: 80

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

• Rechargeable battery powered, bright 3W Cool White/Warm White/Amber 3-in-1 LED Pinspot with 20-degree beam angle (40-degree with Frost Filter)
• Compact high-tech plastic case design
• Long-life LED: 50,000 hour LED life
• Refresh Rate: 1KHz
• Power consumption: 5W & 15W (When Battery Charging)

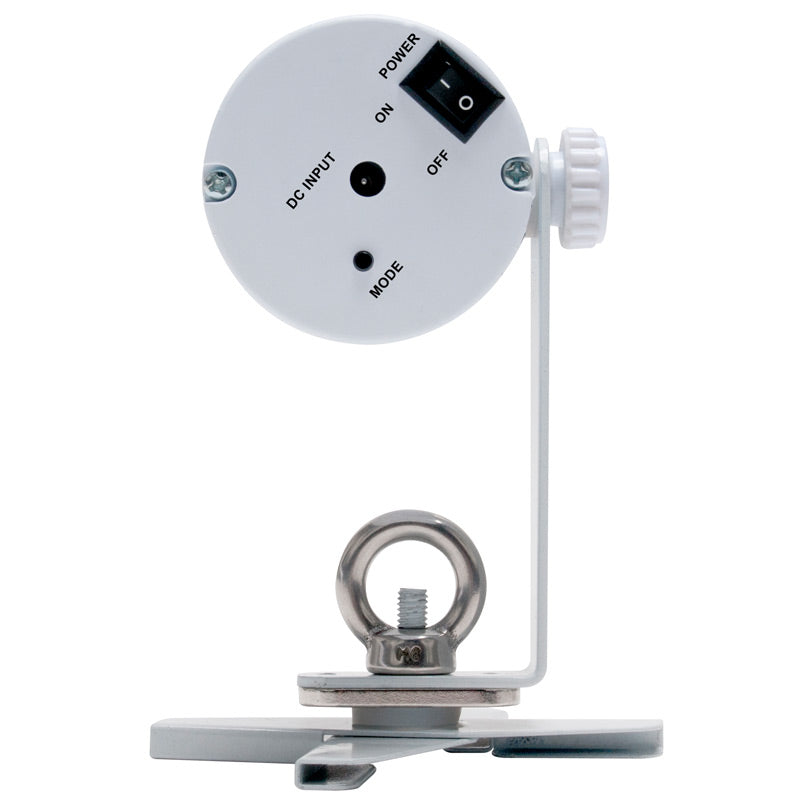

• Includes magnetic bracket for easy quick install on metal
• X-CLIP Bracket for drop ceiling frame mounting
• Includes Frost Filter
• Rechargeable battery included in fixture
• Includes Power Adapter (DC 13V 1A)
• Compatible with ADJ LED RC3 Remote Control (Sold Separately)
• Battery Charge Time: 4.5 Hours (With POWER switch off)
• Battery Life:
4 Hours (Full On)
7 Hours (In Energy Saving Mode w/ Full Charge)
• Dimensions (LxWxH): 7.25” x 3.5” x 3.75” / 183 x 92 x 95mm
• Weight: 1 lbs. / 0.44 kgs.

Battery Specifications
  • Battery Charge Time: 4.5 Hours (Load Switch Off)
  • Battery Life: 4 Hours Full On (Full Charge), 7 Hours in Energy Saving Mode (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 24.42WH (Watt Hours)
  • Battery Weight: 0.3lbs. / 0.14kg
  • Battery Voltage: 11.1V
  • Battery Capacity: 2.2AH
  • Total Lithium Ion Cells: 3pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper

Specifications subject to change without notice

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
PinPoint Go TW User Manual Download
PinPoint Go TW Photometrics Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Wondering if I could use the Pinpoint Go to make the ceiling at my wedding look starry. Would it work to put a pattern gobo in front of it somehow?

This is not a good solution since it is a very tight 20 Degree beam and will not cover a large area even with a GOBO in front of it. Now some of our LAser units do create a star pattern but in colors like green and red or green, not white.
