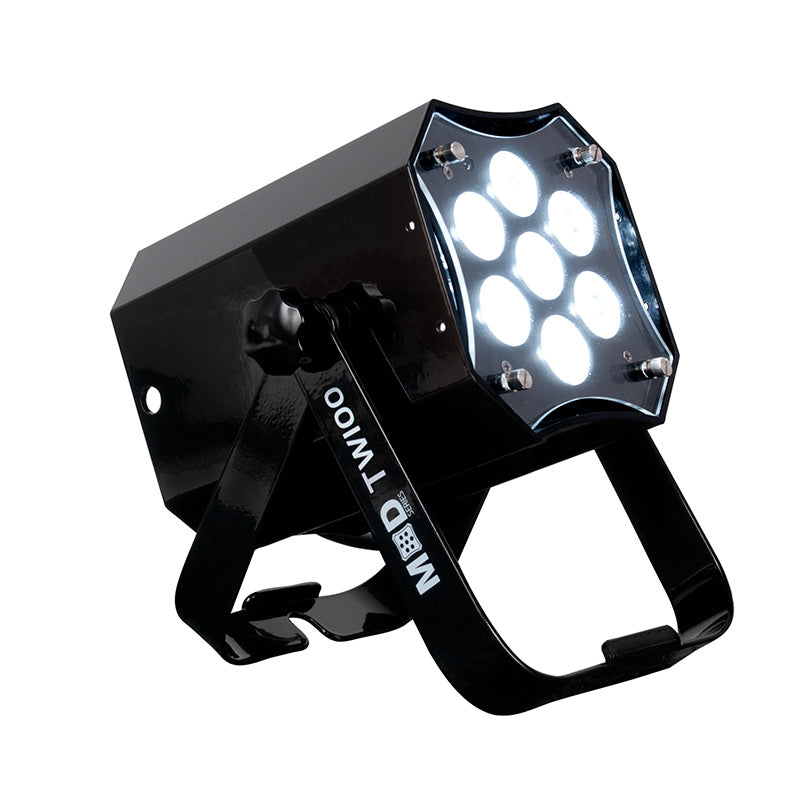

MOD TW100
Light Source:
• 7x 15-Watt CW/WW/WW/Amber (4-IN-1 – Cool White, Warm White, Warm White & Amber) LEDs
• 50,000 Hour Average LED Life
Features:

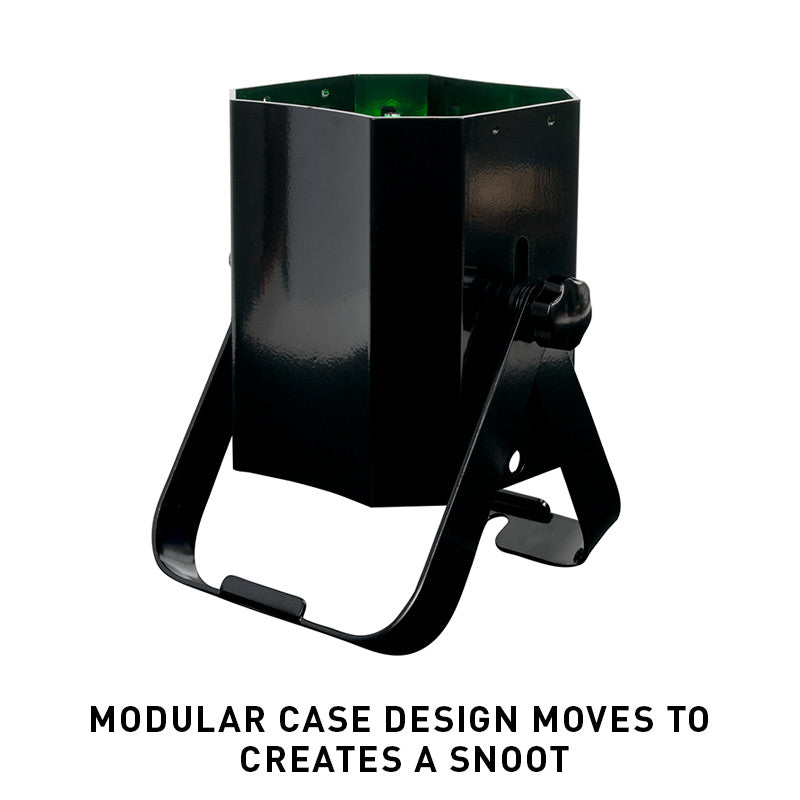

• Unique modular design: metal housing moves to offer a snoot to eliminate side glare
• Black, gloss metal house may be removed and replaced with pearl white housing kit (sold separately)

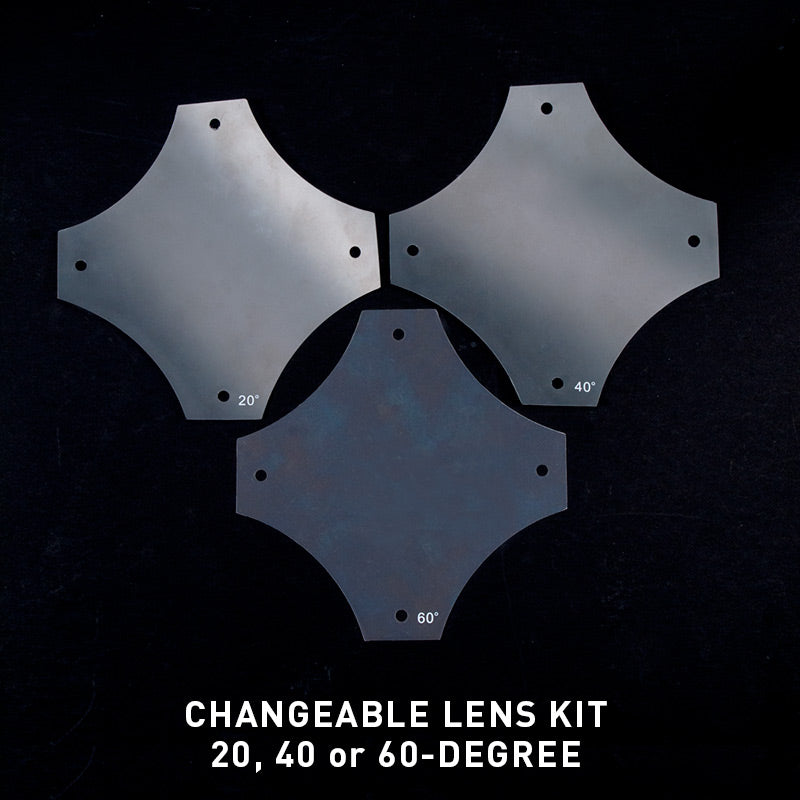

• Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
• Scissor yoke included
Output:
• Total Lumens: <2400
• LUX: 2973 @ 3M (9.8 ft.)
• CRI: 92 (Cool White); 97 (Warm White)
• Color Temperature: 6000K (Cool White); 2700K (Warm White)
• Beam angle: 17-degrees

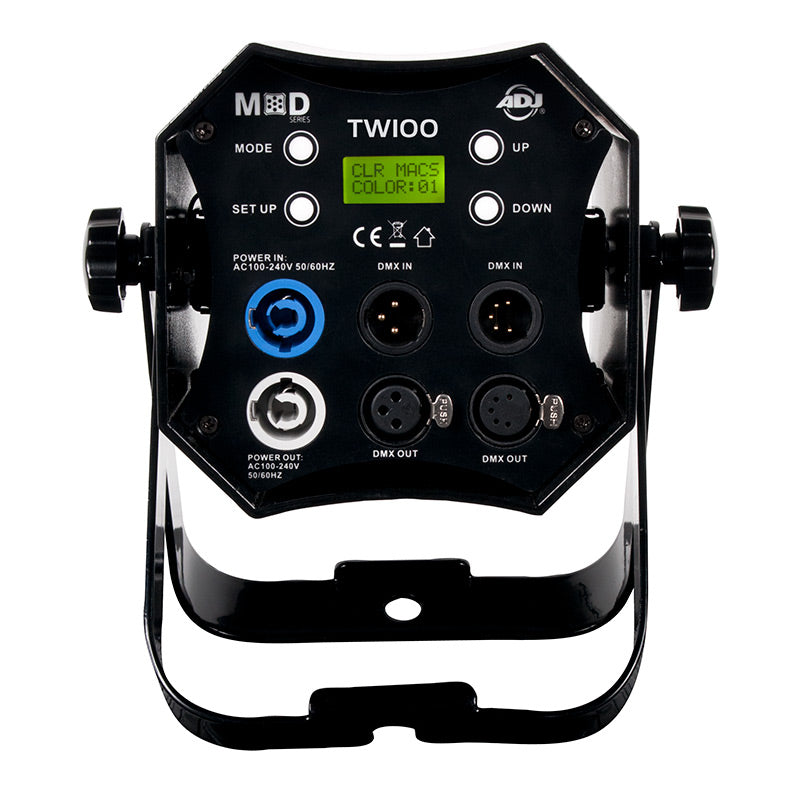

Connections:
• Power Input & Output: Locking Power Cable
• DMX: 3-pin & 5-pin In/Out
• With Wired Digital Communication Network
Control:
• UC IR wireless remote & Airstream IR compatible
• Control Channels: 6, 8, 11 or 12
• Built-in Color Macros
• 6 operational modes
• 4-button control menu with display
• Electronic Dimming: 0-100%
• Variable strobe control
Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Draw: 111W
Dimensions/Weight:
• Dimensions (LxWxH): 7” x 8” x 9.25” / 174 x 204 x 235mm
• Weight: 6 lbs. / 2.6 kg.
Accessories (sold separately):

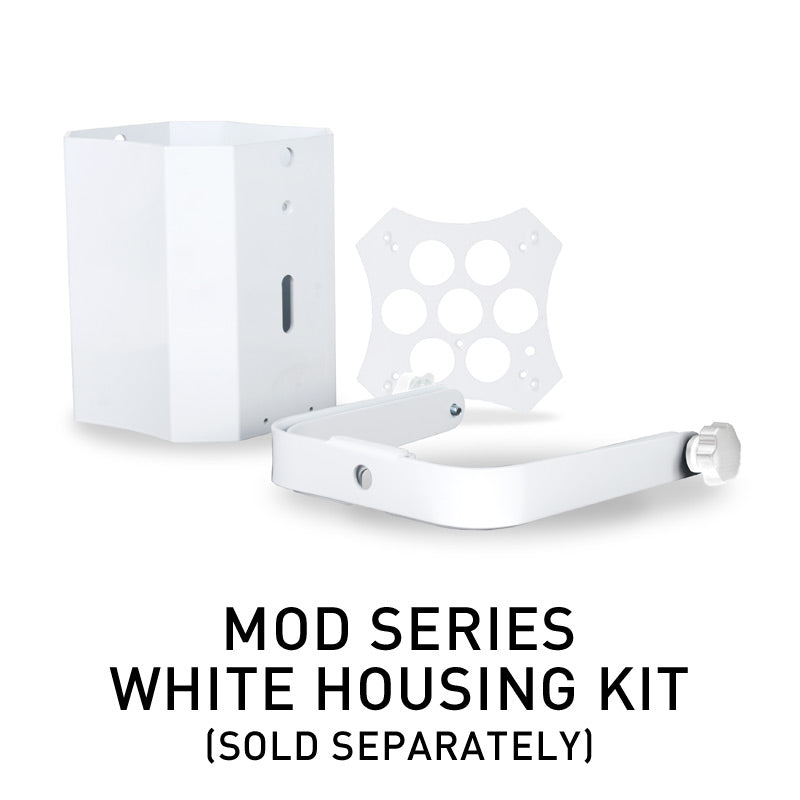

• Pearl white housing kit – white housing, scissor yoke with white knobs & front face plate
• Black metal Barn Doors
• UC IR wireless remote
Certifications:
• ETL Approved

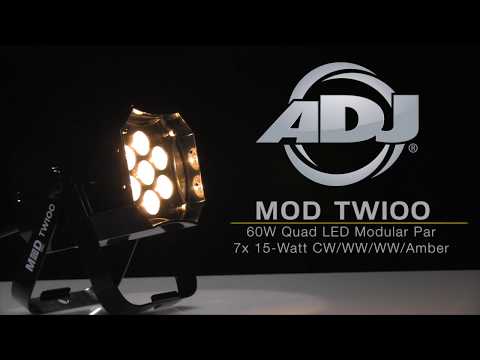

Videos
Downloads
The following downloads are available for this product:
Title | Description | |
---|---|---|
MOD TW100 Photometric IES Files 20º | Photometric IES Files | Download |
MOD TW100 Photometric IES Files 40º | Photometric IES Files | Download |
MOD TW100 Photometric IES Files 60º | Photometric IES Files | Download |
MOD TW100 Photometric Test Reports 20º | Photometric Test Reports | Download |
MOD TW100 Photometric Test Reports 40º | Photometric Test Reports | Download |
MOD TW100 Photometric Test Reports 60º | Photometric Test Reports | Download |
MOD TW100 Photometric IES Files | Photometric IES Files | Download |
MOD TW100 Photometrics Test Reports | Photometrics Test Reports | Download |
MOD TW100 User Manual | User Manual | Download |
MOD Series Brochure | MOD Series Brochure PDF file | Download |
Available now from ADJ USA • $374.99
The ADJ Lighting Modular Series LED Pars allow lighting designers more flexibility when it comes to features, plus more power to create brilliant washes for stages, installations or mobile events. The Mod Pars are “modular” in two ways. First, the body moves so that you can create a snoot to eliminate side glare if desired. Second, designers can remove the black metal housing and replace it with a pearl white housing kit. In this way, LED Par owners can switch between black or white fixtures depending on the application without having to inventory two different fixtures.
The MOD TW100 comes equipped with seven 15-Watt CW/WW/WW/AMBER (4-IN-1) LED diodes (for a total output of 105W), a scissor yoke and three interchange frost filters that are easily replaceable by thumb screws. The 17-degree standard beam may be changed on the fly to 20, 40 or 60-degrees.
