Mega Flat TRI Pak

(Discontinued)
SKU: MEG325 | UPC: 819730010667
In the Mega Flat TRI Pak you get everything a mobile entertainer needs to light up the stage or room. With the 4 wash fixtures included in the package, you will be able to cover your entire stage in whatever color you want.
Advantage Points: 500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

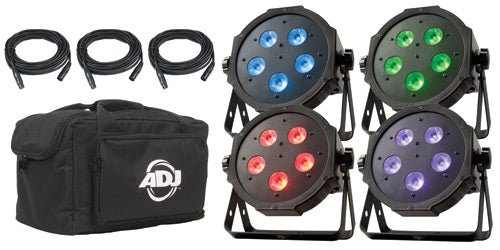

If you have ever needed an all-in-one solution to your lighting needs, the Mega Flat TRI Pak from ADJ is just for you. With Mega TRIPAR Profiles, DMX cables, and a carrying bag you have everything you need in one place. This package is perfect for the entertainer on the go, especially with the slim design of the Mega flat TRIPAR profiles.

Along with the slim design, the Mega TRIPAR Profiles are LED wash fixtures that put out vibrant RGB lighting. Perfect for up-lighting, stage washing, and wall washing. Included are 3 DMX connector cables so you can connect all 4 of them together. All of this equipment packs up nicely into the ADJ carrying bag that comes with the package. Additionally, there is a space for a small LED controller (controller sold separately).

So if you are that DJ on the go, or you need an all-in-one solution then look to the ADJ Mega Flat TRIPAR Pak.

Specifications

Specifications

  •  Ultra bright slim flat black Par with 5x 3-Watt, 3-IN-1 TRI LEDs (RGB) – casts no RGB shadows
  •  Smooth RGB Color Mixing (fast or slow color change operation)

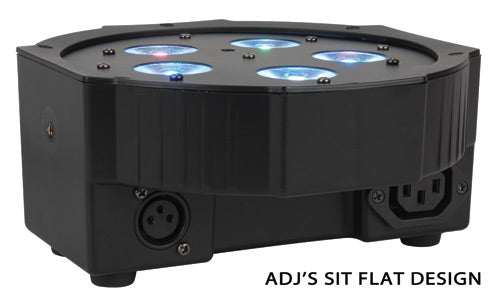

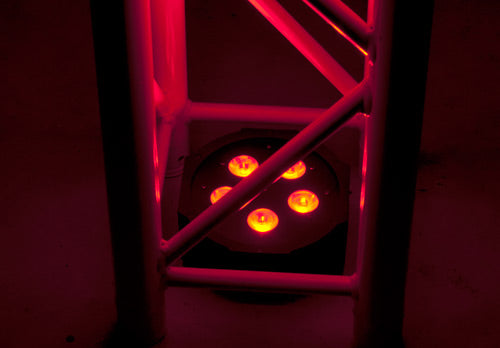

  •  Unique “sit-flat” design: Power & DMX Ins/Outs intelligently designed so the unit can be set flat on the ground or set inside truss
  •  Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  •  7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel modes
  •  5 Operational modes: Auto mode and sound active feature with built-in programs
  •  Digital DMX Display with 4-button menu for easy navigation
  •  Stand Alone or Master/Slave Configuration
  •  Beam Angle: 40 degrees
  •  32 built-in Color Macros
  •  DMX-512 protocol
  •  LED & Pulse strobe effect
  •  Linkable via 3-pin XLR cable
  •  Electronic Dimming: 0-100%
  •  Flicker Free
  •  Refresh Rate: 488Hz
  •  Dual scissor yoke allows fixture to be hung or set on the ground
  •  Long Life LEDs (50,000 hrs.)
  •  Power Draw: 16W (each fixture)
  •  IEC AC input and out put on the side of the fixture to daisy chain the power cords(link up to 33 fixtures)
  •  Compatible with ADJ LED RC wireless infrared remote control up to 30 ft./ 10M (sold separately)
  •  Multi-voltage operation: AC 100V-240V 50/60Hz
  •  Dimensions - Each Fixture (LxWxH): 9” x 8.75” x 3.5”/ 225 x 220 x 85mm;
  •  Bag (LxWxH): 16.75” x 9.5”x 9.25”/ 420 x 240 x 230mm
  •  System Weight: 16 lbs./ 7 kg

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Flat Tri Pak Cut Sheet Download
Mega Flat TRI Pak User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

What length of DMX cable comes with this kit?

The cables are 6' long.

I am controlling my Mega Flat Tri Pak with a DMX controller. In the past, when I switch the DMX controller off the lights default to sound activated mode (which is brilliant). Now the default program that comes on when I switch the DMX off is strobe. How do I set the default program back to sound activated mode when the DMX is switched off ?????

Hello DJ Reggie,

Make sure your light's are not in strobe mode. Here are the steps to take the light out of that mode. Plug the fixture in and press the MODE button until “CLXX” is dis- played. 2. There are 64 colors to choose from. Select your desired color by pressing the UP and DOWN buttons. After you have selected your desired color you can activate strobing by pressing the SET UP button to enter the Flash (strobe) mode. 3. “FS.XX” will be displayed, this is Flash mode. The Flash can be adjusted between “FS.00” (flash off) to “FS.15” (fastest flash). Let me know if this helps you out.

Thanks,
